Buy Stainless Steel Pipe Fittings

The listed industrial pipe and fitting products identify stainless steel A403 WP304/316. Small bore fittings are also available in stainless steel, although a specific grade is not provided for every configuration. When ordering, provide the required material specification and confirm compatibility with the process, pressure, temperature, and applicable engineering requirements.

Available fitting types include long- and short-radius elbows, concentric and eccentric reducers, equal and reducing tees, pipe caps, and crosses. Small bore options include elbows, tees, couplings, unions, reducers, caps, bushings, olets, and branch fittings. Availability varies by product configuration, material, size, and connection method.

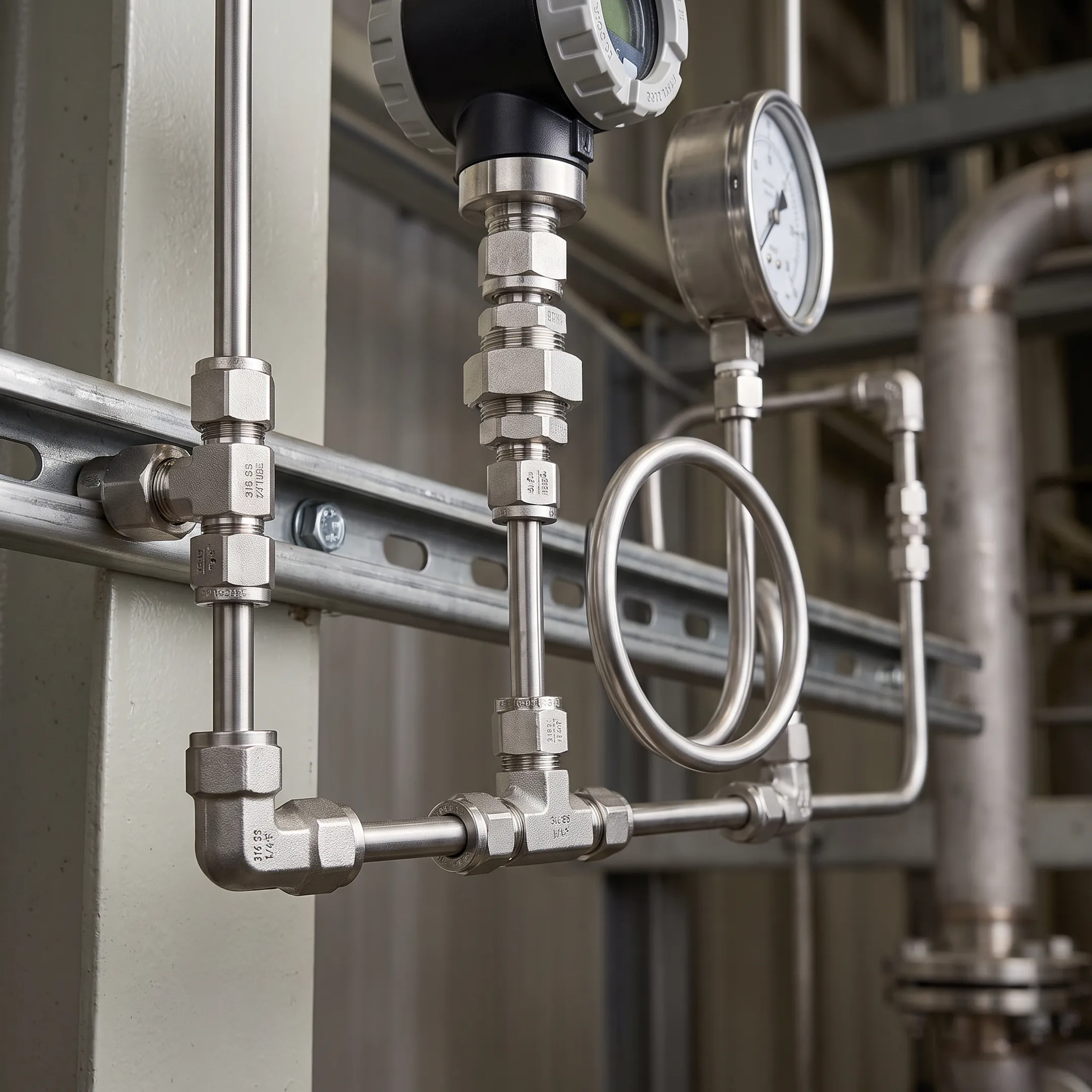

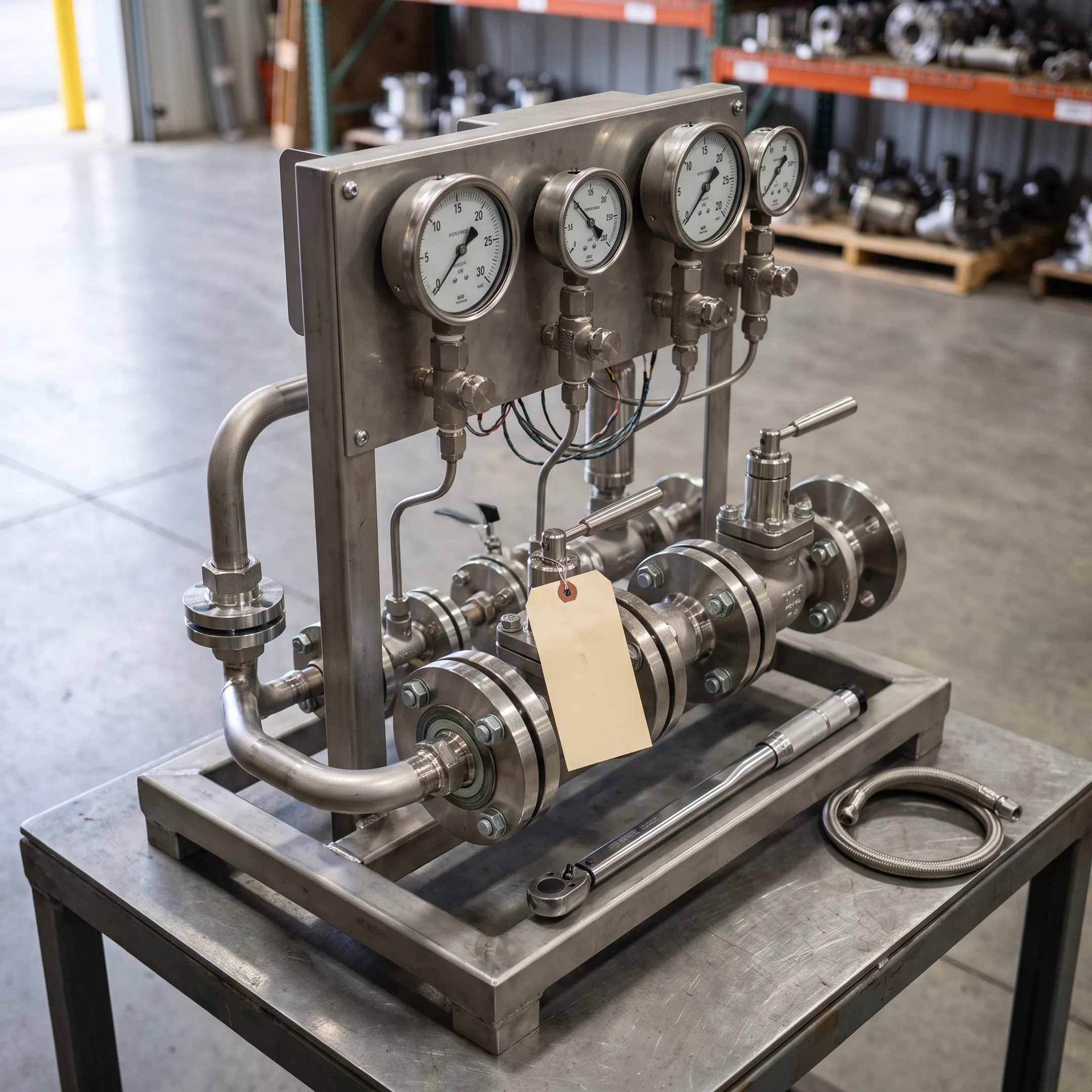

Yes. The small bore fitting range includes threaded and socket-weld configurations. These connection types support process piping, instrumentation systems, skid assemblies, and demanding industrial environments. Confirm the required connection, size, pressure class, material, and applicable standard so the selected fitting matches the piping design.

The product information references ASME B16.11 and MSS-SP-83 for small bore fittings. The broader industrial pipe and fitting range references ASME B16.9, ASME B16.28, and MSS-SP-75. Applicable requirements can vary by fitting type and project specification, so buyers should confirm the governing standard before placing an order.

Industrial pipe and fittings are listed in sizes from 2 inches through 72 inches, with wall thicknesses from SCH 10 through XXH. Small bore fittings are listed from ½ inch to 2 inches with pressure classes from 3000# to 6000#. Confirm the exact size, schedule, pressure class, and fitting type required for your application.

Start with the pipe size, wall thickness or schedule, connection type, fitting geometry, material grade, pressure class, and governing standard. Then consider the service application, including process piping, instrumentation, skid assemblies, or high-pressure industrial environments. Twinco Industrial can review these requirements and help identify a suitable product configuration.
