Introduction
Pick the wrong ball valve for an aggressive chemical, and the failure modes show up fast:
- Leakage past the seat
- A stem that won't turn under load
- Seals that swell and crack
- A body that pits from the inside out
Any of these can shut down a process line and turn a routine turnaround into an emergency repair.
The mistake is usually the same one: choosing a valve based on body material alone. "Stainless steel" or "corrosion-resistant" on a spec sheet doesn't tell you whether that valve will survive your fluid, concentration, temperature, and contaminants.
This guide covers how to match materials to the actual service, the corrosion mechanisms that damage ball valves, and what documentation to request before you approve a valve for corrosive duty.
Key Takeaways
- Review every wetted component for chemical compatibility, not just the valve body.
- Match stainless, plastics, linings, coatings, and alloys to their chemical, pressure, temperature, and wear limits.
- Treat pitting, crevice corrosion, galvanic attack, erosion, and seal degradation as separate failure modes.
- Approve valves only after full service data and material documentation are complete.
What Makes a Ball Valve Suitable for Corrosive Service?
Ball valves show up constantly in corrosive systems for practical reasons. The quarter-turn design gives quick, reliable shutoff. Fewer internal parts mean fewer places for chemical attack to start. And when the ball and seat stay in good contact, sealing performance stays consistent over thousands of cycles.

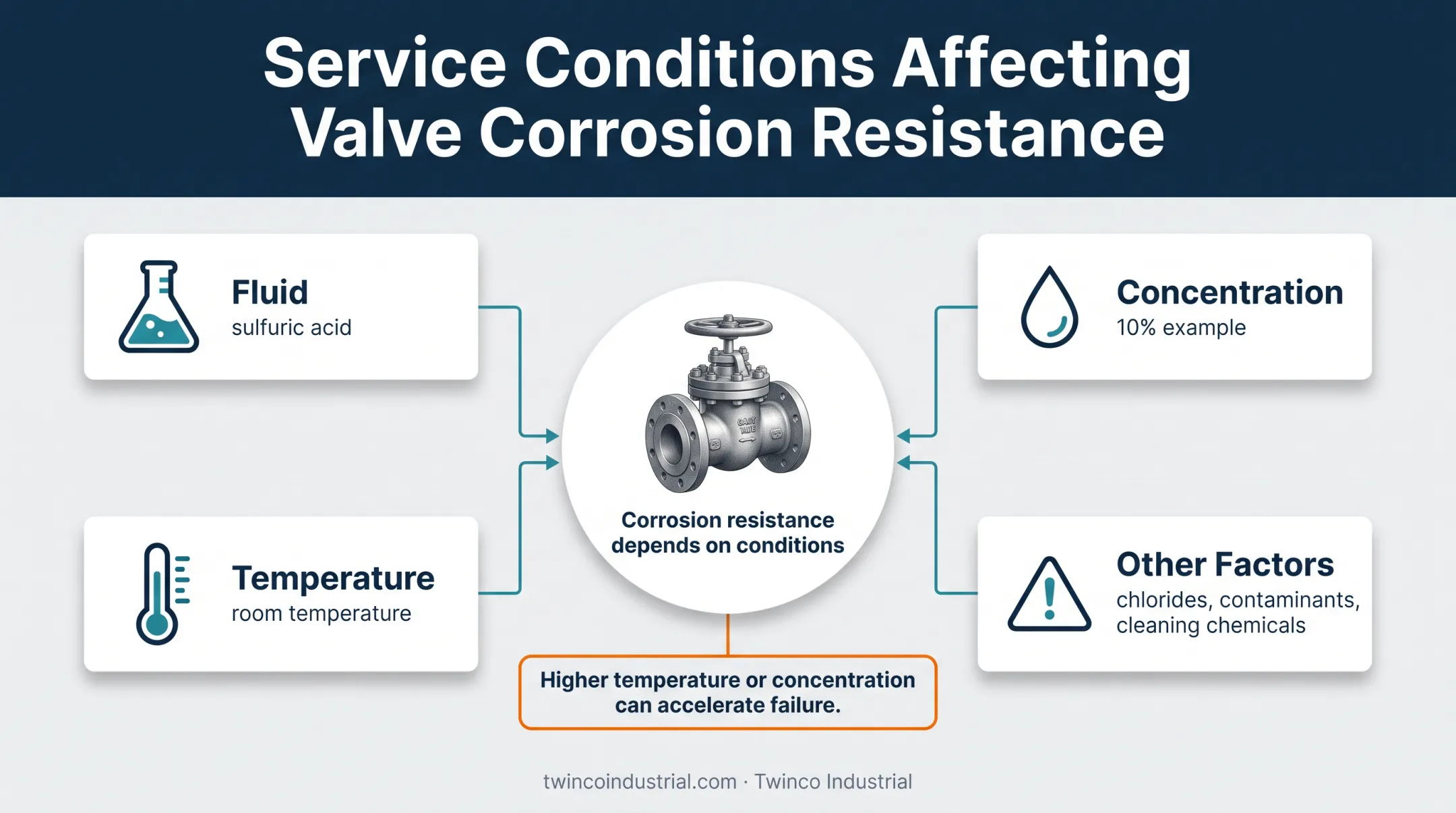

But "corrosion resistant" isn't a fixed label. It's a performance outcome tied to specific conditions. A valve that handles 10% sulfuric acid at room temperature can fail within weeks at a higher temperature or concentration. Chloride content, contaminants, and even the cleaning chemicals used between batches all shift the equation.
The Complete Material System
A ball valve isn't just a body and a ball. The full wetted material system includes:
- Pressure-containing body and end connections
- Ball and stem
- Seats and seat inserts
- Packing and stem seals
- O-rings and body gaskets
- Fasteners and bolting
- Any coating, plating, or liner
Every one of these needs its own chemical compatibility check. A body rated for your process chemical doesn't help much if the O-ring swells and fails within six months.
Isolation Duty, Not Continuous Throttling
Ball valves are generally built for isolation: fully open or fully closed. Standard designs used for prolonged throttling, high-velocity flow, or abrasive slurries wear unevenly at the seat. That localized wear exposes fresh metal to chemical attack faster than uniform corrosion would.
If your application calls for regular partial-open operation, specify a valve rated for throttling service. Isolation-rated versus throttling-rated construction makes a real difference in seat life.
Twinco's valve specialists work pipeline and petrochemical accounts daily and help match duty cycle to the right construction.

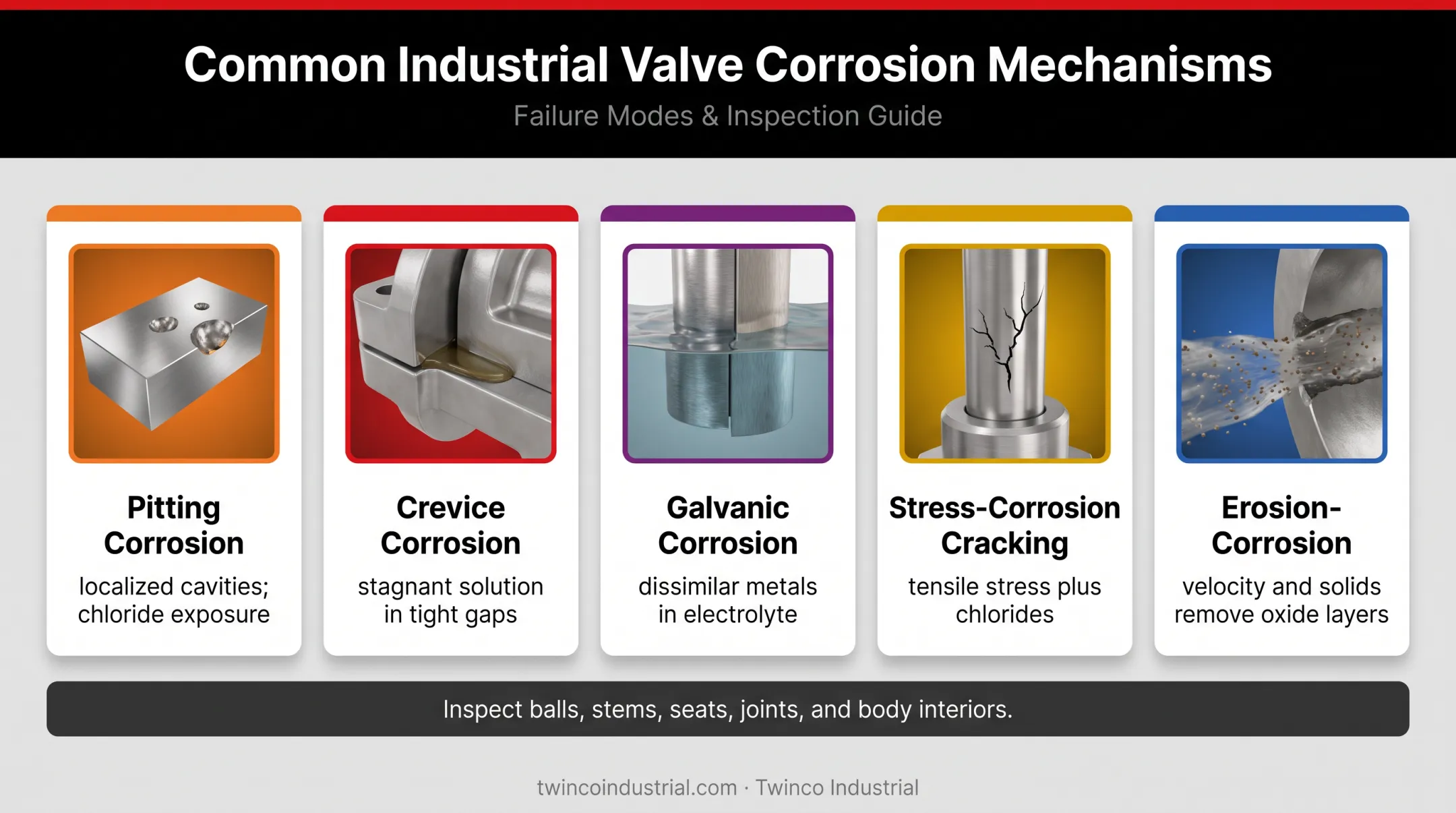

Common Corrosion Mechanisms and Failure Risks
Not all corrosion looks the same, and knowing which mechanism you're dealing with changes what you inspect and where.
Pitting corrosion creates small, localized cavities that can eat through the full wall with very little overall metal loss. It's notoriously hard to spot during a routine visual check and tends to show up on balls, stems, and body interiors exposed to chlorides.
Crevice corrosion occurs in tight, stagnant gaps such as gasket faces, seat pockets, threaded connections, and under deposits. According to AMPP's forms of corrosion reference, stagnant solution trapped in those geometries drives the attack, including the internal joints of a split-body ball valve.
Galvanic corrosion happens when dissimilar metals sit in contact within a corrosive electrolyte. The less noble metal corrodes faster. Watch for this at ball-to-stem interfaces, mismatched bolting, or anywhere a coating has chipped and exposed base metal next to another alloy.
Stress-corrosion cracking combines tensile stress with a corrosive environment. AMPP specifically cites stainless steel valve stems as a real-world example: a part already under load from packing torque, sitting in a chloride-bearing fluid.
Erosion-corrosion shows up where high velocity, suspended solids, or turbulence physically wear away protective oxide layers, exposing fresh metal to renewed chemical attack. Partially open ball valves are especially vulnerable, since flow accelerates and turns turbulent right at the seat edge.
Each of these mechanisms leaves clues if you know where to look during routine service.
Warning Signs During Maintenance
- Increasing torque required to operate the valve
- Visible pitting or discoloration on the ball or stem
- Failed seat or shell leakage tests
- Weeping at body joints or stem packing
Catching any of these early is cheaper than dealing with a stuck valve mid-shutdown.
How to Select Materials and Components for Chemical Resistance
Material selection starts with data, not guesswork. Before anyone recommends a valve, collect:
- Exact fluid or mixture composition and concentration range
- pH, chloride/halide content, and other contaminants
- Water content and dissolved gases
- Cleaning chemicals used between runs
- Normal and maximum temperature
- Operating, design, and differential pressure
- Flow velocity and suspended solids
- Cycling frequency and external environment
Skip any of these and you're guessing.
Stainless Steel: 304 vs. 316 vs. 316L
These three grades get confused constantly, and the differences matter:
| Grade | Key Trait | Limitation |
|---|---|---|
| 304 | General-purpose 18% Cr, 8% Ni austenitic stainless | Vulnerable to pitting/crevice corrosion in chloride environments |
| 316 | Adds molybdenum for better chloride and pitting resistance | Still susceptible to chloride stress-corrosion cracking |
| 316L | Low-carbon version of 316, resists intergranular corrosion after welding | Same chloride cracking exposure as 316 at elevated temperature |
316 and 316L improve on 304 in chloride service, but they aren't universal fixes. Cleveland-Cliffs' 316/316L product data lists a specific limitation: good resistance to sulfuric acid only up to roughly 60°C (140°F) and below 5% concentration. Push past that concentration or temperature, and 316/316L can corrode uniformly or pit.
Hydrochloric acid causes problems for these grades even at low concentrations. If your process runs hotter, more concentrated, or combines chlorides with tensile stress, a higher-alloy material may be the safer call.
Thermoplastics and Linings
Nonmetallic materials solve different problems than metals do:
- PTFE is chemically inert across a wide temperature range, though raw PTFE can cold-flow under sustained pressure and lose long-term permeation resistance.
- PFA is a fully fluorinated, melt-processible fluoropolymer with lower porosity than PTFE and usable performance up to roughly 150°C (300°F) in typical service, per Chemline's chemical resistance guide.
- PVDF handles halogens, strong acids, and organic solvents well, but hot alkaline solutions attack it.
- PVC resists many acids and alkalis yet fails against chlorinated hydrocarbons, ketones, and some aromatics; keep temperatures modest.
- CPVC shares PVC’s chemistry with a meaningfully higher working-temperature ceiling.
These figures come from lab testing under specific conditions. Verify the manufacturer's data against your actual concentration, mixture, and pressure before assuming a material will hold.
Coatings: A Component-Level Decision
Coatings and plated surfaces can extend service life against wear and localized chemical attack, but a coating is only as good as its adhesion, continuity, and compatibility with the substrate underneath. Before accepting a coated ball or seat, confirm:
- Coating thickness and porosity
- Adhesion to the substrate under thermal cycling
- Whether the coating changes ball-to-seat fit or sealing geometry
- Inspection method for detecting damage or delamination
Build a Component Checklist
Don't sign off on a valve until every wetted part has a documented material and a compatibility check against your service conditions:
- Body and end connections
- Ball
- Stem
- Seats and seat inserts
- Packing
- O-rings and gaskets
- Liner (if used)
- Coating (if used)
A compatible body doesn't make an incompatible seat acceptable, and in practice, it's the seat that usually fails first.
Where Corrosion-Resistant Ball Valves Are Used
Corrosive service shows up across a wide range of industrial settings, and each one puts different demands on valve materials, ratings, and duty cycle.
Chemical processing and petrochemical plants handle acids, alkalis, solvents, and chlorine-containing media routinely. Concentration and temperature shift by batch and by process step, so the same line might need re-verification after a formulation change or a cleaning cycle using different chemicals.
Pipeline, refinery, and power-generation systems need corrosion resistance balanced against pressure rating, shutoff reliability, and how often the valve actually cycles. A valve that sits open for months and closes only during an emergency has different wear expectations than one cycling daily.
Water treatment and general industrial maintenance often deal with lower concentrations but still face chlorides, biological fouling, and cleaning chemicals that can be just as aggressive as process fluids.
Testing, shutdowns, and turnarounds bring temporary chemical exposure that normal operation may never see. Hydrostatic testing, chemical cleaning, and stagnant conditions during a shutdown can put a valve in contact with fluids outside its everyday service.

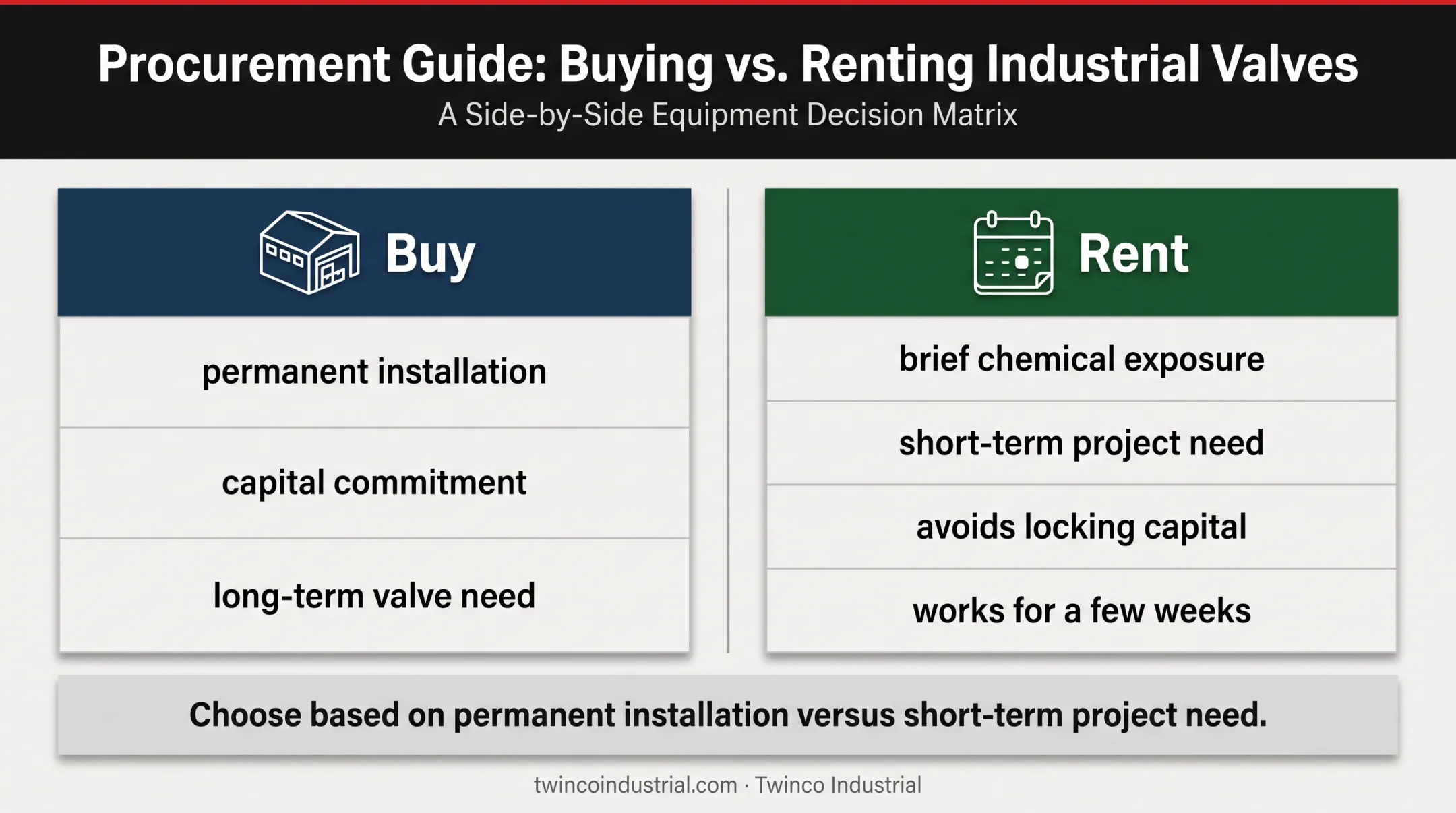

That gap between permanent installation and short-term project need drives the buy-versus-rent decision. A rental approach covers brief exposure without locking capital into a valve that only works a few weeks—support Twinco provides for hydrostatic testing and turnaround schedules.
Specify, Verify, and Source the Right Ball Valve
Getting the right valve starts with a complete RFQ, not a one-line spec.
RFQ Checklist
Include all of the following when requesting a quote:
- Fluid composition, concentration, and contaminants
- Temperature range and pressure, including differential pressure
- Solids content and flow velocity
- Operating frequency and any throttling exposure
- Cleaning chemicals used on the line
- External environment, such as weather exposure or insulation
- Valve size, connection type, and pressure class
- Required actuation type
What to Require From the Supplier
Ask for the complete material package, not a generic label. List each of the following individually rather than summarizing as "stainless steel" or "corrosion-resistant":
- Body, ball, and stem
- Seats, packing, gaskets, and O-rings
- Lining, coating, and surface finish
Then request evidence:
- Condition-matched chemical compatibility data
- Assembled pressure-temperature limits for the specific design
- Material test certificates with heat-number traceability
- Positive material identification where the application calls for it
- Coating or lining inspection records
- Shell, seat, and functional test results
A Practical Decision Framework
Once the data comes in, sort the valve into one of three categories:
- Fit: Service conditions and the complete assembly are supported by documented evidence.
- Review: Localized corrosion risk, soft-goods compatibility, coatings, or unusual conditions need further confirmation before approval.
- Insufficient Data: Key service or component information is still missing, so approval should wait.
Once your service data and specifications are locked in, sourcing becomes the next hurdle—especially on tight project timelines.
Twinco Industrial's Houston-based team helps customers source ball valves alongside the flanges, fittings, gaskets, bolting, and pipe that go with them. That includes specialty or time-sensitive needs for pipeline, petrochemical, and turnaround projects.
Final valve model, certification, and compatibility confirmation still depend on your specific product-level documentation.
Frequently Asked Questions
What type of valves are used for corrosive systems?
Ball valves, diaphragm valves, lined valves, thermoplastics, and selected alloys can work depending on chemical, pressure, temperature, solids, and isolation vs. control needs. Verify material compatibility for the full assembly, not just the body.
What material is best for a corrosion-resistant ball valve?
There's no single best material. Stainless steel, higher alloys, thermoplastics, linings, coatings, and seal materials all perform differently depending on your actual fluid, concentration, and temperature.
Is 316 stainless steel suitable for all corrosive chemicals?
No. 316 improves chloride and pitting resistance over 304, but it remains vulnerable to certain acids, chlorides at elevated temperature, crevice geometries, and specific contaminants.
Do the valve seats and seals need separate chemical compatibility testing?
Yes. Seats, packing, O-rings, and gaskets frequently fail before the body does, and each needs review against the exact chemical, temperature, pressure, and cleaning conditions.
Can a coating make a standard ball valve suitable for corrosive service?
Coatings can improve wear and corrosion protection, but they don't automatically fix an incompatible substrate, seat, seal, or liner. Request coating-specific evidence and inspection records before relying on one.
What information should I provide when requesting a corrosion-resistant ball valve quote?
Provide the fluid, concentration, temperature, pressure and differential pressure, contaminants, solids, flow conditions, cycling frequency, connection requirements, complete material package, and documentation and testing expectations.
