Introduction
A fire in a process unit doesn't just threaten equipment. It threatens the piping system's ability to isolate flow before a small leak becomes a much bigger event. If a valve's seat or seal fails under heat, flammable liquid or gas keeps feeding the fire.
That's the exact problem API 607 addresses. In plain terms, an API 607 fire safe ball valve is a quarter-turn valve that has been tested against a defined fire sequence and shown to limit leakage while retaining its ability to shut off flow.
This guide covers what API 607 actually tests, how the fire sequence works, which design features matter, how it compares to related standards, and what documentation to request before you buy.
Key Takeaways
- "Fire safe" means verified performance under a specific test, not immunity from fire damage.
- Confirm API 607 edition and scope—coverage is for soft-seated quarter-turn valves, not every valve type.
- Judge fire-safe performance by seat design, stem packing, body construction, and secondary metal sealing together.
- Always match the certificate to the exact size, pressure class, and materials you're ordering.
What Is an API 607 Fire Safe Ball Valve?
An API 607 fire safe ball valve is a quarter-turn valve with nonmetallic seats that has passed the API 607 fire test. That test confirms the valve can limit leakage and remain operable during and after a controlled fire exposure.
How a Ball Valve Works
A ball valve uses a rotating ball with a bore through its center to start, stop, or isolate flow. Turn the handle a quarter turn, and the bore either aligns with the pipe or blocks it completely. That quick, positive shutoff is why ball valves show up constantly in process and hydrocarbon piping.
Fire Safe vs. Fireproof vs. High-Temperature
These terms get used loosely, and that's a problem when you're specifying valves for hazardous service:
- Fire safe means the valve passed a specific fire test with documented leakage limits and post-fire operability.
- Fireproof isn't a recognized API 607 classification. Treating it as a synonym for fire-tested is inaccurate.
- High-temperature rated describes a material's continuous service capability. It's not evidence of fire-test qualification.
API 607's Actual Scope
The current edition is API Std 607, Eighth Edition (October 2022), titled Fire Test for Quarter-turn Valves and Valves Equipped with Nonmetallic Seats. Its stated scope is confirming the pressure-containing capability of quarter-turn valves with nonmetallic seats during and after a controlled fire exposure.
A few clarifications:
- API 607 covers the valve body itself, plus manually operated gearboxes where they're part of the design.
- Electrical, pneumatic, and hydraulic actuators generally fall outside its testing scope and may need separate fire protection.
- The standard doesn't claim the valve is unaffected by fire. It confirms the tested construction met defined leakage and function limits.
Soft seats, packing, and gaskets are the components most likely to degrade under heat. A well-designed fire safe valve limits how much media escapes if that degradation happens.
Even so, the valve is only one layer in a broader fire-protection strategy that includes detection, isolation valves, and emergency shutdown systems.
How API 607 Fire Testing Works

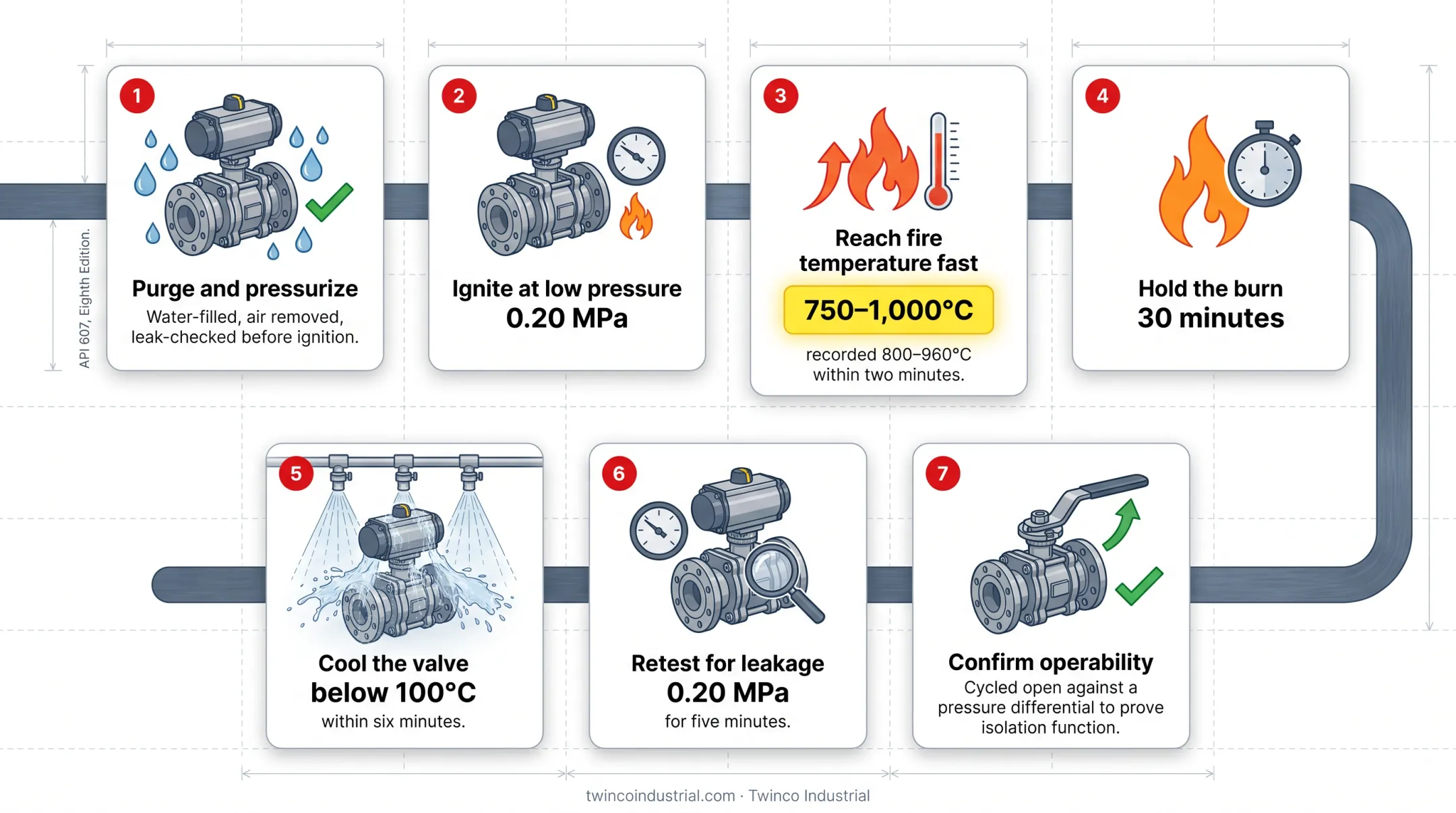

The Test Sequence
Manufacturer test reports citing the current API 607 edition follow a fairly consistent sequence. One documented example, a report covering a fire safe ball valve tested against the Eighth Edition, ran the following steps:
- Purge and pressurize. Fill the test system with water, remove air, and check for leakage before ignition.
- Ignite at low pressure. The test in this report set an initial pressure of 0.20 MPa before lighting the fire.
- Reach fire temperature fast. Flame temperature climbed to at least 750°C within two minutes, with the report's cited range running 750–1,000°C (actual recorded range: 800–960°C).
- Hold the burn. Fire exposure continued for 30 minutes while pressure and temperature were logged.
- Cool the valve. Shower nozzles brought the valve below 100°C within six minutes.
- Retest for leakage. A post-cooling leakage check ran at 0.20 MPa for five minutes.
- Confirm operability. The valve was cycled open against a pressure differential to prove it could still perform its isolation function.
What the Numbers Actually Look Like
Leakage limits vary by valve size. During the burn in the cited report, limit-vs-actual results were:
| Valve Size | Through-Seat Limit | Actual Through-Seat | External Limit | Actual External |
|---|---|---|---|---|
| 2-inch | 200 mL/min | 38 mL/min | 50 mL/min | 14 mL/min |
| 8-inch | 800 mL/min | 12 mL/min | 200 mL/min | 0 mL/min |
Those figures are specific to that report's size and configuration. Don't apply them as universal thresholds. Always check Table 1 in the current API 607 edition and the exact certificate for your valve.
Why Post-Fire Testing Matters
A valve can look intact right after the flame goes out and still fail the post-cooling test. Thermal distortion, seat charring, and stem seal damage don't always show up until the valve is cycled and pressurized again. That's the entire point of steps six and seven above.
One more thing to flag: a certificate covers the exact valve tested, meaning size, pressure class, seat material, and configuration. It doesn't automatically extend to every size or trim option in a manufacturer's catalog. Request a manufacturer's certificate, an independent lab report, or other traceable documentation before you accept a "fire safe" label at face value.

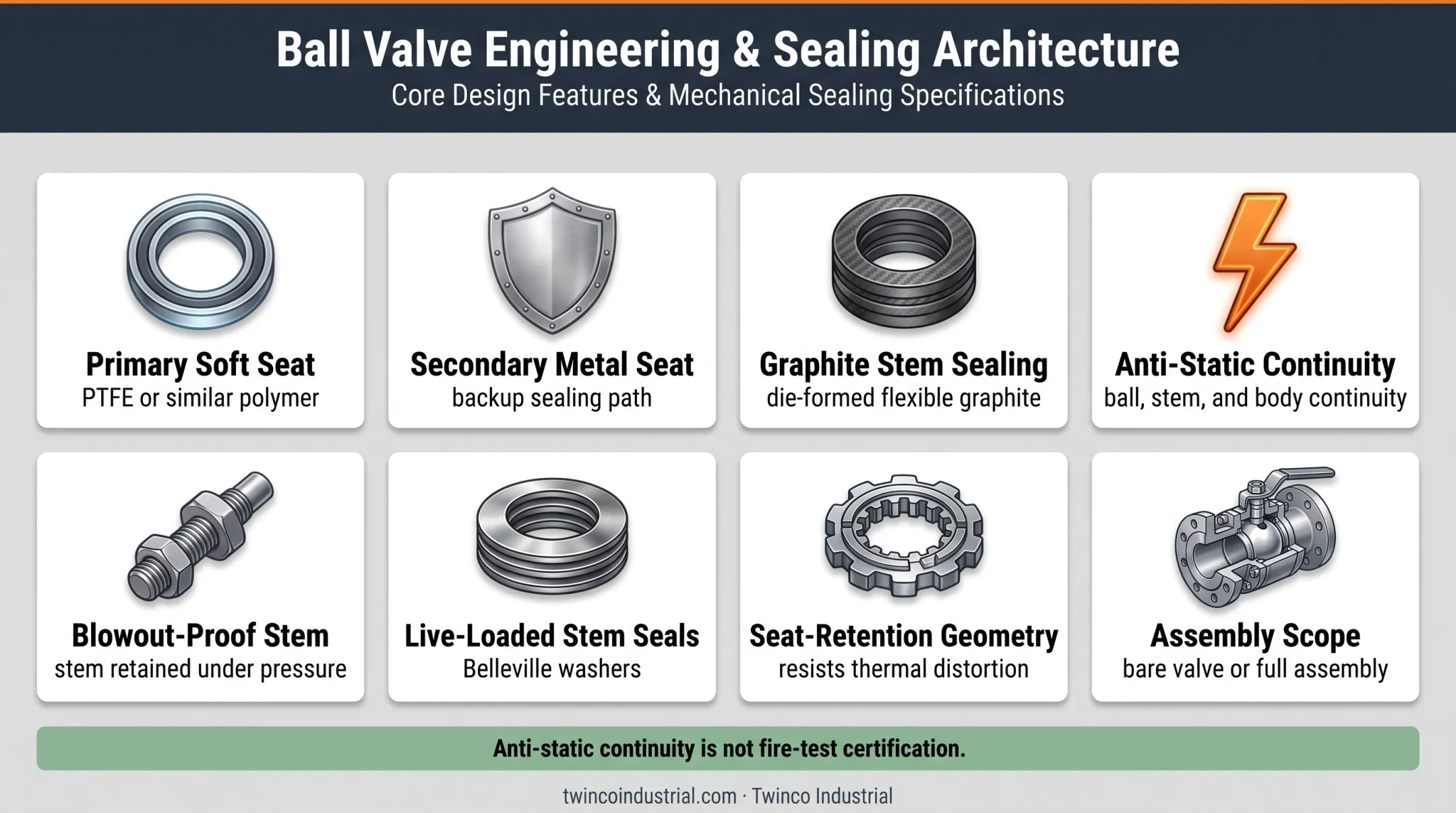

Design Features That Support Fire-Safe Ball-Valve Performance
Primary and Secondary Sealing
Most fire-safe ball valve designs rely on two layers of protection:
- A primary soft seat (often PTFE or a similar polymer) provides the main seal under normal operating conditions.
- A secondary metal-to-metal seat built into the body engages if the soft seat burns away, giving the valve a backup sealing path.
One documented FS50-style construction uses exactly this approach, pairing primary seats with a secondary metal seat designed to maintain shutoff if the primary material is destroyed by heat.
Packing and Anti-Static Features
Fire-resistant stem sealing typically uses die-formed flexible graphite, sometimes paired with a stainless-steel/graphite body gasket. Graphite handles heat well, but still verify pressure, temperature, chemical compatibility, and fugitive-emissions requirements before you specify it.
Anti-static provisions are a separate consideration. These features create electrical continuity between the ball, stem, and body, which matters when flammable media could generate a static discharge. Anti-static continuity is not the same thing as fire-test certification — the two address different risks.
Other construction details worth checking:
- Blowout-proof stem design
- Live-loaded stem seals (often using Belleville washers)
- Seat-retention geometry that resists thermal distortion
Port Configuration and Assembly Scope
Full-port and reduced-port valves differ in flow capacity, pressure drop, and sizing, but bore configuration alone doesn't establish fire-safe qualification. That comes from the test, not the port style.
Also confirm whether certification covers the bare valve only, or the full assembly—including actuator, stem extension, and limit switches. Twinco stocks ball valves in carbon steel, stainless steel, brass, and alloy materials across common sizes and pressure classes; always match the fire-test certificate to the exact configuration you order.
Related Standards and How to Specify the Right Valve
API 607 vs. API 6FA vs. ISO 10497
These three standards get lumped together often, but they don't cover the same territory.
| Standard | Scope | Applies To |
|---|---|---|
| API 607 (8th Ed., 2022) | Fire test for quarter-turn valves with nonmetallic seats | Ball, plug, and butterfly valves with soft seats |
| API 6FA (6th Ed., 2026) | Fire testing for pressure-containing/controlling performance | API 6A and API 6D valves |
| ISO 10497:2022 | Fire type-testing for soft- and metal-seated isolation valves | Valves with one or more obturators |
ISO 10497:2022 specifically excludes non-manual actuator testing from its stated scope, similar to API 607's actuator exclusions. Don't substitute one standard for another without checking which one the project specification actually calls for.
Specification Checklist
Before you request a quote, gather:
- Nominal size and pressure class
- Body, trim, seat, and packing materials
- Fluid composition and operating temperature/pressure
- End connections and actuation type
- Fugitive-emissions requirements (if applicable)
- Required documentation: API 607 edition, test report number, qualified size/class range

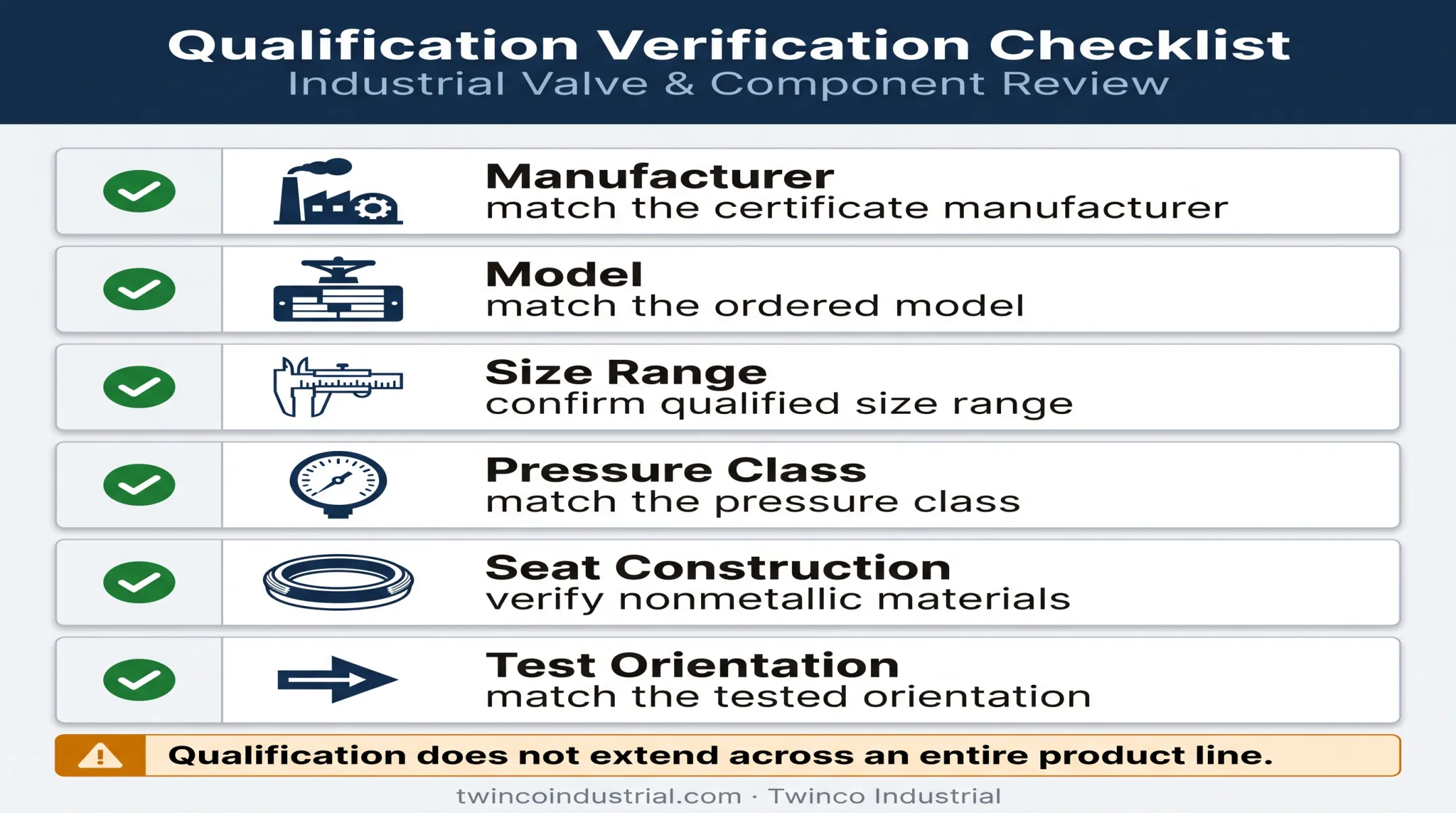

When a certificate arrives, match it against the manufacturer, model, size range, pressure class, seat construction, and test orientation of what you're ordering. Certificates typically state that qualification extends only to similar valves of the same basic design and nonmetallic materials, not the manufacturer's entire product line.
Also confirm the valve fits your piping code, owner specification, hazardous-area classification, and any project-specific inspection plan.
Whether you need the valve itself or the flanges, gaskets, and bolting around it, Twinco Industrial can confirm API 607 documentation and current availability against your exact spec before an order goes out.
Where API 607 Fire Safe Ball Valves Are Used and What Buyers Should Check
Fire safe ball valves are specified wherever flammable or hazardous media moves through process piping:
- Refineries and petrochemical processing units
- Pipeline systems, tank farms, and terminals
- Chemical processing facilities
- Power-generation piping
- Maintenance and turnaround projects
Balancing Certification With Operational Reality
Certification is only part of the buying decision. Procurement teams also need to weigh:
- Delivery schedule against turnaround or shutdown windows
- Replacement compatibility with existing installed valves
- Material traceability documentation
- Spare parts availability
- Long-term maintenance requirements
Rush Procurement: What to Gather First
When a valve fails mid-shutdown, gather these details before you request a quote:
- Line size and pressure class
- Fluid type and operating temperature
- End connection style
- Actuation method
- Seat material
- Required standard (API 607, API 6FA, or ISO 10497)
Skipping this step is how plants end up with a valve that arrives fast but doesn't fit the service. And remember: a certified valve can't compensate for a mismatched flange, gasket, or bolt set. The whole assembly has to work together.
Twinco has supported pipeline construction, petrochemical and refining operations, energy infrastructure, and maintenance and turnaround teams across the Gulf Coast and beyond since 1977.
If your team needs a fire safe ball valve—or the flanges, gaskets, and fittings that complete the assembly—Twinco's inside sales team, including valve specialist Shane Holmes, can review your spec, confirm API 607 documentation, and help locate what is available for your exact service.
Conclusion
An API 607 fire safe ball valve is a tested component, engineered to limit leakage and hold isolation under a defined fire scenario. Certification applies only to that specific fire test protocol. It does not replace a complete facility fire-protection plan.
Before you order:
- Confirm the applicable standard and edition
- Review the actual test documentation
- Match the valve to your service conditions
- Loop in a qualified supplier or engineer if anything looks unclear
Frequently Asked Questions
What are fire safe valves?
Fire safe valves are tested against a defined fire-exposure sequence to confirm they limit leakage and keep required shutoff during and after the test. Fire safe does not mean fireproof or immune to fire damage.
How much heat can a ball valve handle?
Heat tolerance depends on body, seat, packing, pressure rating, fluid, and manufacturer specs. Operating temperature ratings differ from short-duration API 607 fire-test temperatures, so check the product datasheet.
What are the API standards for safety valves?
API 607 and API 6FA cover fire testing for different valve design families, while pressure-relief valve requirements fall under separate standards like API 526. Confirm which standard applies based on your valve type and service.
What are the key differences between API 607 and API 6FA fire testing standards for valves?
API 607 addresses quarter-turn valves with nonmetallic seats, while API 6FA is scoped primarily to API 6A and API 6D valve designs. Always verify current edition requirements before specifying either one.
What is the purpose of a safety valve?
A pressure-relief safety valve protects equipment from overpressure by releasing excess pressure automatically. This is a different function from a fire safe isolation ball valve, which controls or isolates flow during a fire event.
What are the two main types of safety valves?
Pressure-relief safety valves generally fall into spring-loaded and pilot-operated categories. These are distinct from API 607 fire safe ball valves, which serve an isolation function rather than an overpressure-relief function.
