This guide walks through construction, operation, advantages, limitations, applications, and the selection factors that separate a correct valve order from a costly mistake. Whether you're specifying a new valve or replacing one during a turnaround, the details below should help you ask the right questions before you buy.
Key Takeaways
- Solid wedge gate valves are built for on/off isolation, not throttling or continuous flow regulation.
- Rugged construction suits demanding piping systems; still review thermal conditions, pressure, media, and seat design.
- Confirm sizing, pressure-temperature rating, materials, end connections, actuation, and documentation before purchase.
- Account for the full piping assembly (flanges, gaskets, bolting, testing, and installation), not the valve alone.
What Is a Solid Wedge Gate Valve?
A gate valve moves a closure element perpendicular to the direction of flow. In a solid wedge design, that closure element is a single, one-piece tapered gate that seals against two angled seats inside the body. McWane/MPI describes its solid wedge product as using a "solid, single-piece tapered wedge," a design intended to resist clogging and hold up under demanding conditions.
Why the Wedge Shape Matters
The tapered geometry does the work. As the stem drives the gate downward, the wedge's angled faces contact the seats and wedge tighter with each turn, creating a firm, self-energizing shutoff once the valve reaches its fully closed position.
That's also why solid wedge valves aren't meant for throttling. Crane's cast-steel installation guidance states plainly that gate valves are designed to close or open pipeline flow and are not recommended for throttling service.

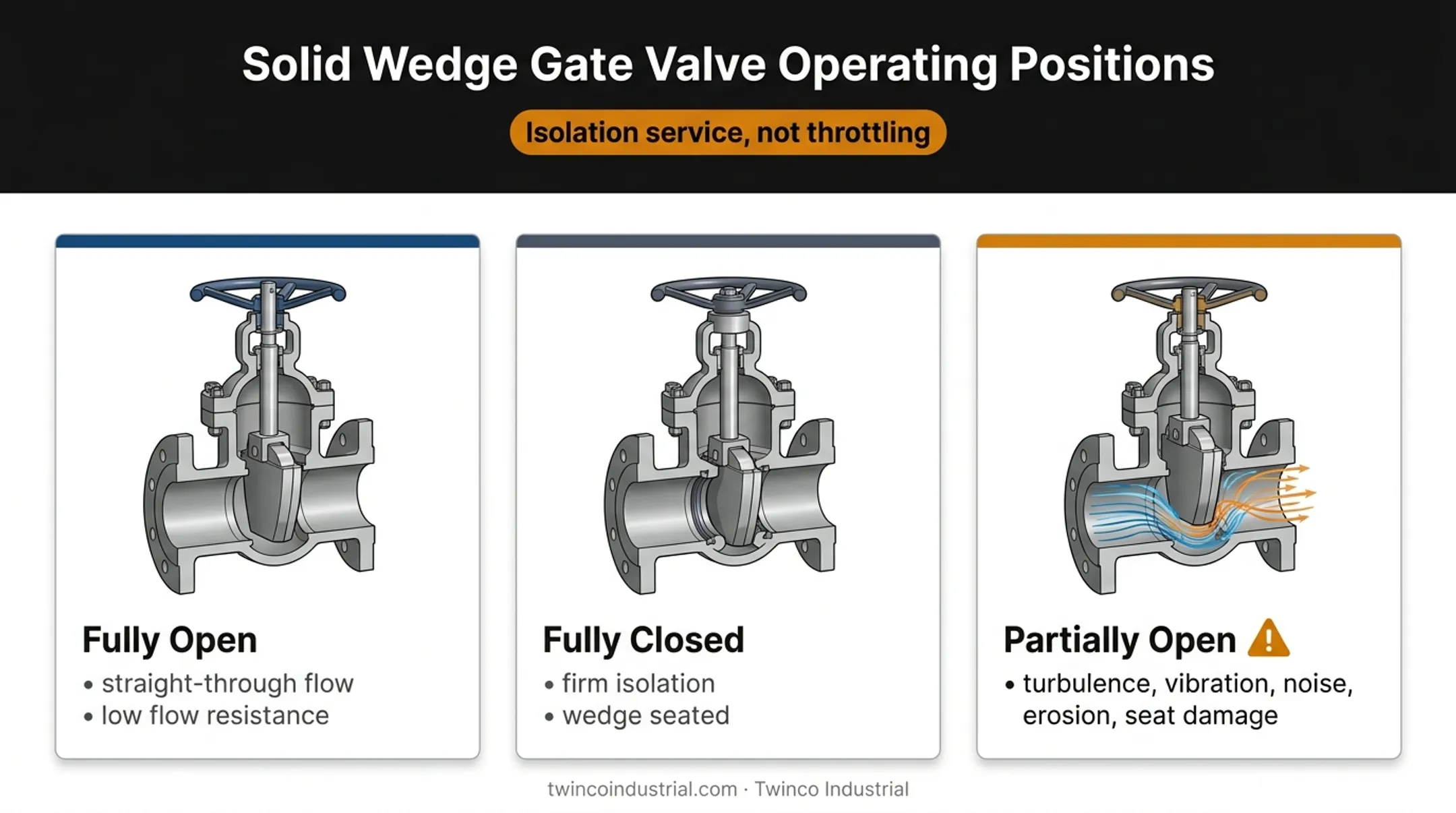

Partially open, a wedge gate creates turbulence around the gate edge. Over time this can produce vibration, noise, erosion, and seat damage — none of which show up when the valve stays fully open or fully shut.
Core Construction Elements
A typical solid wedge gate valve includes:
- Body and bonnet — the pressure boundary, usually bolted or pressure-sealed
- Solid wedge (gate) — the single-piece closure element
- Seats — mating surfaces the wedge contacts on closure
- Stem and stem nut — translate handwheel or actuator motion into gate travel
- Packing — seals the stem against external leakage
- Handwheel or actuator — manual, gear, pneumatic, or electric operation
- Bypass or drain — optional, used on larger valves to equalize pressure before opening
How Solid Wedge Gate Valves Work and What They Include
Turning the handwheel or actuator raises or lowers the stem, which pulls the wedge out of — or drives it into — the flow path. Solid wedge gate valves are built for two positions only: fully open or fully closed.
Flow Path and Sealing Performance
When fully open, the wedge sits entirely clear of the bore and leaves a straight-through passage. That geometry produces low flow resistance compared with designs that leave permanent obstructions in the path, which is why gate valves are common at pipeline isolation points where pressure drop matters.
Shutoff quality, on the other hand, depends on more than the wedge shape alone:
- Differential pressure across the closed gate affects how tightly it seats
- Stem seating force must be high enough without over-torquing
- Wedge and seat surface condition determines leak-tightness
- Gate-to-seat alignment must stay true over repeated cycles
Stem Types and Actuation
Two stem arrangements dominate the market:
- Rising stem (OS&Y) — the stem visibly rises above the handwheel as the valve opens, giving operators a quick visual check on position.
- Non-rising stem (NRS) — the gate travels on internal threads while the stem stays in place, often used where vertical clearance is limited.
Twinco Industrial stocks gate valves in both rising-stem and non-rising-stem configurations so a replacement can match existing piping clearances and operator preference. On larger valves or frequent-cycle service, a gear operator or pneumatic/electric actuator can replace manual operation entirely.

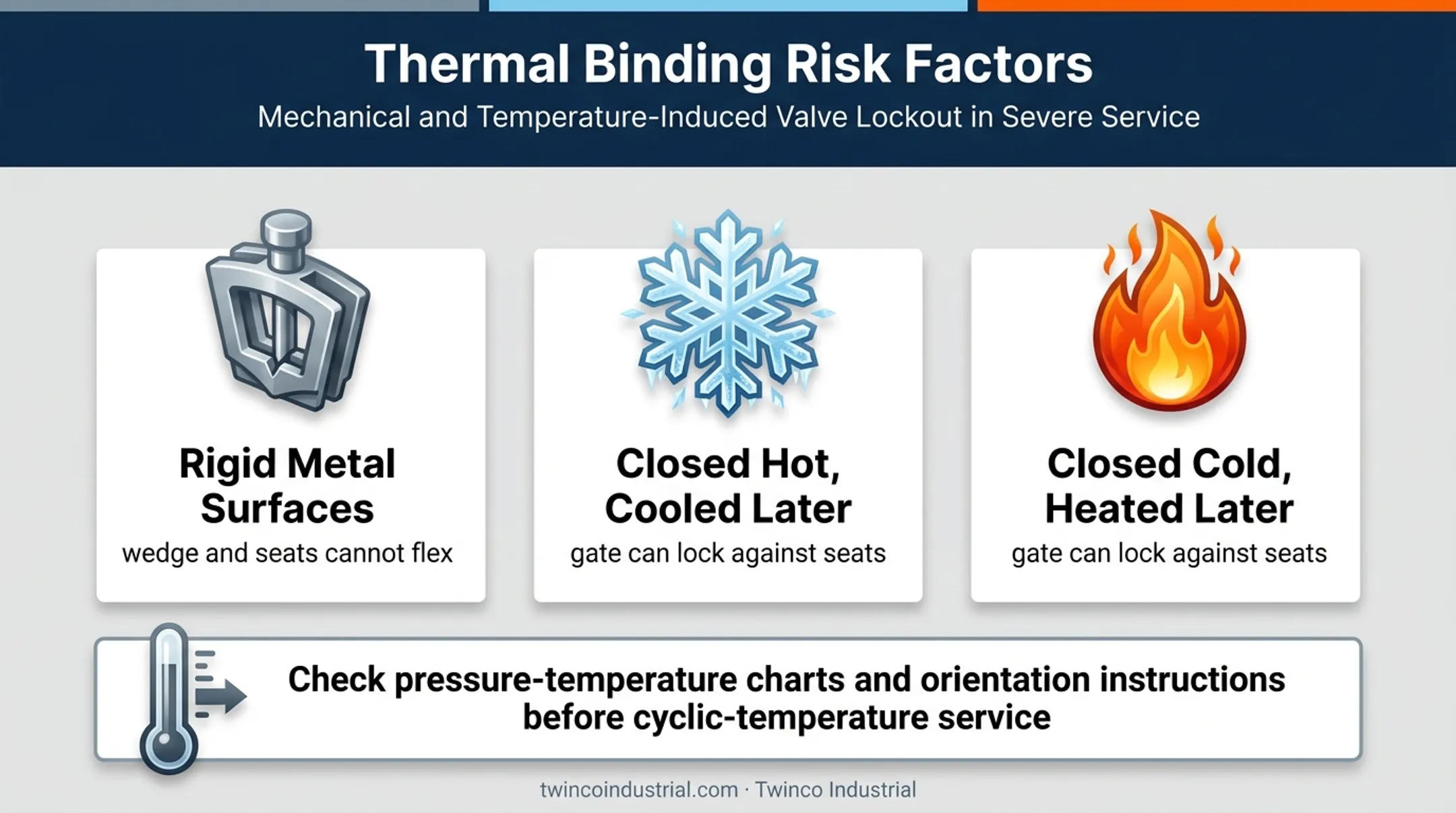

Thermal Binding Is a Real Risk
Because the wedge and seats are rigid metal surfaces, temperature swings between closing and later operation can lock the gate against the seats. That condition, thermal binding, is more likely when a valve is closed hot and later cooled (or closed cold and later heated) without following the manufacturer's installation and operating guidance. Check the manufacturer's pressure-temperature charts and orientation instructions before putting a solid wedge valve into cyclic-temperature service.
Standards commonly referenced for this valve family include:
- API 600 — flanged and butt-welding steel gate valves
- API 602 — compact forged valves
- ASME B16.34 — pressure-temperature ratings
- ASME B16.10 — face-to-face dimensions
Confirm which edition your project specification requires; API 600 and API 602 have both seen multiple revisions.
Solid Wedge vs. Other Gate Valve Designs
"Gate valve" is the broad family name. "Wedge gate valve" describes one closure geometry within that family, as opposed to parallel-type designs, which use a different sealing mechanism entirely.
Solid vs. Flexible Wedge
A flexible wedge looks similar from the outside but includes a slot or reduced-section web that allows the two wedge faces to flex slightly and adjust to seat angle changes caused by thermal expansion. A solid wedge has no such flex; it is one rigid casting. That rigidity is an asset in straightforward, stable-temperature service and a liability where rapid thermal cycling is common.
Solid Wedge vs. Resilient Wedge
A resilient wedge valve uses an elastomer-coated gate rather than metal-to-metal seating. AWWA C509 covers resilient-seated gate valves specifically for water-supply service.
These valves suit lower-temperature water and utility applications. They are not a substitute for a metal-seated solid wedge in higher-temperature or chemically aggressive process service; the elastomer's compatibility and temperature limits govern the choice.
Solid Wedge vs. Parallel Slide
Parallel slide gate valves use two flat discs with a spring between them, rather than a single tapered wedge. Babcock Valves notes that this spring-loaded parallel arrangement helps the discs adapt to seat spacing and helps prevent thermal binding. That is why parallel slide valves see wide use in steam service and other applications with fluctuating temperatures (source).
| Design | Closure Element | Thermal Cycling Tolerance | Typical Service |
|---|---|---|---|
| Solid wedge | One-piece rigid wedge | Lower | Stable-temperature isolation |
| Flexible wedge | Slotted/flexing wedge | Moderate | Process piping with some thermal movement |
| Resilient wedge | Elastomer-coated gate | Limited (temperature-dependent) | Water and utility service |
| Parallel slide | Two spring-loaded discs | Higher | Steam and fluctuating-temperature service |
Manufacturers and standards bodies do not always classify these designs identically. Treat this table as a starting point and verify against the specific manufacturer's literature for your application.
Applications and Selection Criteria
Solid wedge gate valves are used for isolation in:
- Pipeline isolation points
- Refinery and petrochemical piping
- Process plants and power generation
- Water and utility systems
- Maintenance shutdowns and industrial construction
Industry labels alone don't determine fitness for service. Operating conditions do.
Specification Checklist
Before ordering, confirm:
- Nominal pipe size and end-connection type
- Pressure class and design/operating temperature range
- Fluid or gas composition, including corrosion or erosion risks
- Required shutoff performance (bubble-tight vs. Class VI, for example)
- Cycling frequency and expected duty cycle
- Available installation space and orientation
Materials and Configuration
Body, wedge, seat, stem, and packing materials all need to match the process medium and its temperature and pressure. For sour service, material selection should reference NACE MR0175/ISO 15156 requirements.
End connections (flanged, threaded, socket-weld, or butt-weld) should match adjoining pipe spec. Bonnet type (bolted vs. pressure-seal) should suit the pressure class.

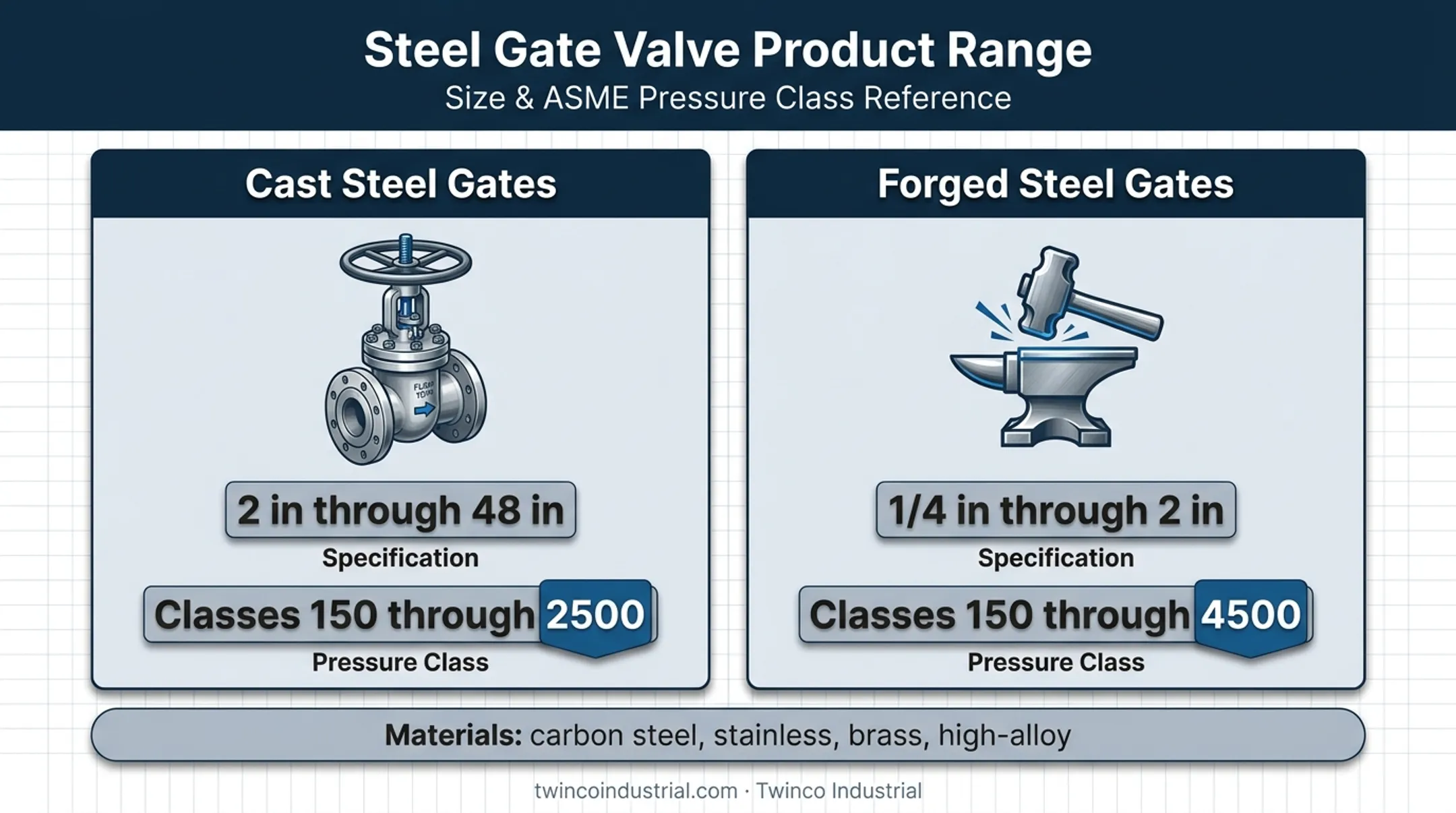

Twinco Industrial stocks cast steel gate valves from 2" through 48" in Classes 150 through 2500, with forged steel gates available from ¼" through 2" in Classes 150 through 4500. That range covers most process and pipeline applications in carbon steel, stainless, brass, and high-alloy materials.
What to Request Before You Order
Depending on your project specification, ask for:
- Material test certificates and traceability documentation
- Pressure-test records per API 598 or equivalent
- Fire-safe test evidence, if required by service
- Coating and cleaning specifications
- Fugitive emissions documentation, where applicable
Decision point: Only specify a solid wedge design after confirming the service won't require routine throttling, the temperature profile won't induce thermal binding, and maintenance access supports periodic exercising of the valve.
Sourcing, Installation, and Maintenance Considerations
A correctly designed valve can still fail in service if procurement or installation goes wrong.
Common Procurement Risks
- Selecting a valve by pipe size alone, without checking pressure-temperature limits
- Mismatching flange dimensions or materials between the valve and adjacent pipe
- Failing to confirm face-to-face dimensions against ASME B16.10
- Omitting required documentation until it's too late in the project schedule
Confirming the complete package (flanges, gaskets, bolting, and testing accessories) alongside the valve itself avoids delays at commissioning. Twinco Industrial's inventory covers this full assembly: flanges from ½" through 72" in ASME and API pressure classes, stud bolts and heavy hex nuts for bolting, and gaskets matched to flange type and rating.
Shane Holmes, Twinco's valve specialist, works directly with pipeline, petrochemical, and industrial customers to review specifications and help source the right solid wedge configuration alongside the flanges and bolting the installation requires.
Installation Essentials
- Clean the pipeline interior before installing the valve
- Inspect the valve and seats for shipping damage
- Verify piping alignment — never force a valve into a misaligned system
- Tighten packing gland nuts evenly, without contacting the stem
- Follow the manufacturer's orientation, torque, and testing instructions
Maintenance Priorities
Crane's cast-steel guidance recommends exercising valves through roughly 80% of travel on a regular schedule and inspecting the stuffing box if that schedule is missed (Crane cast-steel IOM). Other priorities include:
- Checking packing for external leakage during routine inspections
- Watching for corrosion or physical damage on exposed stem threads
- Never using the valve as a throttling device, even temporarily
- Documenting every test, adjustment, and repair for future reference
For hydrotesting after installation or maintenance, Twinco's rental fleet of chart recorders and hydraulic tools supports the pressure documentation many project specifications require.
Frequently Asked Questions
What are the key differences between a gate valve and a wedge gate valve?
"Gate valve" describes the broader valve family based on function: a closure element moving perpendicular to flow. "Wedge gate valve" specifies one closure geometry within that family, distinct from parallel-slide designs.
What is the difference between a parallel slide gate valve and a wedge gate valve?
A parallel slide valve uses two flat, spring-loaded discs that seat against parallel faces, while a wedge gate valve uses a single tapered gate that wedges into angled seats. Parallel slide designs generally tolerate thermal cycling better, making the choice service-dependent.
What is the difference between a solid wedge and a flexible wedge gate valve?
A solid wedge is a single rigid casting, while a flexible wedge includes a slot or reduced section that lets the gate flex slightly to accommodate seat movement. Thermal cycling and service conditions should guide which one you specify.
What is a resilient wedge gate valve?
A resilient wedge valve uses an elastomer-coated gate instead of metal-to-metal seating, commonly specified for water and utility service under AWWA C509. Temperature limits and media compatibility with the elastomer determine whether it fits your application.
What are the two main types of gate valves?
The two broad categories are wedge-type and parallel-type gate valves. Manufacturers often subdivide these further into solid, flexible, resilient, double-disc, and parallel-slide designs.
What is the purpose of the wedge in a gate valve?
The wedge's tapered shape drives into the seats as the valve closes, creating the seal that provides shutoff. It is built for isolation—full open or full closed—not for routine flow throttling.
