Introduction
A blind flange is a solid, bolted disc that closes off the end of a pipe, nozzle, or flanged connection. It has no bore, no passage, nothing running through it. Just a flat piece of metal built to hold pressure.
That simplicity is exactly why it matters. Refineries, pipeline contractors, and power plants rely on blind flanges to isolate lines for maintenance, hydrostatic testing, and safe shutdowns—without permanently altering the piping system.
According to a Garlock technical bulletin on blind flanges, that same blocking role is why unused pipe sections and vessel nozzles are capped this way during plant pressure testing. Get the wrong type, and you risk a failed test or a dangerous leak path.
This guide covers what a blind flange is, the main types you'll encounter, related isolation devices, and how to pick the right one for your job.
Key Takeaways
- A blind flange has no center bore; it stops flow completely at a piping section or vessel nozzle.
- Raised-face, flat-face, and ring-type-joint (RTJ) are the three common configurations, each matched to specific mating flanges.
- Blind flanges support isolation, hydrostatic testing, maintenance access, and future tie-ins.
- Selection depends on size, pressure class, face type, material, and the governing dimensional standard.
- Spectacle blinds, spades, and spacers solve different problems than a standard blind flange — don't treat them as interchangeable.
What Is a Blind Flange?
A blind flange is a flat, circular flange with bolt holes drilled around its perimeter and no bore through the center. That's the whole design philosophy: instead of letting fluid pass through, it stops it cold.
Installation is straightforward on paper. You bolt it against a mating flange or flanged nozzle, with a gasket rated for the service compressed between the two faces. Torque the bolts correctly, and you've got a pressure-containing seal.
Here's the key distinction: a slip-on, weld-neck, or socket-weld flange exists to connect pipe and keep fluid moving. A blind flange exists to do the opposite: terminate or isolate flow entirely. Mixing up that purpose during procurement is a common (and costly) mistake.
Why Reliable Isolation Matters
Blind flanges show up constantly in industrial piping work:
- Pipeline construction — sealing segment ends before tie-ins are complete
- Refinery and petrochemical maintenance — isolating equipment for repairs
- Pressure and hydrostatic testing — containing test pressure within a defined section
- Temporary or permanent line isolation — blocking flow during shutdowns or turnarounds
Twinco Industrial's rental blind flange fleet supports exactly these scenarios: isolating pipelines, vessels, and process systems during hydrostatic testing, maintenance, and inspection shutdowns across petrochemical, pipeline, and midstream projects.

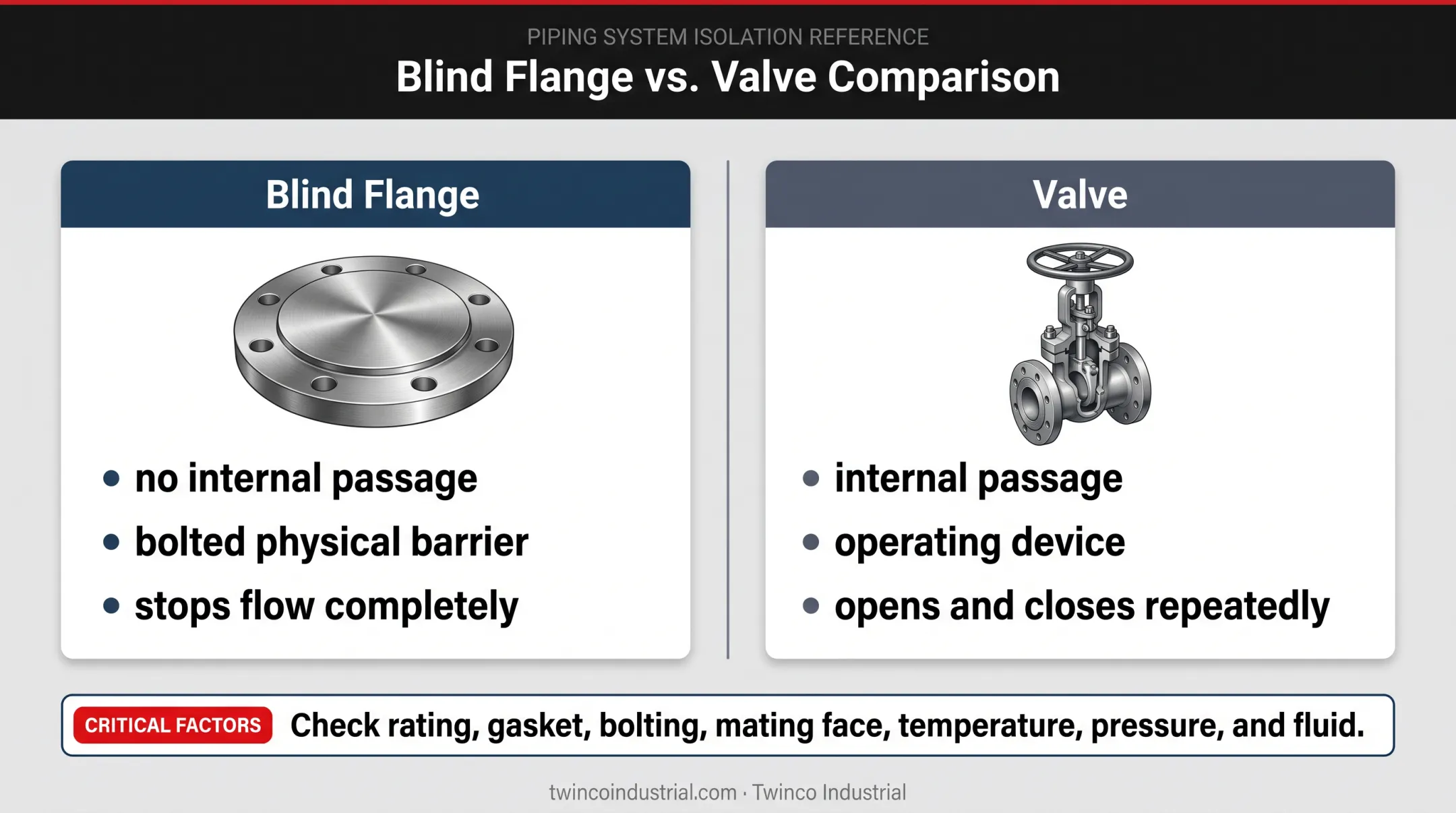

Those jobs need a true barrier, not just a closed valve. A blind flange is a bolted physical barrier. A valve is an operating device with an internal passage you can open and close repeatedly. Neither should be chosen without thinking through the isolation method your safety procedure actually requires.
Suitability isn't just about the flange itself. It's about the whole assembly: rating, gasket, bolting, mating face, temperature, pressure, and fluid. A blind flange that looks right can still fail if any one of those pieces doesn't match.
Types of Blind Flanges and Related Blinds
Blind flanges are typically classified by face design, material, pressure class, and dimensional standard. Related blind devices are grouped by how they provide or change isolation.

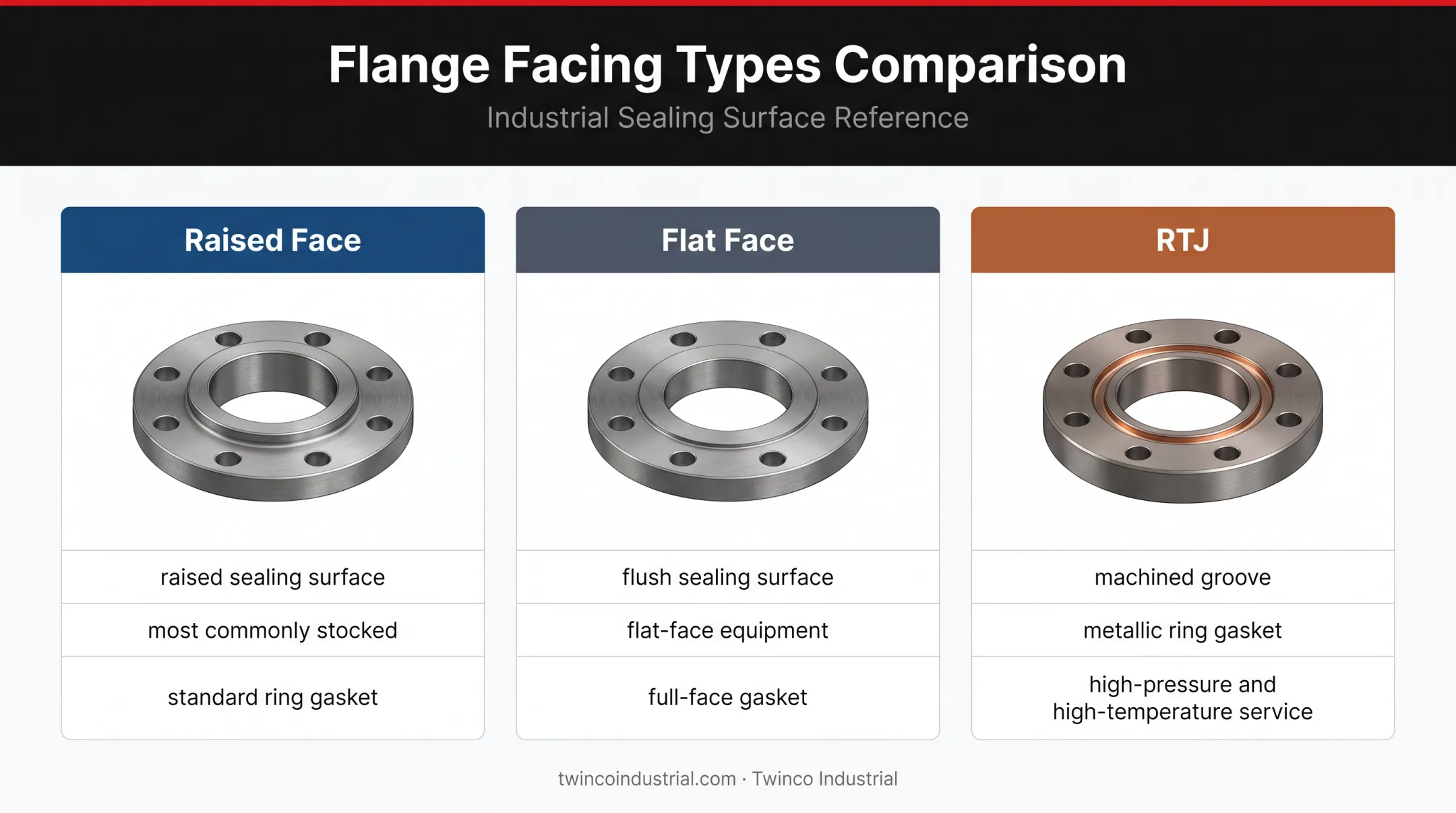

Raised-Face Blind Flanges
A raised-face (RF) blind flange has a slightly raised sealing surface inside the bolt circle. It's the most commonly stocked configuration, and it's built to mate with compatible raised-face piping components and gaskets.
You'll find RF blinds across general industrial, process, pipeline, and pressure-testing work. Garlock notes that RF flanges typically pair with a standard ring gasket rather than a full-face type, which matters when you specify replacement gaskets.
What to know:
- Broad availability and common compatibility across most piping systems
- Correct gasket placement and alignment required
- Raised sealing surface needs protection during handling
Flat-Face Blind Flanges
A flat-face (FF) blind flange has a sealing surface flush with the bolt circle — no raised ring. It's used against equipment or piping specified for flat faces, often cast components where a raised-face mate would concentrate stress unevenly.
Face match matters. Bolting a flat-face blind directly against a raised-face component isn't a casual substitution: it changes how load and sealing pressure distribute across the joint.
Gasket selection (typically full-face for FF connections) and bolt loading both need a second look before you finalize the spec.
Ring-Type-Joint (RTJ) Blind Flanges
An RTJ blind flange uses a machined groove and a metallic ring gasket instead of a soft gasket. That metal-to-metal seal is why RTJ shows up in high-pressure and high-temperature services where a compressed gasket alone won't hold reliably.
The trade-off: RTJ delivers strong sealing performance, but it demands precision: matching grooves, correctly sized ring gaskets, clean surface condition, careful alignment, and controlled bolting sequence. Get any of those wrong and the seal won't perform as designed.
Related Blind Devices and Modified Blind Flanges
Three isolation devices often get discussed together in piping work. Keep them distinct:
- Blind flange — a solid, bolted flange with no bore, generally treated as a fixed closure
- Spectacle blind — combines a solid plate and an open spacer ring on one rotating assembly, letting crews flip between open and closed without breaking the bolted joint apart
- Spade and spacer — a solid isolation plate (spade) and a separate open-bore ring (spacer) that swap places depending on whether the line needs to flow or stay blocked
According to ASME's B16.48 line blank standard, these devices cover NPS ½ through 24 across Class 150 to 600 — a narrower range than the full blind flange standards. Terminology varies by industry, so confirm what your supplier means by "spade" or "paddle blind" before ordering.
Tapped or drilled blind flanges are engineered modifications for instrumentation ports, drains, or vents. They're not a default substitute for a standard blind. Drilling changes the pressure-retaining design, so it needs engineering review, not a field decision.
A target flange is not a standard blind flange. In oilfield manifold applications, it's a specialized configuration with a lead-filled counterbore designed to cushion erosion from high-velocity, abrasive fluid at a tee or cross. Don't treat the terms as interchangeable.

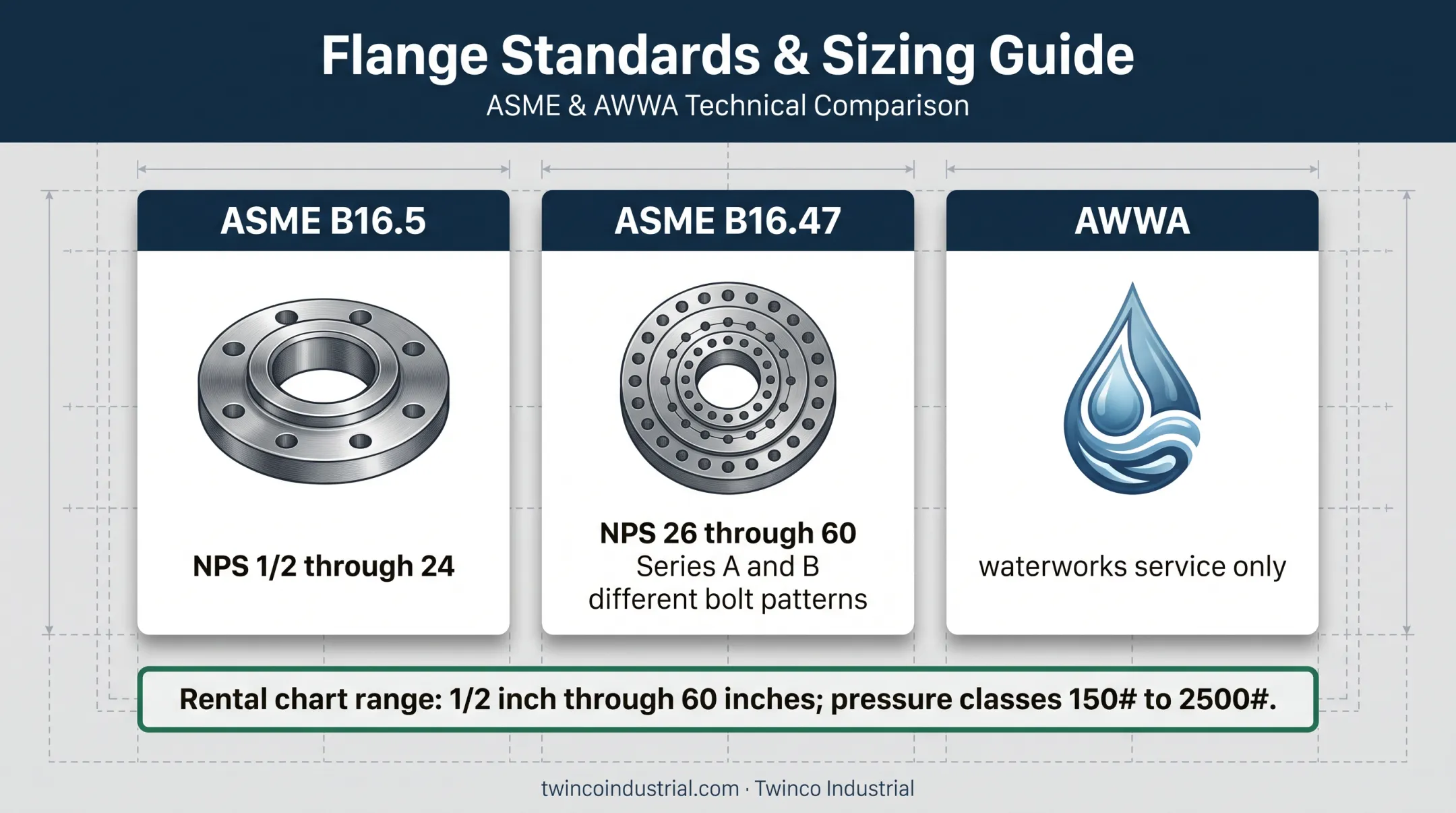

Dimensional and pressure standards vary by size and service:
- ASME B16.5: NPS ½ through 24
- ASME B16.47: NPS 26 through 60, Series A and B, with different bolt patterns
- AWWA: waterworks service only
Match the standard to the size range and service before you order.
How to Choose the Right Blind Flange
The correct blind flange comes from your piping specification and service conditions: not from nominal pipe size alone, and definitely not from price shopping.
Service Conditions and Application
Start by identifying the actual purpose:
- Permanent line termination
- Temporary isolation during a shutdown
- Hydrostatic or pressure testing
- Maintenance access point
- Unused vessel nozzle
- Future tie-in location
Each of these carries different implications for pressure, temperature, fluid compatibility, corrosion risk, and cyclic loading. A blind flange sitting on a nozzle for five years faces different demands than one bolted on for a two-hour hydro test.
Size, Rating, and Standards
Nominal pipe size is just the starting point. You also need to confirm:
- Outside diameter and bolt-hole pattern
- Flange thickness
- Pressure class (150 through 2500, depending on the governing standard)
- The applicable dimensional standard — ASME B16.5, B16.47 Series A or B, or AWWA
Twinco's rental blind flange charts cover line sizes from ½ inch through 60 inches with pressure classes spanning 150# to 2500#, cross-referenced to ASME B16.5, B16.47 Series A and B, and B16.48. Match every one of these fields to the mating flange, including bolt size, bolt-circle dimensions, and gasket seating area.
Face, Gasket, Material, and Bolting Compatibility
Raised-face, flat-face, and RTJ configurations each need a gasket suited to that specific face, plus the right pressure and temperature rating for the fluid involved.
Material selection is its own compatibility decision:
- Carbon steel (A105, A350 LF2): general service
- Stainless steel (304/304L, 316/316L): corrosion resistance
- Alloy steel (F11, F22, F91): elevated temperature service
- Duplex, super duplex, and nickel alloys: aggressive or specialty environments
Bolting matters just as much as the flange itself. The common hydrotest combination pairs ASTM A193 B7 stud bolts with ASTM A194 2H heavy hex nuts, tightened in a controlled sequence to distribute load evenly across the joint. Skip that step and even the right flange can leak.
Project Duration, Handling, and Sourcing
Buying vs. renting depends on how often the flange will see service:
- Purchase for recurring or permanent installations
- Rent for short-duration testing, shutdowns, turnarounds, or one-off isolation
- Weigh storage, lifting, and face-protection needs on large-diameter jobs
Twinco Industrial supplies and rents blind flanges, matching bolting, and complete testing kits, and helps customers confirm size and specification before anything ships.
For large-diameter blinds (36-inch, 48-inch, 60-inch and up), that support matters more: these pieces usually need lifting equipment, careful face protection, and proper storage between uses. Many contractors rent large blinds because ownership cost and storage outweigh the limited use after a single test.
What to Check Before Finalizing a Blind Flange
Before you sign off on a purchase order or rental agreement, run through this checklist:
- Don't select by diameter alone: verify pressure class, dimensional standard, face type, material grade, and temperature limits together
- Confirm the full mating assembly: flange, gasket, bolt pattern, and bolting grade all need to match, and project drawings may specify an exact standard
- Check what device you actually need: a standard blind flange doesn't offer the same operational convenience as a spectacle blind, spade, spacer, or engineered line-blind system
- Require qualified personnel for installation: isolation, torque, pressure testing, depressurization, and site safety procedures all need to be followed correctly
Skip any of these checks and the gap tends to show up later—often during testing, startup, or the next shutdown.
Conclusion
A blind flange is a boreless, bolted closure built to stop flow and support isolation, testing, maintenance, and future piping changes. Raised-face, flat-face, and RTJ designs each serve different connection requirements, and related devices like spectacle blinds and spade-and-spacer sets solve different operational problems.
Getting the right one specified — size, class, face, material, and bolting all matched correctly — is what keeps a test or shutdown on schedule instead of stalled.
Need a blind flange for an upcoming test, shutdown, or pipeline project? Twinco Industrial supplies and rents blind flanges, matching bolting, and specialty components. Support covers hard-to-find sizes for testing, maintenance, pipeline, and construction work. Contact Twinco to confirm your specification before you order.
Frequently Asked Questions
What are the standard dimensions for blind flanges?
Dimensions vary by nominal size, pressure class, face type, and governing standard. There's no single universal chart. Check ASME B16.5, B16.47, AWWA, or your project specification for the exact dimensional table.
What is the difference between a blind flange and a target flange?
A standard blind flange is a boreless closure used for general isolation. A target flange is a specialized, lead-filled component used downstream at tees or manifolds to cushion erosion from abrasive flow. Confirm terminology with your supplier before ordering.
Can you tap a blind flange?
Yes, but it must be engineered, not field-drilled casually. Tapping for a vent, drain, or instrument connection changes the pressure-retaining design and needs review to preserve code compliance and pressure integrity.
What are the three types of blinds in piping?
Blind flanges, spectacle blinds, and spade-and-spacer sets are the three commonly referenced categories. Terminology varies by industry, so always confirm exact definitions with your engineer or supplier.
What are the six types of flange faces?
The six commonly cited categories are flat face, raised face, ring-type joint, tongue-and-groove, male-and-female, and lap joint. Verify which apply to blind flanges specifically under your governing standard, since not every face type is standard on a blind.
