Carbon Steel Forged Fittings

Forged fittings are formed from metal using compressive force, while wrought fittings are generally shaped through processes such as rolling, drawing, bending, or extrusion. The manufacturing method affects the fitting’s grain structure, geometry, and typical applications. Product selection should consider the piping design, connection method, material, pressure requirements, and applicable standards, including ASME B16.11 or MSS-SP-83 where specified.

A forged pipe fitting is a fitting manufactured by forging metal into a connection component used to join, redirect, branch, reduce, or terminate piping. Carbon steel forged pipe fittings are used in process piping, instrumentation systems, skid assemblies, and demanding industrial applications. Threaded and socket-weld configurations are available, supporting secure connections where the specified design and applicable standards require them.

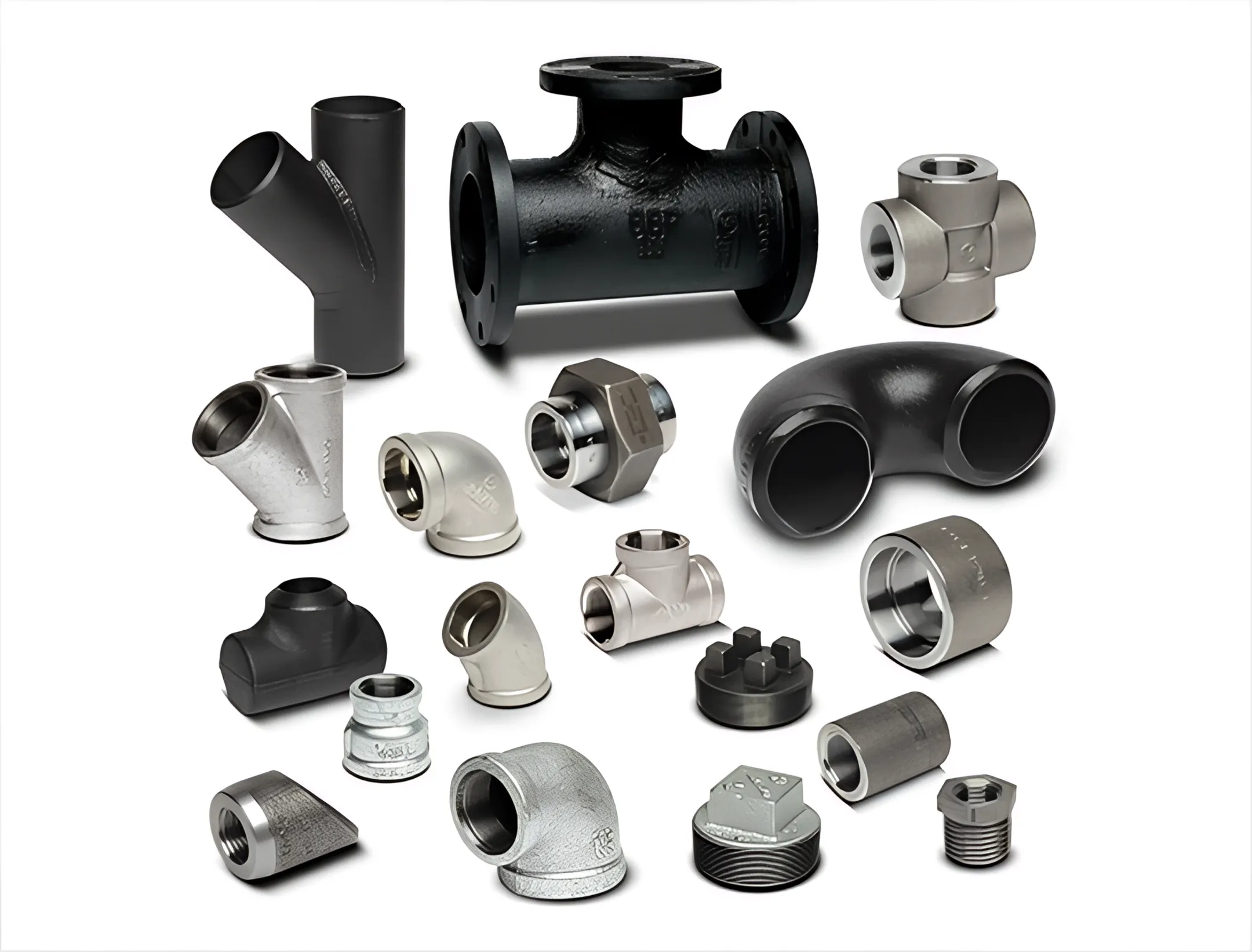

The product range includes elbows, tees, couplings, unions, reducers, caps, bushings, olets, and branch fittings. These components are available in threaded and socket-weld configurations for different piping layouts and installation requirements. Customers should provide the required fitting type, connection configuration, size, pressure class, and applicable project specifications when requesting a quotation.

The listed small bore fittings are identified as compliant with ASME B16.11 and MSS-SP-83. These standards relate to forged fittings and socket-weld or threaded connection requirements. Project engineers and buyers should confirm the required standard, pressure class, material specification, and documentation before ordering to ensure the selected components match the piping design.

The product information identifies forged carbon steel, stainless steel, and specialty alloys within the small bore fitting range. This page focuses on carbon steel forged fittings, while other material options may support different service conditions or project specifications. Material selection should follow the engineering requirements for the process, operating environment, piping system, and applicable procurement standards.

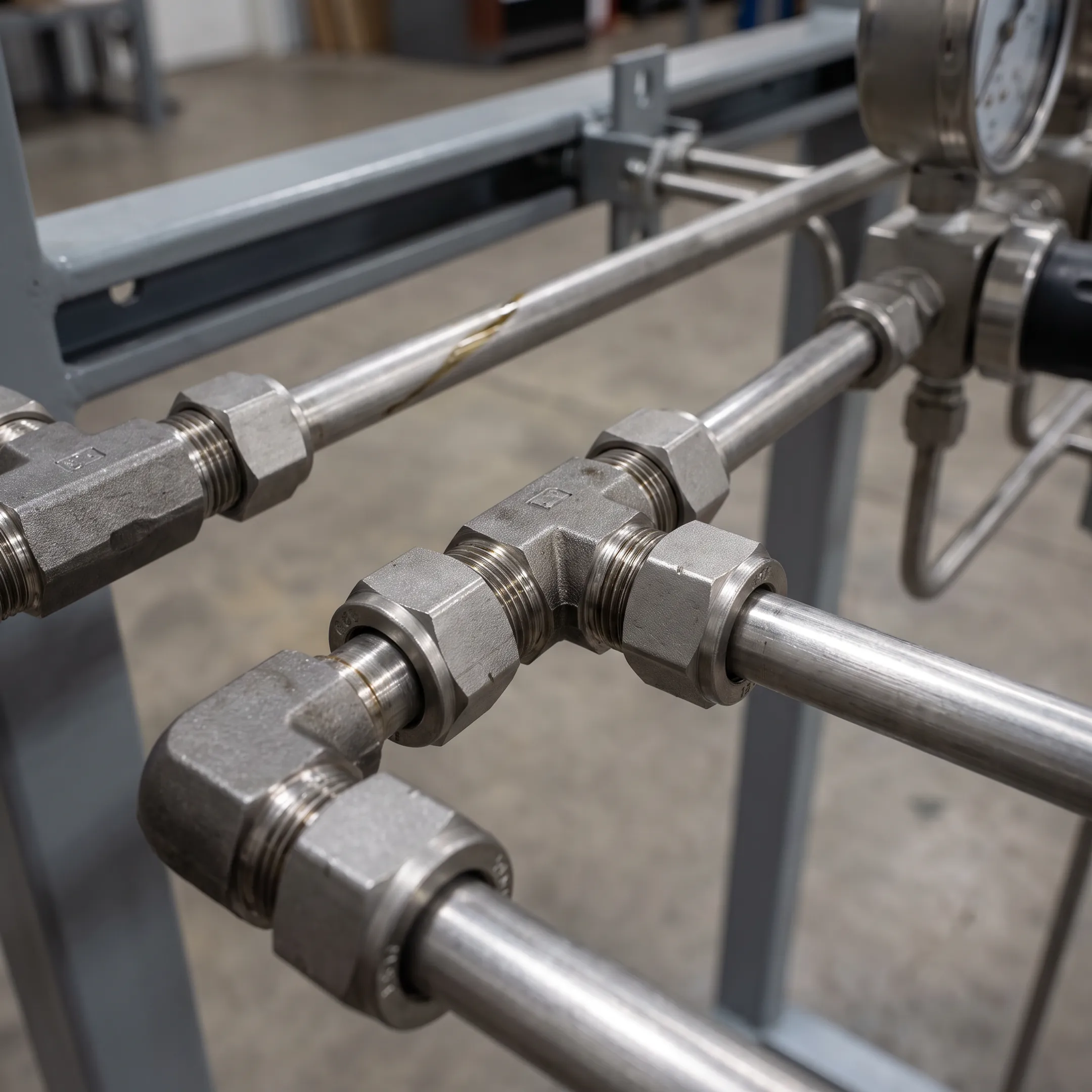

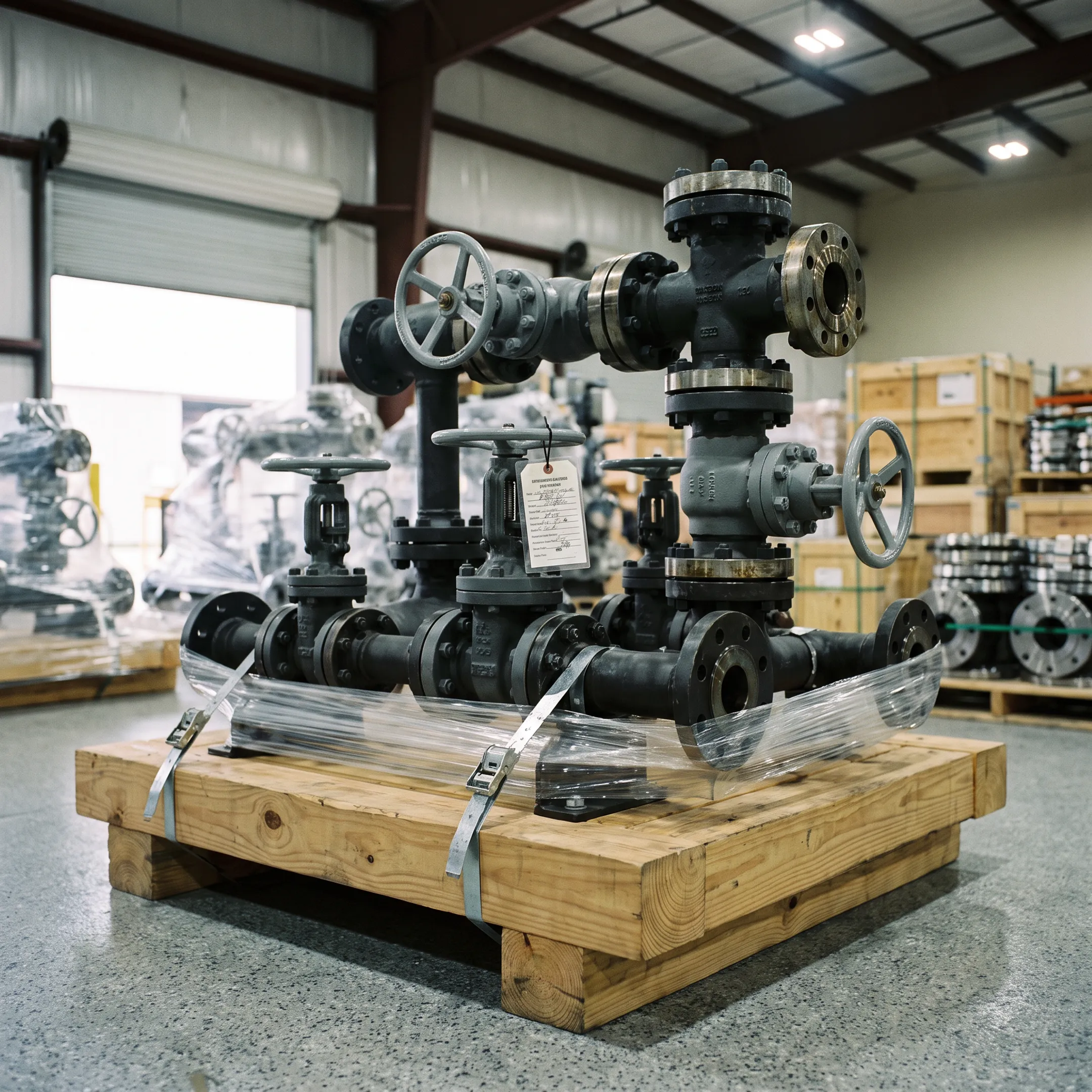

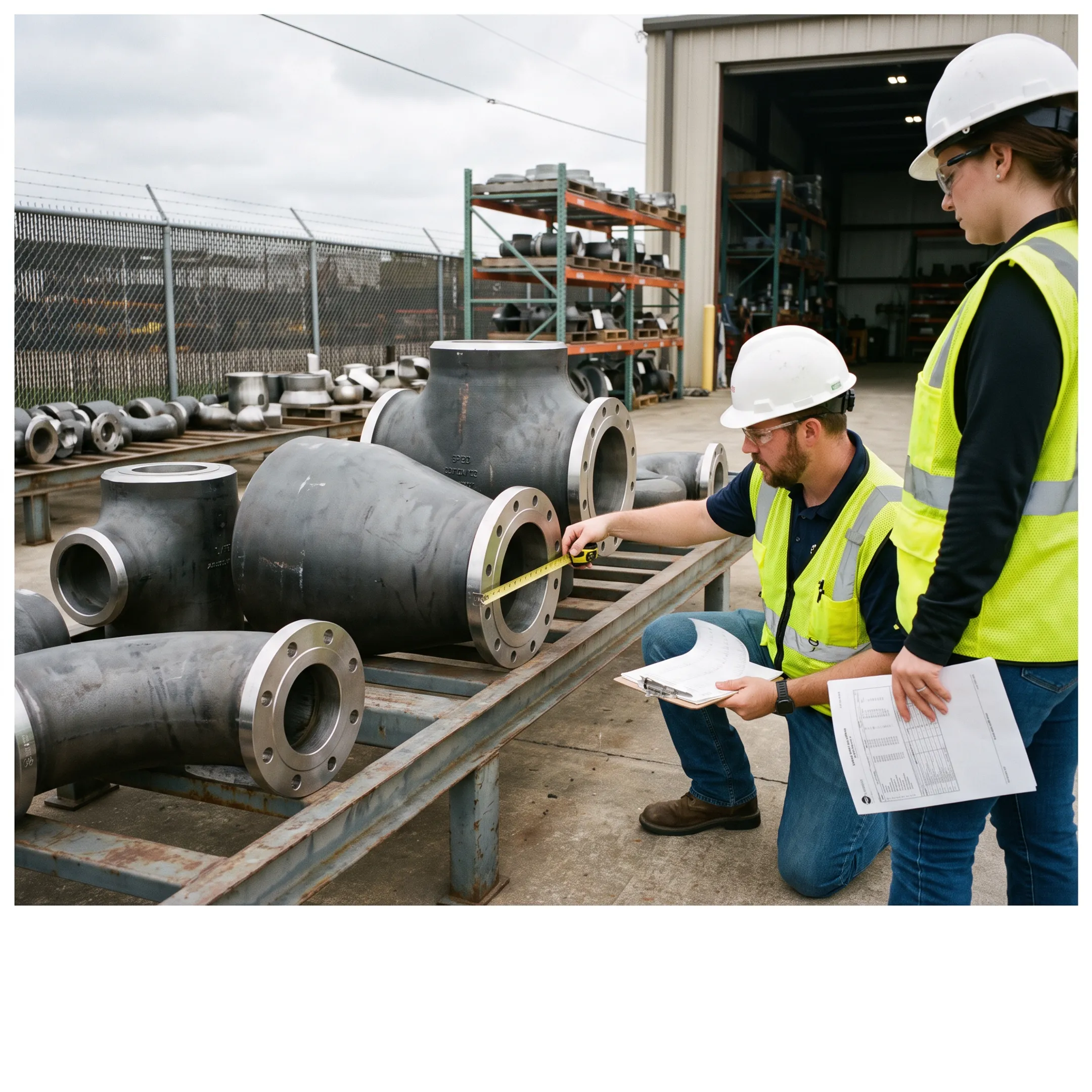

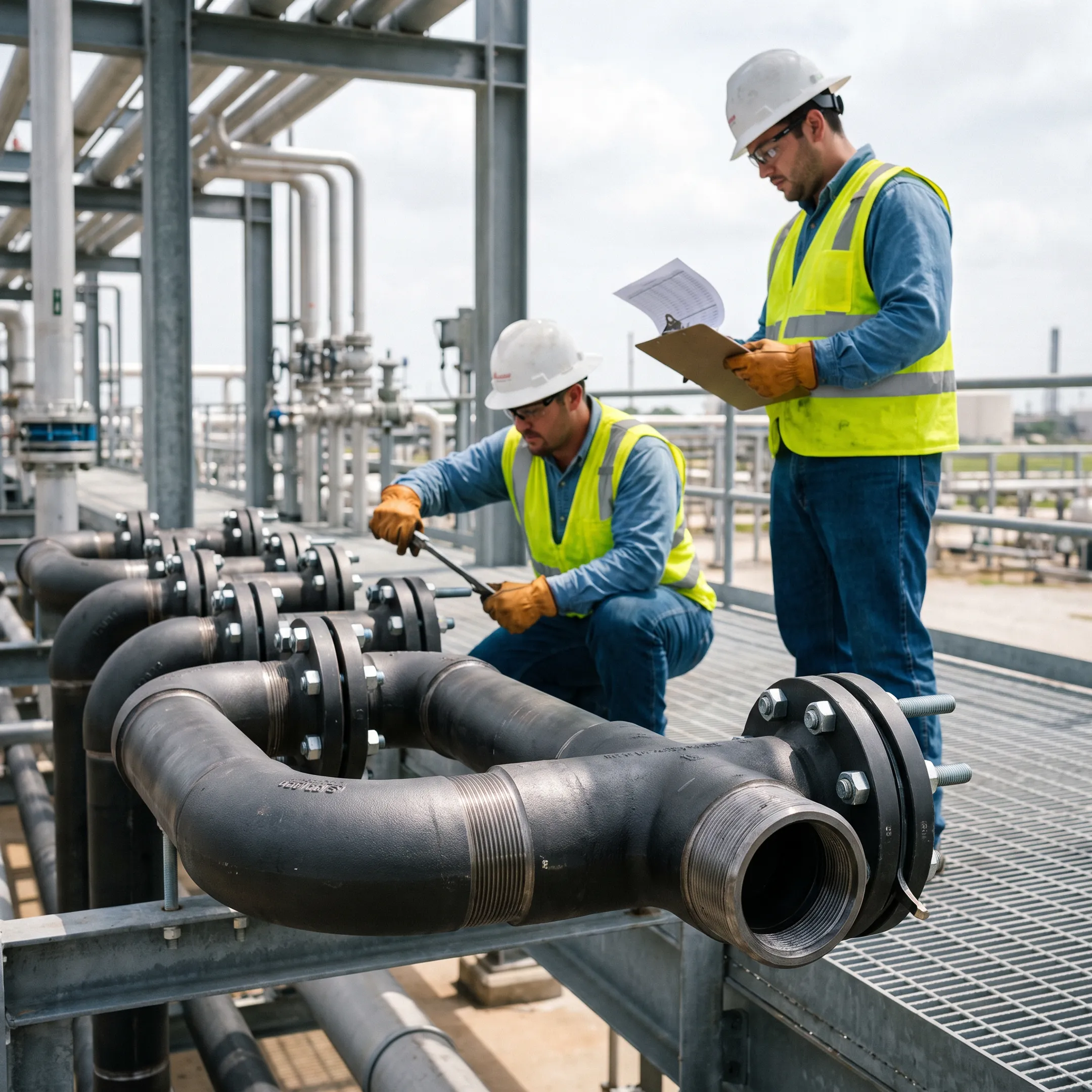

Carbon steel forged fittings are used in process piping, instrumentation systems, skid assemblies, high-pressure industrial environments, and demanding process applications. Their threaded and socket-weld connection options support compact piping arrangements and secure assembly. The appropriate fitting type, size, pressure class, material, and standard should be selected according to the application and project documentation.
