The biggest ordering mistake? Treating "Elbolet" and "branch fitting" as interchangeable. An Elbolet has to match the elbow geometry, branch connection type, material, and pressure-temperature requirements of your specific job. Getting the branch size right isn't enough.
This article covers how Elbolets function, what Class 3000 actually means, the dimensional variables you need to verify, common applications, and what to have ready before you request a quote.
Key Takeaways
- Class 3000 is a pressure class, not a fixed psi; allowable pressure depends on material, temperature, and connection type.
- Elbolets branch off long-radius elbows; they create a branch connection without redirecting the main run.
- Confirm elbow radius, run/branch size, end connection, material, schedule, and documentation before ordering.
- Use current manufacturer or project-approved dimensional data—never an outdated or generic chart.
What Is a Class 3000 Elbolet?
An Elbolet is a self-reinforced branch outlet fitting that creates a smaller connection point on a long-radius elbow. Bonney Forge, one manufacturer that publishes Elbolet dimensional data, defines it as an outlet used on 90-degree long-radius elbows for thermowell and instrumentation connections.
The elbow and the Elbolet do different jobs. The elbow changes the direction of flow. The Elbolet leaves that function alone. It sits on the curved section and gives you a place to tap into the line for something smaller.
Common Elbolet applications include:
- Thermowell installations for temperature monitoring
- Instrument takeoffs and pressure taps
- Drain and vent connections
- Sample points for process fluids
The final use always has to comply with your piping design and the governing code. That's not a formality — it's the difference between a compliant install and a rework order.
Why "Class 3000" Doesn't Mean One Fixed Pressure
Here's where a lot of buyers get tripped up. Class 3000 is a rating category, not a single number stamped on every fitting regardless of service.

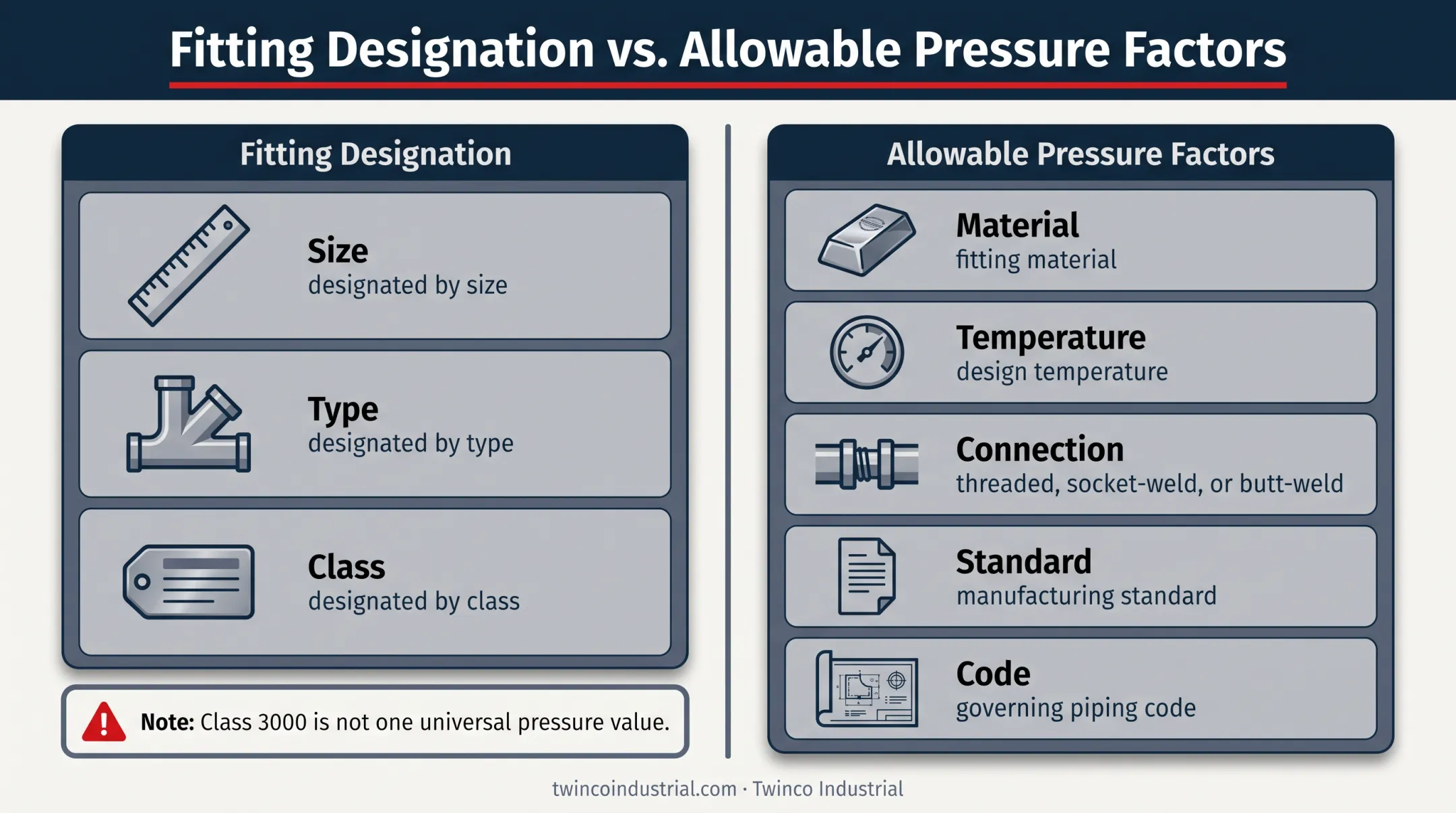

MSS SP-97 governs integrally reinforced forged branch outlet fittings. It confirms that fittings are designated by size, type, and class. Allowable pressure must be calculated within the applicable code, material, and service limits, not read off a chart as a universal figure.
Allowable pressure depends on:
- The fitting material
- Design temperature
- Connection type (threaded, socket-weld, or butt-weld)
- The applicable manufacturing standard
- The governing piping code for your project
Skip any one of these and you're guessing, not specifying.
Elbolet vs. Weldolet vs. Sockolet vs. Latrolet
The "-olet" family gets confused constantly, and the word "elbow" in Elbolet doesn't help. Each fitting serves a distinct geometry:
| Fitting | Installed On | Primary Connection |
|---|---|---|
| Elbolet | Long-radius elbow | Threaded, socket-weld, butt-weld |
| Weldolet | Straight run pipe or header | Butt-weld |
| Sockolet | Straight run pipe or header | Socket-weld |
| Latrolet | Straight run, angled/lateral connection | Threaded, socket-weld |
Weldolets, Sockolets, and Latrolets all branch from straight-run pipe. None of them substitute for an Elbolet when the branch point sits on a curve.
The contoured base of an Elbolet is built to distribute stress into the elbow shape. A straight-run fitting is not.
Class 3000 Elbolet Specifications and Dimensions
Elbolets come in several connection types, and Class 3000 does not apply evenly across all of them.
Manufacturer catalogs usually list Class 3000 options for threaded and socket-weld ends. Butt-weld configurations sometimes fall under a related dimensional range rather than the same Class 3000 table.
Dimensional Variables You Must Review
Before assuming a fitting fits your job, check:
- Nominal branch size and elbow/run size — both need to match your project drawing exactly
- Elbow radius — confirm whether the fitting is designed for a 1.5D long-radius elbow (the standard) or a different geometry
- Overall height and branch projection — these affect clearance and instrument insertion length
- Base dimensions and weld-preparation requirements — critical for socket-weld and butt-weld installs
Outlet sizes larger than NPS 2 are usually butt-weld only, and sizes above NPS 12 often need a special request. Do not assume threaded or socket-weld availability at larger branch sizes without checking the current catalog.
Never copy dimensions from a general table without verifying:
- The exact product series and manufacturer
- End connection type (threaded, socket-weld, or butt-weld)
- Pressure class — Class 3000 and Class 6000 dimensions are not interchangeable
- The catalog revision date
End Connection Standards
Once end type and class are confirmed, match the install to the standard that governs that connection:
- Threaded ends typically follow ANSI/ASME B1.20.1 pipe thread dimensions. Installation requires correct thread engagement, compatible sealant, and confirmed service suitability.
- Socket-weld ends typically follow ASME B16.11 socket dimensions. These require the specified fit-up gap, a qualified weld procedure, and proper inspection.
- Butt-weld ends require matching wall thickness, correct weld bevel preparation, a qualified welding procedure, and any post-weld requirements called out in the spec.
Documentation to Request
A complete purchase order package for an Elbolet typically includes:
- Material grade and heat/traceability records
- Approved dimensional drawing (with revision noted)
- Certificate of compliance or conformance
- Pressure/quality documentation
- Any project-specific inspection requirements
How to Select and Specify the Right Elbolet
Specifying an Elbolet correctly starts well before you look at a branch size. It starts with the piping design basis.
Start With Service Conditions
Confirm these basics first:
- Fluid or service type
- Design pressure and design temperature
- Corrosion allowance and cyclic loading concerns
- The applicable piping code for the project
- Required material grade, including any sour-service, low-temperature, or fire-safe requirements

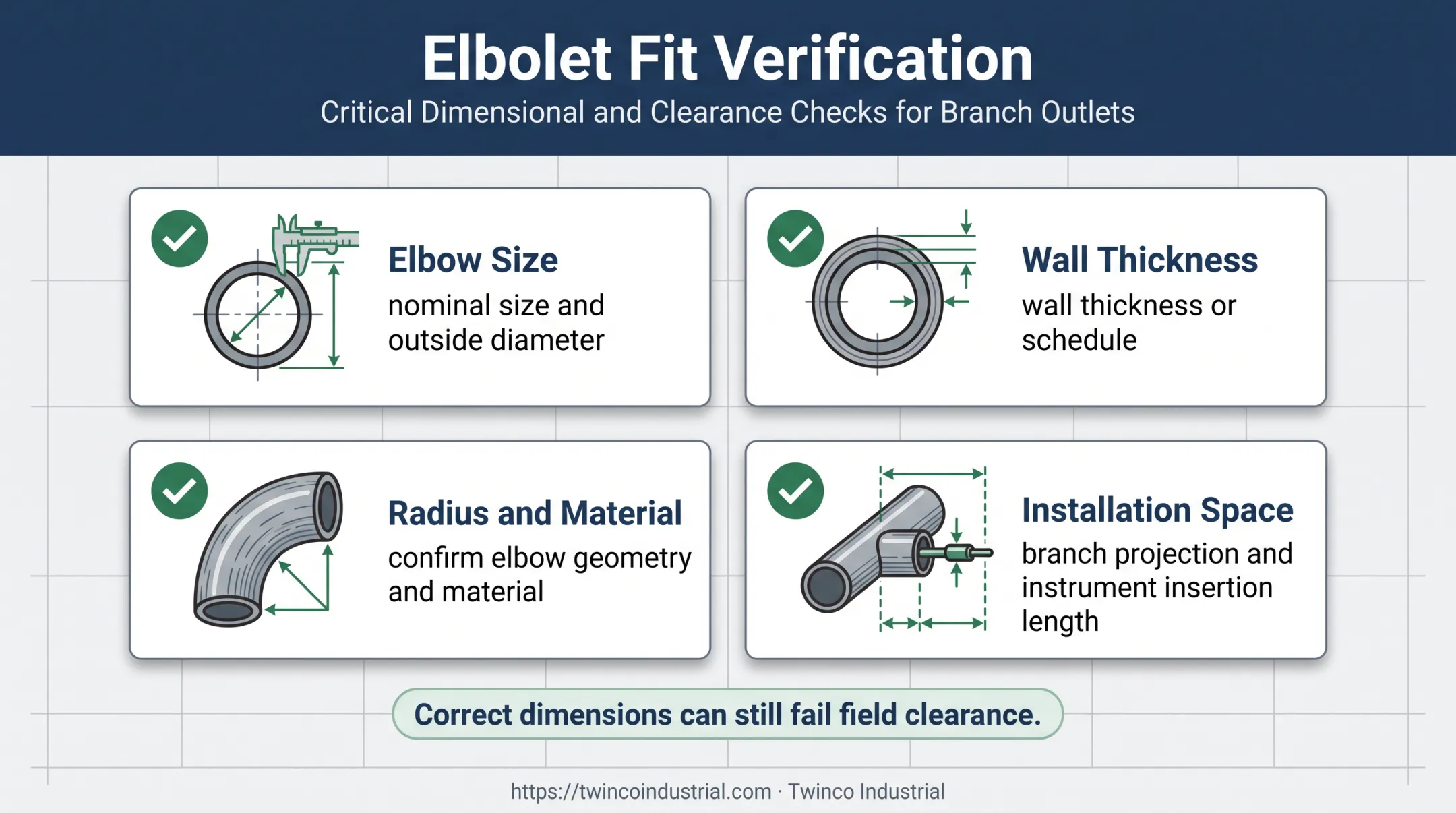

Match the Fitting to the Elbow
Before selecting an Elbolet, confirm the elbow's:
- Nominal pipe size and outside diameter
- Wall thickness (or schedule)
- Radius and material
Then verify the fitting is designed for that elbow geometry, not adapted from a straight-run branch fitting.
Available installation space matters too. A fitting that is dimensionally correct on paper can still be a poor fit if there is no room for the branch projection or instrument insertion length in the field.
Choosing the Branch End Connection
Match the branch end connection and branch size to whatever connects downstream: instrument, tubing, valve, or pipe. Neither threaded nor socket-weld is universally better. The right choice depends on:
- Service conditions and leak-path tolerance
- Maintenance access requirements (threaded connections are easier to remove for instrument servicing)
- Welding and inspection capacity available in the field
- Project piping specifications, which often dictate the connection type outright
Pre-Order Compatibility Checks
Run through this checklist before placing an order:
- Confirm the applicable dimensional drawing and its revision date
- Verify thread form or weld-end details against the project spec
- Check pressure class, material grade, and size range markings on the fitting itself
- Confirm whether a reducing configuration or custom bore is required
Sample Specification Format
A basic Elbolet specification line might look like this:
Elbow: [run size], [radius] LR | Branch: [NPS] | Class 3000 | End Connection: [threaded/socket-weld] | Material: [grade] | Schedule: [wall requirement] | Standard: [applicable spec] | Documentation: [MTR, drawing, COC]
Fill in the brackets with your actual project data — never with assumed values. A qualified piping engineer should sign off on the final selection for any pressure-containing service. Supplier confirmation on availability doesn't replace that engineering review.
Applications and Installation Considerations
Class 3000 Elbolets show up most often on instrumentation and process piping runs, with thermowell connections being one of the most common uses on elbow sections.
Installation by Connection Type
Threaded installations need attention to:
- Thread compatibility with the mating component
- Sealant suitability for the service fluid
- Correct engagement depth
- Orientation for future maintenance access
Socket-weld installations need attention to:
- The approved fit-up gap per the welding procedure
- Cleanliness of the socket and pipe end before welding
- Alignment before the weld starts
- Heat input control and post-weld inspection
Per ASME's process piping code, B31.3 covers piping design, fabrication, examination, inspection, and testing for process applications. Correct installation requires sound welds plus documented examination and testing.
Orientation, clearance, and instrument insertion length determine whether an Elbolet installation performs correctly once flow moves through the elbow. Before any fitting goes into service, inspect identification markings, surface condition, dimensions, and weld quality against the documentation package.
Safety note: Pressure-containing piping work must be designed, installed, inspected, and tested by qualified personnel under the governing site and code requirements. That standard is the baseline for safe operation.
Where to Source Class 3000 Elbolet Fittings
When requesting a quote for a Class 3000 Elbolet, give the supplier everything they need to confirm the right part the first time:
- Size and radius of the mating elbow
- Branch size and required end connection
- Class 3000 requirement and material grade
- Service conditions
- Delivery location and project deadline
- Required documentation (MTRs, certs, drawings)
A supplier who confirms specifications, sources hard-to-find components, and coordinates related pipe, valves, flanges, gaskets, and bolting saves you from chasing multiple vendors on a tight schedule.
Twinco Industrial has served industrial, petrochemical, pipeline, construction, testing, and maintenance customers since 1977. The team can help confirm specifications or pursue specialty sourcing for Elbolet and related piping components as part of a broader order.
Availability varies by Class 3000 Elbolet size and configuration, so confirm current stock rather than assuming shelf inventory.
If you need Class 3000 Elbolet fittings, contact Twinco Industrial with your complete specification: elbow size, branch size, connection type, material, and documentation requirements. That detail up front cuts delays and avoids a mismatched component mid-project.
Frequently Asked Questions
What is a Class 3000 Elbolet?
A Class 3000 Elbolet is a branch outlet fitting designed for installation on a compatible long-radius elbow. Exact pressure capability depends on material, temperature, connection type, and the applicable standard, not the class number alone.
What is the difference between a Latrolet and an Elbolet?
A Latrolet is an angled branch outlet for a sloped or lateral connection on a straight run. An Elbolet is designed specifically for a branch connection on an elbow. Always verify current manufacturer definitions before specifying either.
What are the different types of elbow fittings?
Common classifications include 45-degree and 90-degree elbows, long-radius and short-radius elbows, and reducing elbows, with connection types like threaded, socket-weld, and butt-weld. These describe the elbow itself, not branch fittings like Elbolets.
What is the purpose of Weldolet fittings?
A Weldolet creates a welded branch connection on a straight run pipe or header. Unlike an Elbolet, it's designed for flat, straight-run applications rather than mounting on a curved elbow section.
What is a Sockolet?
A Sockolet is a branch outlet fitting with a socket-weld end, typically installed on a straight run. Its socket-weld connection differs from the threaded or butt-weld configurations available on other branch outlet fittings, including Elbolets.
How do you specify a Class 3000 Elbolet?
Confirm mating elbow size and radius, branch size, end connection, material grade, service conditions, and the applicable standard. Include documentation requirements like MTRs and dimensional drawings, plus any project-specific inspection criteria.
