Introduction
A blind plate , or blind flange, looks simple. It's a solid disc that bolts onto a pipe end and stops flow. But picking the wrong one can shut down a shutdown before it even starts.
Many project teams confuse a standard blind flange with a spectacle blind, or specify a gasket face that doesn't match the mating flange. Others discover mid-turnaround that the pressure class or size they need isn't sitting in the yard.
This guide breaks down blind flange types, real-world applications, and the selection criteria that actually matter: size, pressure class, material, facing, gasket, and bolting. We'll also cover when renting makes more sense than buying for US industrial projects.
Key Takeaways
- Blind flanges are solid flanged discs that close off pipe ends, valves, vessel nozzles, or piping sections.
- Spectacle blinds pair an open ring with a solid plate so crews can switch a line between flow and block after isolation.
- Size, pressure class, material, facing, gasket, bolting, and temperature must all match the piping specification — no exceptions.
- Buy blind flanges for permanent installs; rent kits for testing, isolation, and turnarounds without locking up capital.
What Is a Blind Plate or Blind Flange?
"Blind plate," "blind flange," and "blind" get used somewhat interchangeably across projects, suppliers, and regions. In practice, they all describe the same core idea: a solid, no-bore flanged component that closes off a piping connection.
Physically, a standard blind flange is a circular disc with a defined outside diameter, a bolt-hole pattern matching the mating flange, and a specified sealing face: raised face, flat face, or ring-type joint. There's no hole through the center. That's the whole point.
How It Stops Flow
The blind flange installs between two mating flanges, or bolts directly onto a nozzle or valve end, to:
- Stop fluid flow at a defined point in the system
- Close a system boundary for testing or storage
- Isolate equipment such as a vessel, pump, or valve
Blind flange vs. pipe cap: A blind flange bolts on and comes off. A weld cap gets welded in place permanently. If a line needs periodic access, future tie-ins, or repeated testing, the removable blind flange is the better choice.
The Full Sealing Assembly
Sealing performance never rests on the plate alone. It depends on the whole assembly working together:
- The blind flange itself
- The gasket seated between the flange faces
- Studs or bolts and matching nuts
- A controlled, even tightening procedure
Skip any piece (undersize the studs, mismatch the gasket, or tighten unevenly) and the seal fails regardless of how good the blind flange is.
A blind flange contributes to positive mechanical isolation, but it isn't a substitute for procedure. Workers still need to follow the site's approved lockout, de-energization, depressurization, and verification steps before touching a single bolt.
Types of Blind Plates and Flanges
Not every blinding job calls for the same hardware. Here's how the main types differ.
Standard Blind Flange
This is the workhorse. A solid blind flange closes pipe ends, isolates branch lines, blanks equipment nozzles, and holds pressure during hydrotest configurations.
Key specification variables to confirm:
- Nominal pipe size and flange outside diameter
- Pressure class (150 through 2500, depending on service)
- Flange facing — raised face, flat face, or RTJ
- Material grade
- Bolt-hole pattern and thickness
- Governing standard: ASME B16.5 for NPS ½–24 (Classes 150–2500); ASME B16.47 Series A/B for NPS 26–60
Twinco Industrial stocks blind flanges from ½ inch through 72 inches and beyond, in classes 150 through 2500. Materials include carbon steel, stainless, alloy, and specialty grades for most industrial and pipeline specs.

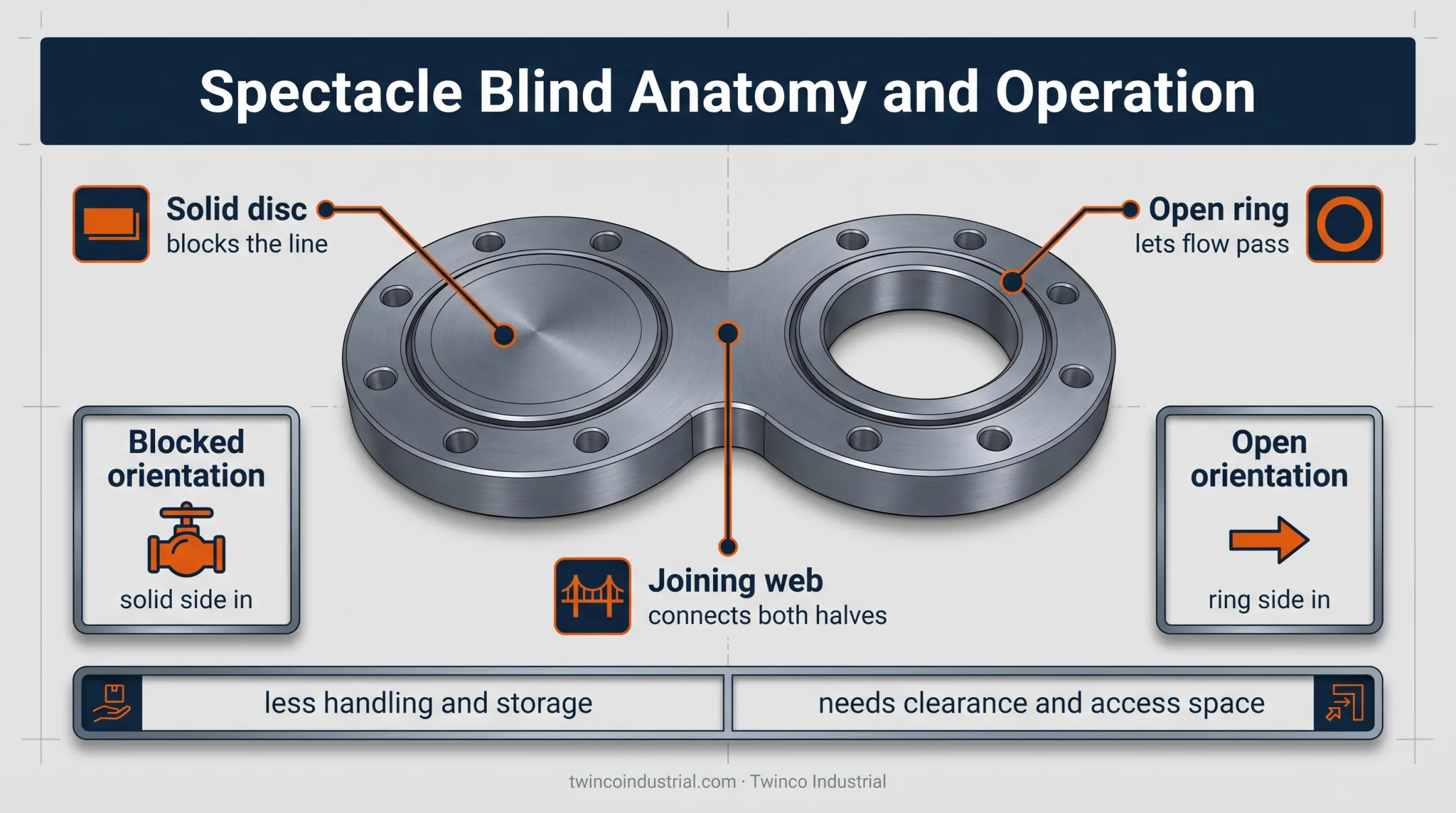

Spectacle Blind or Figure-Eight Blind
A spectacle blind is built like a figure eight: one solid disc blocks the line, one open ring lets flow pass, and a web joins the two halves together.
When the line needs to switch states, crews reposition the whole unit between the same set of flanges. The visible orientation — solid side in, or ring side in — gives a clear physical indication of whether the line is open or blocked. That's useful for anyone walking the unit during a shift change.
This is not an on-load switch. Repositioning a spectacle blind requires:
- Proper isolation and depressurization first
- Bolt removal or loosening per the design
- Gasket replacement where the procedure calls for it
- Correct alignment on reinstallation
- Controlled, even bolt-up
Compared to a removable standard blind, a spectacle blind cuts down on handling and storage since there's one integrated unit instead of separate plates. The tradeoff is that it needs adequate clearance and access space to swing or shift into position — something worth checking before it's needed in the field.
Stainless Blind Plate
A stainless blind flange is a blind flange made from a stainless-steel grade selected for corrosion resistance and process-fluid compatibility.
Selection depends on more than "is it stainless":
- Fluid chemistry and chloride exposure
- Operating temperature and pressure
- Contamination control requirements
- Welding or fabrication needs downstream
Don't select stainless only for corrosion resistance. Grade, pressure-temperature rating, gasket compatibility, and bolting still have to match the project specification.
Twinco stocks stainless and alloy blinds in A182 F304 and F316, plus carbon steel options such as A105 and A350 LF2, from ½ inch through 72 inches and beyond.
Other Line-Blinding Arrangements
A few other configurations show up depending on the manufacturer and piping standard:
- Paddle blinds (solid discs used for positive shutoff, sometimes called line blanks or spades)
- Spacer-and-blind combinations, where a bored spacer maintains flange gap when the line is open
- Ported paddle blinds and spade-and-spacer sets
Terminology shifts between suppliers. Always confirm the required arrangement against the project's piping class, line list, and approved drawings before ordering.
Where Blind Plates and Flanges Are Used
Blind flanges and blind plates show up wherever a line needs to be closed, tested, or separated from the rest of the system. Common settings include:
- Pipeline construction and tie-in work
- Refinery and petrochemical plant maintenance
- Scheduled turnarounds and shutdowns
- Fabrication shops preparing spools for shipment
- Hydrostatic and pneumatic pressure testing
- Commissioning new systems before startup
Testing and inspection contractors lean on blind flanges heavily for temporary closure setups. A line gets blinded at both ends, pressurized, and monitored — a standard step before a new pipeline segment or process line goes into service.
Typical project needs include:
- Preventing flow into a section under repair
- Separating one test boundary from the rest of an active system
- Closing off unused branch connections
- Isolating a vessel, pump, or valve for inspection
- Preparing equipment for safe entry or maintenance
Twinco Industrial supports these jobs from both directions: purchased blind flanges for permanent installs, and rental blind flange kits complete with matching studs, nuts, and gaskets for short-term testing and isolation work.
The rental fleet spans ½ inch to 72 inches and classes 125# through 2500#, backed by rental hydraulic tools like torque wrenches and hydrostatic test pumps for the same job. Confirm availability and specs against current stock before locking in a schedule.
How to Select the Right Blind Plate or Flange
Getting this right starts with paperwork, not guesswork.
Start With the Documents
Pull the engineering and procurement specs first. Confirm:
- Nominal pipe size and flange outside diameter
- Pressure class and governing flange standard
- Facing type
- Material grade and schedule
- Line or equipment identification number
Match Pressure and Temperature Together
Pressure and temperature ratings can't be checked separately. They move together on a pressure-temperature table. Account for design pressure, operating temperature, test pressure, and the fluid itself. A blind flange rated for one service condition may not hold at a different combination of the same numbers.
Confirm Face and Sealing Compatibility
| Face Type | What It Requires |
|---|---|
| Flat Face (FF) | Full-face gasket across the entire surface |
| Raised Face (RF) | Ring or spiral-wound gasket, concentrated bolt load |
| Ring-Type Joint (RTJ) | Solid metal ring gasket seated in a machined groove |
The mating flange has to use the same or an approved compatible configuration. Mixing an RF blind against an RTJ mating flange creates a leak path, not a workable seal.
Choose the Right Material
Carbon steel, stainless steel, and alloy blind flanges each serve different services:
- Carbon steel (A105, A350 LF2) for general process and pipeline service
- Stainless steel (A182 F304/F316) for corrosive or chloride-exposed media
- Alloy grades (F11/F22) for elevated temperature service
Cite the project specification and applicable ASTM/ASME standards rather than assuming a grade based on the service description alone.

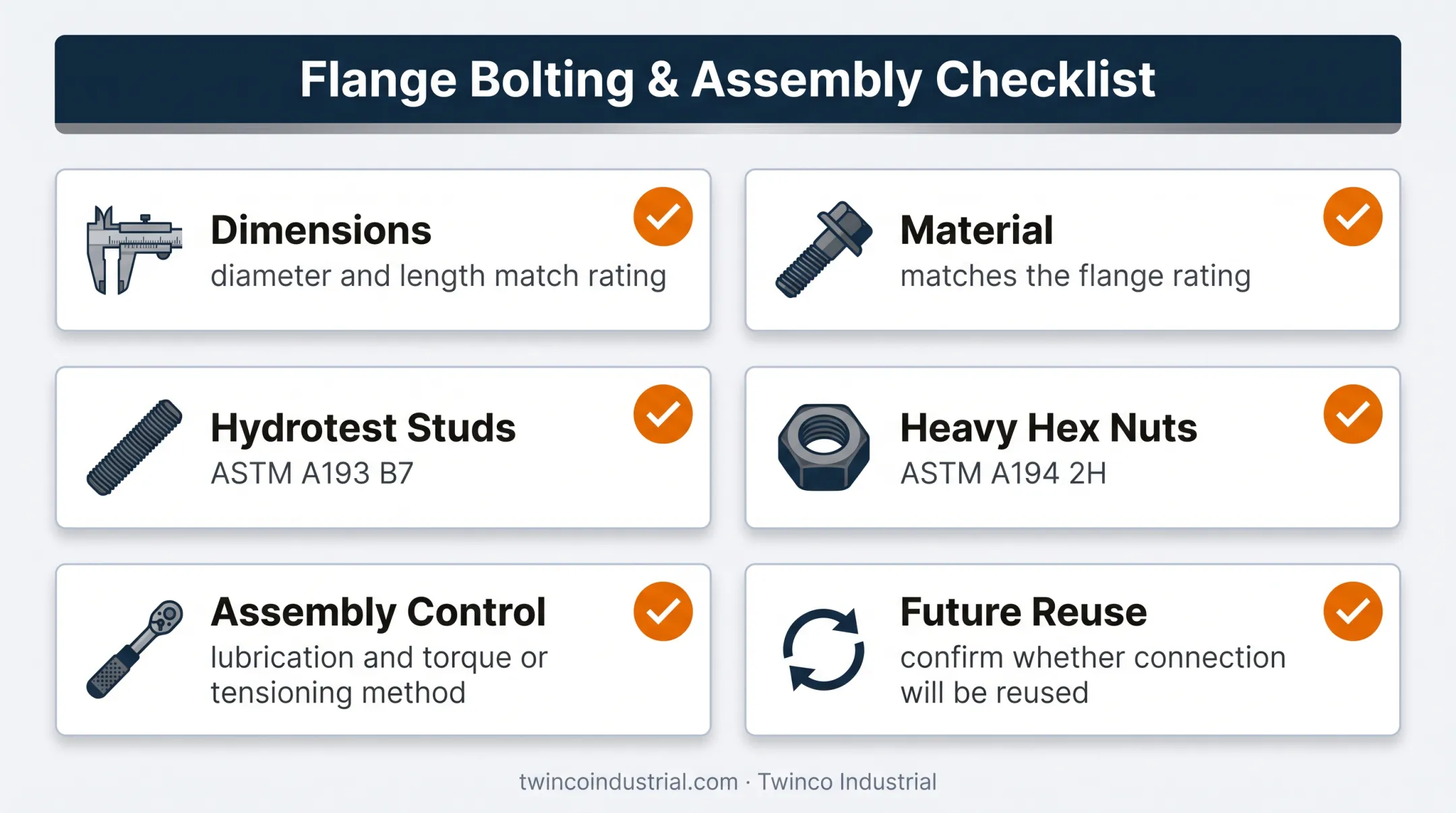

Verify Bolting and Assembly
Check stud or bolt diameter, length, and material against the flange rating. Hydrotest work commonly pairs ASTM A193 B7 studs with ASTM A194 2H heavy hex nuts. Confirm lubrication requirements and the torque or tensioning method before bolt-up begins. Note whether the connection will be reused later.
Procurement Checklist
Before ordering, confirm:
- Dimensional drawings match the spec
- Material test certificates, if required
- Inspection records and traceability
- Delivery schedule against the project timeline
- Emergency availability for last-minute changes
When Renting Makes Sense
Buying isn't always the smart move. Rental fits better when the need is:
- Short-term pressure testing or a single shutdown window
- A turnaround with a fixed end date
- An unusual size that won't get reused
- A project too small to justify owning and storing specialty equipment
Twinco Industrial's rental blind flange fleet covers common and hard-to-find sizes, with kits built to include matching bolting and gaskets. For specialty, oversized, or urgently needed components, contact Twinco's inside sales team directly rather than searching a catalog.
Installation, Inspection, and Safety Considerations
Installation isn't a one-person job done on instinct. It calls for qualified personnel working from the approved drawing, site procedure, and a controlled bolt-tightening method.
Pre-Use Checks
Before a blind goes into service, inspect it for:
- Damage on the sealing face
- Correct marking and material verification
- Bolt-hole alignment and thickness against the drawing
- Gasket condition
- Any distortion or contamination from prior use
Depressurize Before Touching a Bolt
Never loosen a flange or reposition a spectacle blind until the full isolation sequence is complete:
- Depressurize the line
- Drain residual contents
- Vent the system
- Gas-test where applicable
- Apply lockout/tagout
The OSHA hazardous energy control standard requires authorized employees to verify isolation and de-energization before servicing begins. Stored energy must be relieved or restrained first. That verification step is what keeps someone from opening a line still under pressure.

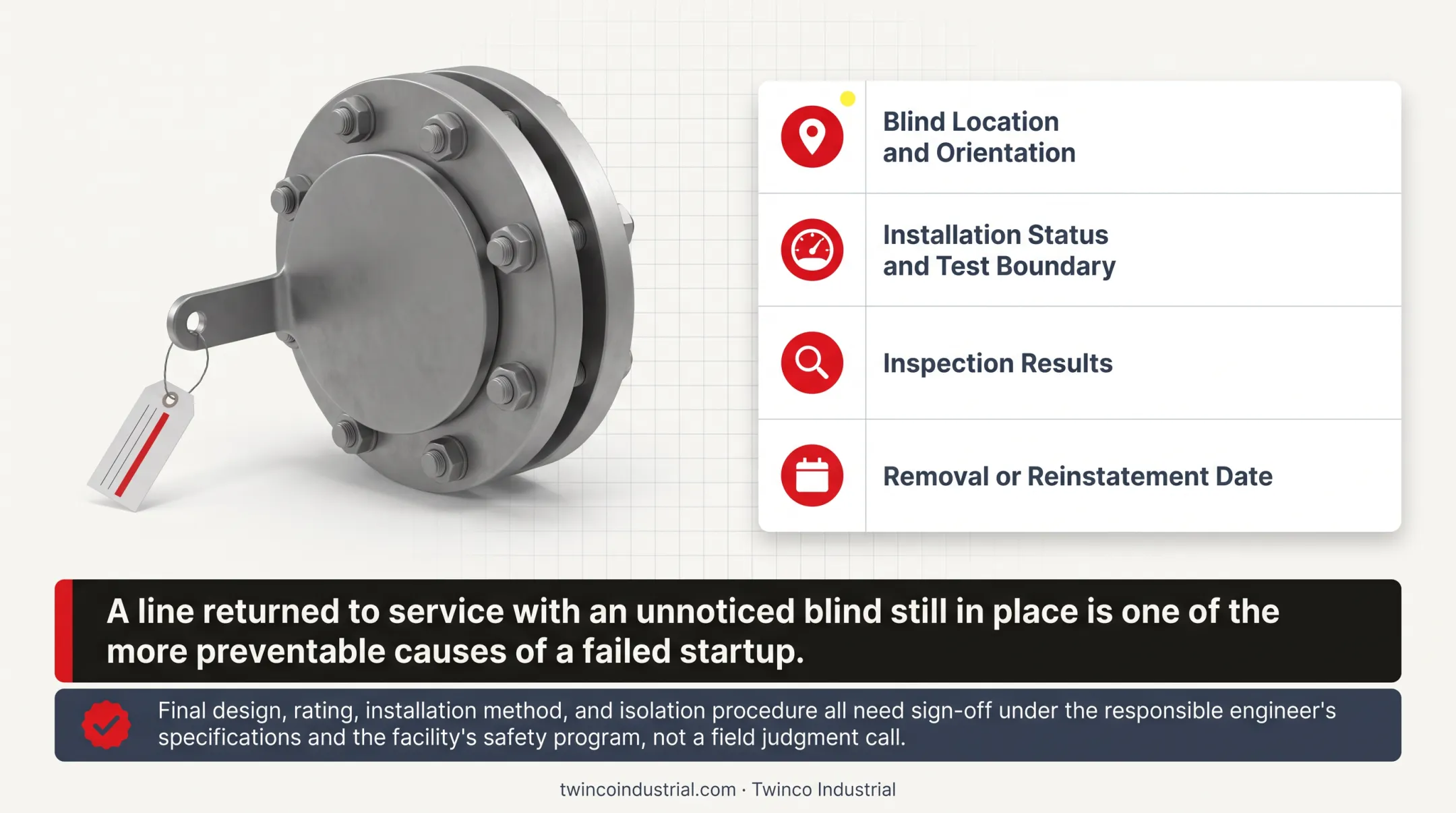

Document Everything
Document each installation with:
- Blind location and orientation
- Installation status and test boundary
- Inspection results
- Removal or reinstatement date
A line returned to service with an unnoticed blind still in place is one of the more preventable causes of a failed startup.
Final design, rating, installation method, and isolation procedure all need sign-off under the responsible engineer's specifications and the facility's safety program — not a field judgment call.
Frequently Asked Questions
What is a blind plate (blind flange) and what is it used for?
A blind flange is a solid, no-bore flanged disc bolted to a mating flange to close a pipe, nozzle, or vessel opening. It's used for isolation, pressure testing, maintenance closure, and blanking unused connections.
What is a spectacle blind plate (spectacle blind flange) and how is it used?
A spectacle blind is a figure-eight component combining an open ring and a solid disc, so a line can switch between flow-through and blocked positions. Repositioning requires safe depressurization and an approved isolation procedure. Never do this on a live line.
What is a stainless blind plate (stainless blind flange)?
A stainless blind flange is made from a stainless-steel grade such as A182 F304 or F316, chosen for corrosion resistance and compatibility with the process fluid. The pressure rating and gasket must still match the project specification.
What does a blind plate look like?
A standard blind flange is a solid circular disc with bolt holes around its outer edge and a defined sealing face, with no opening through the center. A spectacle blind looks different: one solid disc and one open ring joined by a web, forming a figure-eight shape.
