Industrial Pipes and Fittings

The product range includes industrial pipes, elbows, reducers, tees, caps, crosses, and small bore fittings. Small bore options include elbows, tees, couplings, unions, reducers, caps, bushings, olets, and branch fittings. Flanges are also available in weld neck, slip-on, blind, lap joint, socket weld, threaded, and API configurations.

Available materials include carbon steel, stainless steel, and alloy steel across the industrial pipes and fittings range. Flanges additionally include duplex and nickel alloys. Specific grades listed include A234 WPB carbon steel and A403 WP304/316 stainless steel. Material selection should be matched to the service conditions, design requirements, and applicable project specifications.

Listed standards include ASME B16.9, ASME B16.28, ASME B16.11, ASME B16.5, ASME B16.47 Series A and B, MSS-SP-75, and MSS-SP-83. Product data also references ASTM Standards and API Standards for applicable components. Confirm the required standard, material grade, pressure class, and configuration when requesting a quotation.

Industrial Pipes & Fittings are listed in sizes from 2 inches through 72 inches, with wall thicknesses from Schedule 10 through XXH. Small Bore Fittings are listed in sizes from one-half inch to 2 inches. Flanges are available from one-half inch through 72 inches. Availability depends on the selected configuration, material, standard, and pressure class.

Listed flange pressure classes include 150, 300, 400, 600, 900, 1500, and 2500. API ratings are listed from 2,000 to 15,000 PSI. The appropriate class or rating depends on the flange type, material, piping design, service conditions, and governing specification. Provide the required class, rating, size, material, and standard for accurate product selection.

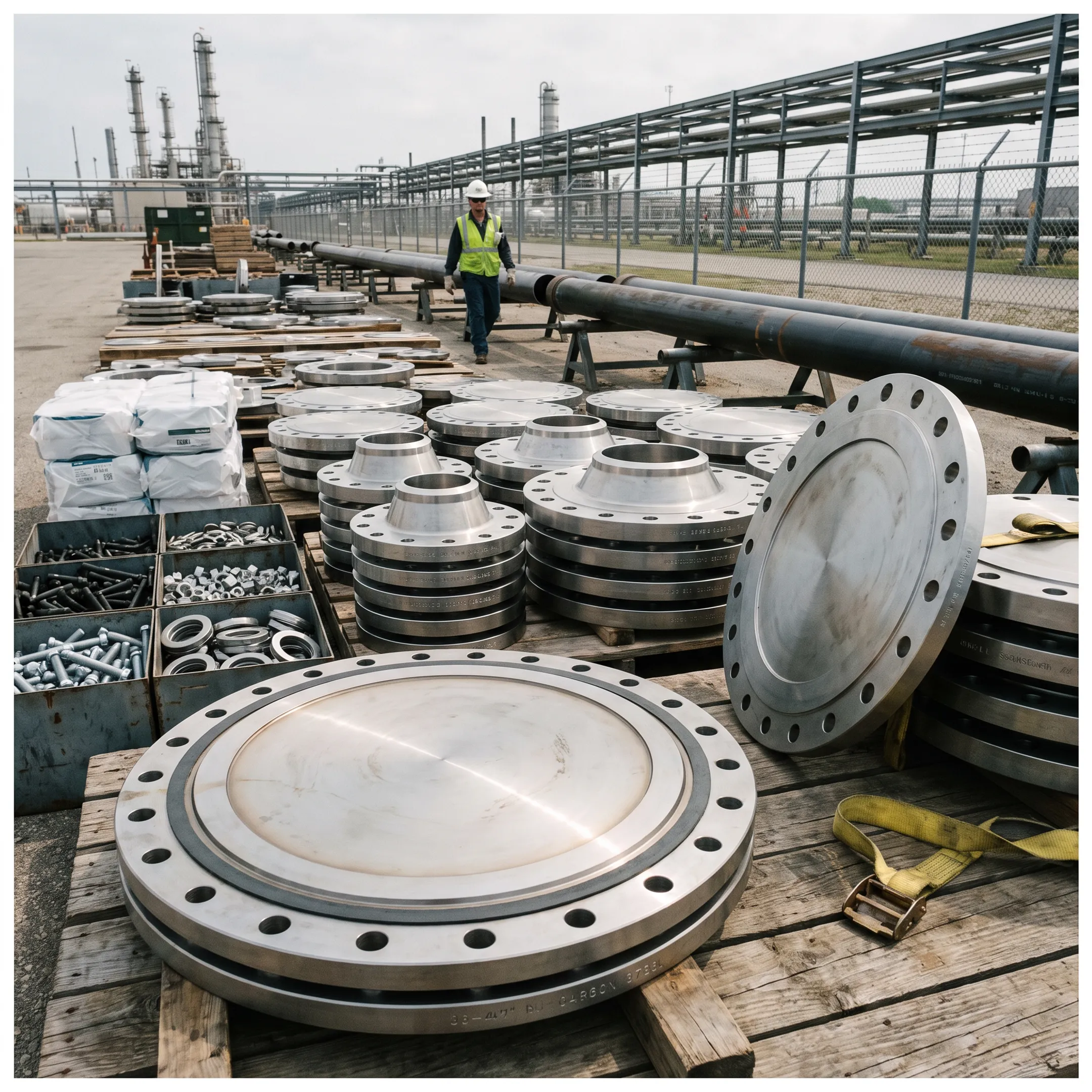

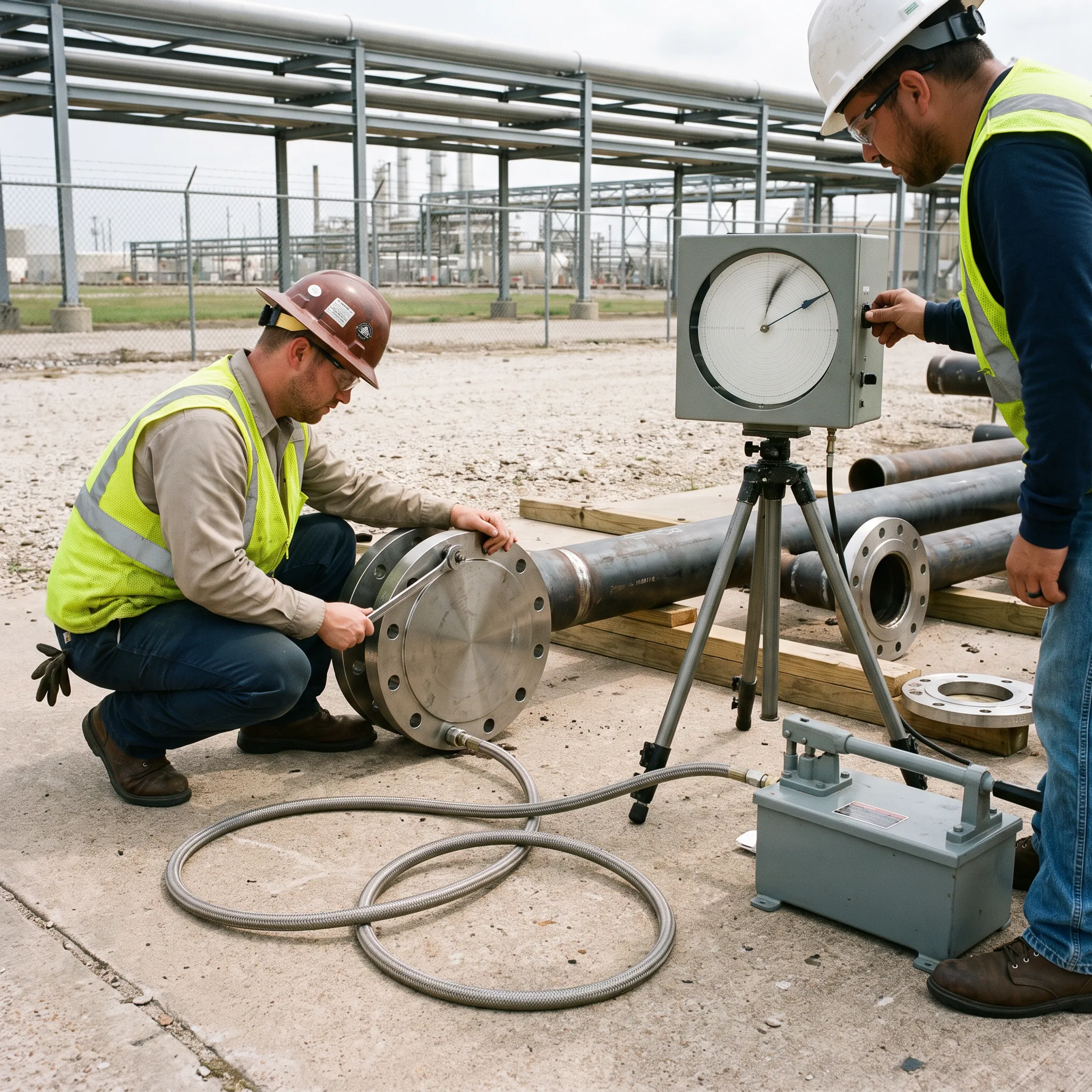

Twinco Industrial offers purchase options for Small Bore Fittings and Industrial Pipes & Fittings. Flanges are listed with both rental and purchase options. The company also supports industrial supply and rental requirements for pipeline, petrochemical, construction, testing, maintenance, and related projects. Contact the team with your component list and project requirements to discuss available options.
