Introduction
The connection you pick for a gate valve shapes far more than how it bolts or welds into a line.
It affects leak control, how much labor the installation eats up, how easily your crew can pull the valve during a turnaround, and the total cost of owning that valve for the next 20 years.
Here's where the terminology gets muddy:
- A butt-weld gate valve has weld ends built for permanent integration into piping
- A flanged gate valve has bolted flange connections designed for removal
The phrase "butt-weld gate valve with flanges" trips people up because a butt-weld valve can sit inside a piping system that also uses weld-neck or other flanges elsewhere.
This guide breaks down the connection types, the standards that govern them, and how to specify the right one for a US industrial piping project.
Key Takeaways
- Choose butt-weld ends for permanent, compact, high-integrity installs; choose flanges for removal and maintenance access.
- Base the end-connection choice on pressure, temperature, media, pipe spec, inspection needs, space, and shutdown strategy.
- Use a transition spool or engineered flanged piping arrangement—do not bolt a butt-weld valve directly to a flange.
- Specify valve, flange, gasket, bolting, welding, and testing together as one compatible system.
What Are Butt-Weld and Flanged Gate Valves?
Gate Valve Basics
A gate valve isolates flow. When open, the gate lifts fully out of the flow path, giving a straight-through, low-restriction bore. When closed, it seals completely.
Gate valves aren't built for throttling. That job belongs to globe or control valves. Use a gate valve for on/off isolation, not for regulating flow rate.
Butt-Weld Ends
A butt-weld end is prepared so the valve end aligns flush with the pipe end, then the two are joined by a circumferential weld around the full joint.
ASME B16.25 governs the bevel, external and internal shaping, and end preparation for buttwelding ends on valves and fittings. Once welded and inspected, that joint becomes a permanent part of the pipeline.
Flanged Ends
A flanged gate valve has integral flanges cast or forged into the valve body. Those flanges bolt to mating pipe flanges through a gasketed joint, with bolt load holding the seal. The valve stays mechanically removable for as long as the flanged system exists.
Clearing Up the Naming Confusion
Here's the part that causes real confusion in the field: a butt-weld valve's own ends are always weld ends. But that same valve can sit between flanged pipe sections using transition spools or weld-neck flanges welded onto the pipe on either side. The valve itself still has weld ends; only the piping system around it is flanged.
Construction details matter just as much as end type:
- Cast vs. forged bodies — forged bodies typically handle smaller sizes and higher pressure classes
- Bolted vs. pressure-seal bonnets — bonnet design affects maintenance and high-pressure suitability
- Wedge vs. parallel gate designs — affects sealing behavior and thermal binding resistance
- Material compatibility — carbon steel, stainless, and alloy grades each carry different weldability and service limits
Check which sizes and designs your governing standard actually covers before specifying — API 600, API 602, and ASME B16.34 don't all cover the same size or class ranges.

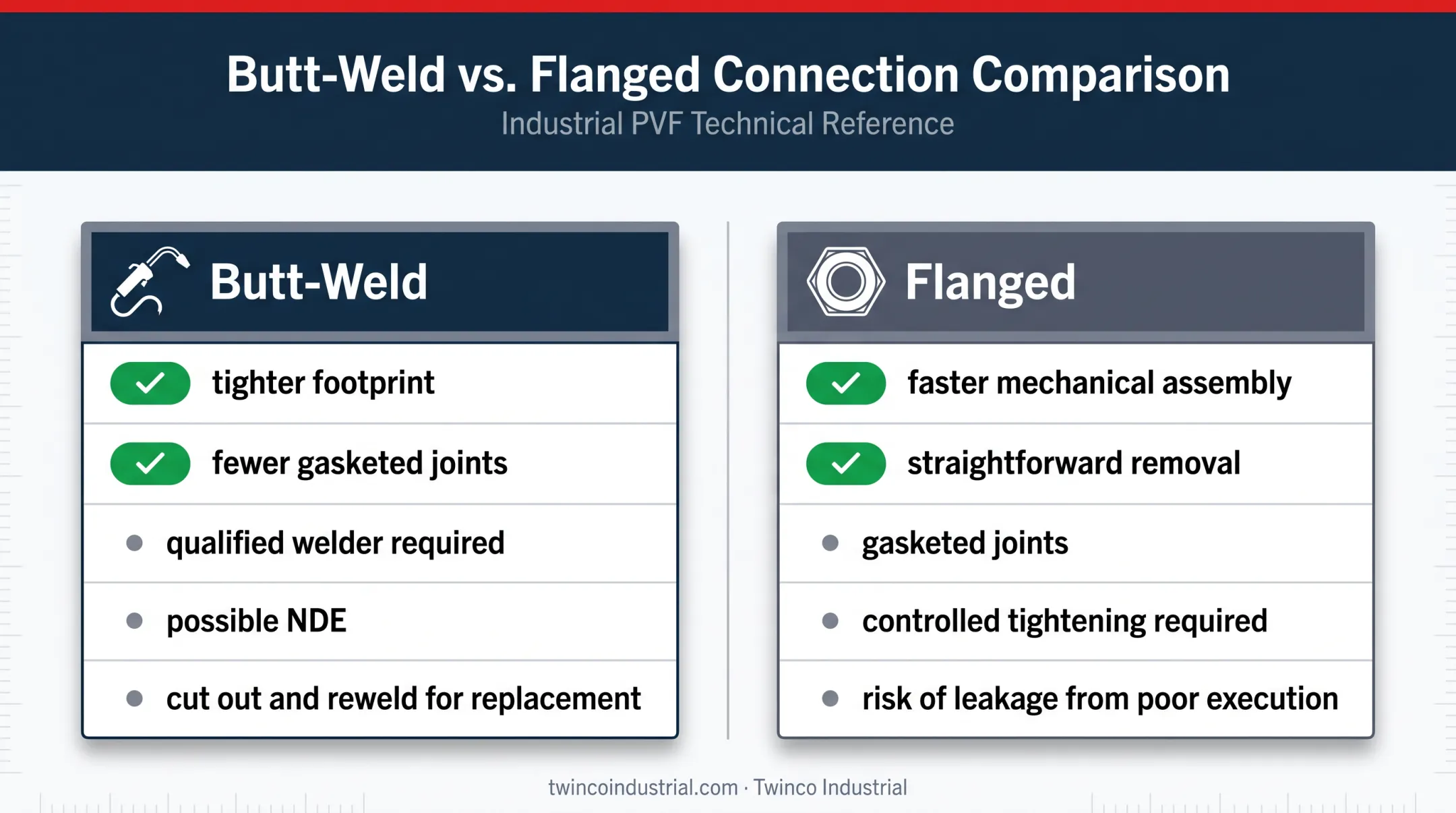

Butt-Weld vs Flanged Gate Valves: Key Differences
These two connection types trade off permanence against accessibility. Neither wins outright — it depends on what the line needs to do over its service life.
Butt-Weld Advantages and Limitations
Butt-weld connections offer a tighter footprint. You skip the bolt circle, gasket stack, and flange faces at each valve end, which matters in congested pipe racks. Fewer gasketed joints in the finished line means fewer places for a leak to start.
The tradeoffs are real, though:
- Requires a qualified welder and an approved welding procedure
- May trigger nondestructive examination (NDE) requirements
- Can distort seat and body geometry if welding heat input is not controlled
- Requires cutting out and rewelding when the valve needs replacement
Flanged Advantages and Limitations
Flanged connections assemble faster with mechanical tools, not welding rigs. Removal for maintenance or replacement is straightforward: unbolt, pull, reinstall. That removability is why flanged valves drop cleanly into existing flanged piping or equipment.
The catch is joint quality depends entirely on execution. ASME PCC-1 covers bolted-joint basics: surface cleaning, gasket installation, bolt lubrication, and controlled tightening sequence. Skip any step and you risk a leaking flange.
Side-by-Side Comparison
| Factor | Butt-Weld Connection | Flanged Connection |
|---|---|---|
| Removability | Requires cutting and rewelding | Unbolt and remove |
| Installation labor | Qualified welder, approved procedure, possible NDE | Bolted-joint crew, torque control |
| Space and weight | No bolt circle or gasket stack at valve ends | Adds flange, bolts, and gasket footprint |
| Leak paths at valve ends | No gasketed joint | Gasketed joint on each side |
| Typical driver | Permanent, compact, high-integrity lines | Maintenance access, future modification |
Note that face-to-face dimensions don't automatically favor one connection type — for Class 300 and higher, butt-weld and flanged valves often share the same overall length. Don't assume butt-weld construction saves space in every case.
How to Select the Right Connection for the Piping System
Start With Process Conditions
Before touching a spec sheet, nail down the service:
- Fluid type and whether it's corrosive or erosive
- Design pressure and temperature
- Hazardous-service classification
- Flow direction, plus confirmation the valve is for isolation (not throttling)
Match the Piping Specification
The valve connection has to agree with the line it's going into:
- Nominal pipe size
- Wall thickness or schedule
- Material group and pressure class
- End-to-end dimension
- Flange facing (if applicable)
- Governing design code
A mismatch here is one of the most common causes of field rework.
Balance Lifecycle Needs
Ask how often this valve will need to come out. If routine removal, inspection, or future modification is likely, lean flanged. If the line is permanent and space is tight, butt-weld construction often makes more sense.
Account for Site Constraints
- Welding access and hot-work permitting
- Crane or lifting requirements
- Flange-bolt clearance around adjacent equipment
- Valve support, insulation, and drainage
- Whether required inspections can actually be performed in place
Buyer's Checklist
Before you send an RFQ, confirm:
- Valve type, body, and trim materials
- Size, pressure class, and temperature rating
- End connection type and bore
- Bonnet design (bolted or pressure-seal)
- Actuator or handwheel requirements
- Testing and certification requirements
- Delivery timing and spare-parts availability
Sourcing all of this piece by piece (valve here, flanges there, gaskets from a third supplier) is how mismatched specs slip through.
Twinco Industrial coordinates valves with compatible flanges, gaskets, bolting, pipe, and fittings, including specialty or hard-to-find sizes, so the assembly ships as one matched package. Confirm current availability and exact specs with Twinco before finalizing any product-specific order.
Installation, Welding, Testing, and Maintenance Considerations

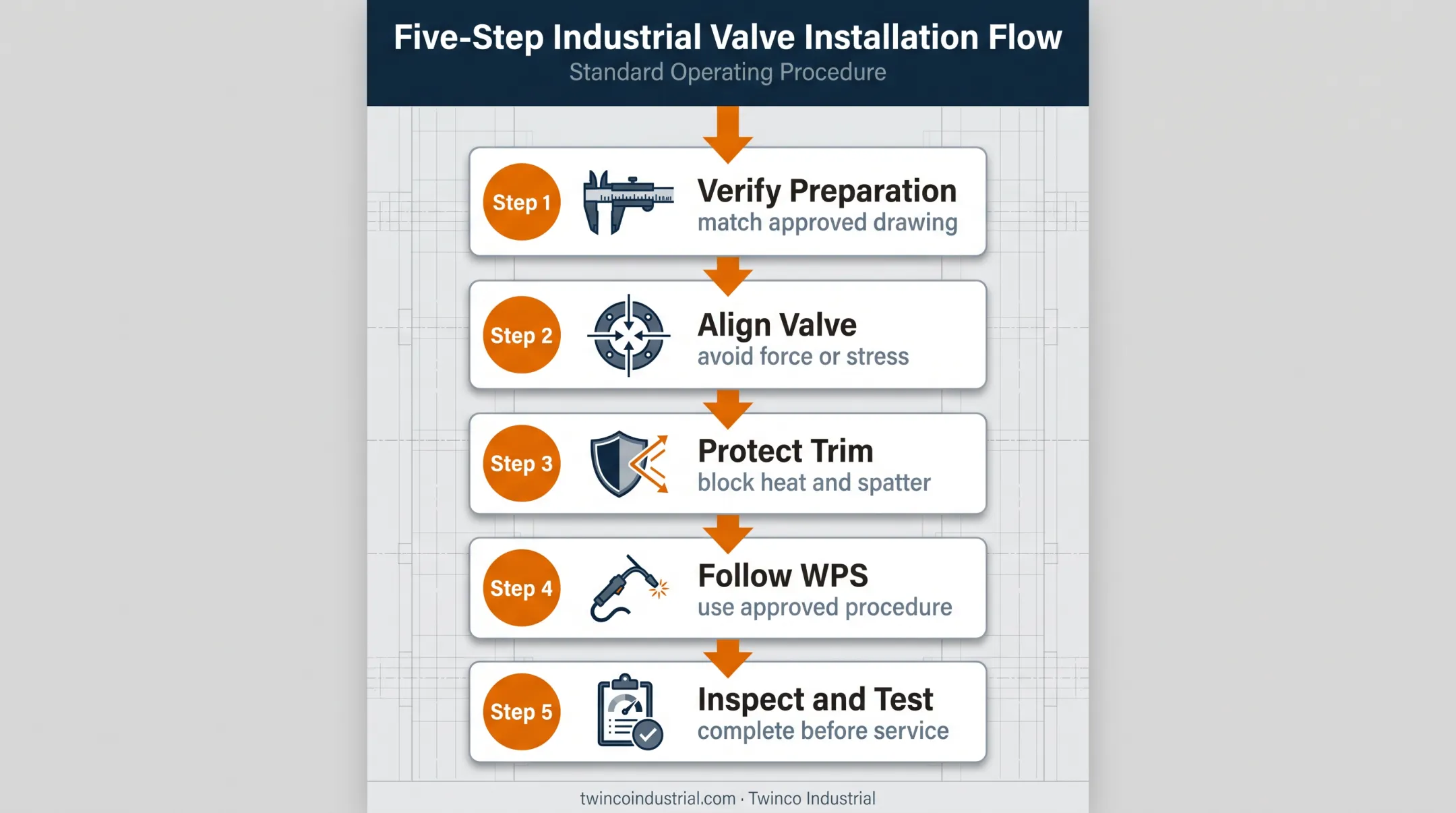

Butt-Weld Installation
- Verify end preparation and dimensions match the approved drawing.
- Align the valve to the pipe without forcing or stressing either component.
- Protect internal trim from heat and weld spatter during the process.
- Follow the approved welding procedure specification exactly.
- Complete the required inspection and pressure testing before the line goes into service.
Flanged Installation
- Confirm the mating flange matches on size, pressure class, facing, gasket type, and bolt material.
- Clean and inspect both flange faces before assembly.
- Align the joint without introducing piping strain.
- Tighten bolts using the specified sequence—typically a crossover pattern, not a circular one—and the required torque method.
Orientation, Support, and Access
Valve orientation affects more than installation ease. Stem clearance, support location, and access to downstream equipment all influence operation and later service access. A gate valve buried behind piping with no stem clearance is a maintenance headache waiting to happen.
Standards to Reference
- API 600 or API 602 — gate valve scope and size range
- ASME B16.34 — valve pressure-temperature ratings and material requirements (ASME B16.34)
- ASME B16.5 or B16.47 — mating flange dimensions and ratings
- ASME B16.10 — face-to-face dimensions
- API 598 — valve inspection and pressure-test requirements
- The governing piping code (such as ASME B31.3) or project specification
Post-Installation Checks
Keep documentation for:
- Weld or joint inspection records
- Pressure test results
- Packing and seat performance
- Flange leakage monitoring
- Corrosion control measures
- Material certificates
These records matter during audits and future maintenance planning, not just at commissioning. After startup, follow the service schedule for packing adjustment, stem lubrication, and seat-leakage checks.
Applications and Procurement Guidance
Where Butt-Weld Gate Valves Fit
Butt-weld ends fit best when the joint needs to stay permanent and leak-tight:
- Permanent process piping and high-integrity hydrocarbon service
- Compact pipe racks with limited flange clearance
- Systems where flange space is constrained
API 600 covers heavy-duty steel gate valves for petroleum refinery and related service, including both flanged and butt-welding ends, subject to engineering approval and applicable codes (API 600).
Where Flanged Gate Valves Fit
Flanged valves suit work where removal is part of normal operations:
- Maintenance-intensive plants and existing flanged systems
- Temporary or modular installations
- Planned shutdown and turnaround work
- Locations where routine removal is expected
Procurement Risks Worth Avoiding
Mismatched hardware causes install delays and costly rework. Watch for errors in:
- Pressure class or material grade
- End preparation or pipe schedule
- Flange facing, face-to-face dimension, gasket, or bolting
Submit the full line class, datasheet, service conditions, and documentation requirements with every RFQ — not just valve size and pressure class.
Twinco Industrial's inventory spans cast steel gate valves in sizes 2" through 48" across Classes 150 through 2500, plus flanges from ½" through 72" in carbon steel, stainless, alloy, duplex, and nickel alloy materials. That range covers most procurement gaps that surface mid-project, whether the issue is a wrong-spec flange or a hard-to-find gasket.
Frequently Asked Questions
What is a butt weld?
A butt weld joins two matching pipe or component ends by aligning them and welding around the full circumference. Unlike a bolted flange connection, it creates a permanent, gasket-free joint.
What materials can be butt-welded?
Weldability depends on material grade, thickness, chemistry, service conditions, and a qualified welding procedure. Carbon steel, stainless steel, and alloy steels can all be butt-welded with the right procedure and inspection plan.
Are butt-weld gate valves better than flanged gate valves?
Neither is universally better. Butt-weld valves suit permanent, compact installations, while flanged valves better support removal, maintenance, and future modifications.
Can a butt-weld gate valve be connected to a flange?
The valve itself keeps its weld ends, but it can integrate into a flanged system through a transition spool or weld-neck flange matched to the pipe specification on either side.
What information is needed to order a butt-weld or flanged gate valve?
Specify these details with your request:
- Service media, size, and pipe schedule
- Pressure and temperature ratings
- Body and trim materials, plus connection type
- Applicable standards, testing, and documentation needs
- Actuator requirements and delivery date
