Introduction: Carbon Steel Fittings and Flanges
Every industrial piping system depends on two components to hold it together: fittings and flanges. They redirect flow, join pipe runs, and create bolted connections that can be opened for maintenance, testing, or emergency isolation.
On most US industrial jobs, carbon steel is the workhorse for those connections. Many project teams still struggle with more than pipe size. Pressure class, temperature rating, fluid compatibility, material grade, connection method, and the applicable ASME or ASTM standard all have to work as one system.
Get one variable wrong, and you're looking at a failed hydrotest, a leak path, or a shutdown delay.
This guide covers carbon steel fitting types, flange configurations, governing standards, selection criteria, and installation considerations for US industrial piping projects—from pipeline construction to refinery turnarounds.
Key Takeaways
- Fittings and flanges must be specified together with pipe schedule, gasket, and bolting, not in isolation
- Flange pressure class and pipe schedule are separate ratings that must be matched through the project design code
- Specify A105N for forged flanges and A234 WPB for fittings as the common carbon steel grades
- Require material test reports and heat-number traceability at receiving inspection
- Substituting a "similar-looking" component without engineering approval risks a pressure-boundary failure
What Are Carbon Steel Fittings and Flanges?
Carbon steel is an iron-and-carbon alloy valued for its strength, weldability, and lower cost compared with stainless or alloy steels. But "carbon steel" isn't a single spec. The applicable ASTM designation, grade, and heat treatment depend entirely on the service environment.
Fittings change the direction, size, branch configuration, or termination of a pipe run. Elbows, tees, and reducers fall into this category.
Flanges create a bolted connection between pipe, fittings, valves, or equipment. A typical flanged joint includes:
- Two mating flange faces
- A gasket between the faces
- Studs or bolts through the bolt-hole pattern
- Nuts tightened to the specified torque sequence
Why Carbon Steel Gets Specified So Often
Carbon steel is common in water, oil and gas, steam, process, pipeline, and utility service because it covers a wide pressure-temperature range at a reasonable cost. That said, corrosion resistance and temperature limits still need verification for each application. A grade suited for ambient service isn't automatically suited for sour gas or cryogenic conditions.
Seamless vs. Welded: Why Manufacturing Method Matters
Seamless and welded fittings are not interchangeable. The manufacturing route affects wall thickness options, required nondestructive testing, and what documentation should accompany the shipment. ASTM A234/A234M covers wrought carbon steel and alloy steel fittings of seamless and welded construction for moderate and elevated-temperature piping.
No carbon steel component should be selected on its own. It has to be compatible with the connected pipe, valve, gasket, fasteners, fluid, and the governing design code — all at once.
Common Types of Carbon Steel Pipe Fittings
Fittings are grouped by the function they perform. But function alone doesn't finish the specification. Size, schedule, end connection, and material grade all need to match the adjoining pipe.
Direction and Flow Changes
- Elbows: 45-degree and 90-degree configurations, with long-radius and short-radius options that affect layout and pressure loss
- Tees and crosses: branch fittings in equal or reducing configurations; branch size directly affects flow distribution
- Reducers: concentric and eccentric designs that transition between pipe sizes; eccentric versions suit drainage and pump suction geometry
Termination, Joining, and Maintenance Components
- Caps and plugs close off pipe ends
- Couplings join two pipe ends
- Unions allow disassembly without cutting or welding
- Nipples extend short runs or connect fittings
Each of these depends on the connection type and service conditions, not just its physical shape.
End Connections
| Connection Type | Common Use Case |
|---|---|
| Butt-weld | High-pressure, permanent joints on larger bore piping |
| Socket-weld | Smaller diameters where fillet welding is practical |
| Threaded | Low-pressure or maintenance-friendly applications |
| Flanged | Any joint requiring future disassembly |

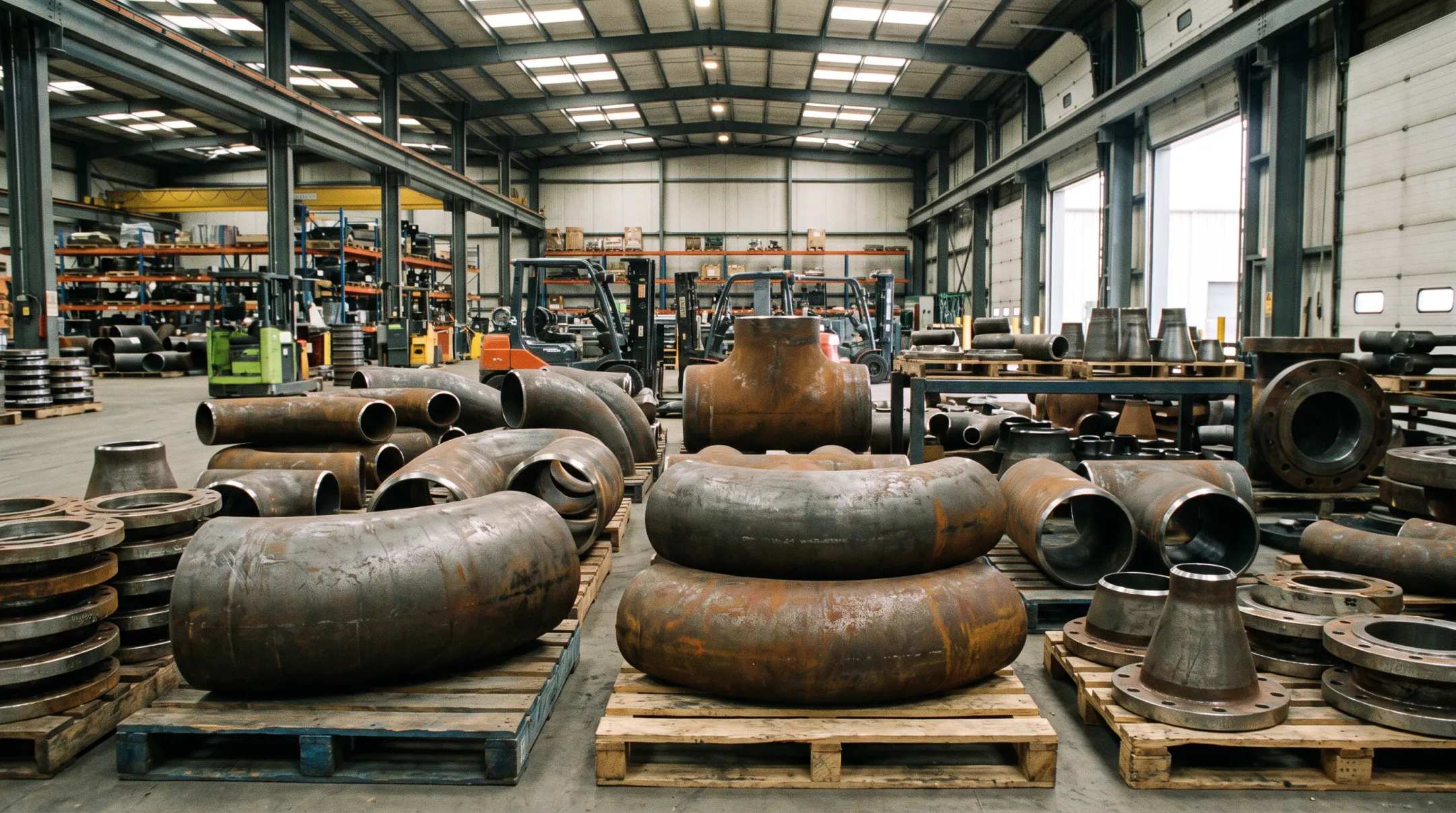

Twinco's large-bore carbon steel fittings run 2 inches through 72 inches, specified to A234 WPB and dimensioned to ASME B16.9, ASME B16.28, or MSS SP-75, depending on the fitting category.
Small-bore forged fittings such as couplings, caps, and unions (1/2 inch to 2 inches) follow ASME B16.11 and MSS SP-83 in 3000# and 6000# classes.
Always confirm the exact ASME, ASTM, MSS, or project specification for the specific fitting category. There's no single universal standard that covers every carbon steel fitting.
Carbon Steel Flange Types and Configurations
Choosing between flange types comes down to pressure, temperature, cyclic loading, accessibility, and how often the joint needs to come apart for maintenance.
The Main Flange Types
- Welding neck (WN) — tapered hub, butt-weld connection, strong alignment for demanding pressure or temperature service
- Slip-on (SO) — slides over the pipe end before welding; easier alignment but generally lower fatigue resistance than WN
- Socket-weld (SW) — used on smaller-diameter piping; fit-up and welding practice matter more here than on larger flanges
- Threaded (THD) — used where welding is restricted; thread form, pressure-temperature suitability, and leakage risk need verification against the applicable code
- Blind (BL) — a solid disc that closes off a pipe end for isolation, testing, or future expansion
- Lap-joint (LJ) — pairs with a stub end; the backing flange rotates freely, which helps with bolt-hole alignment and lets the pressure-wetted stub end be a different (often corrosion-resistant) material
Reducing flanges exist for size transitions, but in many cases a standard flange plus a separate reducer fitting is the more practical arrangement. Check the applicable table before defaulting to a reducing flange.
Flange Facing Options
Raised face, flat face, and ring-type joint (RTJ) are sealing configurations, not pressure classes. Match the facing to the mating flange, the gasket, the pressure class, and the service — all four together.
- Raised face (RF) — default for most process service; concentrates gasket load on a smaller area
- Flat face (FF) — used with full-face flanges, often cast iron, so the flange is not put in bending
- Ring-type joint (RTJ) — grooved face with a metal ring gasket for high-pressure or high-temperature duty

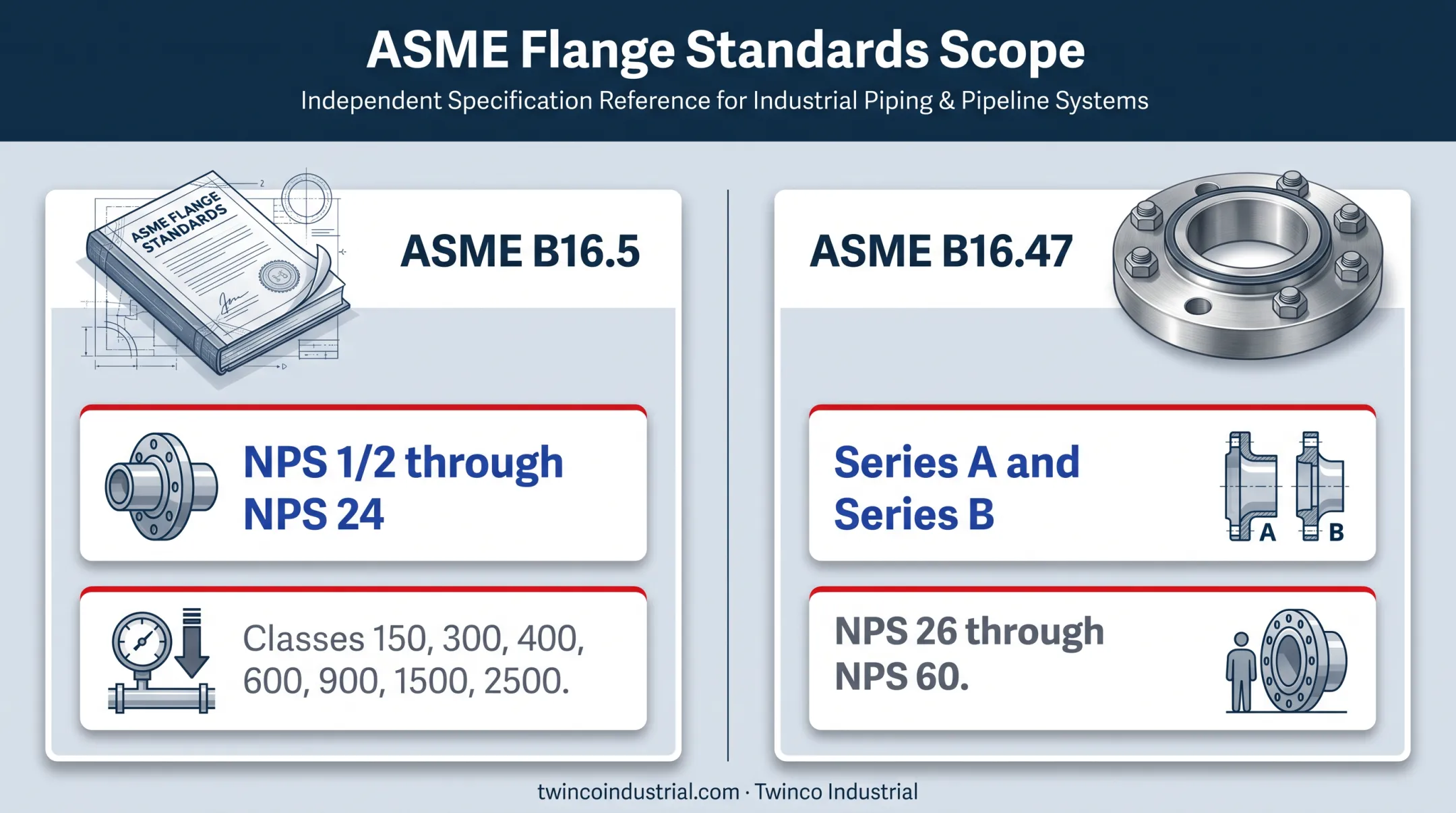

Those facings sit on flanges dimensioned by ASME standards. ASME B16.5 covers pipe flanges and flanged fittings from NPS 1/2 through NPS 24, across pressure classes 150, 300, 400, 600, 900, 1500, and 2500. For larger diameters, ASME B16.47 Series A and Series B extend coverage from NPS 26 through NPS 60.
Twinco stocks welding neck, slip-on, blind, lap-joint, socket-weld, and threaded flanges from 1/2 inch through 72 inches, plus API-rated flanges at 2,000, 3,000, 5,000, 10,000, and 15,000 PSI for higher-pressure service.
Welded vs. Bolted: A Quick Comparison
| Factor | Welded Connection | Bolted Flange Connection |
|---|---|---|
| Disassembly | Requires cutting | Removable by unbolting |
| Inspection access | Limited without cutting | Can be opened for internal inspection |
| Maintenance | More labor to modify | Faster valve or equipment swaps |
| Installation | Fewer leak points long-term | Requires gasket and torque control |
Neither option is universally better. The right choice depends on how often the joint needs to come apart.
How to Specify and Select Carbon Steel Fittings and Flanges
A complete specification checklist should cover:
- Nominal pipe size and outside diameter
- Wall thickness or schedule, plus fitting dimensions
- Flange type, pressure class, facing, and end connection
- Material grade, quantity, and delivery requirements
Let Service Conditions Drive Material Selection
Before locking in a grade, identify:
- The conveyed fluid and design pressure
- Operating temperature range
- Corrosion and erosion exposure
- Cyclic loading or vibration
- Outdoor or buried-service conditions
Then confirm the selected carbon steel grade actually has the chemical composition, mechanical properties, impact requirements, and temperature suitability the service demands. Low-temperature applications, for example, often call for notch-toughness testing under ASTM A350/A350M rather than a standard A105 forging.
Pressure Class and Dimensional Compatibility
Pressure class and pipe schedule are not the same thing. Class is a flange-system rating; schedule is a pipe wall-thickness designation. Both need to be checked together with valve rating, gasket design, and fastener specification across the entire assembly, not selected independently.
Documentation to Verify Before Accepting Delivery
- Material test reports (MTRs) tied to a specific heat number
- Physical markings on the component matching the MTR
- Dimensional inspection against the purchase order
- Coating or preservation requirements, if specified
- Traceability that survives cutting or field fabrication
Physical Compatibility Checks Before Ordering
- Confirm nominal size and actual dimensions match
- Match flange drilling, bolt-hole pattern, facing, bore, and thickness
- Confirm thread form or weld-end preparation where applicable
- Verify gaskets and bolting suit the flange face and service
For scheduled work, lead time is manageable. For urgent repairs or a failed component discovered mid-turnaround, availability becomes the deciding factor, especially for large-diameter or hard-to-find items.
That availability gap is where Twinco Industrial helps. The Houston-based supplier stocks carbon steel flanges, fittings, valves, gaskets, and bolting for planned procurement and same-day emergency sourcing, and maintains a large rental blind flange fleet for testing and isolation. Request a quote or specification review before a mismatched component turns into a schedule delay.
Never substitute a visually similar component without engineering approval, particularly if the substitute changes material grade, pressure class, bore, facing, wall thickness, or connection dimensions.
Applications and Installation Considerations
Carbon steel fittings and flanges are used across industrial piping work, including:
- Pipeline construction and midstream tie-ins
- Refinery and petrochemical maintenance
- Power plant outages and process piping upkeep
- Fabrication shops and industrial construction
- Pressure testing, shutdowns, and emergency repairs
Flanged systems specifically support maintenance and isolation because bolted joints can be opened for inspection, valve replacement, testing, or temporary blinding, as long as the system is safely depressurized and controlled first.

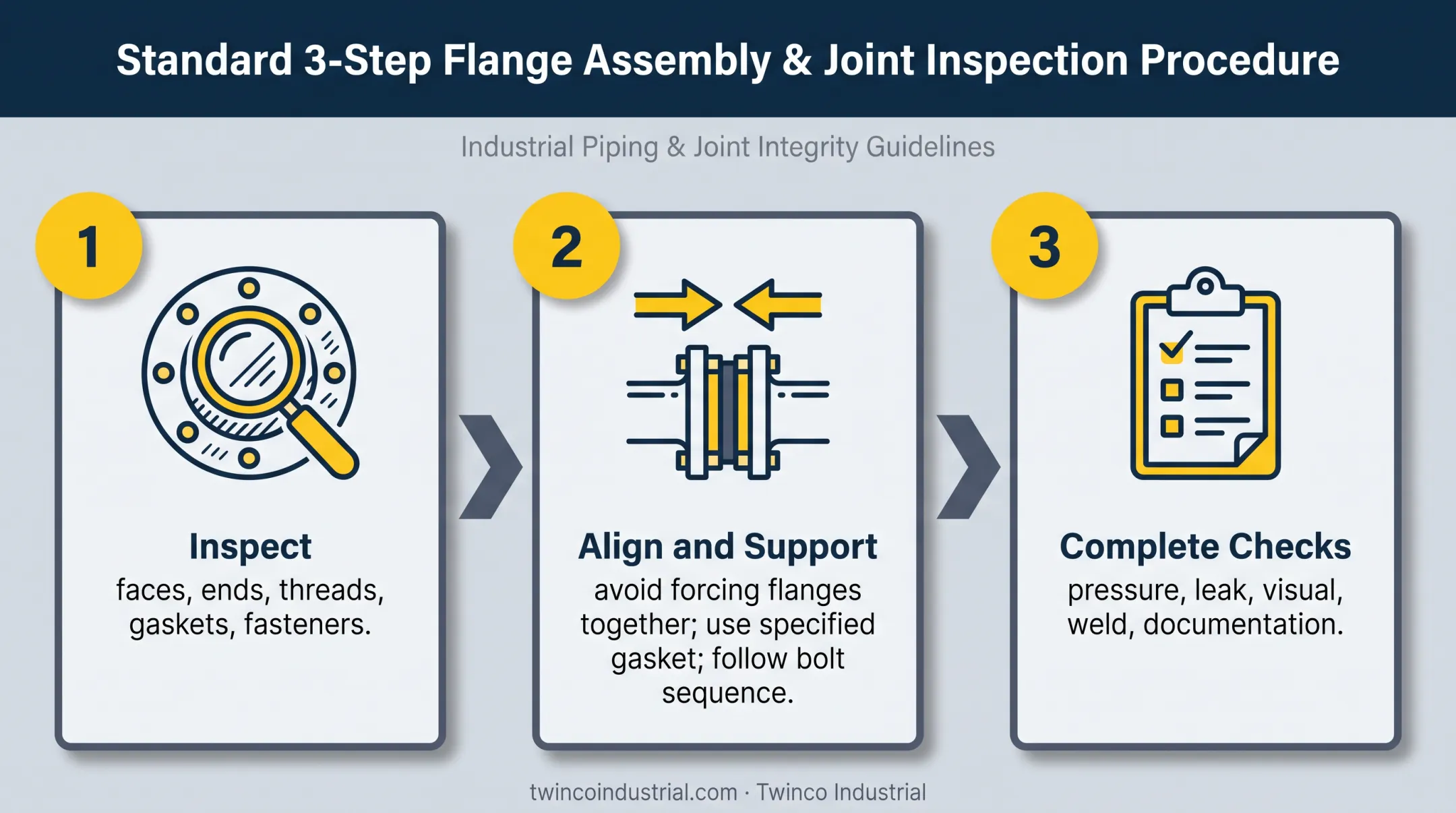

Installation Checklist
- Inspect flange faces, fitting ends, threads, gaskets, and fasteners for damage, contamination, corrosion, or dimensional mismatch
- Align and support the piping without forcing flanges together; use the specified gasket and follow the approved bolt-tightening sequence
- Complete required checks: pressure, leak, visual, weld, and documentation, under the applicable code and site safety procedure
Before unbolting a flange or cutting into a live system, facilities must follow their energy-control procedure. OSHA 29 CFR 1910.147 specifically requires ongoing verification when stored energy could reaccumulate to a hazardous level. Isolation is not a one-time check.
Those same isolation and testing steps often need rental support on short notice. Twinco Industrial supplies related rental equipment—including blind flanges, bolting, hydraulic torquing tools, and testing/isolation gear—so teams can assemble a complete package instead of chasing multiple vendors mid-project.
Installation, pressure testing, isolation, and depressurization should always be performed by qualified personnel under the responsible engineer's procedures and applicable safety requirements. No article substitutes for that.
Conclusion: Choosing Carbon Steel Fittings and Flanges With Confidence
Reliable piping performance comes from treating fittings, flanges, gaskets, bolting, pipe, and valves as one engineered system — not a list of parts purchased separately.
Before placing an order, confirm:
- Service conditions and material grade
- Dimensions, pressure class, and flange facing
- Connection type and applicable standards
- Traceability documentation
- Delivery timing against your project schedule
Whether you're building a new pipeline segment, running a hydrotest, or scrambling to replace a failed component before a turnaround deadline, the right supplier keeps the job on schedule.
Twinco Industrial has supported petrochemical, pipeline, and construction projects since 1977. Inventory covers carbon steel flanges and fittings from 1/2 inch through 72 inches, plus rental equipment for testing and isolation.
Reach out for a quote when your project needs urgent procurement, specialty components, or a complete piping package.
Frequently Asked Questions
What is a flange pipe fitting?
A flange is a bolted connection component, not a standard fitting. It joins pipe, fittings, valves, or equipment using a gasket between the mating faces and studs or bolts through the bolt-hole pattern.
What is the difference between a coupling and a flange?
A coupling directly joins two pipe ends, typically by threading or welding, with no bolted joint. A flange creates a bolted, gasketed connection that can be disconnected later for maintenance or inspection.
What are the different types of carbon steel pipe fittings?
Common types include elbows, tees, crosses, reducers, caps, plugs, couplings, unions, and nipples. End connection (butt-weld, socket-weld, threaded, or flanged) and material grade both need separate confirmation.
What are the types of flanges?
The main types are welding neck, slip-on, socket-weld, threaded, blind, lap-joint, and reducing flanges. Selection depends on pressure, temperature, and the applicable ASME standard for the project.
What is the ASTM standard for carbon steel fittings?
There isn't one universal ASTM standard. Specs vary by type and grade—for example, A234/A234M for wrought fittings and A105 for forged components—so confirm the exact requirement for your part.
What sizes does carbon steel pipe come in?
Carbon steel pipe and fittings span a broad range of nominal sizes and schedules, commonly from 1/2 inch through 72 inches depending on the product line. Always confirm exact dimensions and wall thickness against your project specification before ordering.
