Introduction
An RTJ blind flange is a pressure-boundary component bolted onto the end of a pipe. Its sealing face, groove geometry, and dimensional accuracy determine whether that boundary holds or fails.
Many procurement and field teams struggle with a simple assumption: that "RTJ blind flange" is a complete description. It isn't. Dimensions shift by nominal pipe size (NPS), pressure class, governing standard, and even by which dimensional table a supplier pulls from.
Under ASME B16.5, flanges span NPS 1/2 through NPS 24, with Class 2500 limited to NPS 12 and smaller. Get the standard or class wrong, and nothing downstream lines up.
This article breaks down what RTJ blind flanges are, which dimensions actually matter, how to verify them, and where RTJ diverges from raised-face (RF) construction.
Key Takeaways
- RTJ (Ring Type Joint) seals with a solid metal ring in a machined groove, not a soft gasket.
- Dimensions depend on NPS, pressure class, standard, and face type together, never just one variable.
- Check OD, thickness, bolt-circle diameter, bolt-hole size, and groove dimensions as a set.
- RTJ and RF faces are not interchangeable and require different mating components.
- Confirm purchase description, drawings, markings, and standard edition before every installation.
What RTJ Blind Flanges Represent and What Affects Their Performance
An RTJ blind flange is a solid, bolted flange with no bore, used to close off a pipe end, nozzle, vessel connection, or test section. What sets it apart from a raised-face blind is the sealing method: a machined ring-type groove replaces the smooth raised face.
During bolt-up, the metal ring gasket wedges between the groove walls on the blind flange and its mating flange. Bolt preload compresses the ring until it deforms slightly, creating a metal-to-metal seal without relying on gasket resilience the way a soft-gasket joint does.
Four distinct parts make up the assembly, and each has its own tolerance requirements:
- The flange body — machined to standard-specified outside diameter, thickness, and bolt pattern
- The groove — precision-cut to accept a specific ring number
- The ring gasket — sized and profiled to match the groove exactly
- The bolting — sized per the flange's bolt-circle diameter and hole count
One point of confusion trips up a lot of buyers: NPS is not the flange's outside diameter. A 12-inch NPS blind flange doesn't measure 12 inches across its face — the actual OD, thickness, and bolt circle come from the dimensional table for that size and class.
Pressure class is a rating designation tied to material and temperature, not a flat statement of how much pressure the flange can take in every service condition.
Factors That Influence RTJ Performance in Real-World Operation
Catalog dimensions describe geometry. They don't guarantee performance. A handful of variables separate a print-perfect flange from one that seals reliably in service:
- Material and service conditions — grade, temperature, fluid compatibility, corrosion, pressure cycling, and thermal expansion all affect sealing life.
- Manufacturing quality — groove accuracy, surface finish, flatness, and bolt-hole alignment determine whether the ring seats correctly from day one.
- Installation practice — flange alignment, gasket seating, bolt lubrication, and tightening sequence can make a print-accurate flange leak anyway.
- Ring condition — a scored, dented, or previously used ring rarely reseals the same groove the same way twice.
On that last point: don't assume a ring can be reused just because it looks intact. Field guidance under ASME PCC-1 recommends against reusing gaskets and flags RTJ rings as a common source of repeat leakage and facing damage. Check manufacturer and standard guidance before making a reuse call on any specific job.
RTJ Blind Flange Dimensions and Operating Range
Dimensions only mean something in context. A 6-inch Class 600 blind flange and a 6-inch Class 1500 blind flange share an NPS designation but not much else. Always read dimensions by standard, NPS, pressure class, and flange type together. Never mix values pulled from unrelated tables.
Nominal Size, Pressure Class, and Applicable Standards
Twinco's Blind Flange Information Chart organizes dimensions by line size and standard:
| Standard | Line Size Range | Notes |
|---|---|---|
| ASME B16.5 | 1/2" – 24" | Standard classes 150–2500; Class 2500 tops out at NPS 12 |
| ASME B16.47 Series A (MSS SP-44) | 26" – 60" | Classes typically 150–900 |
| ASME B16.47 Series B (API 605) | 26" – 60" | Distinct hole patterns from Series A; not interchangeable |
| ASME B16.48 | 1/2" – 60"+ | Governs line blanks, paddle blinds, and spectacle blinds, not standard blind flanges |
Standard pressure classes include 150, 300, 400, 600, 900, 1500, and 2500. Each class has its own dimensional table, so confirm the exact class and table before quoting or ordering any specific flange.
Core Blind-Flange Dimensions
For fit-up, six dimensions matter most:
- Outside diameter (OD): must match the mating flange's OD for the same NPS and class
- Flange thickness: the closed-face thickness, which differs from bore/hub dimensions on weld-neck tables
- Bolt-circle diameter (BCD): governs bolt spacing and alignment
- Number of bolt holes: varies by size and class, not size alone
- Bolt-hole diameter: must match the fastener OD with proper clearance
- Sealing-face geometry: for RTJ, this means groove profile, not a flat raised face

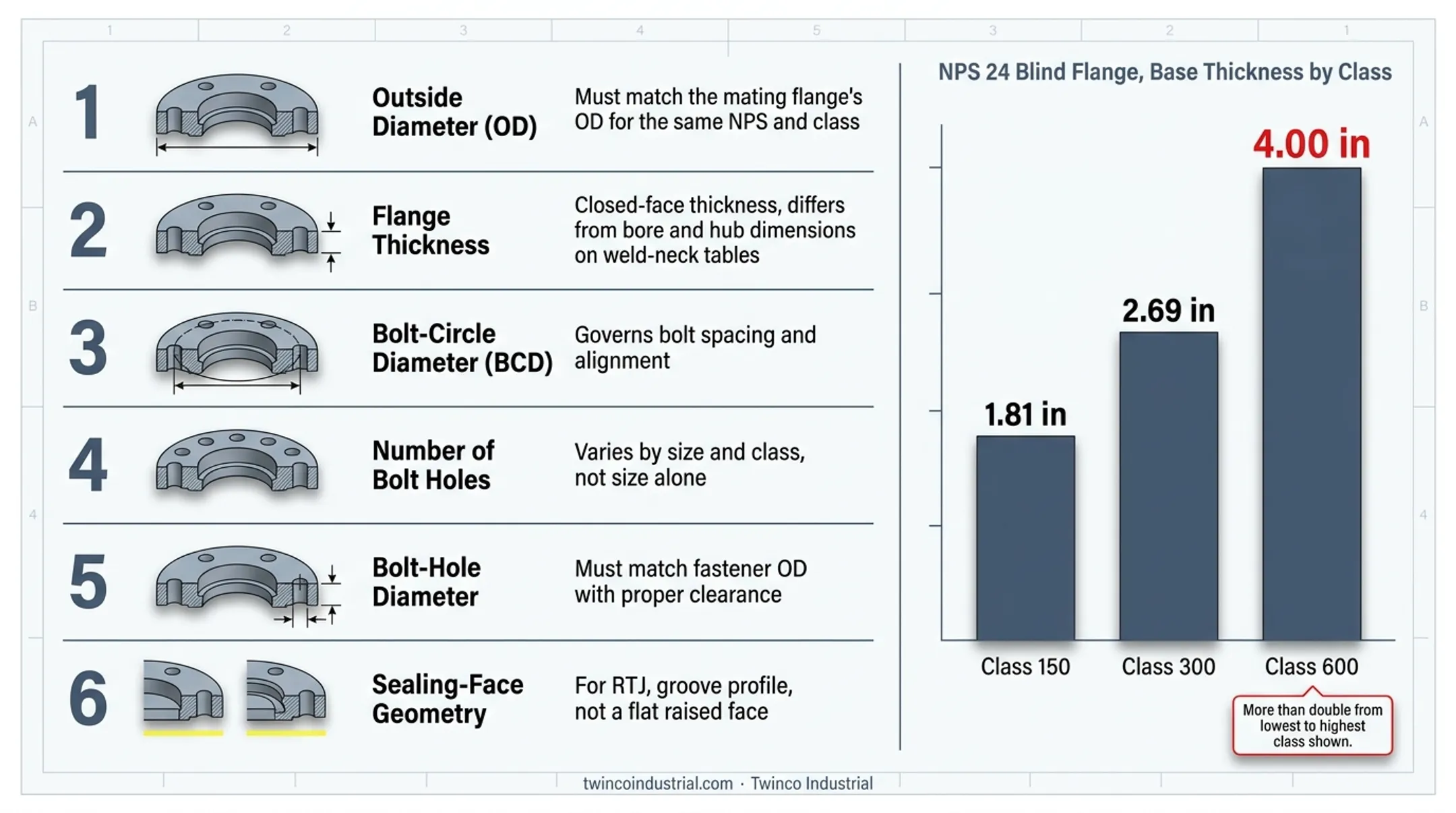

Here's the kind of shift a single NPS can see across classes. Texas Flange's published dimensional data for a 24-inch blind flange shows base thickness climbing from 1.81 inches at Class 150 to 2.69 inches at Class 300 to 4.00 inches at Class 600.
That is more than double from the lowest to highest class shown in the Texas Flange dimensional data. Same NPS, wildly different flange. Always pull the current table for your exact size and class rather than assuming linear scaling.
RTJ Groove and Ring-Gasket Dimensions
The groove is where RTJ lives or dies as a sealing system. Groove diameter, width, depth, and root radius all have to match the ring gasket's designated number — not just its general shape.
A few things to keep straight:
- Ring numbers matter. Twinco's chart lists ring and gasket identifiers spanning R-11 through R-105, each tied to a specific groove.
- Oval and octagonal profiles aren't automatically interchangeable. Oval rings generally need a bottom-radiused groove; flat-bottom octagonal grooves can often accept either profile, depending on the machined groove style.
- Groove inspection matters as much as ring selection. Nicks, corrosion, raised material, contamination, or leftover damage from a prior assembly can prevent a brand-new ring from sealing correctly.
Safe Operating Range and Boundary Conditions
Allowable pressure and temperature for any RTJ blind flange come from a full pressure-temperature rating assessment: material, service fluid, design code, and project requirements together. One pressure number pulled off a chart doesn't replace that review.
It also matters how the flange is being used:
- Continuous service conditions differ from short-duration pressure testing
- Temporary isolation during a turnaround has different risk tolerances than upset conditions
The closer an application runs to a flange's design boundary, the more correct gasket selection, bolt preload, inspection, and documented engineering review matter. Margin for error shrinks fast near the edges of a rating.
Technical Properties and How RTJ Blind Flanges Are Specified and Validated
Specifying an RTJ blind flange is a design decision, not a one-line dimensional lookup. The same details get verified again at receiving and once more before installation.
Key Properties to Confirm
Confirm these four property groups:
- Material and temperature: grade, toughness, corrosion resistance, and range matched to piping class and service
- Sealing system: RTJ face, groove geometry, ring material, ring profile, and ring designation chosen as one coordinated set
- Mechanical fit: NPS, pressure class, OD, thickness, bolt circle, hole size, bolt count, and mating-flange compatibility
- Traceability and condition: markings, heat/batch traceability, material certificates, coating needs, and sealing-face protection in storage and shipping
How to Specify an RTJ Blind Flange
A purchase order that just says "RTJ blind flange" invites the wrong class, material, groove, or gasket. A complete specification covers:
- Nominal size and pressure class for the line and design conditions
- Face type called out as RTJ (not a generic "RF/RTJ" option)
- Material standard and grade for the service fluid and temperature
- Dimensional standard such as ASME B16.5 or B16.47 Series A/B
- Gasket requirements: ring number, material, and profile
- Bolting specification matched to class, material, and torque practice
- Testing, inspection, coating, and documentation requirements
Before the order ships, cross-check the purchase order, piping specification, isometric or general arrangement drawing, and supplier data sheet. A mismatch anywhere in that chain is where field problems start.

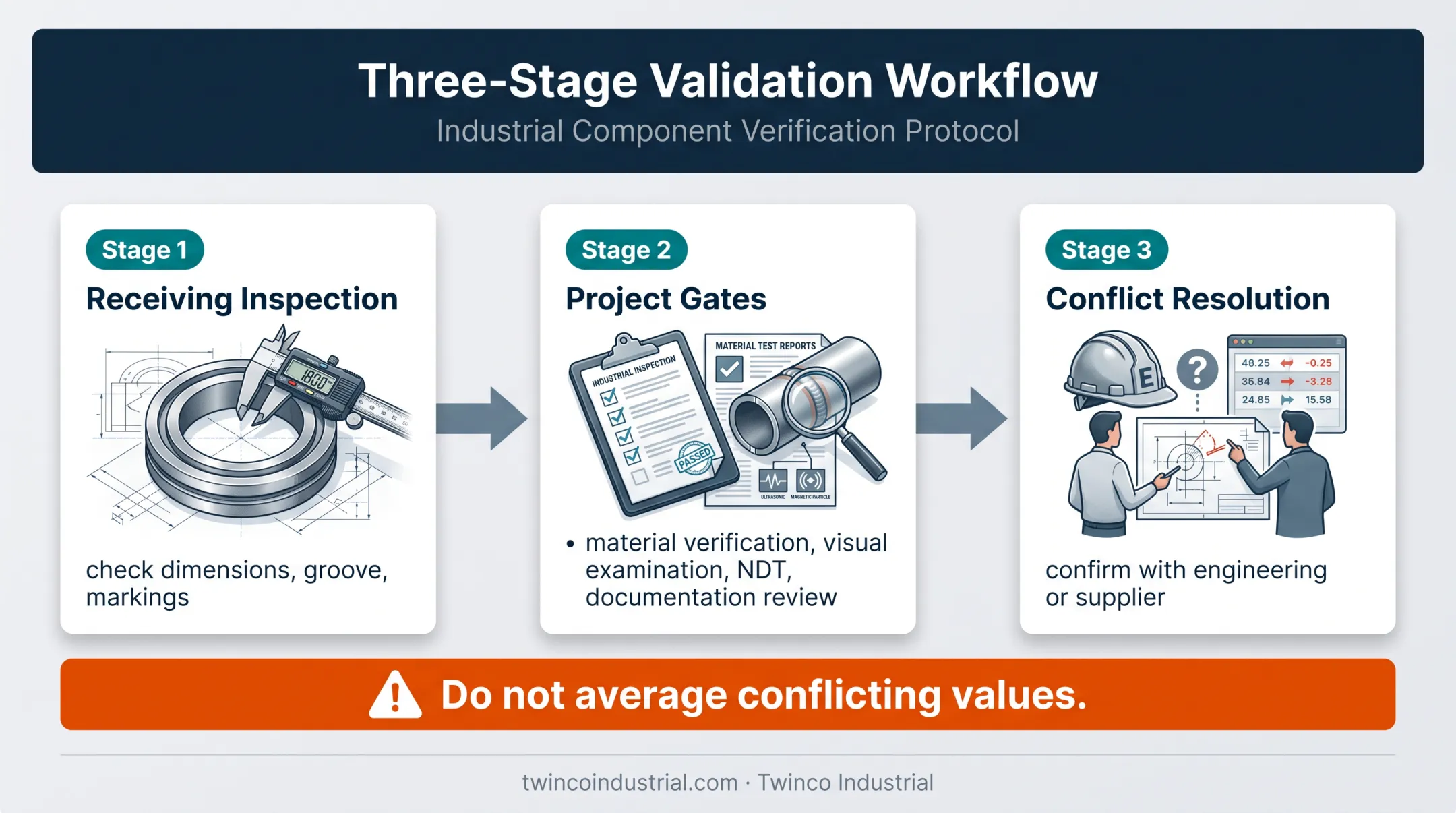

Measurement, Inspection, and Validation
Once the flange arrives, receiving inspection should confirm fit and face condition with calibrated tools:
- Outside diameter and thickness
- Bolt-circle diameter, hole diameter, and bolt count
- Face condition, groove dimensions, and overall flatness
- Markings against the purchase order and material documents
Dimensional checks are only one gate. Projects may also require:
- Material verification
- Visual examination
- Non-destructive testing
- Documentation review
When a drawing, standard, or field measurement conflicts with another source, get engineering or supplier confirmation before proceeding. Do not average conflicting values.
Product and Sourcing Consideration
Those same specification and inspection checks apply whether you buy or rent. Twinco Industrial supplies and rents RTJ blind flanges with matching studs, nuts, and ring gaskets for hydrostatic testing, maintenance, shutdowns, pipeline work, and petrochemical projects. Rental kits are inspected, dimensionally checked, and cleaned before shipment, and paired to the class and face type the job requires.
When a project also needs pressure-test chart recorders or hydraulic tools, Twinco can bundle that isolation and test support in the same order. For sizing, class, material, gasket, or documentation questions, contact Twinco's inside sales team for a spec-checked recommendation.
Implications of Incorrect Selection or Installation
A wrong dimension, mismatched ring gasket, damaged groove, poor alignment, or inadequate bolt preload causes leakage, failed pressure tests, rework, or unplanned downtime. On a turnaround with a fixed schedule, that's expensive in a hurry.
Beyond schedule impact, the consequences run into safety territory:
- Loss of pressure containment on a live process line
- Exposure to process fluids during a failed test or installation
- Nonconformance with project or code requirements
Substituting an RF blind flange for an RTJ blind flange doesn't work. The raised face on an RTJ flange isn't the sealing surface, so pairing it against an incompatible mating face or gasket undermines the entire sealing system before bolt-up even finishes.
Common Misinterpretations in Practice
A few assumptions cause more field problems than almost anything else:
- "Higher pressure class means it'll work." Material, temperature, service, standard, gasket, and mating components all have to line up too. Class alone doesn't cover it.
- "All RTJ blind flanges of a given NPS are the same size." They're not; NPS isn't OD, and dimensions shift by class.
- "RTJ means leak-proof no matter what." RTJ is a sealing method, not a guarantee. Correct design, inspection, installation, and maintenance still have to happen.
- "An online dimensional table replaces the code or drawing." Published tables are a starting reference, not a substitute for the applicable code, project spec, or supplier confirmation.
Conclusion
An RTJ blind flange is a pressure-boundary and isolation component. Its reliability depends on the flange, groove, ring gasket, bolting, material, and dimensions working as one coordinated system.
Choose dimensions by standard, NPS, pressure class, material, and service condition, then validate them through documentation and inspection before anything goes into service.
Twinco Industrial has supplied and rented RTJ blind flanges, matching bolting, gaskets, and rental isolation or testing equipment for petrochemical, pipeline, and industrial projects since 1977. For size, class, material, or documentation questions on your next RTJ blind flange order, reach out to Twinco's team at (713) 733-8946 or info@twincoindustrial.com.
Frequently Asked Questions
What does RTJ mean on a flange?
RTJ stands for Ring Type Joint. The flange face has a machined groove that holds a solid metal ring gasket, which seals under bolt preload. It's typically used for demanding pressure and temperature applications.
What is the purpose of a blind flange?
A blind flange closes off a pipe, nozzle, or vessel opening entirely, supporting isolation or pressure-testing activities. Match it to the connection's exact size, class, material, and sealing face.

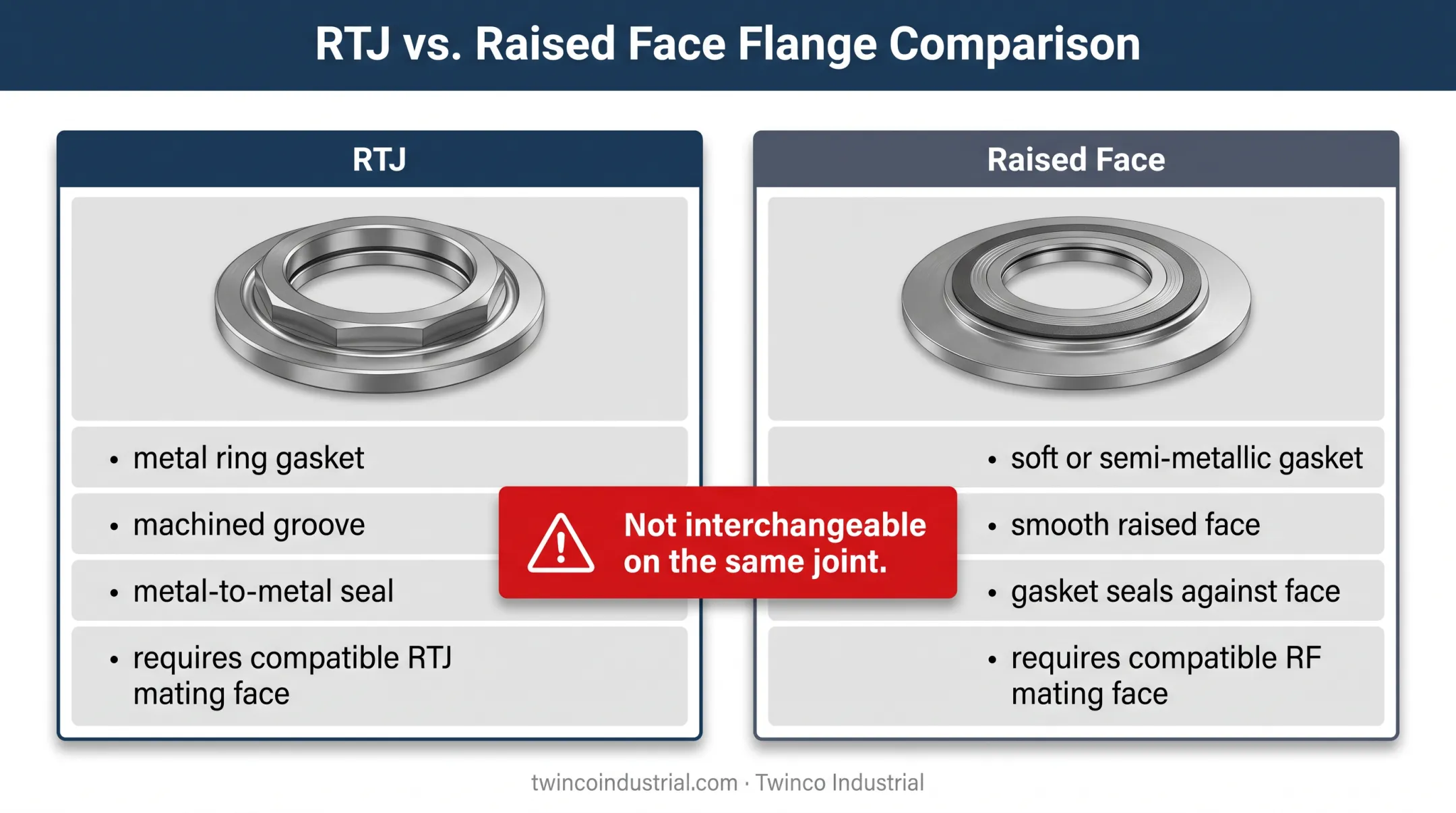

What are the key differences between RTJ and raised face flanges?
RTJ uses a metal ring seated in a machined groove; RF uses a soft or semi-metallic gasket against a smooth raised face. The two faces require compatible mating flanges and aren't interchangeable on the same joint.
What is the difference between a blind flange and a standard flange?
A blind flange is a solid closure with no bore, used to seal an opening. "Standard flange" usually means any flange built to a published dimensional standard, including weld-neck, slip-on, and blind types.
Can I rent RTJ blind flanges instead of buying them?
Yes. Twinco Industrial maintains rental blind flanges from 1/2 inch through 72 inches with RTJ, RF, and other facing options, plus matching studs and nuts for short-term testing or turnaround needs.
