Many engineers and buyers get tripped up by terminology. "Forged" describes how the steel was formed. Weld neck, blind, slip-on, and socket weld describe the flange's configuration and use. These are two different questions, and mixing them up leads to spec errors.
This guide walks through how forging works, the common flange types you'll encounter, how pressure class and material selection actually function, the standards that govern all of it, where these flanges show up in real projects, and what to check before you place an order.
Key Takeaways
- Forging yields a dense, consistent flange; correct specification still decides suitability.
- Lock pressure class, temperature, material, facing, and standard before treating “forged” as enough.
- Use them in pipelines, refineries, power plants, and maintenance where pressure integrity is non-negotiable.
- Verify dimensions and documentation match the mating flange, gasket, and bolting before ordering.
What Are Forged Steel Flanges?
A forged steel flange is a piping component formed through a forging process, then machined to create a precise face, bolt pattern, bore, and connection geometry. Paired with a gasket and bolting, it creates a detachable joint.
That's the whole point of a flange: it lets a connection be inspected, cleaned, repaired, or swapped out without cutting into a permanent weld.
Forged vs. Cast: What Actually Differs
Forging mechanically works heated (or sometimes cold) metal into shape. Casting pours molten metal into a mold and lets it solidify there. That distinction drives real metallurgical differences.
According to the Forging Industry Association, forging develops grain flow oriented toward the load path, which supports directional strength, ductility, and fatigue resistance. Castings don't get that benefit, and they can carry over dendritic structure or segregation from the original cast ingot.
That said, this is a process-level advantage, not a blanket rule. A forged flange's actual performance still depends on:
- Material grade and chemistry
- Heat treatment and process controls
- Machining accuracy
- Inspection and testing
- Whether the design itself fits the service
Cast components remain appropriate for plenty of applications. The right call follows engineering requirements, governing codes, and the actual service environment, not a blanket assumption that forged always wins.
Material and Service Conditions
Flange material has to match what's flowing through the pipe and the conditions around it. Carbon steel handles a wide range of moderate services well.
Once temperature climbs, corrosion risk increases, or fluid compatibility gets tricky, alloy or stainless grades take over. That relationship between material and service condition shapes almost every downstream selection decision, which is why it comes up again in the selection section below.
How Are Forged Steel Flanges Made?

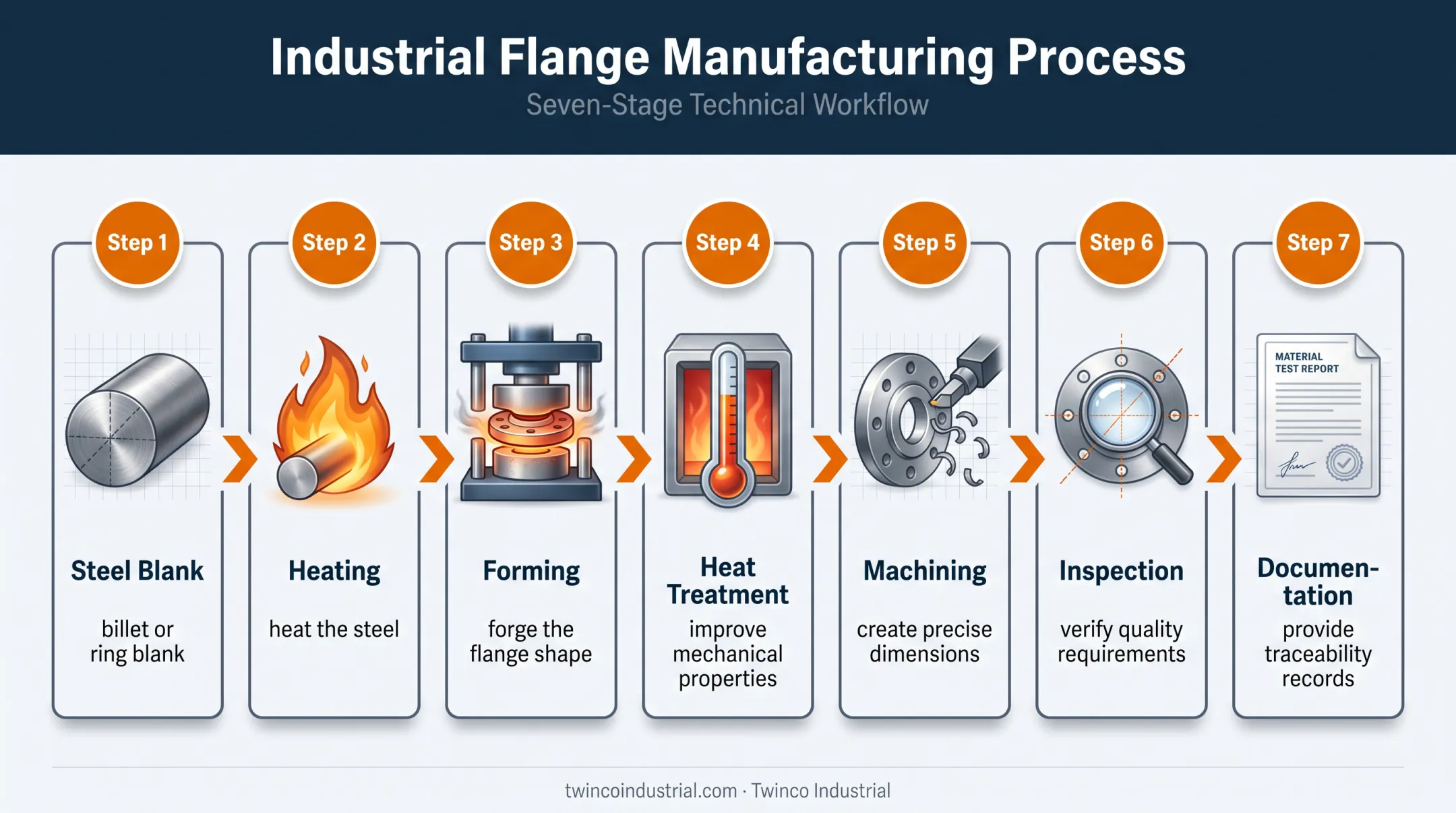

Production starts with a steel billet or ring blank. From there, the part moves through heating, forming, heat treatment, machining, inspection, marking, and documentation. Four forging methods cover most flange production.
Seamless Rolled Ring Forging
Forging expands a heated preform between dies until it forms a ring. The process builds the axisymmetric shape flanges need without a seam, and it scales to very large diameters when a project requires them.
Open-Die Forging
Open dies compress the material and allow lateral flow instead of fully enclosing it. This approach suits larger or heavier shapes where a closed die cavity isn't practical.
Closed-Die (Impression-Die) Forging
Heated material fills a shaped die cavity, producing a repeatable form with less machining needed afterward. This works well for suitable sizes where high-volume consistency matters.
Cold Forging or Cold Pressing
Manufacturers form some metals and geometries near room temperature instead of under heat. Cold forging only fits certain alloys and shapes, and not every product line uses the same route—confirm the method against the design and mill practice.
Heat treatment often follows forging to improve mechanical properties, relieve internal stresses, or meet a specific material grade's requirements. Always verify the required treatment against the applicable material specification rather than assuming a default.
Machining then establishes the critical dimensions:
- Flange face and finish
- Bore
- Bolt holes and bolt circle
- Hub profile
- Weld bevel (where applicable)
Before you accept a shipment, confirm these quality checks:
- Dimensional inspection
- Material traceability
- Visual examination
- Nondestructive examination where specified
- Mechanical testing
- Material test reports (MTRs)
Common Types of Forged Steel Flanges
Flange type selection follows the pipe connection method, pressure and temperature conditions, installation constraints, maintenance needs, and how much cyclic stress the joint will see. No single type is right for every job.
Weld Neck Flanges
Weld neck flanges have a tapered hub that transitions into a butt-weld connection to the pipe. That taper transfers stress gradually into the adjoining pipe rather than concentrating it at the joint. Specifiers rely on them for high-pressure, high-temperature, cyclic, or otherwise critical service.

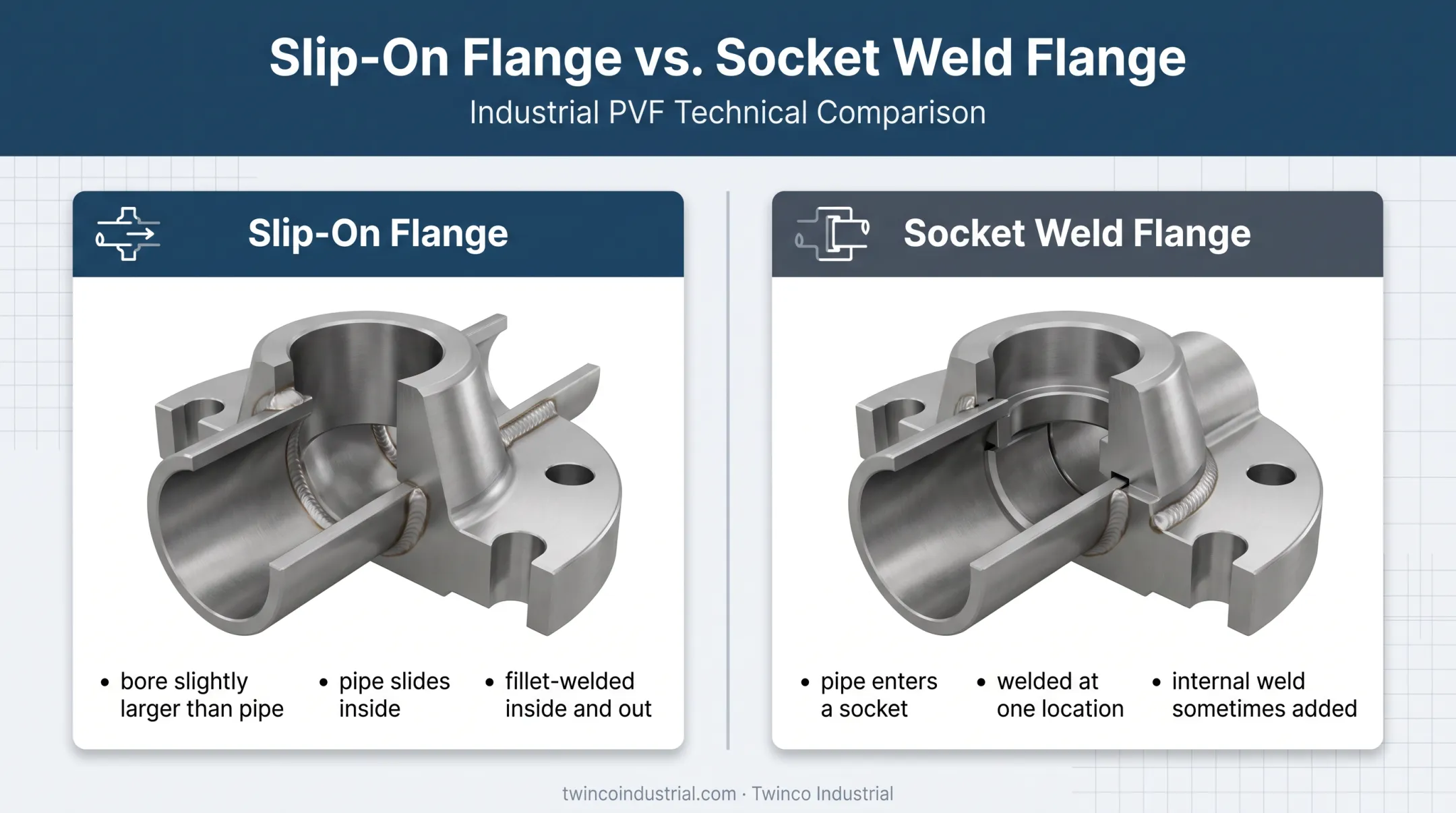

Slip-On and Socket Weld Flanges
Slip-on flanges have a bore slightly larger than the pipe's outside diameter. The pipe slides in and is fillet-welded at two points—inside and out.
Socket weld flanges work differently: the pipe enters a socket and is welded at one location, sometimes with an internal weld for added strength.
Installation method, size range, and welding requirements should drive the choice, not a blanket preference for either type.
Blind, Threaded, Lap Joint, and Reducing Flanges
- Blind flanges close a pipe end, nozzle, or vessel opening entirely, and suit isolation or pressure testing when correctly rated.
- Threaded flanges connect without welding in suitable services, but still need checks for pressure, temperature, leakage risk, and thread compatibility.
- Lap joint flanges pair with a stub end, giving flexibility for frequent disassembly or alignment adjustments.
- Reducing flanges connect two different pipe sizes but require evaluation for flow characteristics and stress, not just convenience.
Twinco Industrial's flange lineup covers Weld Neck, Slip-On, Blind, Lap Joint, Socket Weld, Threaded, and API configurations, manufactured to ASME B16.5 and ASME B16.47 Series A and B. Exact product terminology and dimensions can vary by supplier, so confirm the specific standard before finalizing an order.
How to Choose the Right Forged Steel Flange
Start with the piping design documents—the line list, isometric drawing, equipment nozzle details, and material takeoff—rather than picking a flange based on size alone.
Pressure and Temperature
Pressure class isn't a fixed psi number. It's tied to a specific material group and operating temperature under ASME B16.5. The same "Class 300" flange rates differently depending on what it's made of and how hot the service gets. Always check the material-specific pressure-temperature table instead of treating class as a raw pressure rating.
Material Selection
Assess these factors together, not in isolation:
- Fluid composition and corrosion risk
- Operating temperature range
- Pressure cycling patterns
- Environmental exposure
- Weldability
- Compatibility with adjacent pipe and equipment
Facing and Sealing Details
Raised face, flat face, and ring-type joint facings each pair with specific gasket styles. Surface finish and bolt dimensions have to match the mating flange exactly, or the seal won't hold under pressure.
Quick selection checklist:
- Flange type and nominal size
- Schedule or bore
- Pressure class and material grade
- Facing and gasket compatibility
- Heat treatment and testing requirements
- Certification and required delivery date
Critical selections for hazardous service, high pressure or temperature, corrosive fluids, or fatigue-sensitive applications should always get sign-off from a qualified engineer or design authority.
Twinco Industrial stocks forged steel flanges from ½ inch through 72 inches, in ASME classes 150 through 2500 and API ratings up to 15,000 psi. Materials cover carbon steel (A105N, A350 LF2), stainless, alloy, duplex, and nickel alloys.
Where Are Forged Steel Flanges Used?

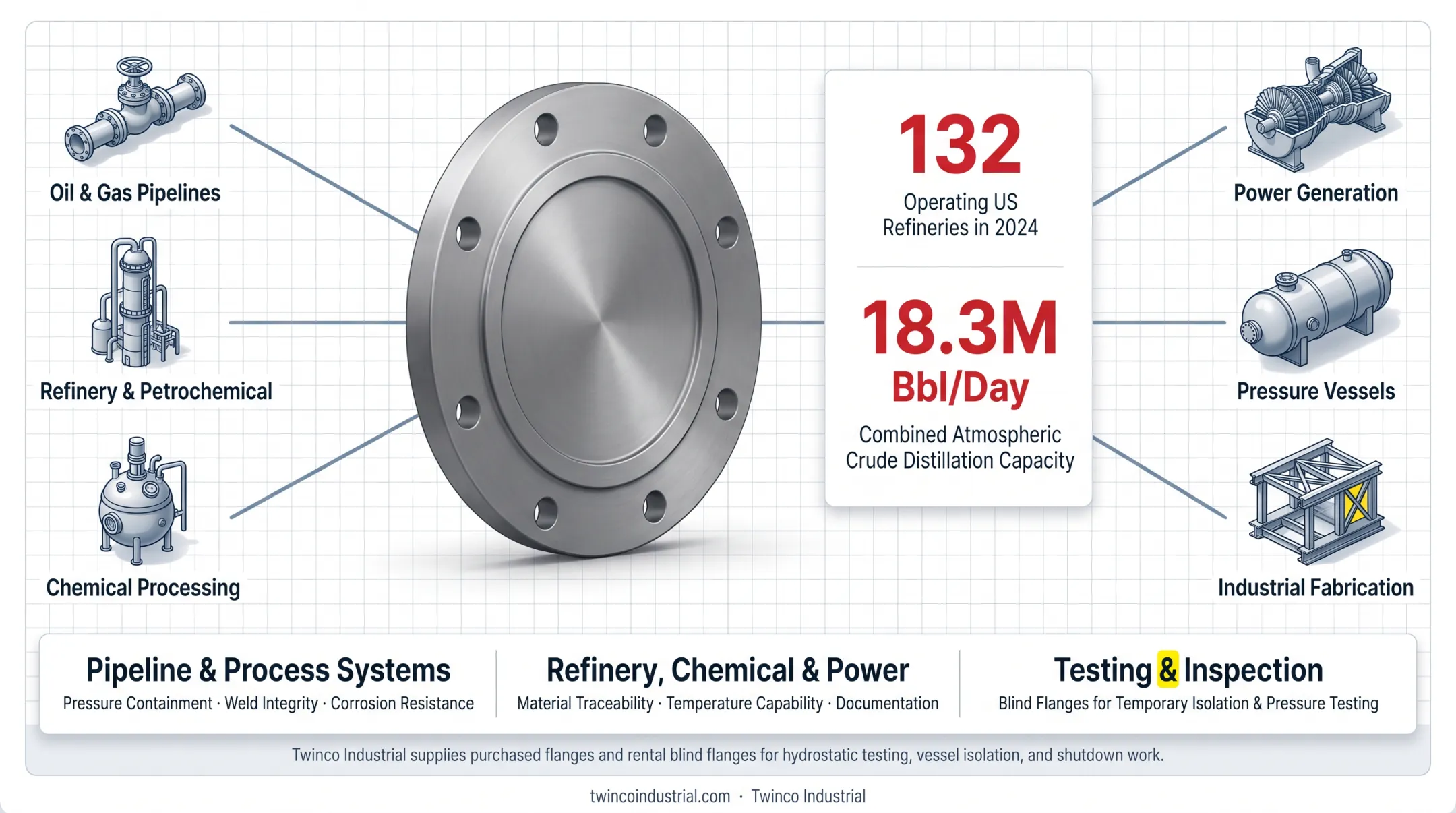

Forged steel flanges show up wherever a piping system needs a strong, serviceable connection: oil and gas pipelines, refinery and petrochemical process systems, chemical processing, power generation, pressure vessels, and general industrial fabrication.
Detachable flanged joints matter most during maintenance, turnarounds, inspections, and equipment swaps, when cutting a weld isn't practical.
Priorities shift with the application:
- Pipeline and process systems prioritize pressure containment, weld integrity, and corrosion resistance.
- Refinery, chemical, and power applications demand material traceability, temperature capability, and strict documentation.
- Testing and inspection work often relies on blind flanges for temporary isolation or pressure testing, provided the rating and procedure are correct.
The scale of US refining alone shows why this matters. The American Petroleum Institute reports that in 2024 the United States had 132 operating refineries with combined atmospheric crude distillation capacity of 18.3 million barrels per day. Every one of those facilities depends on flanged connections for routine operation and maintenance.
Forged construction alone doesn't make a flange right for a given service. The full specification and installation practice determine whether it belongs there. Twinco Industrial supports this range of use cases with both purchased flanges and rental blind flanges for hydrostatic testing, vessel isolation, and shutdown work—covering routine maintenance up through critical pipeline projects.
Buying and Sourcing Forged Steel Flanges
Getting an accurate quote starts with providing complete specs upfront:
- Flange type and nominal size
- Pressure class and material grade
- Facing and bore/schedule
- Applicable standard (ASME B16.5, B16.47, MSS SP-44, or project-specific)
- Quantity, required certificates, destination, and delivery deadline
Common Procurement Risks
Skipping any of these details tends to cause the same recurring problems:
- Mismatched bolt circles
- Incorrect bore dimensions
- Incompatible facings
- Missing material traceability documentation
- Unsuitable gasket or bolting for the rated pressure
- Unclear or conflicting standard references
Before placing an order, confirm:
- Stock status and realistic delivery timelines
- Inspection documentation and material certificates
- Heat-treatment records where required
- Packaging and marking requirements
A supplier who can't answer these questions clearly probably can't back up the paperwork later, either.
Twinco Industrial supplies flanges, bolting, gaskets, valves, pipe, and fittings for US industrial projects. Domestic and import sourcing cover standard, oversized, and hard-to-find components.
Twinco keeps deep Houston and Gulf Coast inventory and ships nationwide, with 45+ years serving pipeline, petrochemical, and construction customers.
For hydrostatic testing, isolation, and maintenance shutdowns, Twinco also rents blind flanges and related testing equipment from ½ inch to 72 inches (pressure classes 125# through 2500#). That rental fleet is separate from buying forged flanges outright and fits short-duration needs, not permanent installation.
Frequently Asked Questions
Are flanges forged or cast?
Flanges can be manufactured either way. The correct choice depends on the design requirements, service conditions, applicable standards, and required mechanical performance.
What is the strongest type of piping flange?
No single flange type is strongest across every application. Weld neck flanges handle high-pressure, cyclic, or critical service well due to their tapered hub, but correct specification always depends on pressure, temperature, and geometry.
Is forged steel good quality?
Forging generally provides refined grain structure and predictable mechanical properties. But final quality still depends on the material grade, process controls, heat treatment, and inspection applied to that specific part.
What is a forged flange?
A forged flange is a piping component formed through mechanical forging, then machined to create a precise face, bore, and bolt pattern. It connects pipe or equipment using bolting and a gasket for a serviceable joint.
What is forged steel?
Forged steel is steel that's been shaped under controlled mechanical force, typically while heated. This differs from cast steel, which is poured into a mold.
What are the four types of forging?
The four commonly referenced categories are seamless rolled ring forging, open-die forging, closed-die (impression-die) forging, and cold forging. Terminology and process selection can vary by product and manufacturer.
