Introduction
A flange connection is only as strong as its weakest bolt. Get the stud-bolt specification wrong on a pressure vessel, valve, or pipeline flange, and you risk a failed inspection, a leak, a shutdown, or worse.
Many procurement teams and field engineers struggle with three specific problems:
- Telling B7 apart from generic high-strength fasteners
- Confirming it fits the service conditions on the job
- Getting material documentation that holds up in an audit or MOC review
This guide breaks down what ASTM A193 Grade B7 actually is, how its properties compare to common alternatives, where it fits in real-world piping and pressure equipment, and what to check before you sign off on a delivery.
Key Takeaways
- B7 is a quenched-and-tempered chromium-molybdenum alloy steel, not a catch-all "high-strength bolt" category.
- Grade B7 sets material and mechanical properties only—dimensions, threads, coatings, and nuts follow separate specs.
- Not stainless steel—pick B7 for temperature, sour-service exposure, and design code, not strength alone.
- Compliant buys match dimensions, hardware, markings, and traceable documentation to the project spec.
Understanding ASTM A193 Grade B7 Stud Bolts
What ASTM A193/A193M Actually Covers
ASTM A193/A193M governs alloy-steel and stainless-steel bolting materials for pressure vessels, valves, flanges, and fittings. It covers high-temperature, high-pressure, and other special-purpose service, according to ASTM's official standard page. It is a material and mechanical-property spec, not a dimensional or thread standard.
Within that specification, Grade B7 designates a chromium-molybdenum alloy steel, commonly associated with AISI 4140 or 4142 base material. Every B7 stud bolt you buy should trace back to the current edition of A193/A193M, since editions and supplementary requirements can change.
Stud Bolt vs. Threaded Stud vs. Threaded Rod
These terms get used loosely on job sites, but they're not interchangeable:
- Stud bolt — fully threaded from end to end, sized specifically for a flange or equipment connection, designed for full thread engagement into a nut on both ends.
- Threaded stud — may be partially threaded, often used for a different mechanical purpose (anchoring, embedding).
- Threaded rod — typically a stock item, cut to length, without the same controlled thread tolerances or full-length engagement requirements as a certified stud bolt.
Ordering "threaded rod" when the job calls for a certified A193 B7 stud bolt is a common and costly mistake.
Why Quenching and Tempering Matters
B7's strength doesn't come from the alloy alone. It comes from heat treatment. The material is hardened by quenching, then tempered to relieve internal stress and balance strength against toughness.
Skip or shortcut that process, and you get a fastener that's either too brittle or too soft for the intended service. Neither belongs on a flange under pressure.
"B7" by itself tells you nothing about length, diameter, thread series, coating, nut grade, or allowable service temperature. Those details come from your project spec, not the grade designation.
B7 Properties, Standards, and Compatible Hardware

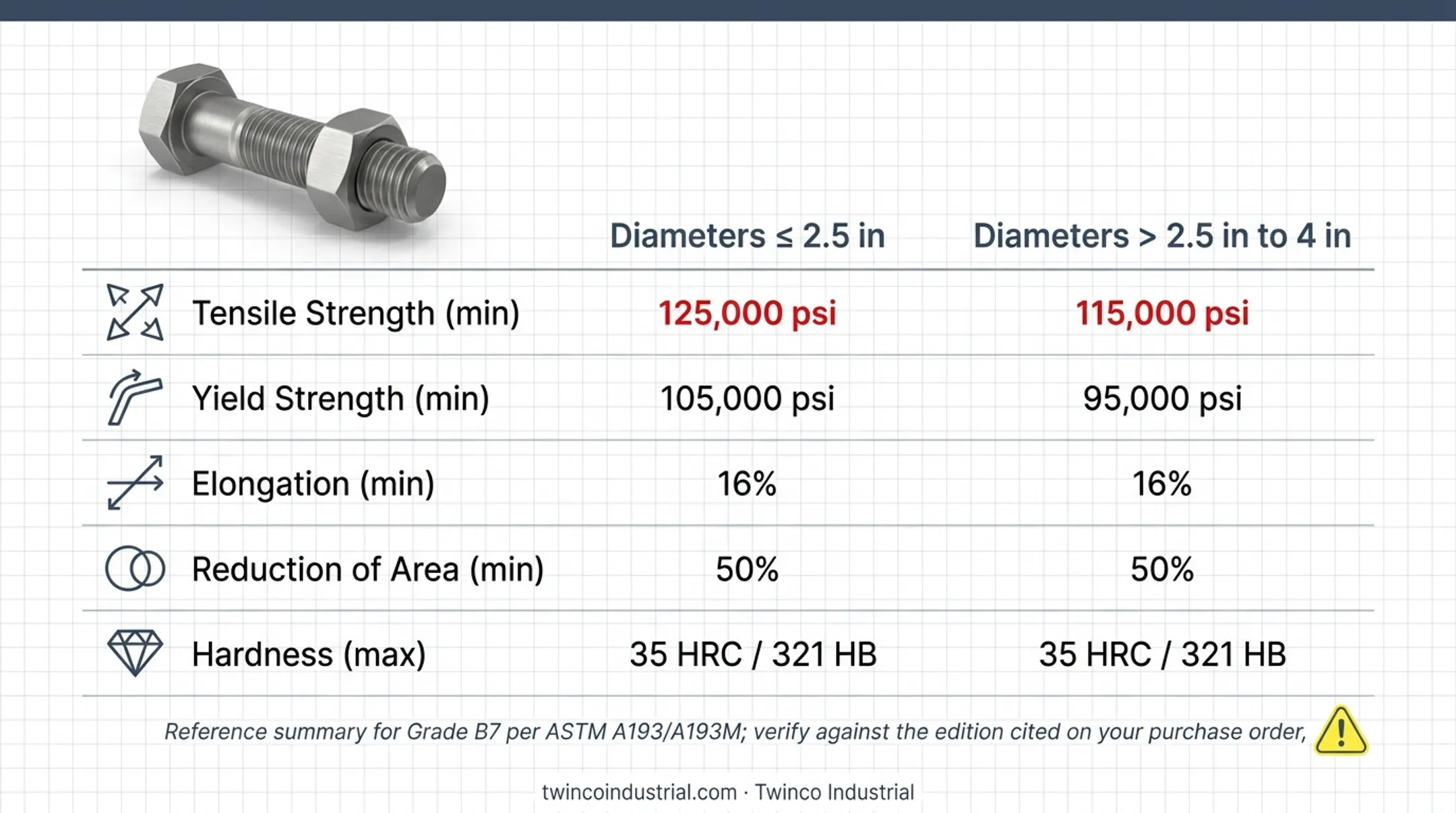

Mechanical Property Requirements
Here's a summary of the mechanical requirements for B7, based on current ASTM A193/A193M data as compiled by Portland Bolt's technical reference:
| Nominal Diameter | Tensile (min) | Yield (min, 0.2% offset) | Elongation (min) | Reduction of Area (min) | Hardness (max) |
|---|---|---|---|---|---|
| Up to 2-1/2 in. | 125 ksi | 105 ksi | 16% | 50% | 321 HBW / 35 HRC |
| 2-5/8 to 4 in. | 115 ksi | 95 ksi | 16% | 50% | — |
| 4-1/8 to 7 in. | 100 ksi | 75 ksi | 18% | 50% | — |
Treat this table as a working reference, not a substitute for the current ASTM text. Always verify against the edition cited on your purchase order.
Why Hardness Control Isn't Optional
Hardness caps exist for a reason. Push hardness too high and you increase the risk of:
- Cracking under load
- Thread damage during tightening
- Reduced toughness in service, especially at low temperatures or under cyclic stress
That's why B7's hardness ceiling (321 HBW / 35 HRC for smaller diameters) is a compliance point, not a suggestion.
Material Spec vs. Dimensional Standard
ASTM A193 tells you what the metal is made of and how strong it needs to be. It does not tell you the thread form or bolt dimensions. That's the job of standards like ASME B1.1 (thread form and tolerance) and ASME B18.2.1 (dimensional data for hex and heavy-hex bolting). Two B7 studs from different suppliers can meet the same material spec and still not fit the same flange if thread series or length weren't specified correctly.
The B7 / A194 2H Pairing
A193 B7 studs are commonly paired with ASTM A194 Grade 2H heavy-hex nuts. This pairing is common for hydrotesting and general flanged-joint service, but the project specification and design engineer still set the required nut grade—and applicable codes may call for something else.
Coatings, Lubricants, and Washers Change the Equation
A coating or lubricant isn't cosmetic. It affects:
- Friction during tightening (which affects actual preload achieved)
- Corrosion resistance
- Overall dimensions, in some cases
- Compatibility with hydrogen-embrittlement concerns for plated fasteners
Before specifying a Xylan coating, PTFE finish, or hot-dip galvanizing, confirm compatibility with the joint's torque procedure, temperature range, and any hydrogen-embrittlement limits for plated fasteners.
Where ASTM A193 B7 Stud Bolts Are Used and How They Compare
Typical Applications
B7 studs show up wherever a bolted joint needs to hold pressure reliably:
- Flanged piping connections
- Valves and pressure vessels
- Heat exchangers and refinery equipment
- Pipeline construction and hydrostatic testing
- Power-generation piping systems
- Maintenance turnarounds and shutdowns
The common thread: joints that need high clamp load and dependable performance under elevated pressure or temperature. That said, suitability always comes down to the full design basis: temperature, pressure class, service fluid, and applicable code, not the grade name alone.

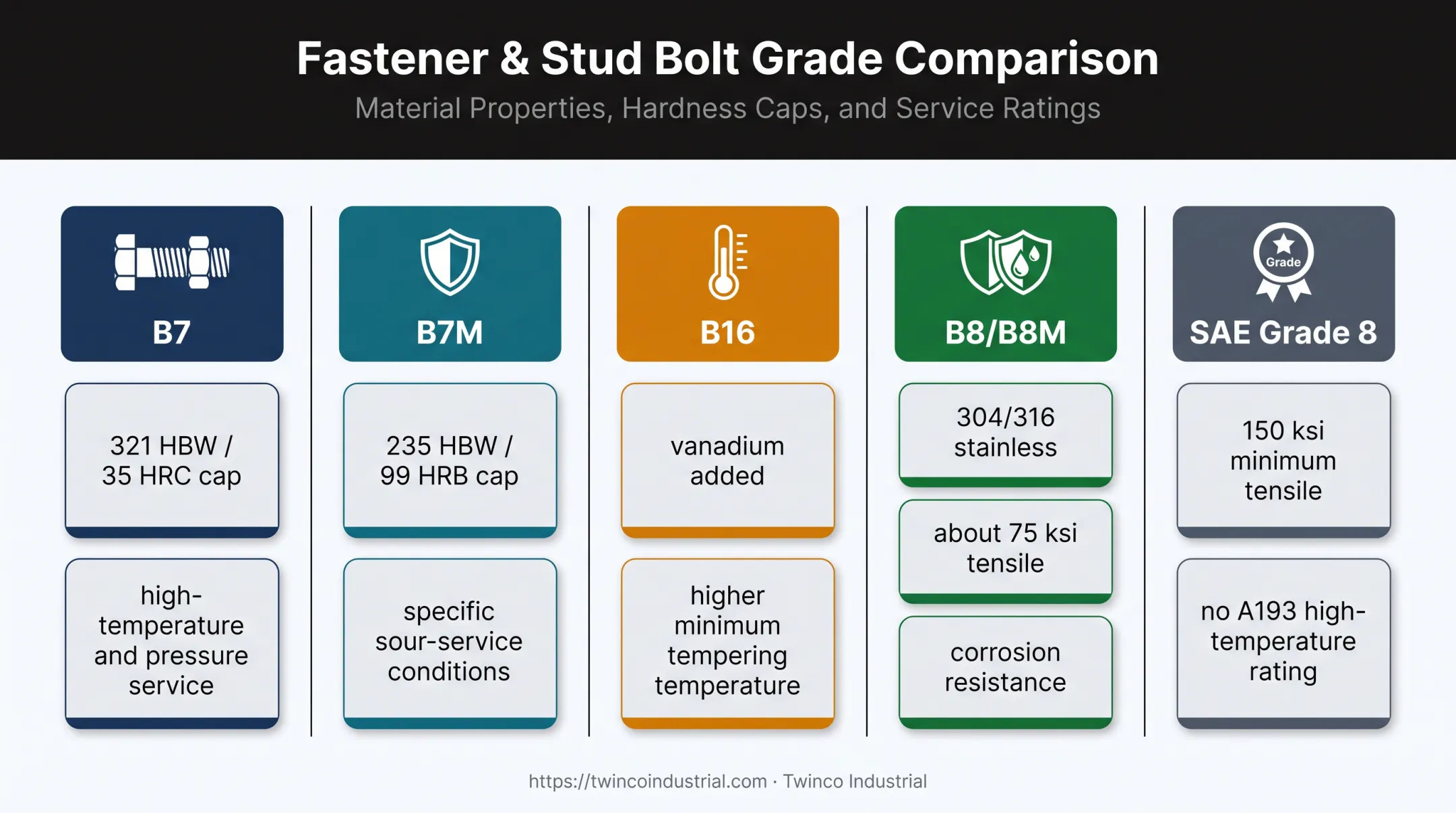

B7 vs. B7M
B7M looks similar on paper but isn't a drop-in substitute. It's a lower-hardness, lower-strength version of the same chromium-molybdenum chemistry, developed for specific sour-service conditions.
Where B7 caps out around 321 HBW / 35 HRC, B7M's hardness ceiling sits closer to 235 HBW / 99 HRB. If your project references NACE MR0175/ISO 15156 for H2S service, B7M (or another qualified material) may be required instead of standard B7.
B7 vs. B16
B16 adds vanadium to the chromium-molybdenum base and calls for a higher minimum tempering temperature. It's a different material spec with different high-temperature design considerations. Don't assume B16 is simply "a stronger B7." Check the applicable design-code temperature and allowable-stress tables before substituting one for the other.
B7 vs. Stainless Grades (B8/B8M) and SAE Grade 8
- B8/B8M: Austenitic stainless (304/316 equivalents) chosen for corrosion resistance, not strength; B8 Class 1 is about 75 ksi tensile, well below B7.
- SAE Grade 8: Can exceed small-diameter B7 at room temperature (150 ksi min), but SAE J429 has no high-temperature service rating like A193.
Higher room-temperature strength does not mean elevated-temperature equivalence.
On "Equivalents"
International or AISI designations that look similar to B7 chemically or mechanically aren't automatically interchangeable. ASTM A194 explicitly states that grade substitutions require purchaser permission — apply that same discipline to any proposed B7 substitute. Engineering and code review come first, always.
Selecting and Purchasing Compliant B7 Stud Bolts

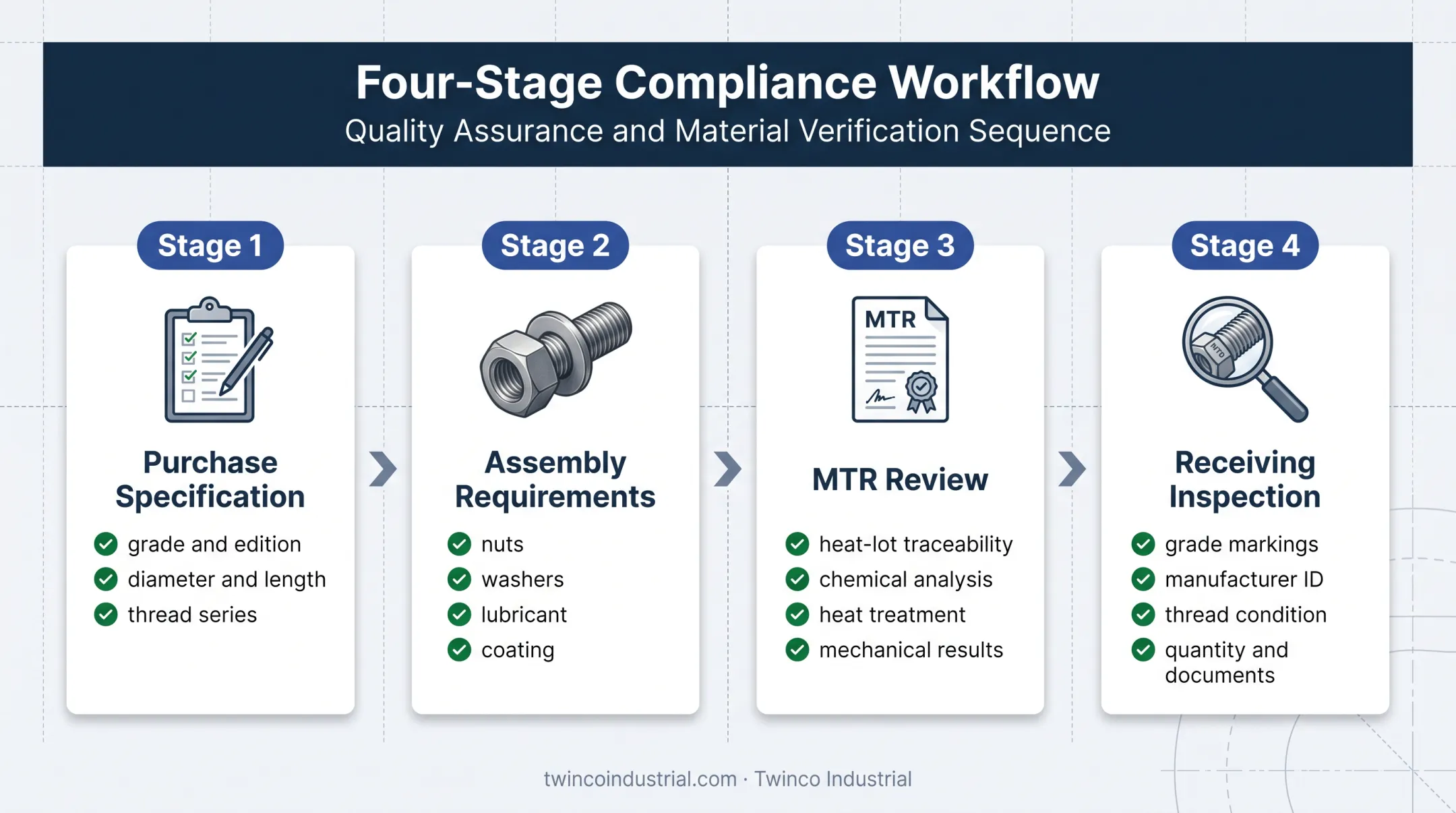

Purchase-Specification Checklist
Before you place an order, confirm:
- Grade and edition: ASTM A193/A193M Grade B7, with the applicable edition noted
- Diameter and length: matched to the flange rating and gasket thickness
- Thread series and tolerance: UNC, UNF, or metric, as specified
- Quantity and end configuration: total count, plus continuous-thread or double-end style as required
- Project-specific dimensional requirements: anything beyond the base standard
Assembly Requirements Beyond the Stud
A stud bolt rarely travels alone. Decide whether you need:
- Compatible nuts (commonly A194 2H)
- Washers
- Lubricant for the tightening procedure
- Coating or corrosion protection
- A complete pre-assembled kit, or studs only
Twinco Industrial's stud and nut inventory includes pre-assembled stud-and-nut packages specifically to cut down on field assembly time during turnarounds and hydrotesting.
Reading a Material Test Report
A Material Test Report (MTR) or certified mill test report (CMTR) should give you full traceability. Check for:
- Heat-lot number tied directly to the physical material received
- Chemical analysis matching the ordered grade
- Heat-treatment process details
- Tensile, yield, elongation, and hardness results
- Any supplementary testing called out in the purchase order
Don't accept a shipment where the paperwork doesn't clearly link back to the heat lot in hand.
Receiving Inspection
Before releasing material to installation, verify:
- Grade markings on the stud head or end
- Manufacturer identification
- Dimensions and thread condition (no galling, damage, or corrosion)
- Quantity against the packing list
- Documentation completeness against the PO
Choosing a Supplier
Beyond price, weigh:
- Traceability practices: can they produce a clean MTR on request?
- Technical responsiveness: do they answer spec questions before you commit?
- Inventory depth: can they support specialty sizes without a long lead time?
- Turnaround speed: critical during shutdowns and emergency procurement
Twinco Industrial, based in Houston and operating since 1977, stocks and rents ASTM A193 B7 stud bolts alongside compatible A194 nuts, flanges, valves, and gaskets for petrochemical, pipeline, and construction projects across the USA, Canada, and Mexico.
If you're working against a shutdown window or hydrotest deadline, reach out to the team for a quote. The Inside Sales group, including Al Waters, handles bolting and rental requests directly.
Installation, Handling, and Risk Controls
Tightening Requires a Procedure, Not a Guess
Correct tightening means following the approved torque, tensioning, or bolt-load procedure for the joint — not a generic torque chart. ASME PCC-1 provides guidance for pressure-boundary flanged-joint assembly, covering surface preparation, alignment, lubrication, and tightening sequence.
Torque values depend heavily on friction assumptions and lubricant condition. Calibrated equipment and a documented procedure matter more than a published chart number.
What to Avoid
- Mixing unidentified studs and nuts. If you can't confirm the grade markings match, don't install them together.
- Reusing damaged or deformed fasteners. Thread damage, elongation, or corrosion are disqualifying conditions.
- Applying a coating without checking its effects. Coatings can change friction, dimensions, temperature limits, and hydrogen-embrittlement risk.
Storage and Handling
- Keep studs clean, dry, and protected from moisture
- Cap or protect exposed threads during transport and storage
- Preserve heat-lot markings and linked documentation
- Avoid cross-contamination between different grades in storage bins
When to Escalate for Engineering Review
Some conditions call for more than standard B7 selection:
- Sour service (H2S exposure)
- Cryogenic or low-temperature service
- Extreme high-temperature applications
- Cyclic or fatigue loading
- Corrosive process environments
- Code-controlled pressure equipment with jurisdictional requirements
If any of these apply, bring in the design engineer before finalizing the bolting specification.
Conclusion
ASTM A193 Grade B7 is a specification-controlled alloy-steel stud-bolt material built for demanding bolted joints. It is not a universal substitute for every high-strength or stainless fastener.
The selection sequence stays the same every time:
- Confirm service conditions
- Choose the grade
- Define dimensions and compatible hardware
- Verify the documentation
- Follow the approved installation procedure
Skip a step, and you've introduced risk into a joint that's supposed to hold pressure safely.
Twinco Industrial stocks and rents ASTM A193 B7 stud bolts alongside compatible nuts, flanges, valves, and gaskets for pipeline, petrochemical, construction, testing, and maintenance projects across North America.
For sizing help, documentation questions, or a quote on your next turnaround, contact Twinco at (713) 733-8946 or reach the weekend line at (832) 754-6831.
Frequently Asked Questions
What is ASTM A193 Grade B7 material?
B7 is a quenched-and-tempered chromium-molybdenum alloy-steel bolting grade covered by ASTM A193/A193M. It's used for specified high-temperature or high-pressure applications like flanged piping and pressure vessels.
What is ASTM A193 Grade B7 equivalent to?
Commonly referenced AISI or international grades may be chemically or mechanically similar, but equivalency isn't automatic. Any substitution needs engineering, code, and service-condition review first.
Is ASTM A193 Grade B7 stainless steel?
No. B7 is alloy steel, chosen primarily for strength. Stainless grades like A193 B8 or B8M are selected instead when corrosion resistance is the priority.
What does B7 mean on a bolt?
B7 identifies the ASTM A193 material grade. Full compliance also requires checking the manufacturer's marking, dimensions, documentation, nut compatibility, and project-specific requirements.
Is ASTM A193 Grade B7 stronger than Grade 8?
It depends on the property and temperature. SAE Grade 8 posts higher room-temperature tensile minimums in small diameters, but A193 B7 is rated for high-temperature, high-pressure service in a way Grade 8 isn't.
What is the main difference between ASTM A193 and ASTM A194?
ASTM A193 covers bolting materials such as studs and bolts. ASTM A194 covers the nuts designed to pair with them for high-pressure or high-temperature service. The nut grade still needs to match the assembly's specific requirements.
