Introduction
"A105 carbon steel flange" gets used as shorthand for a lot of things, but it's really just one piece of the puzzle. A105 defines the material. It says nothing about flange size, facing, or pressure class.
Many engineers and procurement teams struggle here: they order "A105" and assume that covers everything. Mid-project, they discover pressure class, facing, or documentation still needs specifying.
That gap causes delays, wrong-part shipments, and rejected material certs on jobs where schedules are already tight.
Before you order, you need to nail down:
- Service temperature and pressure
- Pipe size and flange configuration
- Applicable design code (ASME B31.3, B31.1, etc.)
- Documentation requirements
- Compatibility with mating flanges, bolts, and gaskets
This guide covers A105's forged carbon steel composition and performance, the ASME standards that govern flange dimensions, alternatives like A105N and A350 LF2, and what to specify before you order.
Key Takeaways
- ASTM A105 is a carbon steel forging spec, not a flange dimensional standard.
- ASME B16.5 and B16.47 control size, pressure class, and bolt patterns, not A105.
- A105 isn't automatically fit for every temperature, corrosion, or impact-service condition.
- Confirm flange type, size, class, facing, heat treatment, and certs before ordering.
What Is ASTM A105 Carbon Steel?
ASTM A105 is a specification for forged carbon steel components used in pressure-containing piping systems, primarily flanges, forged fittings, and valve parts. The current standard, ASTM A105/A105M, covers ambient and higher-temperature service and includes tension, hardness, and hydrostatic testing requirements.
Material Spec, Manufacturing Form, and Dimensional Standard Aren't the Same Thing
These three terms get mixed together constantly, but they answer different questions:
- A105 answers: what's the material made of, and how strong is it?
- Forged answers: how was the raw material shaped?
- Class 300 answers: what pressure rating and dimensions apply?
Treating them as interchangeable is how wrong parts end up on trucks.
Why Forging?
Forging produces a dense, consistent grain structure that suits components under heavy mechanical load, like flanges bolted into high-pressure lines. Forging still isn't automatic for every job. Cast and other methods can fit better when size, geometry, or cost drives the decision.
Carbon Steel, Not Stainless
A105 is carbon steel. That distinction matters practically:
- Offers solid mechanical performance and wide North American availability
- Does not resist corrosion like stainless or alloy grades—if corrosion controls the design, choose a different material or add a coating system
Twinco Industrial stocks A105N and A350 LF2 carbon steel flanges alongside stainless grades such as 304/304L and 316/316L, so buyers can match material to service conditions.
Common A105 flange forms include:
- Weld neck
- Slip-on
- Blind
- Socket weld
- Threaded
- Lap joint
These show up across refinery, petrochemical, pipeline, power, and industrial maintenance work.
A105 Material Properties and Performance
Before specifying A105, check the current ASTM edition for exact chemistry and mechanical limits. Requirements can shift slightly between editions, and your purchase order should reference the edition your project actually requires.
Chemistry and Mechanical Minimums
Based on ASTM A105/A105M-24 (verify against the current -26 edition before finalizing a spec):
| Element/Property | Requirement |
|---|---|
| Carbon | 0.35% max |
| Manganese | 0.60–1.05% |
| Silicon | 0.10–0.35% |
| Phosphorus | 0.035% max |
| Sulfur | 0.040% max |
| Tensile strength | 70 ksi (485 MPa) min |
| Yield strength | 36 ksi (250 MPa) min |
| Elongation | 30% min |
| Hardness | 187 HBW max |
Carbon and manganese content here strike a balance: enough strength for pressure service, without pushing hardness so high that welding and fabrication become difficult.
Temperature, Pressure, and When A105 Isn't Enough
Allowable pressure for any A105 flange depends on flange class, size, temperature, and the governing pressure-temperature tables in ASME B16.5, not on the material name alone. A Class 300 flange rated for one temperature isn't rated the same way at a higher one.
Low-temperature and impact-critical service is where standard A105 often falls short. A105 doesn't carry mandatory notch-toughness testing. ASTM A350/A350M, with its Charpy impact requirements, is usually the better call when the job involves:
- Cryogenic service
- Sour gas
- Cyclic loading at cold temperatures
Actual suitability for your service—including high-temperature duty—always needs sign-off from your project engineer against current code requirements. Don't assume; verify.
Standards, Applications, and Flange Specification
A105 tells you the material. The dimensional and pressure-class framework comes from a separate standard entirely.

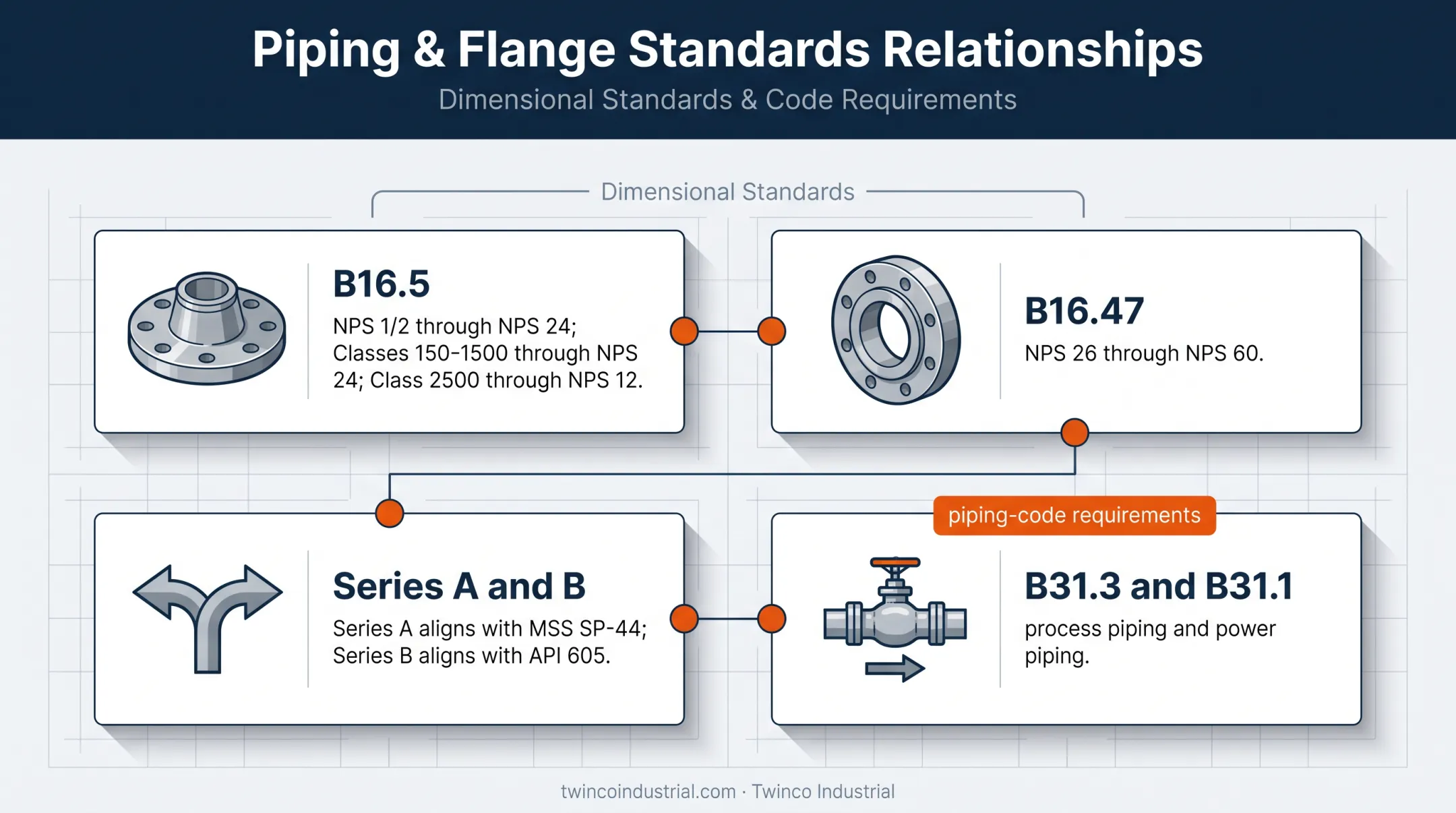

ASME B16.5 vs. B16.47
ASME B16.5 covers standard pipe flanges from NPS ½ through NPS 24, addressing pressure class, dimensions, tolerances, facing, and bolt-hole patterns. Classes 150 through 1500 are covered through NPS 24; Class 2500 is covered through NPS 12.
For anything larger, ASME B16.47 takes over, covering NPS 26 through NPS 60. It splits into two dimensional tables:
- Series A (aligned with MSS SP-44)
- Series B (aligned with API 605)
Series must be stated on the requisition. A Series A flange and a Series B flange at the same nominal size and class are not interchangeable.
Dimensional standards still leave a separate question: whether A105 is allowed in your system at all. ASME B31.3 (process piping) or B31.1 (power piping) answers that. The material spec and the piping code cover different requirements, and both have to align.
Flange Types and Where They Fit
Twinco's inventory covers the standard flange types:
- Weld neck – high-stress, high-pressure, or cyclic service with a butt-welded hub
- Slip-on – general service where installation simplicity matters more than top-end performance
- Blind – isolating or closing pipe, vessel, or test connections
- Socket weld – small-bore, no-weld-prep applications
- Threaded – no-weld connections in lower-pressure lines
- Lap joint – alignment flexibility paired with a stub end
Facings and Matching Requirements
Facing has to match the mating flange, not just the pressure class. Rental and stock blind flanges commonly come in:
- Raised Face (RF)
- Ring Type Joint (RTJ)
- Seal Ring Groove (SRG/O-ring)
Get the facing wrong and the gasket won't seal properly, even if every other dimension checks out.
A105 flanges in these configurations show up constantly across:
- Refinery and petrochemical piping
- Pipeline facilities
- Power and steam systems
- Hydrotesting
- General industrial maintenance
A105 Compared With Related Materials
A105 gets confused with several related specs. Here's how they actually differ:
| Spec | What It Covers | Key Difference from A105 |
|---|---|---|
| A105N | A105 forgings in the normalized condition | Same base material, different heat treatment; confirm on the PO and cert |
| A106 | Seamless carbon steel pipe | Pipe spec, not a forged-component spec; not a flange substitute |
| A350 LF2 | Low-temp forgings with notch toughness | Mandatory Charpy impact testing that A105 doesn't require |
| A234 WPB | Wrought carbon/alloy steel fittings | Fitting spec (elbows, tees), not flanges |
| A216 WCB | Carbon steel castings | Cast, not forged, product form |
| A182 | Forged alloy/stainless pipe flanges | Different material family entirely |
| A36 | Structural carbon steel | Structural shapes, not pressure-piping forgings |
A105 vs. A105N
The "N" designates normalized heat treatment, which generally improves toughness over the as-forged condition. Standard usage treats A105N as normalized A105.
Confirm the exact requirement and any toughness guarantee against your project spec and the current ASTM edition. Don't assume every A105 part shipped is normalized unless the cert says so.
A105 vs. A106
A105 covers forged components, flanges, fittings, and valve parts. A106 covers seamless pipe. Both are carbon steel and often used in the same piping system, but one isn't a substitute for the other.

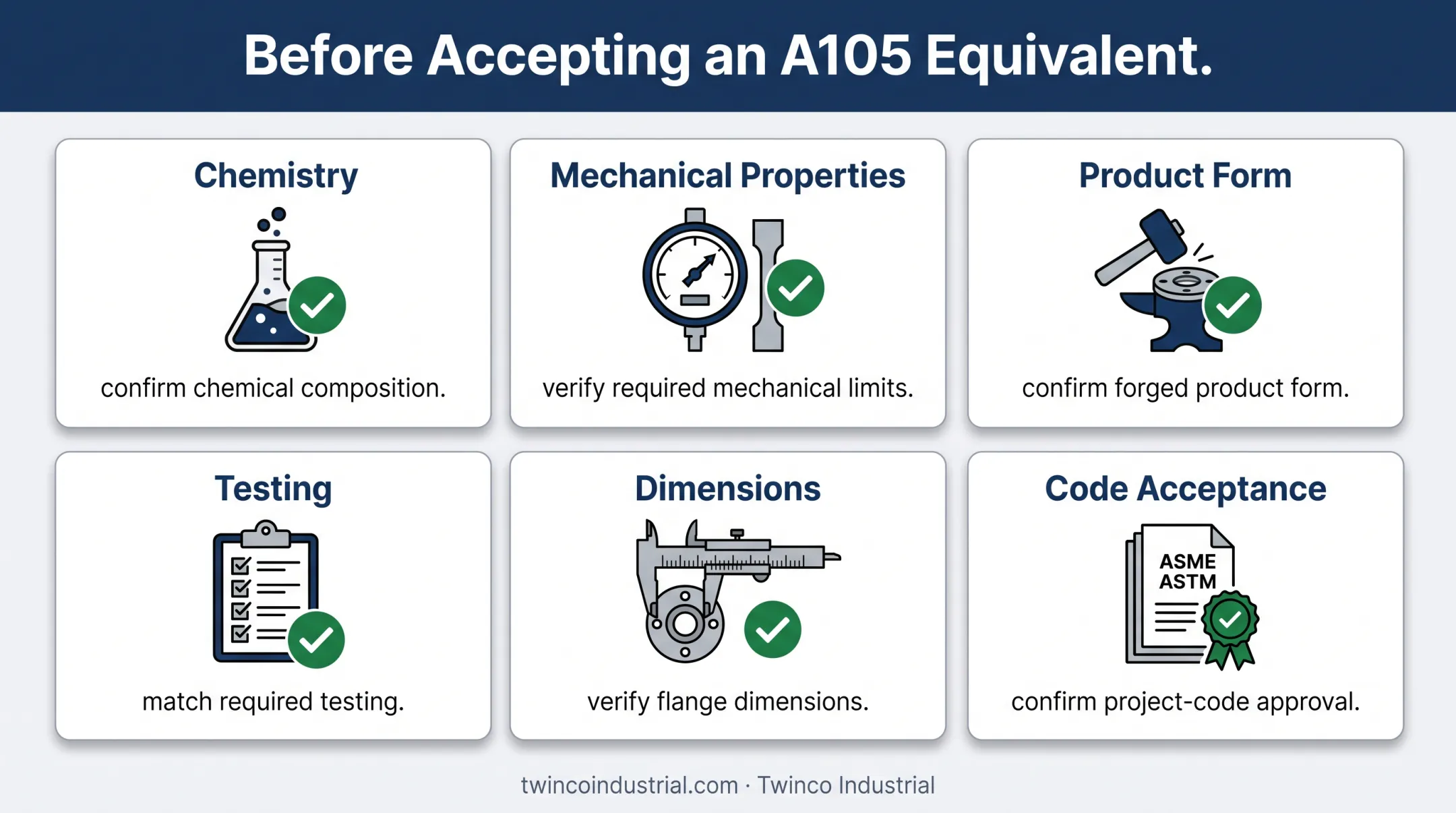

International Equivalents: Proceed with Caution
EN or JIS carbon steel forging grades sometimes get pitched as A105 equivalents. Don't take that at face value. Confirm chemistry, mechanical properties, product form, testing, dimensions, and code acceptance before any substitution. Only substitute when your engineering specification explicitly permits it.

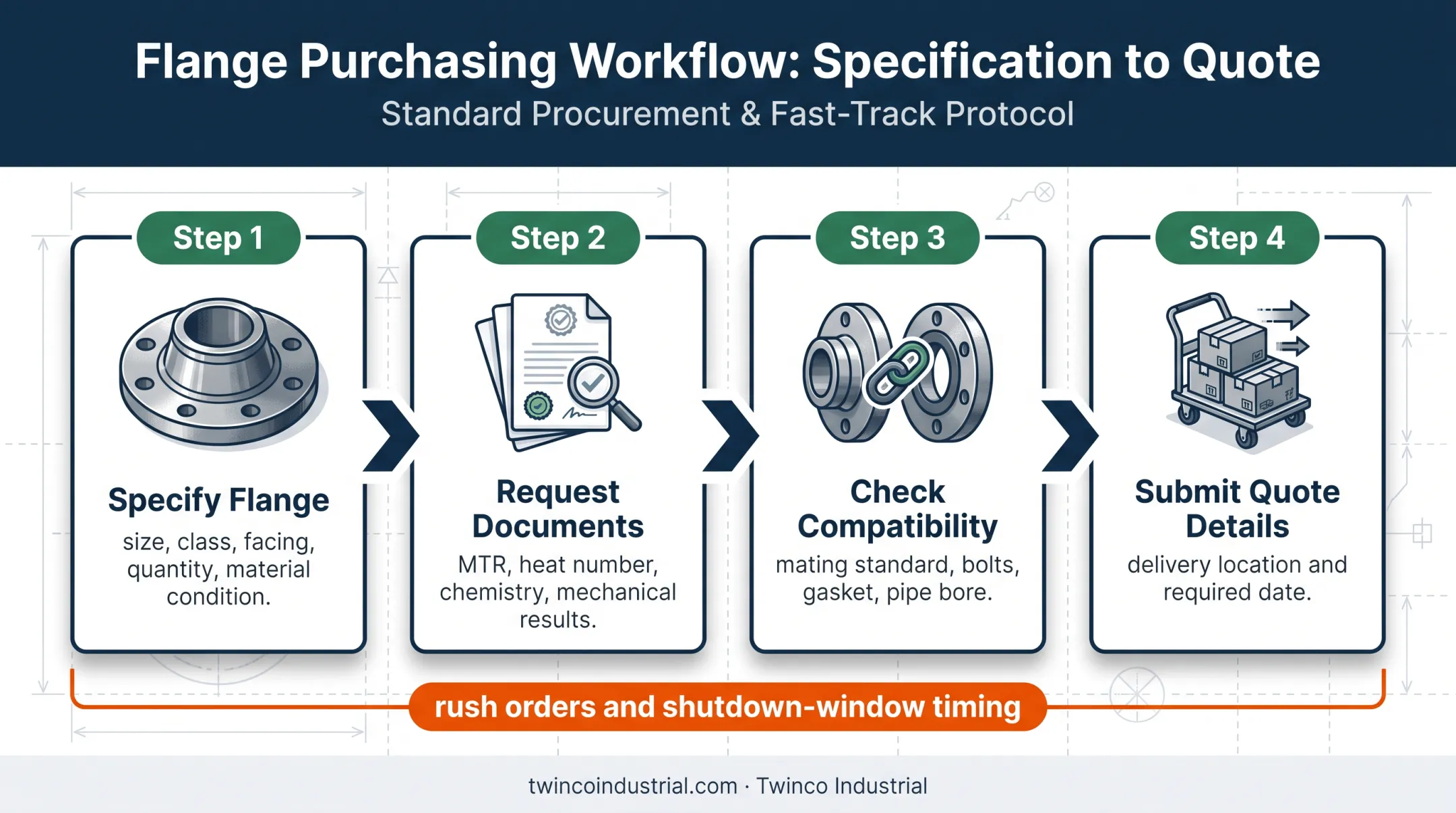

How to Select and Order A105 Flanges
Getting the material right is only step one. Here's the full checklist before you send a purchase order.
Specification Checklist
- Nominal pipe size and flange type (weld neck, blind, slip-on, etc.)
- Pressure class (150 through 2500)
- Facing (RF, RTJ, flat face)
- Bore or schedule matching the mating pipe
- Dimensional standard (B16.5 or B16.47, and Series A/B if applicable)
- Service media, design temperature, and design pressure
- Corrosion or sour-service requirements (if any)
Documentation to Request
- Material test report (MTR) with heat number traceability
- Chemistry and mechanical test results
- Heat-treatment condition
- Hardness data
- Impact-test results, if specified
- Any inspection or third-party certification requirements
Compatibility Checks
Before the flange ships, confirm:
- Mating flange standard matches
- Bolt dimensions and material are compatible
- Gasket type suits the facing and service
- Pipe wall/bore aligns with the flange bore
- Exposure to galvanic, atmospheric, or process corrosion is accounted for
Don't select by price or availability alone when the project requires code compliance, impact testing, special facing, large diameter, or documented traceability. A cheaper flange that fails a cert review costs more than the savings ever offset.
Twinco Industrial helps buyers source A105 flanges for standard restocks and time-sensitive jobs. A Partial Approved Manufacturer List is available on request when your team needs to verify sourcing before committing.
When you request a quote, include size, class, facing, quantity, material condition, documentation needs, delivery location, and required date. That is enough for a fast, accurate quote—including rush orders tied to a shutdown window.
Frequently Asked Questions
Is ASTM A105 stainless steel or carbon steel?
ASTM A105 is a forged carbon steel specification, not stainless steel. If corrosion resistance or specialized temperature performance is required, a stainless or alloy grade is a better fit.
What does ASTM A105 mean?
ASTM A105 is a material specification for forged carbon steel pressure-piping components, including flanges, fittings, and valve parts. It does not set flange dimensions or pressure ratings; that's ASME's job.
What is the difference between A105 and A105N?
A105N generally denotes the normalized condition, with additional heat-treatment requirements compared to standard A105. Always verify the applicable ASTM edition and project spec rather than assuming.
What is the difference between A105 and A106?
A105 covers forged components like flanges, while A106 covers seamless carbon steel pipe for high-temperature service. They're related piping materials, not interchangeable specifications.
What materials and standards are equivalent to ASTM A105?
ASME SA-105 is the ASME Code adoption of ASTM A105. Some EN forged carbon steels, such as P245GH or P280GH, are sometimes considered—but chemistry, mechanicals, testing, and code acceptance must still match the project spec.
