The right torque depends on far more than just the stud diameter. Factors like lubricant type and condition, nut material, thread quality, gasket design, and the required bolt load all dictate the appropriate value. Applying a generic number without considering these variables can lead to dangerous failures.
This article provides a practical guide to B7 stud torque, including a reference chart, key assumptions, a proper application process, and common mistakes to avoid.
Key Takeaways
- Reference torque charts for ASTM A193 B7 studs are starting points, not final answers. Always verify values against project specifications, engineering documents, and gasket requirements.
- Dry and lubricated torque values are not interchangeable. Friction dramatically changes how much applied force translates into bolt tension, and using the wrong value can lead to under- or over-tightening.
- Always use compatible hardware, such as specified ASTM A194 Grade 2H nuts, and verify stud diameter, thread series, lubricant, and tool calibration before starting.
- For critical or large-diameter joints, direct load methods like hydraulic tensioning often provide more accurate and repeatable results than torque alone.
What B7 Stud Torque Represents and What Influences It
In bolted joint assembly, installation torque is the rotational force applied to a nut to stretch the stud and generate a specific tensile preload, or clamp load. This clamp load is what holds the flanged joint together and properly compresses the gasket to create a seal.
However, torque is an indirect method of achieving bolt tension. The relationship is often expressed as T = KDF, where T is torque, K is the nut factor (or friction coefficient), D is the stud diameter, and F is the desired clamp load.
Most of the energy from a torque wrench is consumed simply by overcoming friction—at the threads and at the nut's bearing surface. Only a small fraction of the applied torque actually contributes to useful bolt stretch. This is why a published torque value is an installation target, not an inherent material property of B7 steel.
Factors That Influence B7 Torque in Real-World Applications

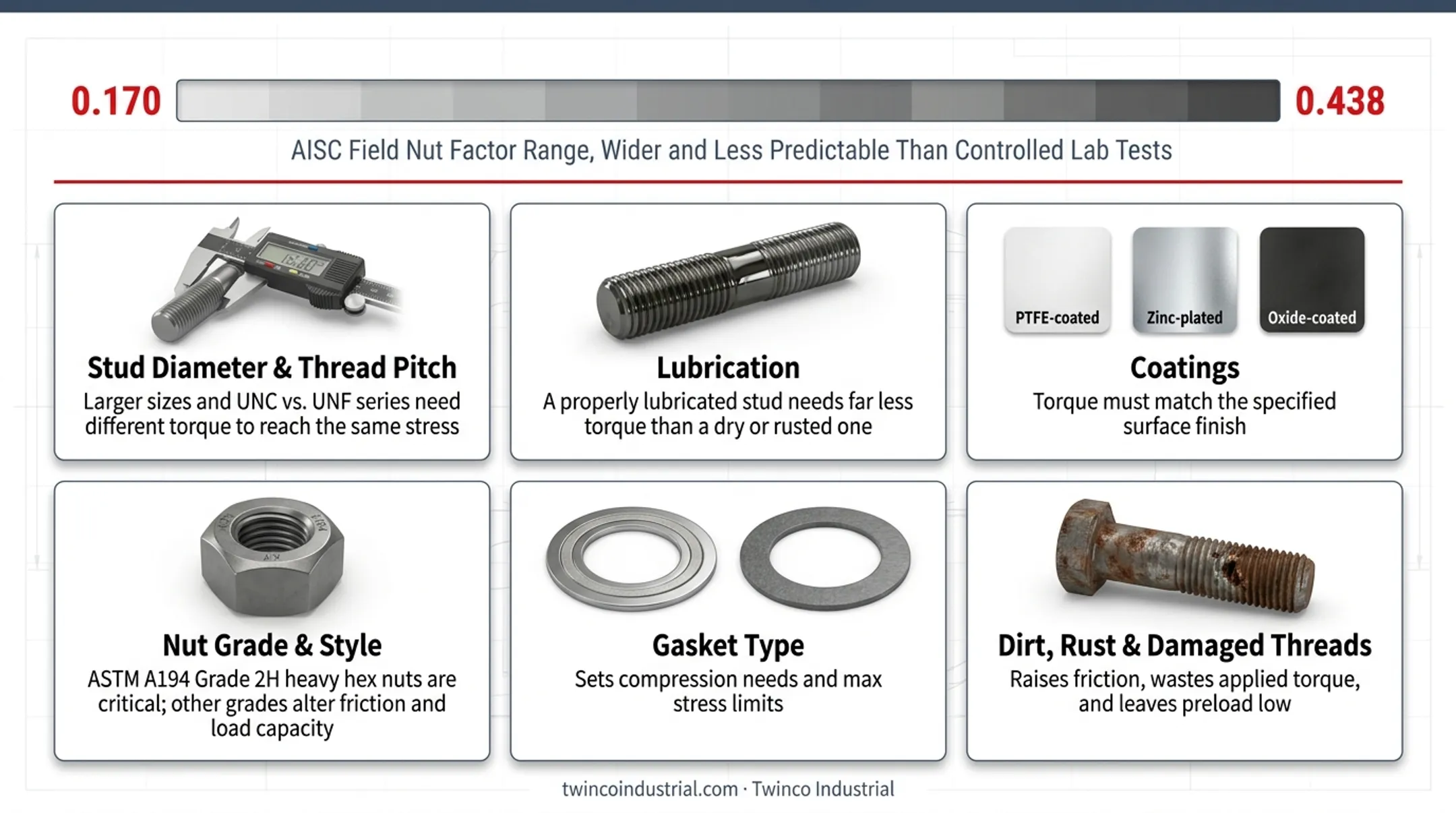

The "K factor" isn't a constant. It changes based on real-world conditions, which is why a single chart can't cover every scenario. Field conditions can cause wide variations; research from AISC found that nut factors in the field can range from 0.170 to 0.438, a much wider and less predictable spread than in controlled lab tests.
Key factors that alter the required torque include:
- Stud diameter and thread pitch: larger sizes and UNC vs. UNF series need different torque to reach the same stress
- Lubrication dominates friction; a properly lubricated stud needs far less torque than a dry or rusted one
- Coatings such as PTFE (Teflon), zinc, or black oxide change surface friction, so torque must match the specified finish
- ASTM A194 Grade 2H heavy hex nuts are critical; other grades or styles alter friction and load capacity
- Gasket type sets compression needs and max stress limits, from spiral wound to compressed sheet
- Dirt, rust, or damaged threads raise friction, waste most of the applied torque, and leave preload low
ASTM A193 B7 Stud Torque Chart and Operating Range
Use this chart as a quick reference for common ASTM A193 B7 stud and A194 2H nut assemblies.
Disclaimer: These values are for reference only. Always confirm the required torque with the responsible engineer, project specification, gasket manufacturer's instructions, and applicable codes like ASME PCC-1.
This chart is derived from an industry-standard reference published by Fastenal and is based on achieving a bolt stress of 75% of the stud's minimum yield strength.

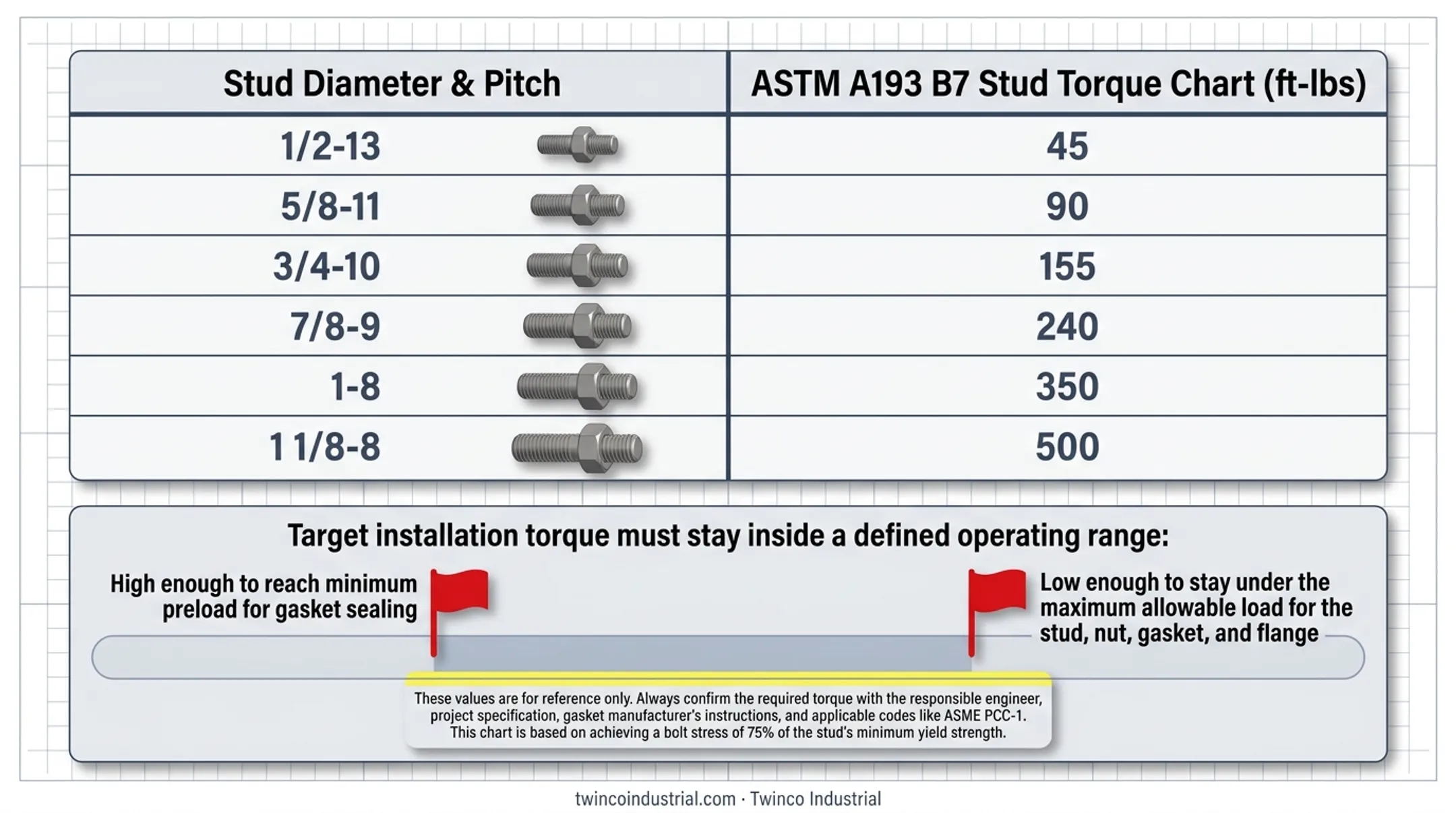

ASTM A193 B7 Stud Torque Chart (ft-lbs)
| Stud Diameter (in) | Threads per Inch (TPI) | Lubricated Torque (ft-lb) (K=0.15) | Dry Torque (ft-lb) (K=0.20) |
|---|---|---|---|
| 1/2 | 13 UNC | 70 | 93 |
| 5/8 | 11 UNC | 139 | 185 |
| 3/4 | 10 UNC | 247 | 329 |
| 7/8 | 9 UNC | 398 | 530 |
| 1 | 8 UNC | 596 | 795 |
| 1-1/8 | 7 UNC | 845 | 1,127 |
| 1-1/4 | 7 UNC | 1,192 | 1,590 |
| 1-1/2 | 6 UNC | 2,075 | 2,767 |
| 1-5/8 | 8 UNC | 2,839 | 3,785 |
| 1-3/4 | 8 UNC | 3,587 | 4,782 |
| 1-7/8 | 8 UNC | 4,456 | 5,941 |
| 2 | 8 UNC | 5,455 | 7,273 |
Target installation torque must stay inside a defined operating range:
- High enough to reach minimum preload for gasket sealing
- Low enough to stay under the maximum allowable load for the stud, nut, gasket, and flange
Important Chart Assumptions and Boundary Conditions
Before you apply any torque chart, confirm these boundary conditions:
- Hardware: Values assume new ASTM A193 B7 studs with ASTM A194 Grade 2H heavy hex nuts. A different nut grade can weaken joint integrity.
- Units: Chart values are in foot-pounds (ft-lb). Match the units in your project procedure to avoid conversion errors.
- Application: For industrial flange bolting only—not automotive wheel studs, trailer lug nuts, or other fastener uses. Those jobs need manufacturer-specified torque values.
How B7 Torque Is Specified, Applied, and Verified
Proper flange assembly is a controlled process. Chart torque values only hold up when they are specified in the job documents, applied in a controlled sequence, and verified on the joint.
Specification and Documentation
The correct torque value should be defined in project documents before work begins. These can include:
- Engineering drawings
- Flange management procedures
- Gasket manufacturer installation instructions
- Project-specific standards (e.g., ASME PCC-1)
A defensible flange assembly record should document the joint identifier, hardware grades, lubricant used, tightening method, target torque, and verification checks.

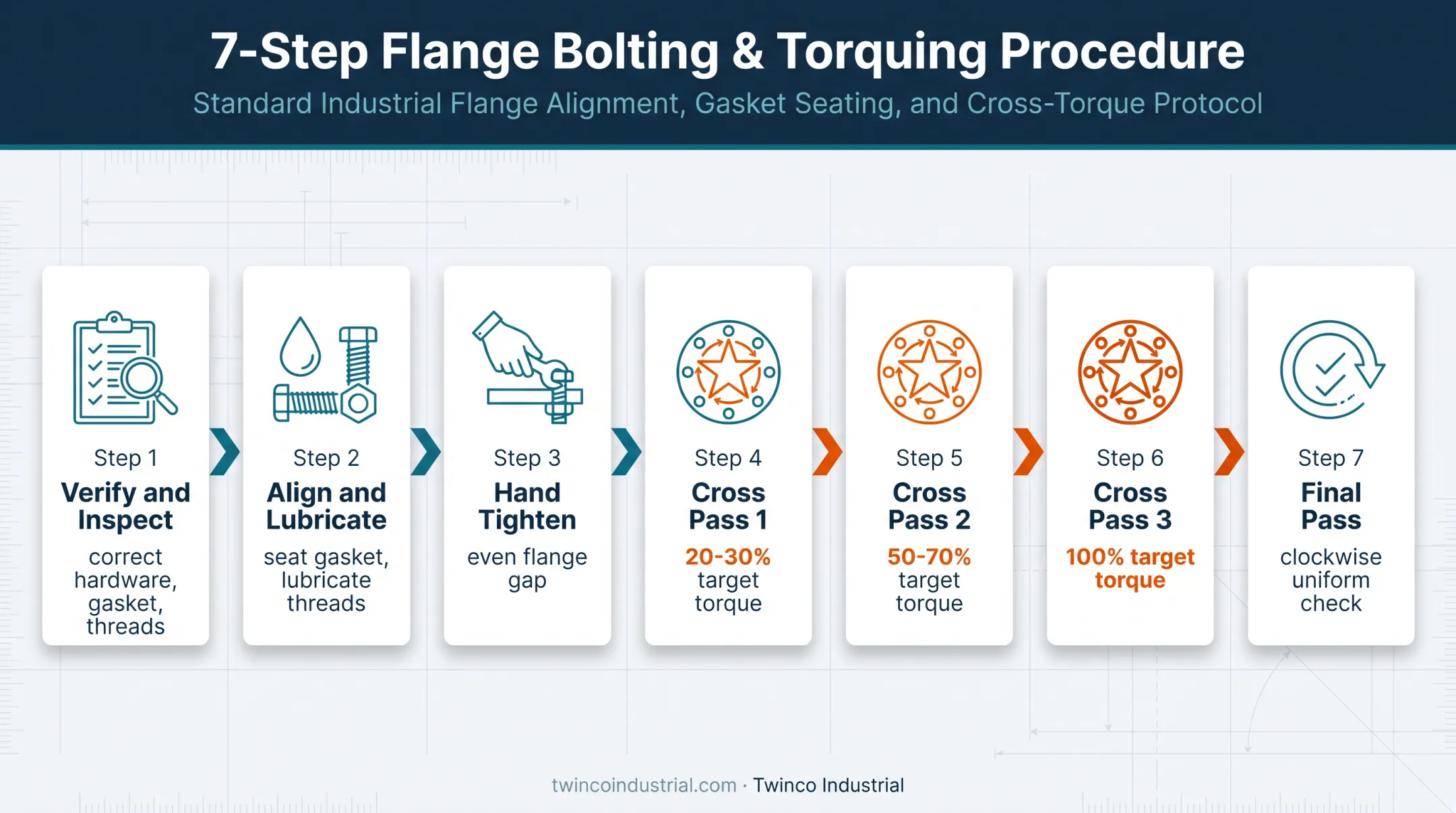

Practical Installation Sequence
Technicians should follow a systematic, multi-pass tightening sequence to ensure even gasket compression. Rushing to final torque on a single stud can lead to uneven loading and a failed seal. A typical multi-pass procedure, adapted from TEADIT and similar industry guidance, follows:
- Verify & Inspect: Confirm you have the correct studs, nuts, and gasket. Inspect flange faces and threads for damage or contamination.
- Align & Lubricate: Ensure the gasket is properly seated. Apply the specified lubricant to stud threads and nut-bearing surfaces. Do not lubricate the gasket itself.
- Hand Tighten: Snug all nuts to be hand-tight, ensuring the flange gap is even around the circumference.
- Cross-Pattern Pass 1 (20-30%): Using a calibrated torque wrench, tighten the nuts in a star or cross-bolt pattern to 20-30% of the final target torque.
- Cross-Pattern Pass 2 (50-70%): Repeat the cross-pattern sequence, increasing the torque to 50-70% of the final value.
- Cross-Pattern Pass 3 (100%): Repeat the sequence again, bringing each nut to the final target torque.
- Final Pass: Perform at least one final circular pass, moving clockwise from stud to stud, to ensure all nuts are uniformly at the final torque.
Measurement and Verification Methods
Bolt load can be applied and checked several ways, depending on joint criticality:
- Calibrated Torque Wrenches: Common and practical, though final preload still depends on friction. Twinco Industrial rents hydraulic torque wrenches serviced and calibrated before every job.
- Hydraulic Stud Tensioners: Preferred on critical or large-diameter joints. Direct axial tension stretches the stud and bypasses friction; the nut is then run down to hold the load.
- Ultrasonic Bolt Measurement: Uses ultrasonic waves to measure bolt elongation and confirm preload—the most accurate field check of clamp load.
Implications of Incorrect Torque and Common Misinterpretations
Getting the torque wrong has serious consequences for safety and operational reliability.
Under-torquing is a primary cause of joint leakage. Without enough clamp load, the gasket won't compress enough to seal under pressure and temperature swings. That often leads to:
- Joint relaxation and lost preload
- Vibration-related loosening
- Leak paths and eventual failure
Over-torquing is equally dangerous. It can:
- Overstress and permanently stretch (yield) the stud, compromising its strength
- Damage or gall the threads on the stud or nut
- Crush or destroy the gasket, creating a leak path
- Distort or warp the flange faces
Common Misinterpretations of B7 Torque in Practice
- Treating a chart as absolute: Applying a reference value without checking gasket, flange, temperature, and pressure requirements for the project
- Ignoring the lubricant: A dry torque value on lubricated threads causes dangerous over-tightening; a lubricated value on dry or dirty threads leaves a loose joint
- Confusing industrial and automotive fasteners: ASTM A193 B7 studs serve industrial pressure systems. Their torque values have no relationship to automotive wheel studs or lug nuts
- Believing "tighter is better": Joint integrity comes from controlled preload, not maximum force. Excess torque damages components and creates failure points
Conclusion
An ASTM A193 B7 torque chart is a useful reference, but it's only one part of a comprehensive flange assembly process. The torque value is a controlled installation parameter used to achieve a target bolt preload, not a standalone property of the stud itself.
Achieving a reliable, leak-free joint requires a systematic approach. Match the torque value to the specific hardware, lubricant, gasket, and flange design.
Always follow project-approved engineering requirements and use a documented, multi-pass tightening sequence with calibrated tools. That control is what gets the joint assembled safely and correctly the first time.
For your next maintenance, pipeline, or construction project, Twinco Industrial has the components and equipment you need. Contact us for ASTM A193 B7 studs, compatible A194 2H nuts, flange supplies, or rental torquing and tensioning equipment.
Frequently Asked Questions
What is the torque for B7 stud bolts?
Torque depends on stud diameter, thread series, lubricant condition, and the preload your flange and gasket require. Use a verified chart as a starting point, then confirm the final value against your project's engineering specification.
What are the torque specs for wheel studs?
Wheel stud torque is set by the vehicle or wheel manufacturer, not by industrial flange charts. Applying a B7 torque chart to automotive lug nuts is incorrect and dangerous—use your vehicle's owner's manual.
Is 100 ft-lbs too much for lug nuts?
It depends on the vehicle, wheel type, and stud size—some cars need less, some trucks need more. Do not use an industrial B7 flange torque chart to set lug nut torque.
What is the recommended lug nut torque for a 7000 lb trailer axle?
Axle rating alone does not set lug nut torque. Use the trailer or axle manufacturer's specification, usually in the owner's manual or on their website.
What grade is a B7 stud?
ASTM A193 Grade B7 designates a high-strength, heat-treated chromium-molybdenum alloy steel bolting material intended for high-pressure and high-temperature service. This industrial classification system is different from the grade markings used for automotive fasteners.
