Introduction
Pipeline turnarounds, hydrostatic tests, and emergency repairs all share one requirement: a line has to stop flowing, completely, before anyone opens a joint. Many maintenance teams rely on valve closure alone and assume that's enough. It isn't always.
A slip blind is a solid metal blank installed between two mating pipe flanges to physically block flow. Unlike a valve, it has no moving parts and no internal mechanism that can fail or drift open under pressure.
This article covers what a slip blind flange actually is, how it differs from related products like spectacle blinds and end-mounted blind flanges, where it gets used, and how to select and install one safely.
Key Takeaways
- Slip blinds provide positive, non-mechanical isolation with zero moving parts
- Match pipe size, pressure class, material, facing, gasket, and bolting to the service
- Terms like "slip blind," "spade," and "paddle blind" overlap; always confirm against the spec
- Install only after site isolation, depressurization, and testing steps are complete
What Is a Slip Blind Flange?
A slip blind flange is a solid metal disc, or paddle-shaped blank, inserted between two flanges to block the internal bore of a pipe. It creates a physical barrier across the entire cross-section of the line.
That's the key distinction from a valve. A valve isolates flow through an internal mechanism—seats, seals, actuators—that can leak, stick, or fail. A slip blind is a solid piece of metal. Rated and installed correctly, it has no internal parts that can malfunction.
Slip Blind vs. End Blind Flange
These two get confused constantly, and the confusion matters when you're ordering parts:
- Slip blind — installed between two mating flanges, in the middle of a line, to block flow at that point
- End blind flange — bolted to a single flange to terminate a pipe end, nozzle, or vessel opening entirely
One sits mid-line. The other closes off the end of something. They're not interchangeable products, even though both are "blind" components.
Basic Installation Arrangement
A typical slip blind setup includes:
- Two mating pipe flanges
- Gasket surfaces on each side of the blank
- A full set of fasteners
- The blank positioned between the flange faces
Isolation only holds when fit, facing, gasket compatibility, bolting, and alignment are all correct.

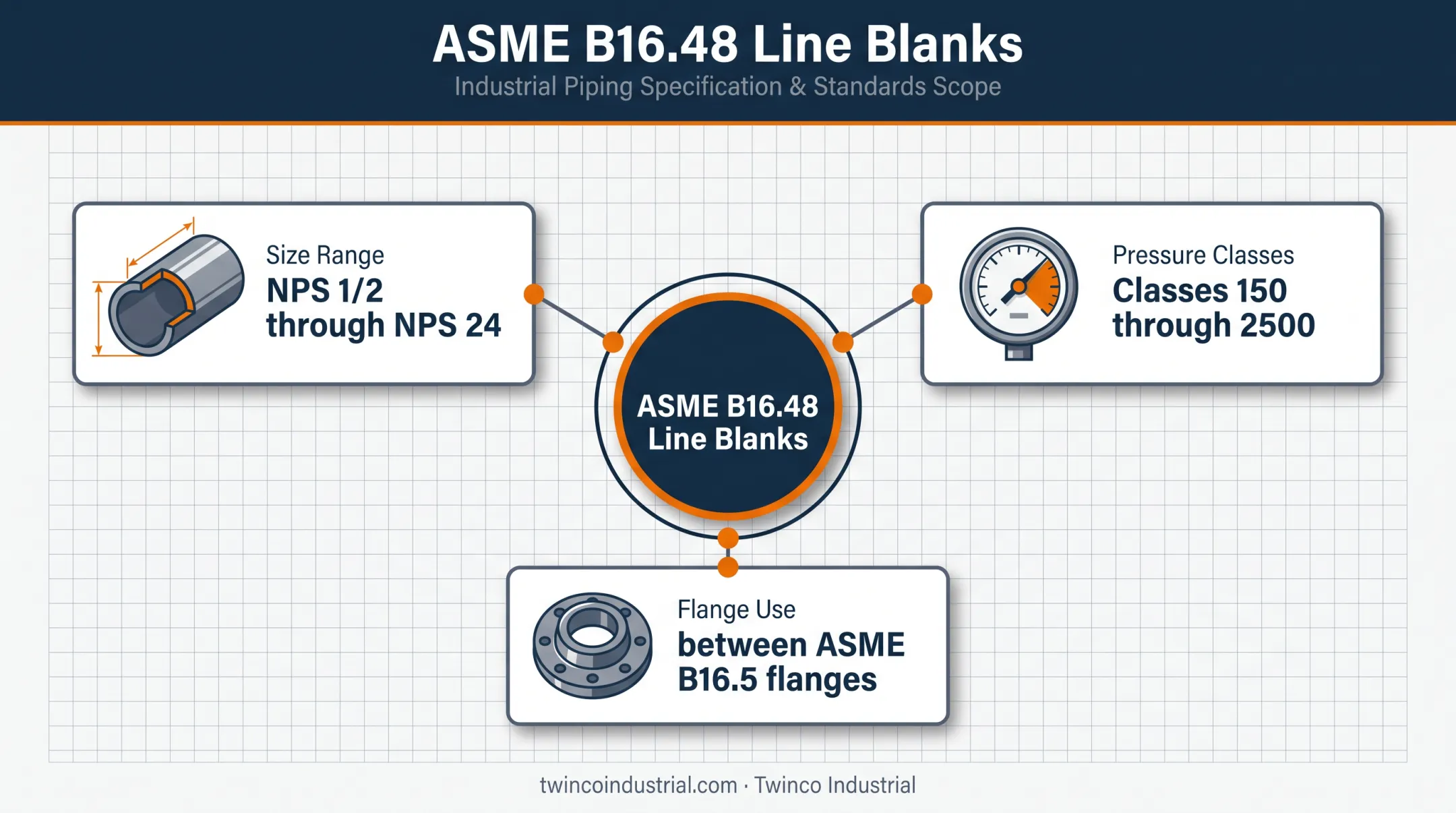

The governing standard is ASME B16.48, Line Blanks. It covers pressure-temperature ratings, dimensions, and marking for line blanks from NPS 1/2 through NPS 24 in Classes 150 through 2500, for use between ASME B16.5 flanges.
Always confirm the edition and flange standard your project specifies. Don't assume standards are interchangeable, and don't claim compliance without the paperwork to back it up.
Types and Related Terminology
Here's where things get messy. Suppliers, engineers, and field crews often use "slip blind," "spade," "paddle blind," and "line blank" as if they're the same thing. Sometimes they are. Sometimes the geometry or configuration differs slightly by manufacturer.
A few distinctions worth knowing before you order:
- Slip blind / line blank: solid plate inserted between flanges for positive isolation; often used interchangeably with spade or paddle blind
- Spade or paddle blind: the solid section that creates positive isolation; this is the blocking component
- Spacer: an open-center ring installed between flanges to maintain flow and preserve bolt length when isolation isn't needed
- Spectacle blind: a spade and spacer permanently joined into one figure-eight assembly; you rotate it between the two positions instead of swapping separate pieces
The spectacle blind's advantage is convenience. You don't remove and store a separate spacer; you just rotate the assembly and re-bolt. A standalone slip blind, by contrast, generally means removing the blank entirely when the line needs to flow again, then managing a spacer separately.
Twinco Industrial lists paddle blinds as spade-and-spacer sets, along with spectacle blinds and ported paddle blind configurations, available from ½ in. to 60 in. and larger in Classes 150 through 2500. That range matters because terminology shifts by supplier and by job site.
Don't trust the name alone. Your purchase order should spell out exact geometry, dimensions, pressure rating, facing, and the governing standard. A "slip blind" from one supplier might not match a "paddle blind" from another, even at the same nominal size.
Where Slip Blind Flanges Are Used
Slip blinds are used anywhere a line needs a guaranteed, physical stop, not just a closed valve.
- Pipeline construction and tie-ins — Crews install a blind before connecting or modifying pipe so live product stays out of the work zone.
- Refinery and petrochemical maintenance — Positive isolation protects workers during shutdowns, inspections, and repairs better than a valve that depends on air or power to stay shut.
- Hydrostatic and pressure testing — Blinds set the physical test boundary. Field guidance treats blinding as an accepted positive isolation method and calls for logging every temporary blank.
- Power, utility, and industrial plants — Lines, vessels, and rotating equipment are blinded for inspection, cleaning, repair, or replacement when valve-only isolation falls short.
- Emergency and rush procurement — Fast sourcing can cover a missing blind mid-shutdown, but it never replaces engineering review or site approval—availability isn't authorization.
Test plans still need to account for stored energy, test pressure, exclusion zones, and who is authorized in the area.
Benefits and Limitations of Slip Blind Flanges
A slip blind's biggest strength is simplicity. It's a solid piece of metal with no seats, seals, or actuators to fail.
That reusability holds across multiple jobs when the blank passes inspection each time. The design also suits temporary or semi-permanent isolation where a visible break in the flow path matters.
OSHA's lockout/tagout regulation reflects this thinking directly, listing "blank flanges and bolted slip blinds" as accepted energy isolating devices. That's regulatory language, not marketing copy, for why plants trust a solid blank over relying on a valve alone.
That said, slip blinds come with real trade-offs:
- Breaking the joint is unavoidable. You can't install or remove a slip blind without opening a flanged connection, which means the line must already be isolated and de-energized first.
- Swapping the blank takes work. Lifting, alignment, gasket replacement, and controlled reassembly are all part of changing a blank's status.
- Size creates handling challenges. Larger blinds, especially in congested pipe racks, need proper lifting equipment and enough clearance to maneuver safely.

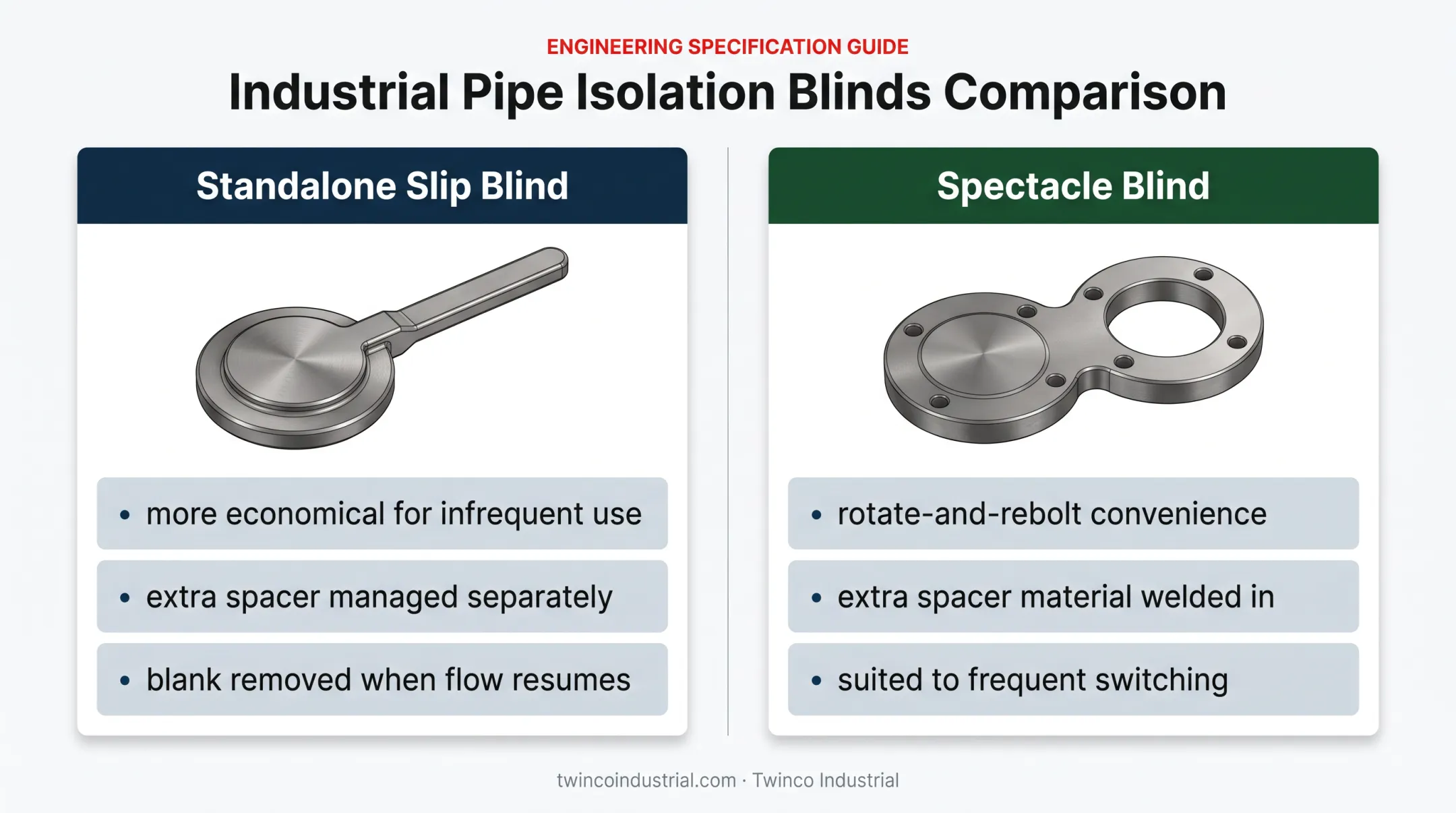

Those trade-offs matter most when you weigh a slip blind against other isolation hardware. Compared to a spectacle blind, a standalone slip blind can be more economical for infrequent use, since you're not paying for the extra spacer material welded into a figure-eight assembly. But if a line switches between open and isolated states often, the spectacle blind's rotate-and-rebolt convenience usually wins out.
One thing a slip blind is never a substitute for: your site's lockout/tagout process, valve isolation, draining, venting, gas testing, or zero-energy verification. It's a physical barrier, not a procedure.
How to Select, Install, and Use Slip Blind Flanges Safely
Getting the right slip blind flange starts long before installation day.
Nail Down the Specification
Before ordering anything, confirm:
- Nominal pipe size, outside diameter, and bolt-hole pattern
- Thickness, pressure class or PN rating, and material grade
- Facing type: raised face, flat face, ring-type joint, or tongue-and-groove
- The governing flange or line-blank standard, plus marking and traceability requirements
Facing and gasket type have to match. A raised-face gasket will not seal correctly in an RTJ groove, and that mismatch is a common cause of failed leak checks.
Match Material to Service
Corrosion, chlorides, sour service, temperature, and galvanic compatibility all factor into material selection. Ask for material certifications or inspection records whenever the project or quality plan requires them.
Check the Whole Bolted-Joint System
A blank is only as good as the joint holding it. Verify:
- Stud, bolt, nut, and washer sizing, plus thread condition and engagement
- Bolt length after accounting for the blank and gasket thickness together
- Mating flange faces are free of damage, distortion, and debris

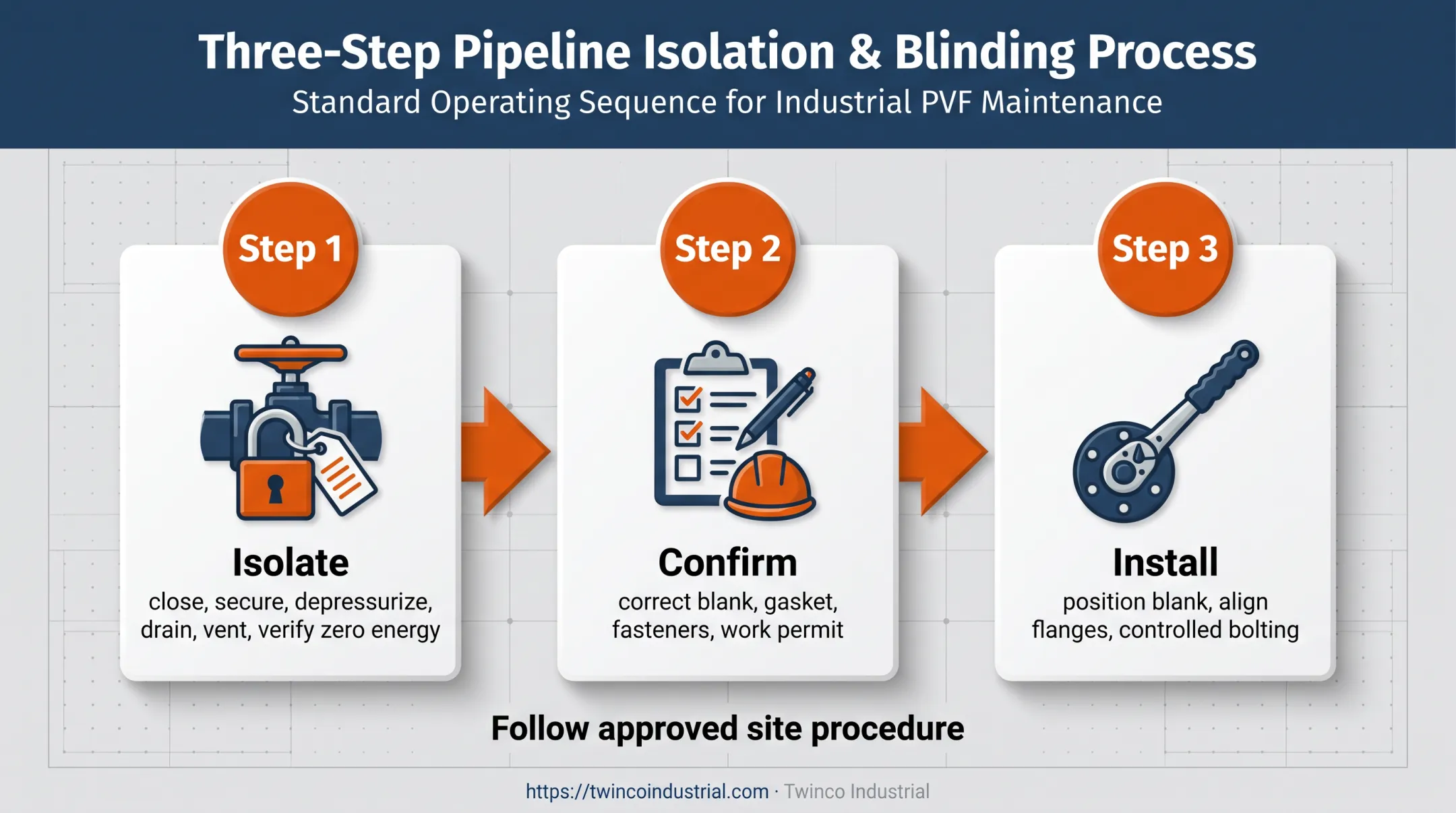

Follow a Safe Installation Sequence
This is not a substitute for an approved site procedure. The general sequence is:
- Isolate per your energy-control process: close and secure valves, depressurize, drain, vent, and verify zero energy
- Confirm the correct blank, gasket, fasteners, and work permit before breaking the joint
- Position the blank without damaging sealing surfaces, then install the gasket, align the flanges, and tighten with a controlled bolting method
Once installed, complete leak checks, pressure tests, and required documentation. Tag the isolation point clearly.
Tags and markings communicate status only. They do not replace a physical lockout or an approved isolation plan.
Quick field checklist:
- Size, rating, material, and facing
- Gasket and bolting
- Quantity and lifting needs
- Required documents and delivery date
- Buy vs. rent
If any item is uncertain, loop in a qualified engineer or a supplier such as Twinco Industrial before you finalize the order—especially when you need inspected rental blinds, matching bolting, or material documentation on a tight schedule.
Buying, Renting, and Sourcing Slip Blind Flanges
Whether to buy or rent usually comes down to how often you'll need the blank.
Buying makes sense for:
- Recurring plant maintenance on standard line sizes
- Building permanent inventory for repeated isolation needs
- Projects with predictable, ongoing requirements
Renting makes sense for:
- Short-duration turnarounds and hydrostatic tests
- Emergency repairs where speed matters more than ownership
- Unusual sizes that would otherwise sit unused in a warehouse
- Inspection-company work that shifts between client sites
Twinco Industrial has supplied and rented industrial isolation components since 1977, including slip blind flanges and related blinds from ½ inch through 60 inch and larger, across Classes 150 through 2500. Rental blinds are inspected for dimensional accuracy and surface condition, cleaned, and stored job-ready before they go out.
Beyond the blank, Twinco stocks bolting, gaskets, valves, and piping components, plus rental hydraulic tools and chart recorders for pressure and temperature test documentation. That mix helps when a job needs a full isolation or hydrotest package, not only the flange.
For hard-to-find or oversized components, specialty sourcing and rapid fulfillment support pipeline, petrochemical, construction, and maintenance customers across Houston and nationwide.
Requesting a quote? Include:
- Pipe size, pressure rating, and material
- Facing, quantity, and application
- Required delivery date
That’s usually enough for Twinco’s team to confirm availability and turnaround quickly.
Frequently Asked Questions
What is an end blind flange?
An end blind flange is a solid flange bolted to the end of a pipe, nozzle, or vessel connection to close the opening entirely. It differs from a slip blind, which installs between two flanges mid-line rather than capping an open end.
What is a spade blind?
A spade blind is a solid, paddle-shaped line blank used between two mating flanges for positive isolation. Terminology varies by project and supplier, so confirm the exact geometry before ordering.
What is the difference between a blind flange and a paddle blind?
A blind flange usually caps a pipe end; a paddle blind (often called a slip or spade blind) seats in-line between two mating flanges. Match the name, thickness, and governing standard to your project spec before you order.
What are the different types of blind flanges?
The category includes end blind flanges, slip or paddle blinds, spades, and spectacle blinds. Exact names and classifications depend on which standard and project specification governs your job.
