Pneumatic knife gate valves solve this by combining a thin, beveled gate with a compressed-air actuator built for automated on-off isolation. This article covers construction, operating principle, common applications, selection criteria, and maintenance considerations relevant to US industrial systems.
The key distinction worth understanding upfront: a knife gate valve's sharpened gate is designed to cut through or displace difficult media. A conventional gate valve is generally built for isolation of clean fluids, not solids-laden streams, and neither type should be treated as a substitute for a dedicated throttling valve.
Key Takeaways
- A pneumatic knife gate valve pairs a knife gate with a compressed-air actuator for automated shutoff—not continuous throttling
- Seat material, flow direction, actuator sizing, and available air supply must be evaluated together, not separately
- They deliver the most value in solids-heavy or viscous service; verify pressure, temperature, and dimensions against manufacturer data
- Confirm unidirectional vs. bidirectional sealing and fail-open, fail-closed, or maintained-position needs
What Is a Pneumatic Knife Gate Valve and How Does It Work?
A pneumatic knife gate valve is an automated isolation valve that uses compressed air to drive a thin, beveled gate through the process stream.
Manufacturers like DeZURIK build these as bonnetless designs with a 45-degree beveled bottom edge and finish-ground gate faces, paired with a multi-layer packing system to contain the process media (DeZURIK's knife gate specification).

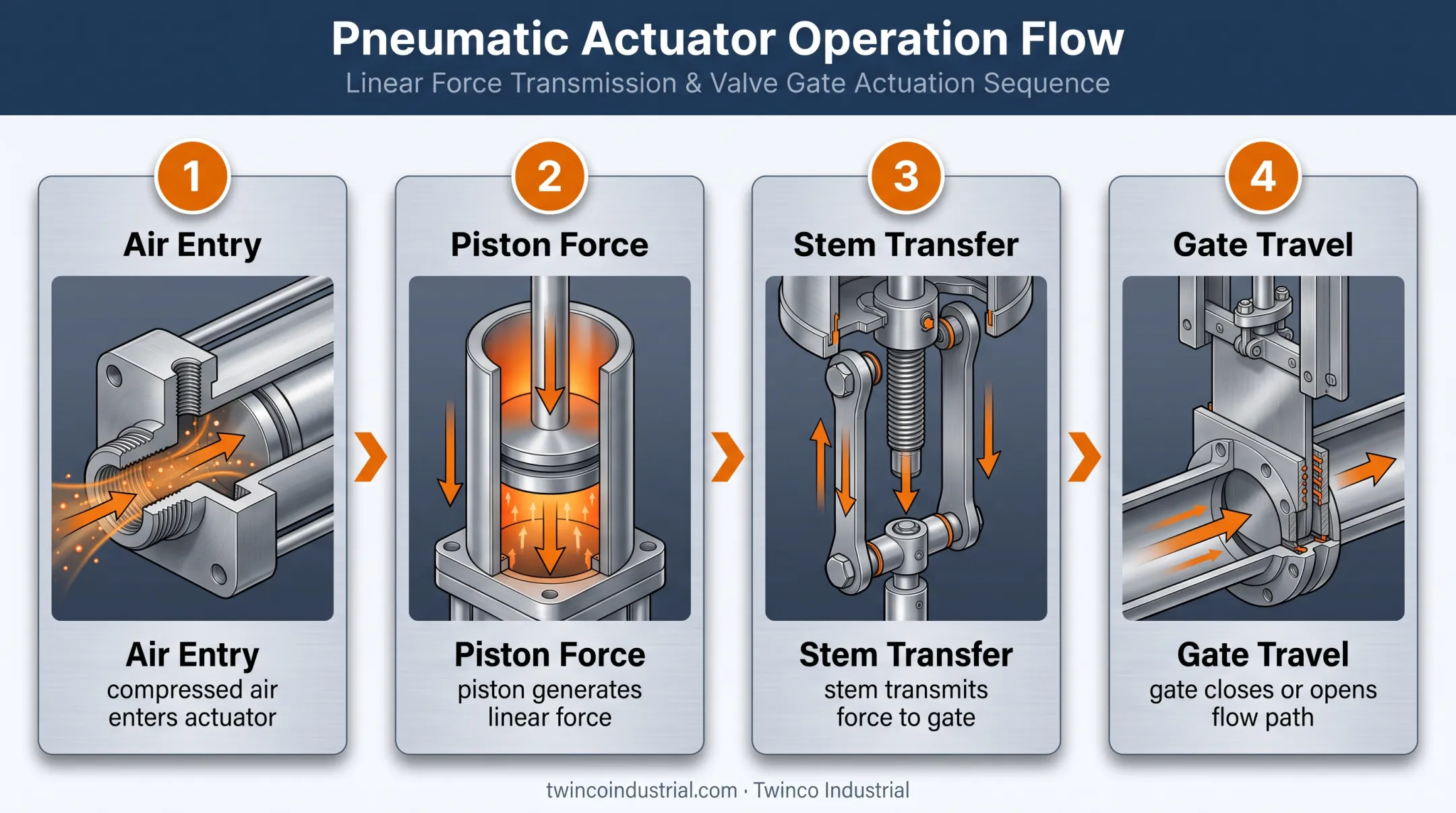

The basic operating sequence:
- Compressed air enters the actuator through a solenoid valve or manual control
- The piston generates linear force inside the cylinder
- The stem transmits that force to the gate
- The gate travels into the seat (closing) or out of the flow path (opening)
Bray's field documentation matches this pattern: energize the solenoid or supply air to the cylinder, then stroke the valve fully open and closed to verify travel (Bray's Series 941 IOM).
How the Gate Handles Difficult Media
The knife edge can cut through or displace fibers, sludge, pulp, and suspended solids that would obstruct a conventional wedge-style gate. Performance still hinges on media properties, seat design, and correct sizing—a gate rated for light sludge will not behave the same in high-consistency pulp.
Main components:
- Body — houses the flow path and mounts the seat
- Gate — the beveled blade that moves through the media
- Stem — connects actuator to gate
- Packing — seals around the stem to prevent leakage
- Seat — forms the seal when the gate is closed
- Actuator — the pneumatic cylinder providing linear force
- Air connections — ports for supply and control air
These valves are normally specified for full-open or full-closed isolation service. The gate can stop at intermediate positions, but that does not make a knife gate a substitute for a control valve.
Main Components and Configurations
Every pneumatic knife gate valve shares a core set of parts, but the configuration options around those parts drive real performance differences.
Actuator Type and Fail-Safe Behavior
Manufacturers offer both double-acting and single-acting spring-return actuators. Control typically runs through NAMUR-style 3/2-way or 5/2-way solenoid valves, depending on the configuration.
- Double-acting: air moves the gate in both directions; if air supply is lost, the gate stays wherever it was
- Single-acting spring-return: air moves the gate one direction, a spring returns it when air is removed; this gives a predictable fail-open or fail-closed position
The right choice depends entirely on your process-safety requirements. There isn't a universal "correct" fail position across industries — that's a project-specific decision.
Connection Styles and Seat Materials
Common connections include wafer, lug, and flanged styles, each with different maintenance and dead-end-service implications. Lug-style bodies allow one side of the line to be serviced without draining the entire pipe run. Wafer designs typically require the adjacent flanges to be separated.
Seat selection matters just as much:
- Resilient seats can deliver tight shut-off in compatible chemical and temperature ranges
- Metal seats tend to hold up better in higher-temperature or abrasive service, though leakage expectations still need to be verified against manufacturer data
Bidirectional vs. Unidirectional Design
Some designs, like Metso's slurry-rated valves, are built for bidirectional sealing. Others, including Bray's Series 941, are strictly unidirectional and must be installed with pressure against the seat.
Pump changeover, backflow potential, and reverse-pressure conditions all factor into which type your line actually needs.

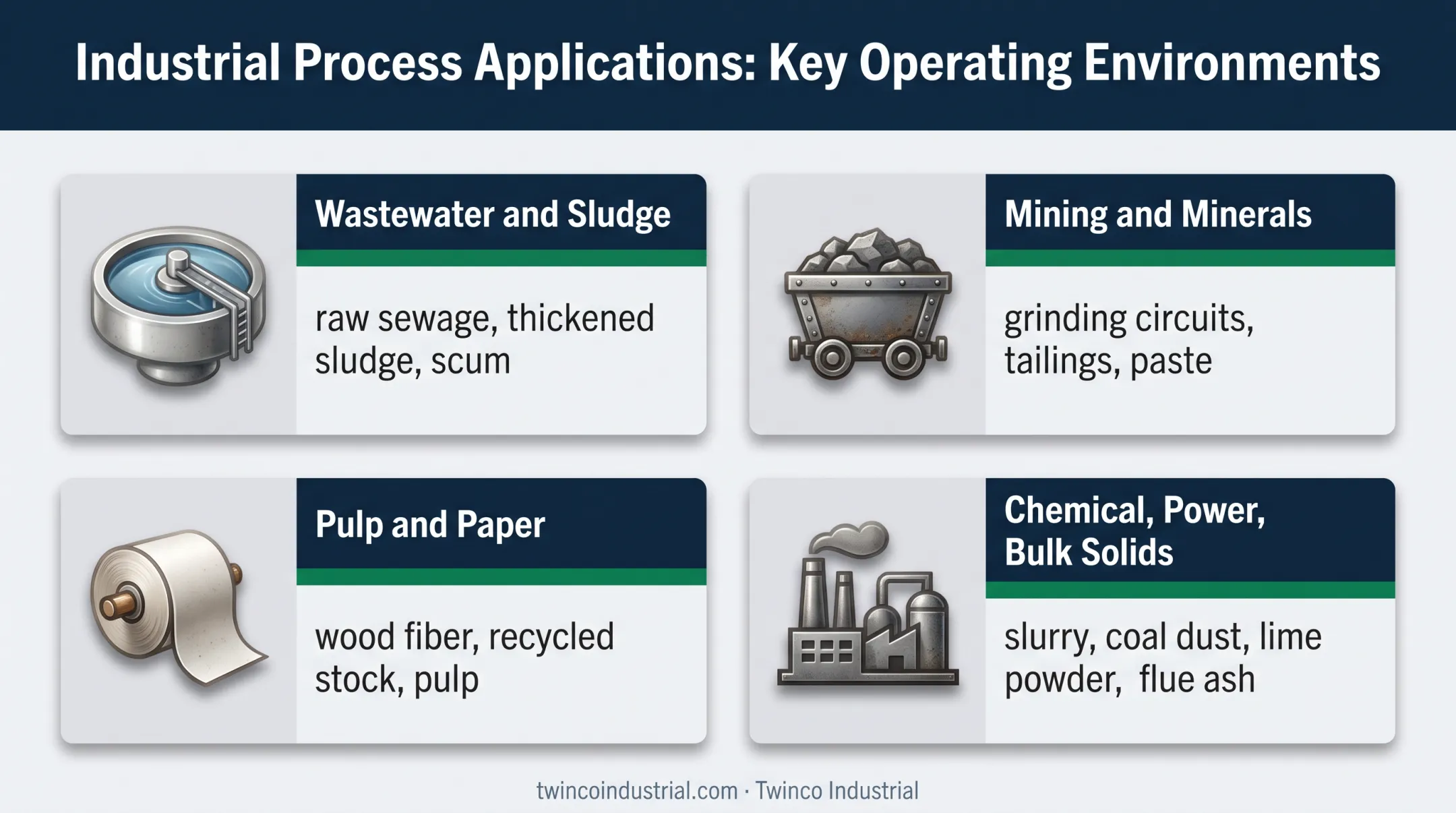

Where Are Pneumatic Knife Gate Valves Used?
Solids-handling systems are the primary use case for these valves. The knife-edge design reduces clogging risk in streams where a standard valve's flow path would trap debris or fibrous material.
Wastewater and Sludge Service
Raw sewage, thickened sludge, scum, and lines carrying rags or debris are common applications. Selection here should account for corrosion exposure, solids concentration, and how easily the line can be accessed for cleaning.
Mining and Mineral Processing
Metso lists grinding circuits, thickeners, filters, tailings lines, cyclones, paste, and concentrate pipelines as typical applications for abrasive slurry service. Abrasion-resistant seat and gate materials, actuator thrust, and flow direction all deserve engineering review before specifying a valve for this duty.
Pulp and Paper
Wood fiber, recycled stock, and high-consistency pulp create fiber buildup risk that standard valves struggle to handle. Wey Valve notes that wood chips and waste paper form fibrous mixtures that can clog conventional piping components. Bleaching agents and process chemicals also demand corrosion-resistant materials, so temperature and chemical compatibility need verification for each stock line.
Chemical, Power, and Bulk Solids
Chemical lines with slurry or solids carryover, plus coal dust, coal slurry, lime powder, and flue ash, are common duties in these plants. Material compatibility, pressure, temperature, and other service conditions still need verification for each application.
When a Different Valve Makes More Sense
Not every application calls for a knife gate valve:
- Control valves handle continuous throttling better than knife gates
- Ball valves suit clean fluids that need tight shutoff, commonly in sizes 1/2" to 24" and Class 150–1500
- Standard gate valves remain a solid choice for compatible clean-fluid isolation
How Do You Select the Right Pneumatic Knife Gate Valve?

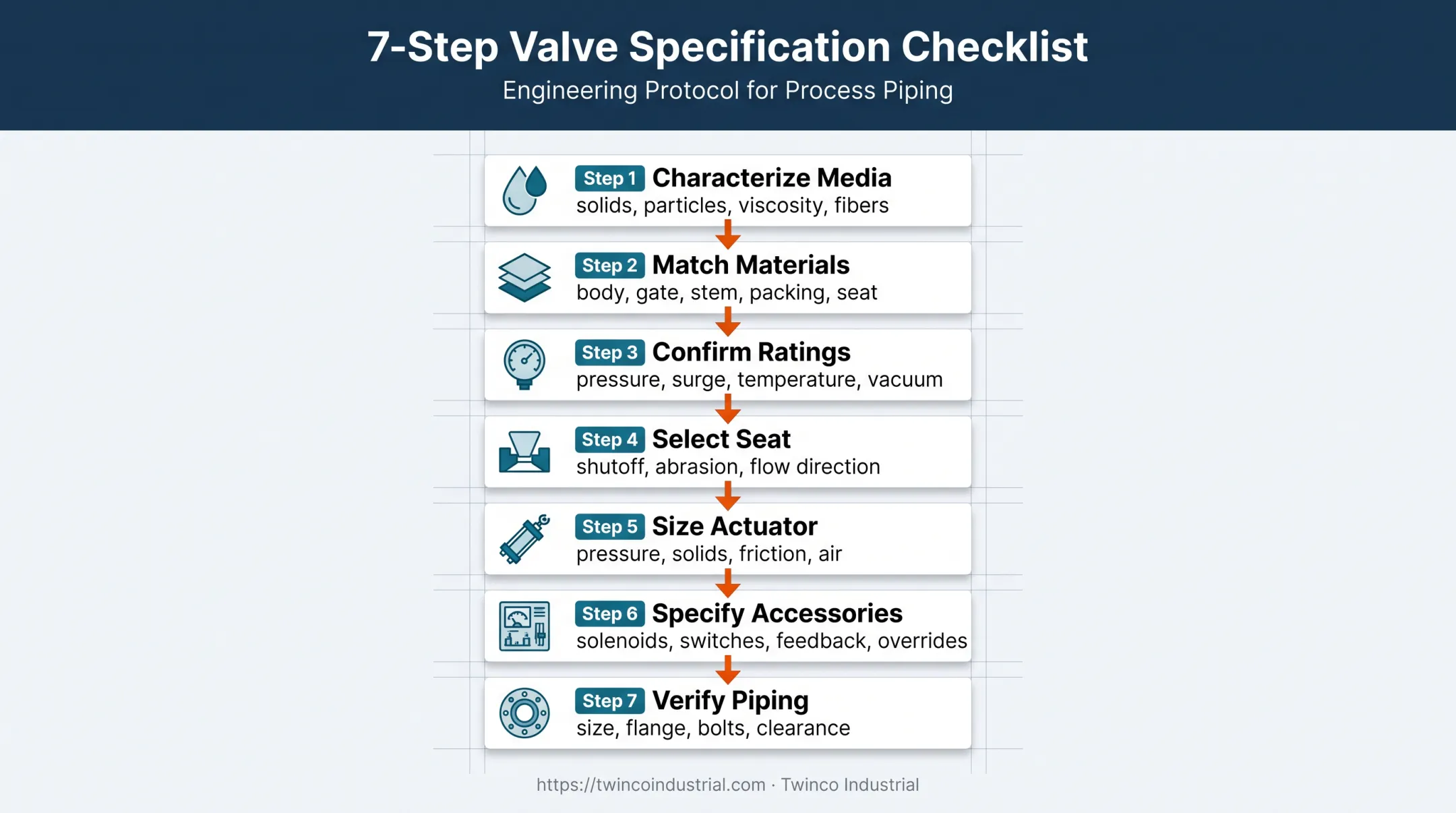

Selecting the correct valve is less about picking a single "best" model and more about working through a checklist of interdependent factors.
- Characterize the process media: Note liquid vs. dry service, solids content, particle size, abrasiveness, viscosity, fiber content, corrosiveness, and temperature. Flag media that can settle or harden in the line.
- Match materials to service conditions: Body, gate, stem, packing, and seat materials should follow manufacturer compatibility charts, not general assumptions.
- Confirm pressure and temperature ratings: Check normal, maximum, surge, differential, and vacuum conditions against documented limits. Metso ranges illustrate the spread—from KGV/KGC designs near 150 psi to KGH designs near 725 psi.
- Select seat type and flow direction: Base the choice on shutoff needs, abrasive exposure, and uni- vs. bidirectional sealing.
- Size the actuator for worst-case conditions: Factor line pressure, solids loading, packing and seat friction, available instrument air, and engineering margin.
- Specify control accessories: Build out solenoids, filter-regulators, speed controls, limit switches, position feedback, and manual overrides as needed.
- Verify piping compatibility: Confirm nominal size, flange standard, bolt pattern, face-to-face dimension, orientation, and actuator clearance.
Locking in these seven items before you order prevents costly field rework.
Twinco Industrial has supplied valves and related PVF components to petrochemical, pipeline, and construction customers across the Gulf Coast and beyond since 1977. The team stocks industrial valves from ½" to 54" in carbon steel, stainless, brass, and alloy options.
If you are specifying a knife gate for a solids-handling line, share media characteristics, pressure ratings, and dimensions. A quick review against real service conditions can narrow the right configuration before you purchase or rent.
Installation, Maintenance, and Troubleshooting
Getting installation right the first time avoids most of the problems that show up later.
Installation Checklist
- Isolate and depressurize the line before starting work
- Inspect flange faces for alignment; Bray specifically requires plane-parallel mating flanges for its unidirectional Series 941 valve
- Use the gasket specified for your service, not a generic substitute
- Never force the valve into misaligned piping
- Confirm flow direction matches the valve's design (unidirectional units are direction-sensitive)
- Support the actuator where the piping design calls for it
- Test full travel before introducing process media
Pneumatic System Care
Compressed air quality matters more than most operators expect. Keep the supply clean, dry, and free of debris. Bray's Series 941 actuator, for example, calls for 50 to 100 psi operating pressure — a model-specific figure, so always confirm against your valve's data sheet rather than assuming a universal number.
Check tubing, fittings, and solenoid operation regularly, and drain filter-regulators before commissioning.
Routine Maintenance
- Inspect packing and seats for leakage or wear during scheduled shutdowns
- Lubricate only per manufacturer direction. Over-lubrication can attract debris
- Remove media buildup safely, following lockout procedures
- Cycle infrequently used valves periodically where site procedures allow
- Bray recommends inspection at intervals of roughly every 60 days for its Series 941 units
Common Symptoms and Likely Causes
| Symptom | Check First |
|---|---|
| Incomplete closure | Seat wear, media buildup, actuator thrust |
| Stem leakage | Packing condition, gland bolt torque |
| Slow or jerky travel | Air supply pressure, filter-regulator condition |
| Air leakage | Tubing fittings, solenoid seals |
| Repeated jamming | Media characteristics, gate alignment |
All maintenance work must follow site lockout/tagout procedures. OSHA's hazardous energy control standard, 29 CFR 1910.147, classifies pneumatic energy as hazardous and requires isolation and verified de-energization before servicing. Always follow manufacturer-specific procedures alongside site safety requirements.
Frequently Asked Questions
What is a gate valve with a pneumatic actuator?
A gate valve with a pneumatic actuator is operated by compressed air instead of a manual handwheel. A pneumatic knife gate valve pairs that automation with a sharpened gate built for solids-laden and fibrous media.
How does a pneumatic actuator valve work?
Compressed air enters the actuator and drives a piston, which moves the stem and gate linearly. A solenoid valve controls air routing, directing the actuator to open or close the gate on command.
What type of actuator is used in a gate valve?
Pneumatic cylinder actuators are common, available in double-acting or spring-return configurations. The right choice depends on required thrust and whether a specific fail position is needed for process safety.
What are the two main types of pneumatic control valves?
Most setups use 3/2-way or 5/2-way solenoid valves to route air to the actuator. The choice depends on whether the actuator is single-acting or double-acting.
What's the difference between a knife valve and a gate valve?
A knife gate valve's sharpened blade is built to cut through or displace solids and fibrous media. A conventional gate valve uses a wedge or parallel gate designed for clean-fluid isolation. Neither should be used for continuous throttling.
