The problem shows up when these components get ordered piece by piece. A flange from one supplier, a plate from another, gaskets picked without checking facing type. The result: mismatched bolt patterns, incompatible tap threads, or a plate that doesn't fit the flange bore at all. The API MPMS Chapter 14.3.2 standard makes clear that design and installation errors directly bias measurement accuracy, not just the equipment quality itself.
This guide breaks down what an orifice flange set actually includes, how it functions in a metering system, the specifications that matter, and a practical checklist for ordering one without the guesswork.
Key Takeaways
- Core package: matched flange pair plus orifice plate—confirm exact contents on the quote
- Match pressure class, facing, taps, material, and plate bore as one coordinated system
- Supports DP flow measurement; transmitter, impulse lines, and straight-run piping stay separate
- Submit full process and line data upfront to avoid rework, delays, and measurement uncertainty
What Is an Orifice Flange Set?
In purchasing terms, an orifice flange set is a coordinated assembly designed to position an orifice plate between two flanges while providing pressure connections on either side of the restriction. The flanges, plate, and tap locations are dimensionally matched so they function as one metering assembly.
Fluid moves through the pipe, passes through the plate's smaller bore, and speeds up. That change in velocity creates a measurable drop in static pressure. Capture that pressure difference upstream and downstream, and you have the raw signal needed to calculate flow rate.
Set, Union, or Complete Installation?
These terms get used loosely. Here's how they differ:
- Individual orifice flange — a single flange machined with tap holes, sold or specified on its own
- Orifice flange pair or union — the matched two-flange assembly, sometimes bundled with the plate, gaskets, and jack screws (Daniel's orifice flange union datasheet describes exactly this combination)
- Complete orifice metering installation — the flange pair plus upstream/downstream straight-run piping, impulse lines, and a differential-pressure transmitter

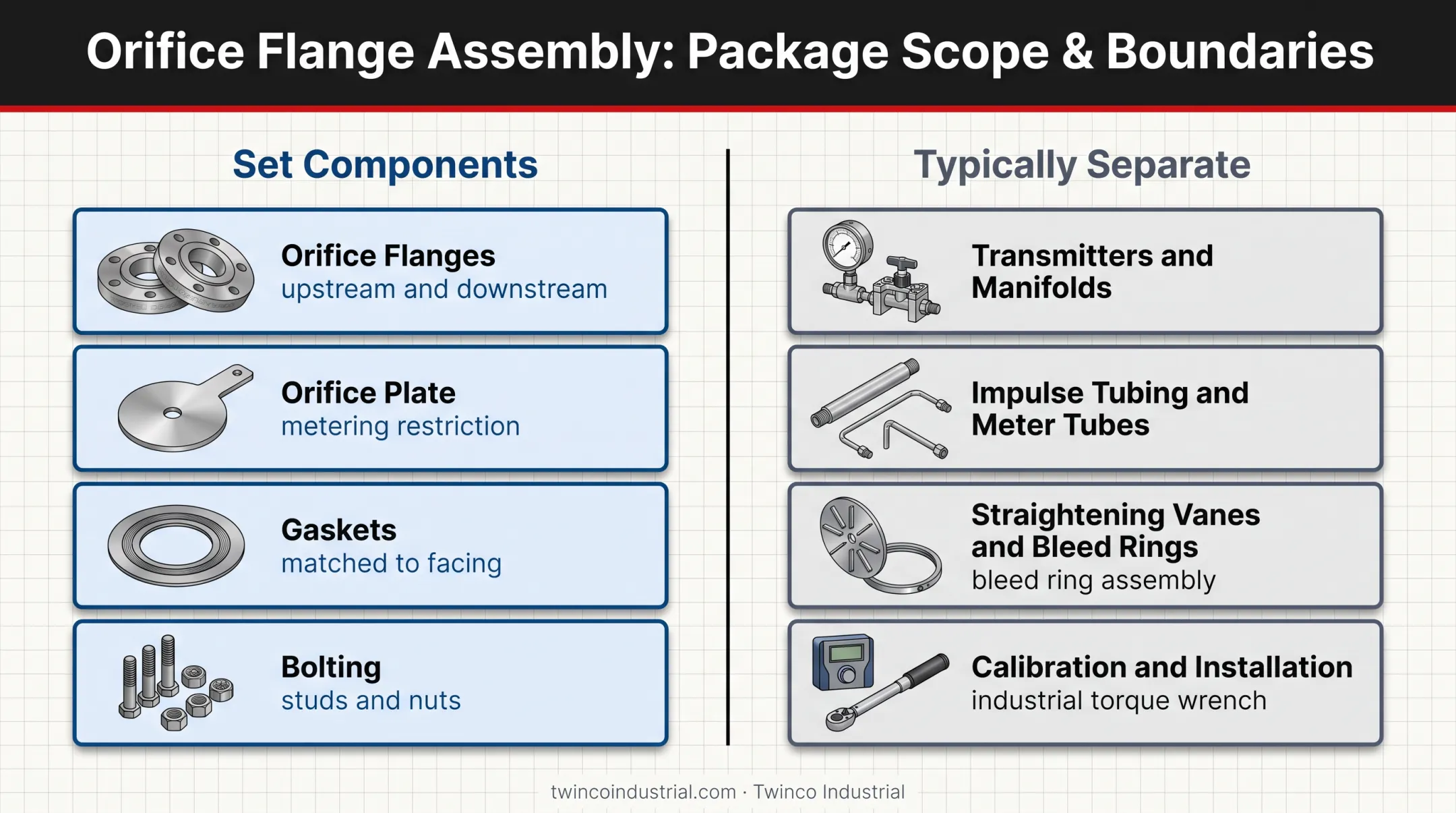

A typical set includes:
- Two orifice flanges (upstream and downstream)
- An orifice plate
- Gaskets
- Studs or bolts and nuts
- Jack screws
- Pressure-tap plugs
Treat these as a system, not interchangeable parts. The flange bore, plate seating surface, and tap locations are dimensionally linked. Swap in a generic flange from a different manufacturer, and tap alignment or bore tolerance can shift enough to affect the reading.
ASME B16.36 is the dimensional standard to check first. The 2025 edition covers welding-neck orifice flanges in Classes 300 through 2500, along with slip-on and threaded configurations in Class 300. Always confirm the current edition against your project specification, since API, AGA, ISO, or owner-specific requirements can layer on additional rules.
How Orifice Flange Sets Work
The physics is straightforward: restrict the flow path, and velocity increases while static pressure drops. Measure that drop, and you can back-calculate flow rate using the plate's bore geometry.
Beta Ratio and Bore Sizing
The beta ratio (bore diameter divided by pipe inside diameter) drives both the differential signal strength and the permanent pressure loss.
Standard orifice plates commonly run at beta ratios between 0.10 and 0.75. API 14.3.2 specifically flags 0.2 to 0.6 as the range with the lowest discharge-coefficient uncertainty. Push toward either extreme of the range, and measurement confidence typically drops.
Tap Arrangements Matter
Where the pressure taps sit on the flange changes which calculation method applies:
- Flange taps — positioned at fixed distances from the plate faces, common in API/AGA-based designs
- Corner taps — located right at the plate corners, covered under ISO 5167-2 but not included in AGA Report No. 3
- Pipe taps — set farther from the plate, used in specific legacy applications
Don't assume one tap style is universal. The governing standard for your project dictates which arrangement and which flow equation apply.

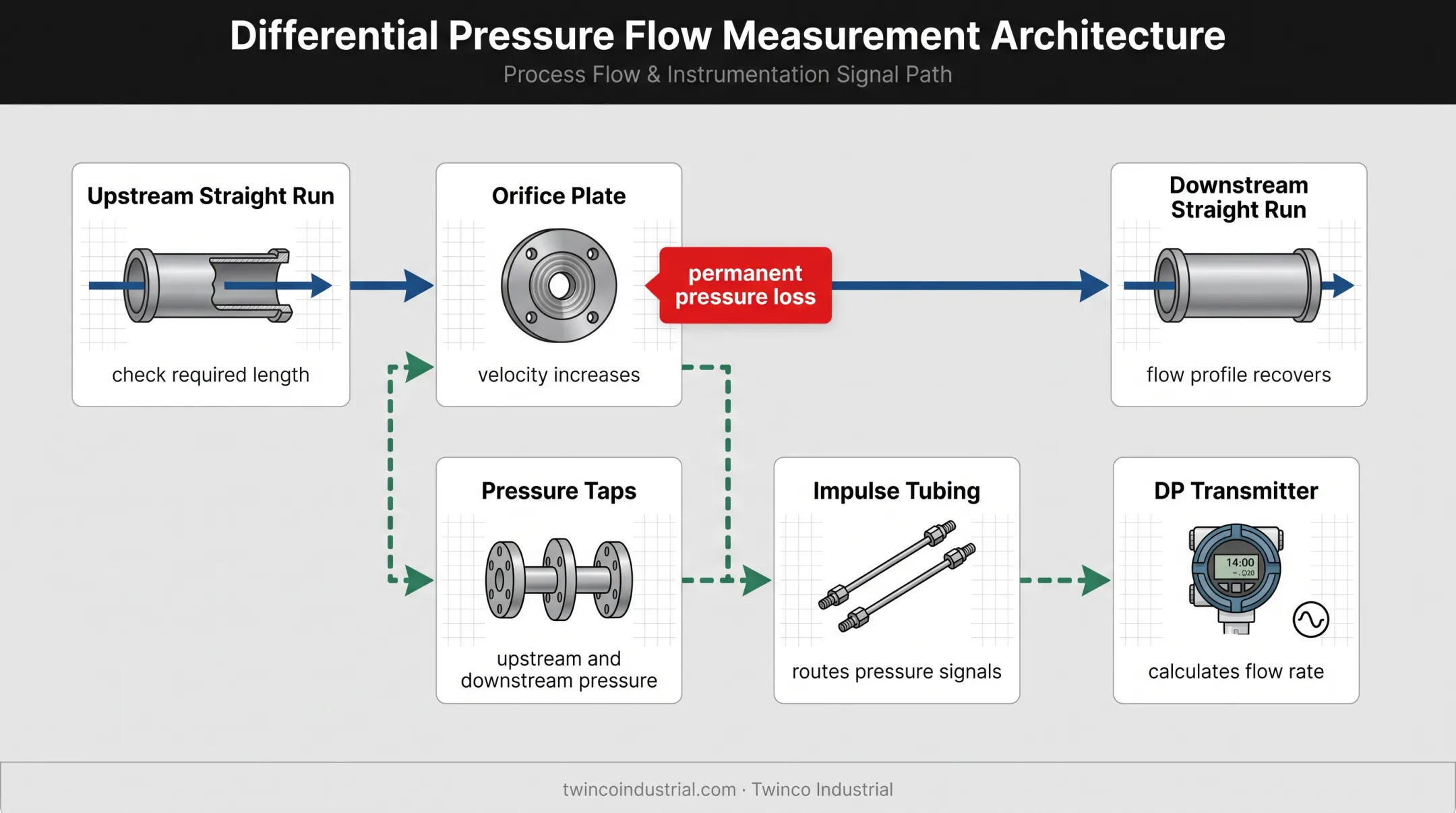

Signal Path and System Boundaries
Pressure signals travel from the taps through impulse tubing to a differential-pressure transmitter. That transmitter, along with the impulse lines themselves, is usually purchased separately from the flange set.
Straight pipe run upstream and downstream of the plate matters too. Flow disturbances, an uneven velocity profile, or poor impulse-line routing can all skew the reading. Check the applicable standard for required straight-run lengths before finalizing layout.
An orifice plate also creates permanent pressure loss every time fluid passes through it. Weigh that loss against your system's available pressure budget before locking in a beta ratio.
What Components and Specifications Make Up a Set?
Every orifice flange set breaks down into standard components and optional accessories. Knowing which is which keeps your order sheet accurate.
Standard components:
- Upstream and downstream orifice flanges
- Orifice plate
- Pressure taps (with plugs)
- Jack screws
- Gaskets
- Bolting (studs and nuts)
Jack screws separate the two flanges enough to pull the plate for inspection or replacement without disturbing the rest of the piping. Their placement and thread engagement should be verified before field installation, not discovered during a shutdown.
Facing and Connection Style
Flanges can be weld neck, slip-on, or threaded, depending on what the governing standard permits for the pressure class in question. Facing matters just as much:
- Raised face (RF) — the more common configuration for standard process piping
- Ring-type joint (RTJ) — used where higher-pressure, higher-integrity sealing is required
Mixing RF and RTJ components in the same set is one of the most common ordering mistakes, and it's an easy one to catch with a quick spec check.
Materials and Certification
Flange material and orifice plate material get specified separately, and both need to match the service conditions:
- Confirm process media compatibility and corrosion resistance
- Cover the full design temperature range, including low-temperature service
- Meet sour-service needs under NACE MR0175/ISO 15156 for H2S environments
- Request the required material certificates
Tap details round out the specification: nominal tap size, thread type (commonly NPT), tap orientation, and whether a nonstandard tap arrangement applies.
What's typically separate:
- Transmitters and manifolds
- Impulse tubing and meter tubes
- Straightening vanes and bleed rings
- Calibration services and installation labor
Confirm these items explicitly in your quote so nothing gets assumed into the price.

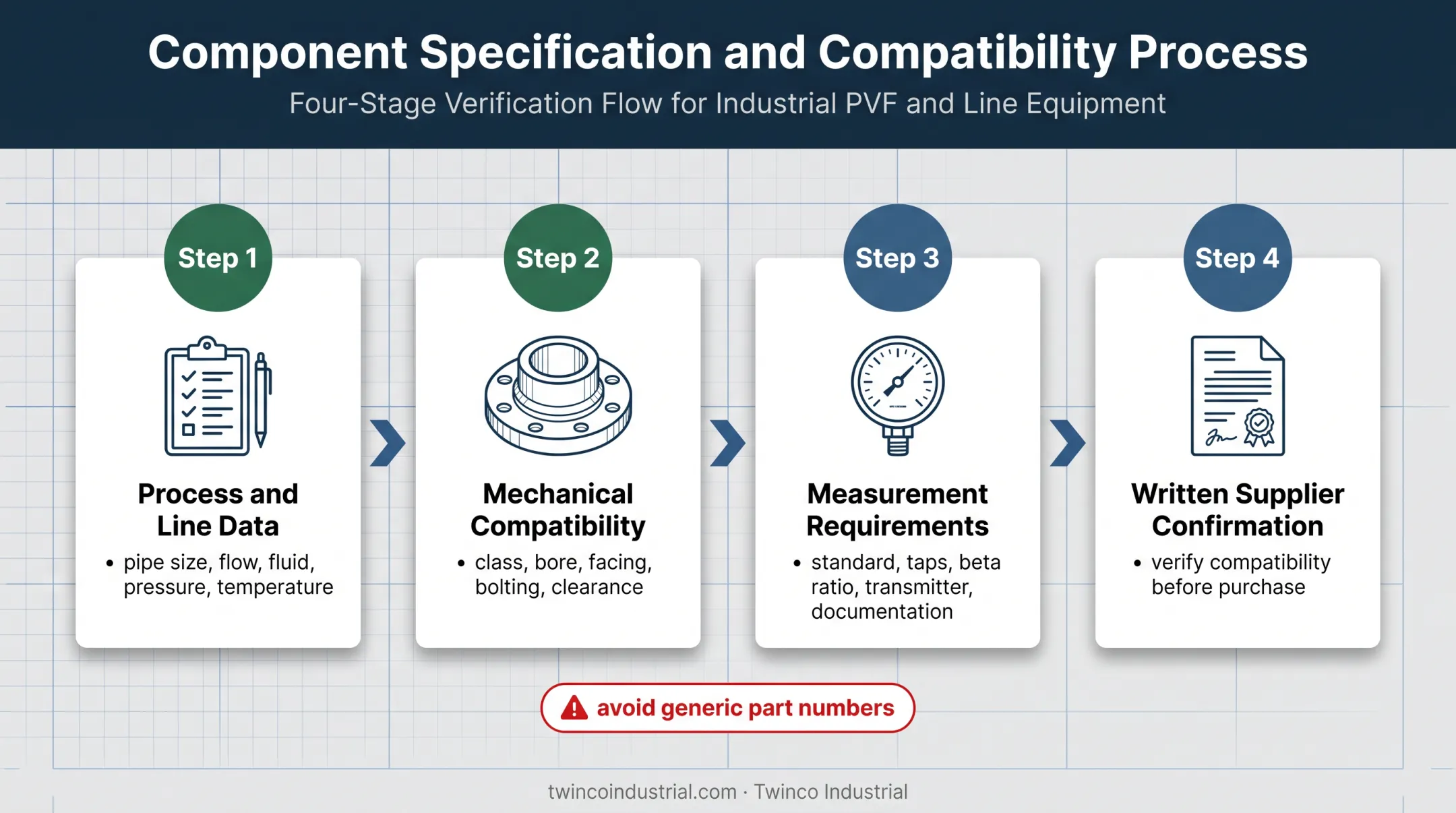

How to Select, Verify, and Order an Orifice Flange Set
Getting the right set on the first try starts with complete line data, not a generic part number.
Step 1: Gather Process and Line Data
Before requesting a quote, compile:
- Nominal pipe size, schedule, and actual inside diameter
- Minimum, normal, and maximum flow rates
- Fluid composition and phase
- Operating and design pressure
- Operating and design temperature
- Allowable permanent pressure loss
Step 2: Confirm Mechanical Compatibility
Cross-check these against your mating piping:
- Flange standard and pressure class — verify against current ASME B16.36 or the applicable project spec
- Bore and bolt pattern — confirm dimensions match the flange drawing
- Facing type and gasket style — RF or RTJ, matched consistently across all components
- Bolting dimensions — length, diameter, and material grade
- Installation space — confirm enough clearance for jack-screw operation and plate removal
Step 3: Confirm Measurement Requirements
Lock down how the set will measure flow before you place the order:
- Governing calculation standard (API 14.3.2, AGA 3, or ISO 5167)
- Tap location and orientation
- Beta-ratio target or who is responsible for plate sizing
- Transmitter range, required accuracy, and flow turndown
- Calibration or inspection documentation needs
Common Ordering Mistakes to Avoid
- Requesting a generic "orifice flange" without specifying class or facing
- Omitting the plate from the order, assuming it's automatically included
- Mixing RF and RTJ components
- Overlooking tap orientation relative to piping layout
- Assuming the set includes a transmitter or impulse lines
Custody-transfer service, high-pressure duty, corrosive or low-temperature media, and replacements with a tight outage window leave little room for error.
Get supplier confirmation in writing before you purchase. The margin for error shrinks fast in those situations.
Applications and Benefits of Orifice Flange Sets
Orifice flange sets show up across a wide range of US industrial settings:
- Pipeline and custody-transfer measurement
- Refinery and petrochemical process lines
- Power-generation steam and feedwater systems
- Chemical processing and utility water service
They remain common for practical reasons:
- Standardized construction and familiar installation practices
- Easy plate inspection without tearing out the full meter run
- Compatibility with established differential-pressure methods
- Simple plate swaps instead of replacing an entire metering element
That said, there are real trade-offs:
- Permanent pressure loss with every pass of fluid
- Sensitivity to upstream flow disturbances
- Plate-edge wear over time, which affects accuracy
- Ongoing impulse-line maintenance
Orifice vs. Venturi: A Quick Comparison
| Factor | Orifice Plate | Venturi Tube |
|---|---|---|
| Pressure loss | Higher | Lower |
| Flow capacity at same drop | Baseline | 25–50% more flow at equal pressure drop |
| Maintenance/replacement | Simple, low-cost | More involved |
| Available sizing | Wide range | Up to 72 inches |
Neither option wins universally. Evaluate based on available pressure budget, service conditions, maintenance access, and what your governing project standard requires.
How Twinco Industrial Can Help
Sourcing a compatible flange, plate, gasket, and bolting package under a project deadline is a coordination problem Twinco Industrial handles every day. Based in Houston, Twinco has supported petrochemical, pipeline, construction, and maintenance projects across North America for over 45 years.
Twinco's inventory includes flanges, gaskets, bolting, valves, fittings, and specialty or hard-to-find piping components. Availability depends on current stock and your project requirements. When you're piecing together an orifice flange set, having one point of contact for the flanges, gaskets, and bolting cuts down on the coordination headaches described earlier in this guide.
To request sourcing or a quote, send:
- Line size and pressure class
- Facing type and material grade
- Tap configuration and plate requirements
- Service conditions (temperature, corrosive media, sour service)
- Quantity and delivery deadline
- Documentation or certification needs
Twinco may not stock every orifice flange configuration on the shelf. Specialty sourcing and responsive support still help you track down the right components on tight timelines. If you're an engineer, procurement lead, contractor, or maintenance planner putting a spec together, reach out to Twinco to confirm component compatibility before you order.
Frequently Asked Questions
What is an orifice flange?
An orifice flange is a specially machined flange, typically used as part of a matched pair, with pressure taps that measure the differential across an orifice plate. It's engineered to precise tolerances beyond a standard flange.
What is the purpose of an orifice flange?
It holds the orifice plate in position and provides upstream and downstream pressure connections for differential-pressure flow measurement. Without it, there's no reliable way to capture the pressure signal.
What is an orifice in a pipe?
An orifice is a controlled opening or restriction in the flow path. As fluid passes through, velocity increases and pressure drops, and that pressure change can be used to calculate flow rate.
What are the four types of orifice plates?
Common industry classifications identify concentric, eccentric, and segmental plates by bore geometry. Some suppliers add a fourth type, such as quarter-round bores for viscous or low-Reynolds-number service. Confirm which classification your project specification references.
What is the purpose of a weld neck flange?
A weld neck flange connects to pipe through a butt weld when the design needs a robust, well-aligned joint. An orifice weld neck flange adds pressure taps and plate seating for differential-pressure measurement, not general piping use.
