Introduction
A pipe run has to end somewhere, and how you close it matters. A butt weld steel pipe cap is a permanent welded fitting that seals the end of a pipe by joining its bevel directly to the pipe wall with a circumferential weld.
Once it's in, it's in — there's no unbolting it later.
Most engineers and buyers reference ASME B16.9 when specifying these fittings, since it's the dimensional standard for factory-made wrought butt-welding fittings. But B16.9 doesn't cover everything. Material grade, pressure rating, and welding procedures come from other specifications entirely.
This guide breaks down how cap sizing works, which dimensions actually matter, and how material and schedule affect your order. It also covers what documentation to request, and when it's worth calling a supplier instead of guessing.
Key Takeaways
- ASME B16.9 governs dimensions for wrought butt-welding fittings; pressure, material, and testing come from separate specs.
- NPS is a nominal label — always confirm actual outside diameter, wall thickness, and material grade before ordering.
- The right cap depends on service conditions: temperature, pressure, corrosion exposure, and project code requirements.
- Request traceable documentation and verify dimensions against the current standard edition, not an online chart.
What Is a Butt Weld Steel Pipe Cap?
A butt weld cap is a formed steel fitting shaped to close off a pipe end. Its weld bevel lines up with the pipe's bevel, and a circumferential butt weld fuses the two together permanently. No threads, no bolts, no gasket.
That permanence is the key difference between a cap and other closure options:
- Blind flanges bolt on and can be removed for access or inspection.
- Threaded caps screw onto pipe threads, typically for smaller, lower-pressure lines.
- Mechanical test plugs are temporary, installed for a hydro test, then pulled.
A butt weld cap is none of those. It is a fixed, welded closure meant to stay for the life of the piping system.
Why cap geometry matters: The formed profile isn't arbitrary. The dome or flat-transition shape distributes stress evenly across the closure. Weld-end preparation has to match the pipe's bevel for proper fit-up. Get the geometry wrong, and you get weld defects or uneven stress concentration right at the closure point.
How a Butt Weld Cap Fits Into a Piping System
Caps typically show up at:
- Dead ends in a piping run
- Points reserved for future expansion
- Drain or vent terminations
- Vessel connections
- Fabricated piping assemblies built off-site
Any opening or later modification to a capped line has to follow the approved engineering design. You don't cut into a capped dead leg just because it's convenient. The cap's job is to contain the process medium and keep contaminants out once welding is complete.
It does not replace required weld inspection or pressure testing. Those steps still happen, cap or no cap.
Butt Weld Fittings and Related Terminology
Drawings, bills of material, and supplier quotes don't always use the same words for the same thing. A few clarifications:
- BW = butt weld or butt-welding, used interchangeably across the industry.
- Butt-welding fitting is the formal term ASME uses in B16.9.
- End cap and pipe cap are trade terms for the same component — B16.9 itself just calls it a "cap."
A cap is also distinct from related fittings:
- Reducer — changes pipe diameter
- Elbow — changes direction
- Tee — branches the line
- Blind flange — closes a flanged connection, not a welded one
None of these swap in for a cap just because they sit at or near a pipe end.
ASME B16.9 Dimensions and Specification Requirements
ASME B16.9 covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings from NPS 1/2 through NPS 48 (DN 15 through DN 1200). That's the scope: a dimensional and marking framework, not a complete design code.
What B16.9 does not do:
- Assign material grades (that's ASTM's job: A234, A403, A420, and others)
- Set allowable pressure for a given service
- Define corrosion allowance
- Specify welding procedures
- Replace the governing piping design code (B31.3, for example)
Buyers who treat B16.9 as a one-stop answer for cap selection still need material, pressure, and design-code inputs elsewhere.
Key Dimensional Terms You'll See on a Drawing or Data Sheet
| Term | What it defines |
|---|---|
| NPS / DN | Nominal pipe size (inches / millimeters) |
| Outside diameter at bevel | The OD measured at the weld-prep end |
| Cap length (E) | Overall length of the cap |
| Limiting wall thickness | Maximum wall thickness the standard length E accommodates |
| Length E1 | Extended length used when wall thickness exceeds the E limit |
Every one of these values is size-specific and comes straight from the licensed B16.9 dimensional tables. Don't copy numbers from a random online chart ; verify against the current edition, currently ASME B16.9-2024, before you commit to a purchase order.
A cap's nominal size has to match the mating pipe, and the schedule designation must line up with the pipe's actual wall thickness, not just a nominal label.
Confirm these points before you order:
- NPS matches the mating pipe
- Schedule tracks actual wall thickness, not the label alone
- Large diameters, heavier walls, or unusual configs may need a manufacturer-purchaser agreement or approved fabrication drawing instead of a catalog entry
How to Measure and Identify Pipe Cap Size

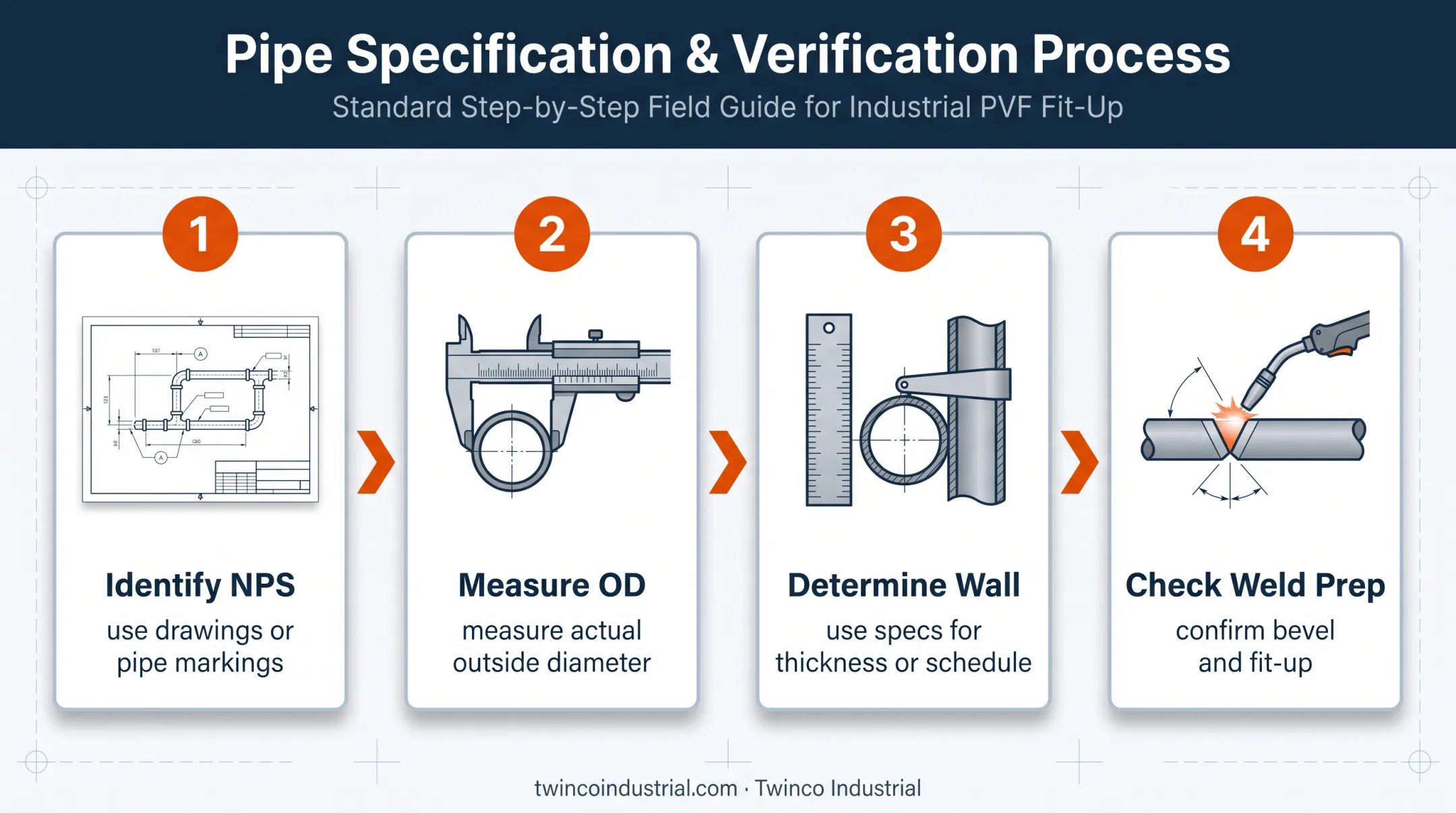

Skip the tape measure on the cap alone; that tells you almost nothing useful. Instead:
- Pull the NPS from drawings or pipe markings as your starting reference.
- Measure the mating pipe's actual outside diameter if drawings are unavailable or unclear.
- Determine wall thickness or schedule from spec sheets, not visual estimation.
- Compare the cap's weld-end prep against the pipe specification to confirm bevel angle and fit-up compatibility.
DN-to-NPS conversions are handy for quick cross-referencing between metric and imperial callouts, but they're approximations. They shouldn't replace the governing dimensional standard when it's time to finalize an order.
Materials, Quality Checks, and Selection
Material selection has to match the pipe, the service fluid, design temperature and pressure, corrosion exposure, and weldability: not just "whatever's in stock at the closest size."
Common material families for butt weld caps include:
- Carbon steel (commonly ASTM A234 WPB)
- Stainless steel (A403 WP304/316 grades)
- Low-alloy and other alloy steel grades
None of these should be assigned to an application without checking the actual engineering requirements first. Type 304 stainless works great in one service and is the wrong call in another.
Two different compliance questions, don't conflate them:
- Dimensional compliance = does it meet ASME B16.9?
- Material compliance = does it meet the specified ASTM grade or project material standard?
A cap can be perfectly dimensioned to B16.9 and still be the wrong material for the job. Matching cap material to pipe material and welding procedure matters for weld qualification, heat treatment compatibility, and avoiding galvanic corrosion down the line.
Documentation worth requesting before you accept delivery:
- Material test report (MTR)
- Heat or lot traceability
- Dimensional inspection record
- Chemical and mechanical test results, where required
- Heat-treatment record
- NDE or testing records, when specified
Twinco Industrial stocks pipe caps to ASME B16.9 (with related ASME B16.28 and MSS-SP-75 fitting coverage) in sizes from 2 to 72 inches and wall thicknesses from SCH 10 through XXH. Common options include carbon steel A234 WPB, stainless A403 WP304/316, and alloy grades. That breadth covers many large-bore orders, but every project spec still needs individual confirmation.
Manufacturing and Inspection Considerations

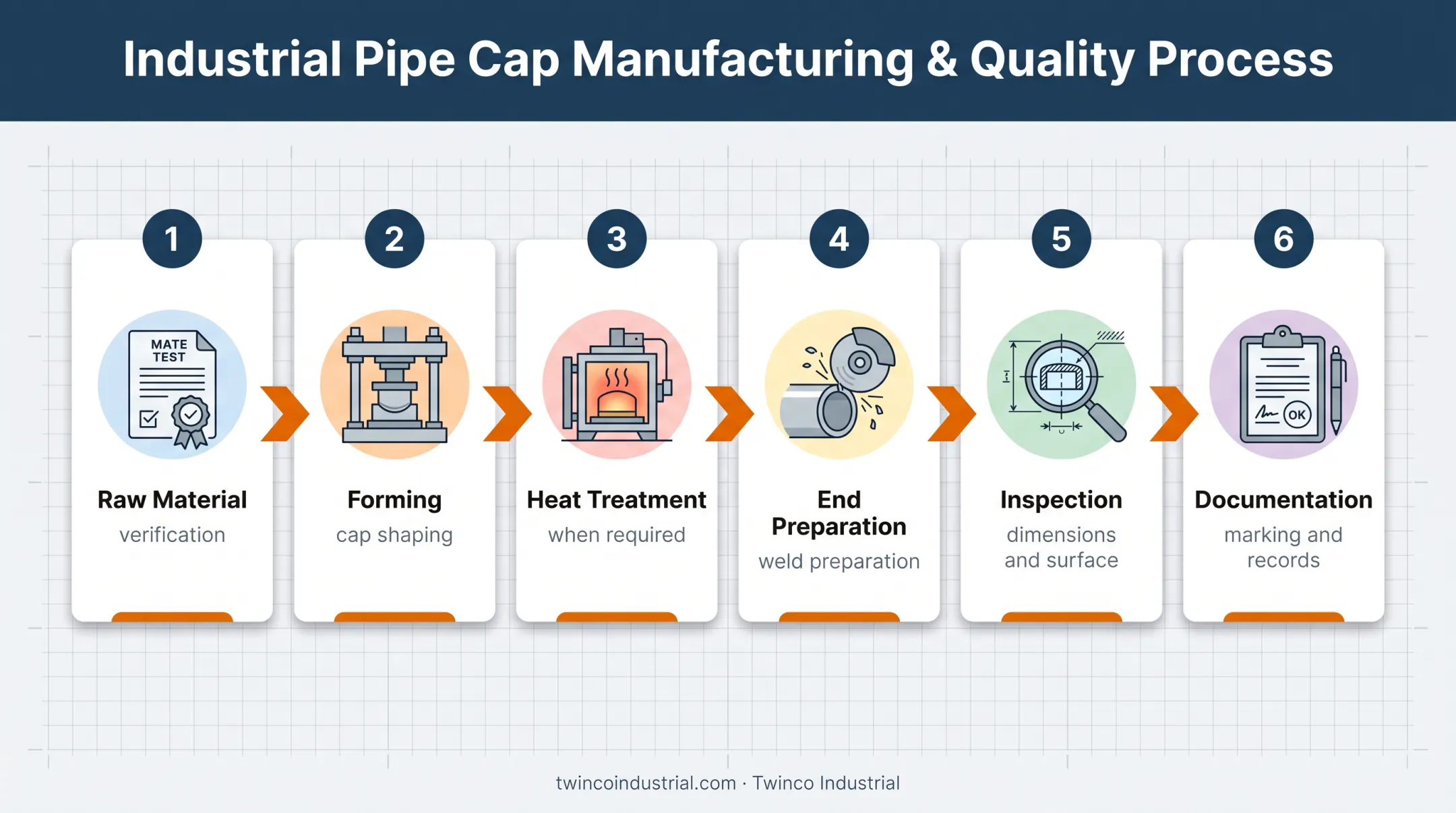

Cap production typically follows this sequence:
- Raw-material verification
- Forming
- Heat treatment when required
- End preparation
- Dimensional inspection and surface examination
- Marking and final documentation
Not every order carries the same inspection checklist. Your purchase specification defines whether visual inspection, dimensional checks, NDE, hardness testing, impact testing, or hydrostatic testing apply. Final acceptance depends on the applicable standard, material spec, project quality plan, and purchaser requirements. Never rely on a blanket, unsupported test claim from a catalog page.
Choosing the Right Cap for the Service
Before you submit a PO, run through this checklist:
- NPS/DN and mating pipe outside diameter
- Wall thickness or schedule
- Material grade
- Cap length and end bevel
- Design pressure and temperature
- Corrosion allowance
- Quantity and delivery date
Engineering review isn't optional for high-temperature, cryogenic, corrosive, sour-service, cyclic-load, high-pressure, or otherwise safety-critical systems. Do not substitute a similarly sized cap with a different material, wall thickness, end prep, or documentation package just because it looks close enough on a shelf. "Close enough" isn't a spec.
Common Applications and Installation Considerations
Butt weld caps show up across industrial piping work, including:
- Process piping in refineries and chemical plants
- Petrochemical facilities and pipeline fabrication
- Power generation systems
- Industrial construction and maintenance
ASME B31.3 governs process piping in many of these settings. It covers materials, fabrication, and testing, and is frequently used alongside B16.9 fittings.
Not every cap suits every service. A cap sized and rated for one line's temperature and pressure profile isn't automatically right for another, even in the same facility.
Closing a permanent piping endpoint is different from preparing a line for pressure testing or isolation. If you need a temporary closure for a hydrostatic test rather than a permanent weld, use a different product. Rental blind flanges or paddle blinds, for example, get pulled once testing wraps up.
Welding and Field Fit-Up

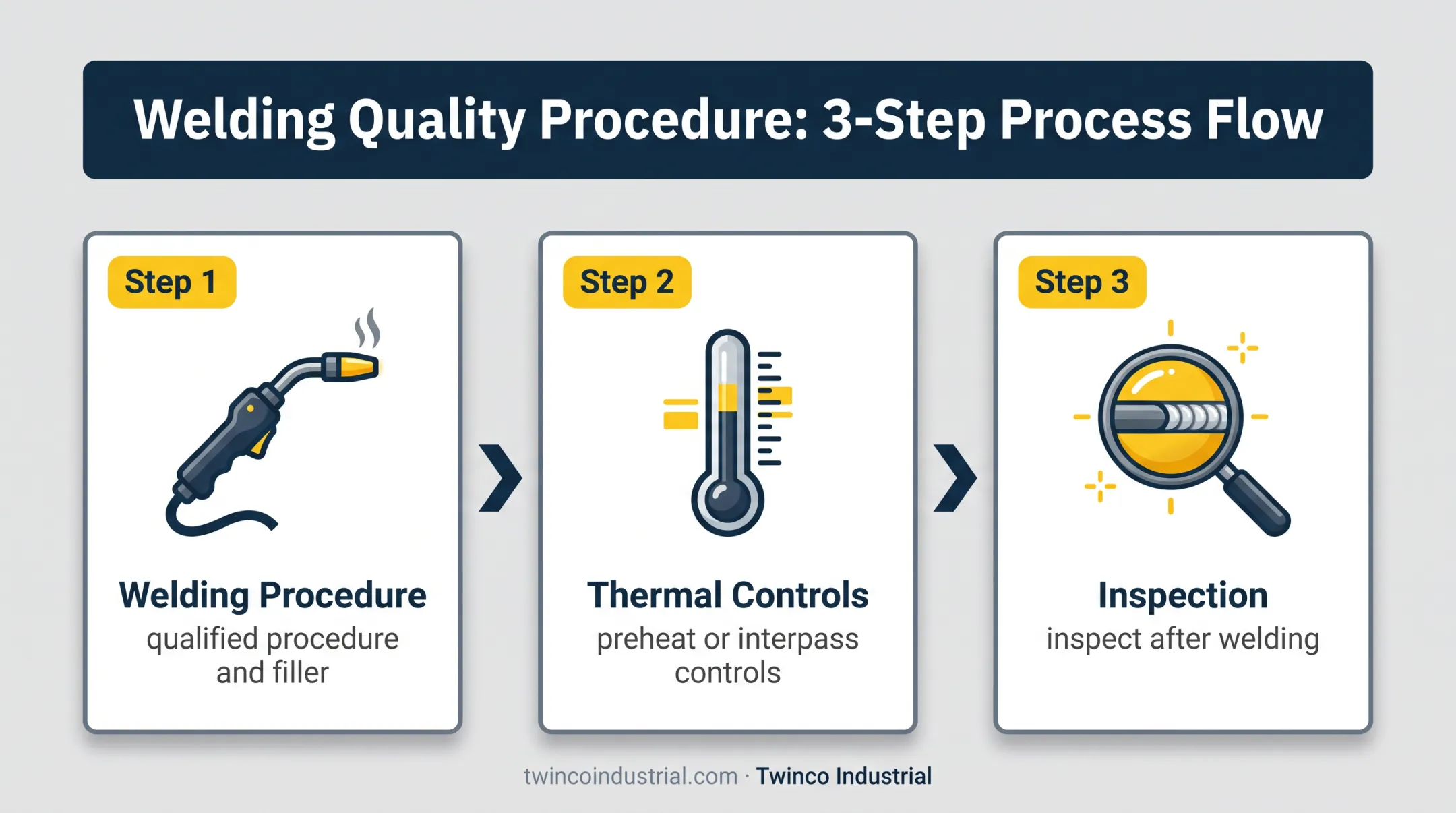

Good fit-up starts with clean, undamaged bevels and correct alignment. From there:
- Use a qualified welding procedure and appropriate filler metal
- Apply preheat or interpass controls where the material and thickness call for them
- Inspect after welding, every time
Installation has to follow the approved drawings, the welding procedure specification, the applicable code, and site safety requirements. No shortcuts based on "we've done it this way before." ASME B16.25 addresses preparation of buttwelding ends, which is the companion reference for bevel geometry.
One more thing: field modifications like cutting, grinding, or adding a drain or vent connection change the component's compliance status. Get those approved before anyone touches a grinder.
How to Source the Right ASME B16.9 Pipe Cap
A tight RFQ saves everyone time. Send suppliers:
- NPS/DN and pipe outside diameter
- Schedule or wall thickness
- Material specification and grade
- Quantity and required delivery date
- End preparation details
- Standard edition and project code
- Inspection requirements and certificate needs
A good supplier confirms availability, lead time, possible substitutions, and any specialty sourcing needs before your purchase order is finalized, especially for oversized or hard-to-find configurations.
That kind of confirmation is what Twinco Industrial has built around since 1977, supporting petrochemical plants, pipeline operators, refineries, fabrication shops, and construction contractors across the USA, Canada, and Mexico.
Inventory covers pipe caps and other large-bore fittings plus flanges, valves, gaskets, bolting, and rental blind flanges for testing and isolation. Specialty sourcing is available when the configuration is not stocked as standard.
If you need an ASME B16.9 cap—or related pipe, fittings, flanges, bolting, gaskets, valves, or rental equipment—contact Twinco’s Inside Sales team for a quote and availability check before you lock the order.
Frequently Asked Questions
How do you measure pipe cap size?
Confirm the nominal pipe size first, then verify actual outside diameter, wall thickness or schedule, and the cap's weld-end dimensions against the applicable standard and your project documents. Never rely on a tape measure alone.
What are the different types of pipe end caps?
Butt weld caps are permanent and welded directly to the pipe. Threaded, socket weld, push-on, mechanical, and blind-flange-style closures are removable or use different connection methods, so they are not interchangeable with a B16.9 butt weld cap.
What are the dimensions of an ASME B16.9 pipe cap?
Key dimensions include the outside diameter at the bevel, overall cap length, and limiting wall thickness for that length. Always verify exact figures against the current edition of the standard rather than an unofficial table.
What is a cap in piping?
A cap is a fitting used to permanently close the end of a pipe run. Its material, dimensions, weld preparation, and pressure rating all need to match the piping system it's closing off.
What are BW fittings?
BW stands for butt weld: fittings joined edge-to-edge to the pipe through a circumferential weld rather than threads or bolts. Common BW fittings include caps, elbows, tees, and reducers.
