Introduction
Picking the wrong gasket rarely shows up until the joint is under load. High heat, cycling pressure, aggressive chemicals, a pitted flange face, or a maintenance window that closes in six hours can turn a routine bolt-up into a leak call.
Flexible graphite gasket sheet is a compressible, carbon-based sealing material built for exactly these conditions. Manufacturers convert it into flat gaskets for pipe flanges, heat exchangers, manways, and valve bodies across refineries, chemical plants, and power facilities.
This guide covers how the material is built, the reinforcement options available, where its performance limits sit, and how to select and source the right sheet for your service.
One note before you dig in: the right gasket depends on your complete operating environment, not the temperature rating alone. Always confirm final selection against the manufacturer's published data sheet.
Key Takeaways
- Flexible graphite seals steam, hydrocarbon, and chemical joints through compressibility and conformability.
- Unreinforced graphite resists corrosion but tears easily; foil, tang, or mesh inserts add strength.
- Oxidation, flange condition, and bolt load matter as much as the printed temperature rating.
- Confirm dimensions, thickness, reinforcement, and pressure-temperature data before ordering.
What Are Flexible Graphite Gasket Sheets?
A gasket's job is simple in concept: fill the microscopic gaps between two clamped surfaces so liquid or gas can't escape. No flange face is perfectly smooth, even freshly machined ones, and the gasket material has to flow into those imperfections under bolt load and stay there through thermal cycling.
Flexible graphite refers to expanded graphite compressed into sheet form. It's a distinct product from rigid graphite components and from the finished gasket a fabricator later cuts from that sheet. The raw sheet is the material; the gasket is the shaped, application-ready part.
Why the Layered Structure Matters
Graphite's carbon layers slide against each other with very little resistance. That's what gives the sheet its defining traits:
- High compressibility – it deforms into flange irregularities rather than bridging over them
- Low friction – it seats evenly under bolt torque
- Recovery – it partially rebounds as thermal and pressure loads shift
- Conformability – it adapts to warped, pitted, or lightly scored flange faces
Manufacturers produce this by expanding natural or synthetic graphite flake and compressing it into continuous sheet or roll stock. The exact expansion process varies by producer, so verify manufacturing details directly with whichever supplier's sheet you're specifying.
Buyers often blend two things that should stay separate: the sheet material's properties (density, purity, compressibility) and the finished gasket's performance. Finished performance also depends on thickness, cut quality, flange design, and bolt load. A great sheet cut poorly, or installed on a warped flange, won't perform to spec.
Sheet stock typically ships in rolls or flat sheets and gets converted into ring, full-face, heat-exchanger, manway, or custom-profile gaskets to match the joint design. SGL Carbon documents one-piece sheet gaskets up to 59.1 inches in outside diameter, with segmented, staggered-joint construction recommended above that size for its SIGRAFLEX BTCSS product line.
Types of Flexible Graphite Gasket Sheets and Reinforcements
Not every application calls for the same sheet construction. The main categories break down by how much handling strength and dimensional stability each construction adds to the base graphite.
Unreinforced vs. Reinforced Constructions
Unreinforced flexible graphite is pure expanded graphite with no metal backing. It's highly conformable and compresses easily, which makes it a strong fit for raised-face flanges, glass-lined equipment, and highly corrosive media. The trade-off: lower tensile strength and higher sensitivity to tearing during handling or installation.
Reinforced options address that weakness:
- Foil-insert graphite – graphite layers mechanically bonded to a thin stainless-steel foil, improving handling without sacrificing much conformability
- Tang-insert graphite – graphite mechanically interlocked into a perforated, tanged metal core for higher blowout resistance
- Mesh-reinforced graphite – graphite pressed into a wire mesh substrate for added stability in larger or higher-pressure joints
- Laminated sheet – graphite layers bonded around a solid metal core for maximum dimensional stability
Reinforcement adds handling strength and blowout resistance, but it can also reduce compressibility and recovery compared to pure graphite.
As a published example, Garlock's tang-insert product uses a 0.004-inch 316 stainless tang core at 36 tangs per square inch. It is rated to a maximum of 2,000 psig with roughly 40% compressibility and 15% recovery, per the manufacturer's GRAPH-LOCK 3125TC data sheet.
| Construction | Handling Strength | Compressibility | Best Fit |
|---|---|---|---|
| Unreinforced | Lower | Higher | Corrosive service, glass/enamel flanges |
| Foil-insert | Moderate | Moderate-high | General process piping |
| Tang-insert | Higher | Moderate | Higher pressure, blowout-prone joints |
| Mesh-reinforced | Higher | Moderate | Large-diameter or irregular flanges |
| Laminated sheet | Highest | Lower | Max dimensional stability, high mechanical load |
Reinforcement choice should reflect joint size, pressure class, installation handling, flange movement, and extrusion risk. Don't select on brand name alone. Compare technical data sheets for density, carbon purity, thickness range, compressibility, recovery, and pressure-temperature rating before ordering.
Performance Characteristics, Selection, and Installation Considerations
This is where most gasket failures actually get decided, long before the joint ever sees service.

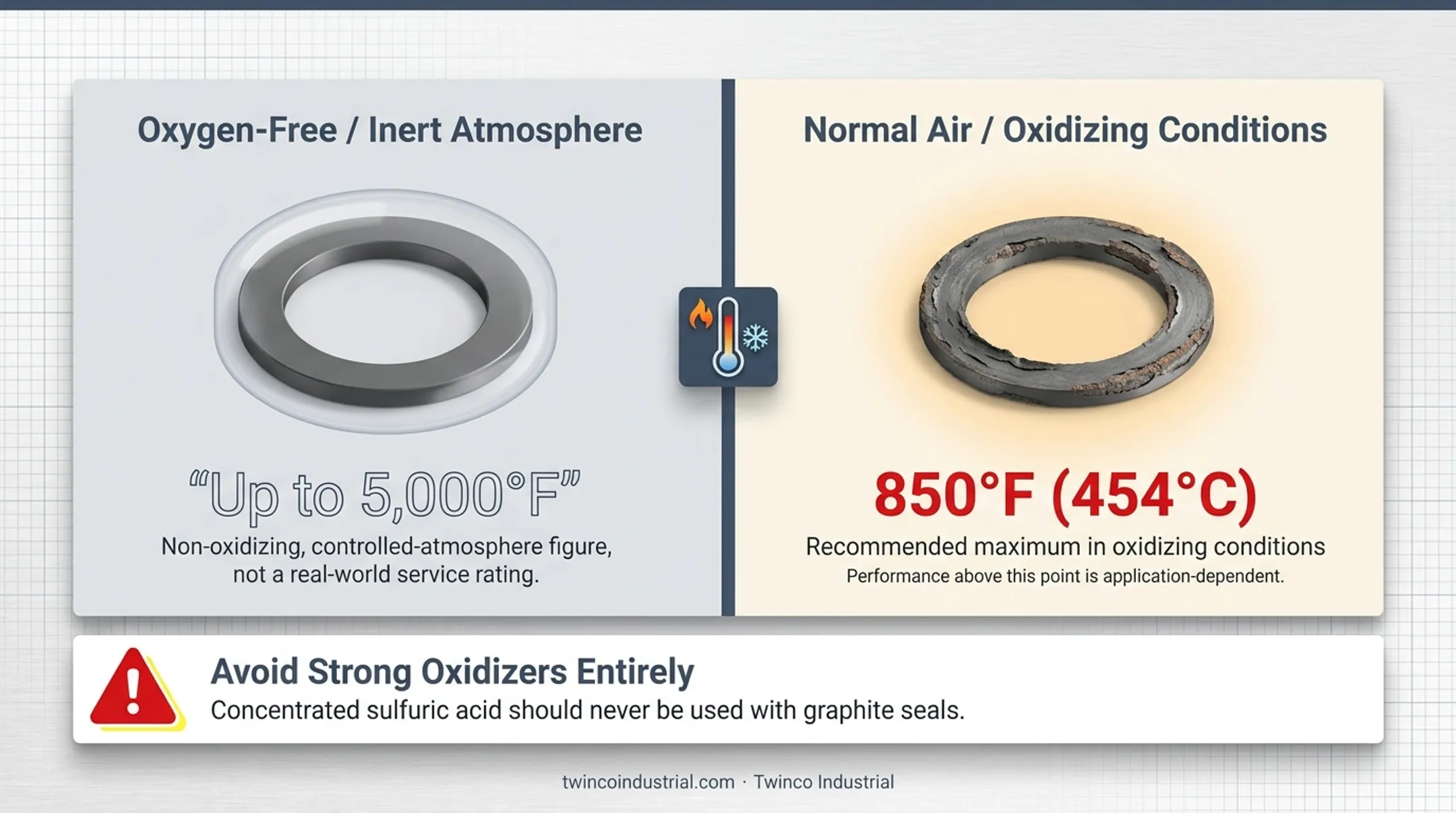

Temperature and Oxidation Limits
Graphite's headline temperature numbers can be misleading. In an oxygen-free environment, graphite can theoretically survive extreme heat. In normal air, oxidation sets a much lower practical ceiling.
Industry guidance from the FSA/ESA Gasket Handbook recommends a maximum of roughly 850°F (454°C) in oxidizing conditions. Performance above that point is application-dependent, and strong oxidizers like concentrated sulfuric acid should be avoided entirely.
Treat any "up to 5,000°F" style claim as a non-oxidizing, controlled-atmosphere figure, not a real-world service rating.
Chemical Compatibility
Flexible graphite generally resists acids, alkalis, salt solutions, hydrocarbons, and heat-transfer fluids. But "generally resists" isn't a green light. Verify compatibility against:
- Exact media concentration
- Operating pressure and temperature together, not separately
- Cyclic or steady-state service conditions
Selection Checklist
Before specifying a sheet, confirm:
- Nominal pipe size and flange rating/facing
- Gasket thickness required for the joint design
- Operating and design pressure
- Minimum and maximum temperature, including upset conditions
- Media type and concentration
- Flange condition and available bolt load
- Applicable specifications (ASME, EN, or project-specific standards)
Installation Essentials
Installation quality can make or break an otherwise correct material choice:
- Inspect and clean both flange faces before setting the gasket
- Confirm gasket alignment, dimensions, and bolt-hole match
- Avoid handling damage, especially creasing or tearing thin sheet
- Use the specified bolt lubricant on the fastener threads, not the gasket face
- Apply a controlled torque or tension using a star, quadrant, or circular tightening sequence
- Replace the gasket at every re-assembly unless the manufacturer explicitly states otherwise
Troubleshooting Common Failures
| Failure Mode | Likely Cause |
|---|---|
| Leakage | Uneven bolt torque, poor flange alignment |
| Extrusion | Insufficient reinforcement for the pressure class |
| Cracking | Excessive compression or oxidation degradation |
| Blowout | Wrong material selection for pressure/temperature |
| Premature oxidation | Service temperature exceeding the sheet's oxidizing-atmosphere rating |
Always cross-check storage conditions, shelf life, and torque guidance against the selected manufacturer's published data rather than borrowing values from a different product line.
Industrial Applications for Flexible Graphite Gaskets
Flexible graphite shows up wherever process piping meets heat, pressure, and aggressive media.
Common service environments include:
- Refinery and petrochemical piping and vessel flanges
- Chemical processing lines handling acids, alkalis, and solvents
- Power generation steam and feedwater systems
- Pipeline construction and commissioning
- Heat exchangers, manways, boilers, and valve bodies

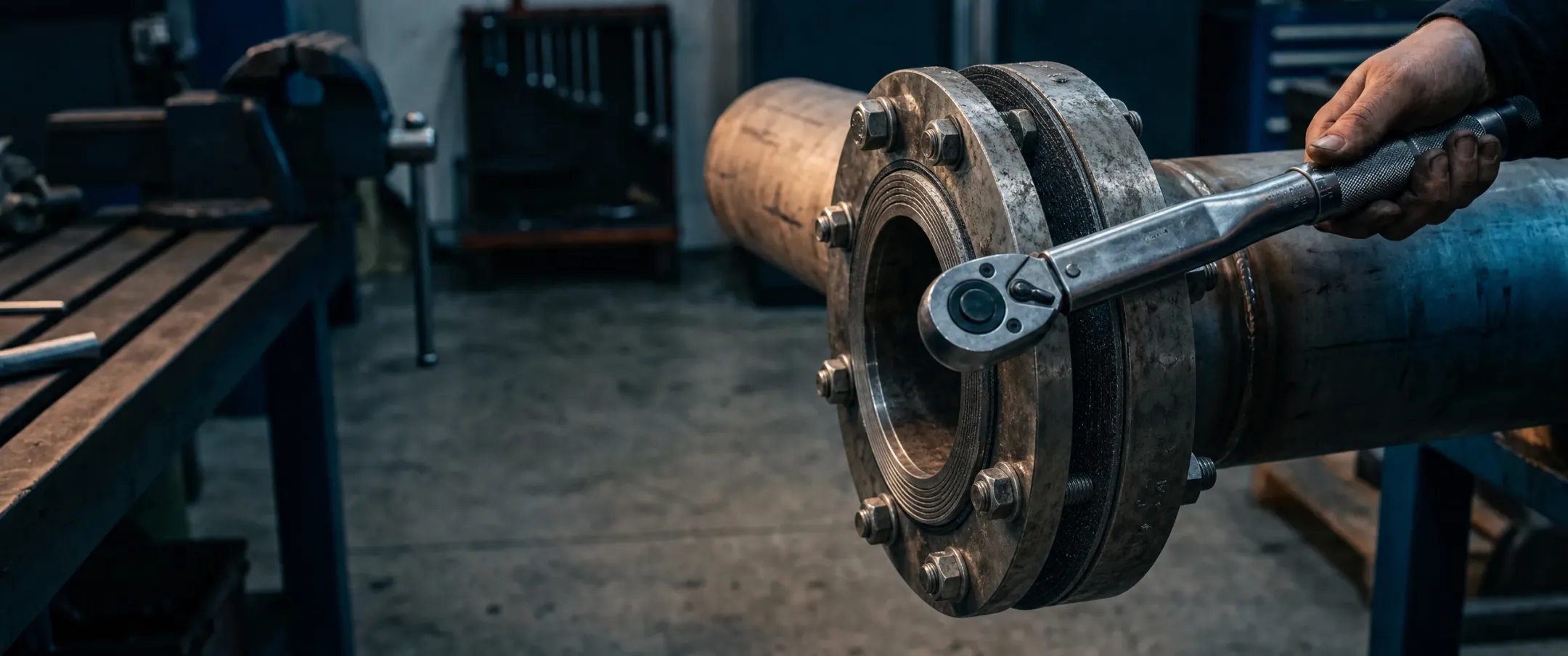

During turnarounds and scheduled maintenance, that conformability matters on worn equipment. Graphite seats against flange faces that have seen years of service wear, helping crews seal a joint without re-machining the flange when the application allows.
A few use cases deserve individual attention rather than a blanket assumption:
- Hydrocarbon service – confirm media compatibility and pressure rating for the specific hydrocarbon stream
- Steam service – check the sheet's rating in steam separately from its air rating, since they often differ
- Hot-oil systems – verify oxidation exposure at sustained operating temperature
- Pressure testing – confirm the gasket rating covers the test pressure, not just the operating pressure
When a job needs more than sheet stock—flanges, bolting, valves, pipe, and fittings with the gaskets—one supplier is usually faster. Twinco Industrial stocks industrial gaskets with those mating components, so teams building a full flange assembly can check availability or specialty sourcing in one call.
Flexible graphite still isn't right for every service. Skip it for:
- Food, pharmaceutical, or ultra-clean service requiring specific certified materials
- Strongly oxidizing media outside the sheet's published limits
- Conditions that fall outside the selected manufacturer's stated service envelope

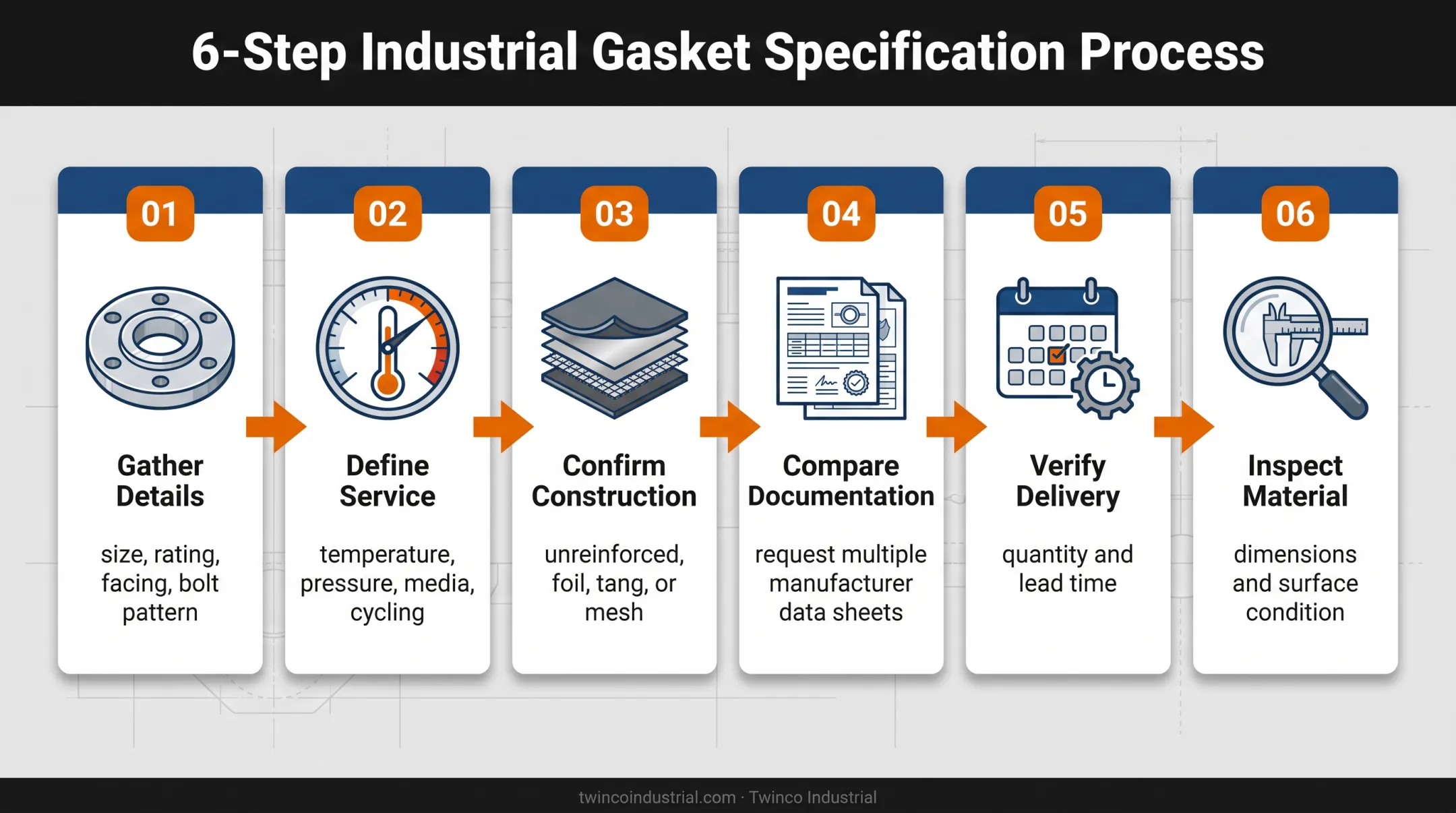

How to Choose and Source the Right Flexible Graphite Gasket
Sourcing the correct sheet is a documentation problem as much as a technical one.
Follow this process:
- Gather equipment and flange details – nominal size, rating, facing type, and bolt pattern
- Define service conditions – temperature range, pressure, media, and cycling behavior
- Confirm required construction – unreinforced, foil, tang, or mesh, based on your selection checklist
- Compare technical documentation – request data sheets from multiple manufacturers, not just one
- Verify quantity and lead time – especially for oversized or custom-cut gaskets
- Inspect delivered material before installation – check dimensions and surface condition
When requesting a quote, give the supplier these details up front:
- Dimensions and pressure class
- Facing type and media
- Operating conditions
- Reinforcement preference
- Drawings, if available
- Documentation requirements
It saves a round of back-and-forth.
Standard sheet-cut gaskets work fine for common ANSI or ASME flange sizes in routine service. Custom-cut, reinforced, or oversized gaskets become necessary for non-standard flange geometry, higher-pressure joints, or specialty equipment like large heat exchangers.
Don't skip the paperwork. Before the gasket ships, confirm:
- Material traceability
- Mill or product certificates
- Asbestos-free status where required
- Compliance with your project's material specification
Twinco Industrial has supported petrochemical, pipeline, and construction projects for over 45 years, with a broad piping-component inventory that includes gaskets, flanges, valves, and fittings, plus specialty sourcing for hard-to-find sizes and configurations.
If your project needs a gasket dimension confirmed, a service condition reviewed, or a delivery window tightened, reach out to Twinco with the details and request a quote.
Frequently Asked Questions
What are flexible graphite gaskets?
They're gaskets cut from compressible, carbon-based flexible graphite sheet. The material conforms to flange imperfections and holds up in high-temperature steam, hydrocarbon, and general process-sealing service.
What are the different types of graphite gaskets?
The main types are unreinforced, foil-insert, tang-insert, mesh-reinforced, and laminated constructions. Reinforcement adds handling strength and blowout resistance but generally reduces compressibility compared to pure graphite.
What is graphite sheet used for?
Graphite sheet gets converted into flange gaskets, packing rings, and other thermal or chemical barrier components. In industrial piping, its main use is sealing flanges on pipes, valves, and vessels.
What is the cost of a gasket?
Price depends on dimensions, thickness, construction, reinforcement, quantity, tolerances, certifications, and urgency. Request a quote based on your complete specification rather than relying on a generic price figure.
What are the differences between MLS and graphite exhaust gaskets?
MLS (multi-layer steel) uses layered, embossed steel construction, while graphite is a compressible carbon material. The right choice depends on temperature, pressure, media, flange finish, and the project or manufacturer specification.
What is the best material for exhaust gaskets?
There's no single best material. Compare graphite, MLS, metallic, and composite constructions against temperature, pressure, flange movement, and the governing project or manufacturer specification.
