Fastener names get shortened on purchase orders, requisitions, and shop floors. "B7M" can get treated as a metric version of B7, or worse, as an interchangeable upgrade. It's neither. B7M is a controlled-hardness alloy-steel grade built for applications where sulfide stress cracking is a real risk, and its lower strength is the deliberate design trade-off that makes it safer for those conditions.
This article breaks down what B7M actually is, how it stacks up against B7, what documentation to demand, and how to select a compliant assembly. The governing project specification and engineer's approval always have the final word.
Key Takeaways
- B7M is a distinct ASTM A193 grade with its own hardness and strength limits, not a metric restatement of B7.
- Controlled hardness reduces susceptibility to sulfide stress cracking in qualified sour-service environments.
- Pair B7M studs with ASTM A194 Grade 2HM nuts, not standard 2H.
- Never substitute B7, B7M, 4140, or SAE-graded fasteners by appearance; confirm the governing spec first.
What Is ASTM A193 B7M?
ASTM A193/A193M covers alloy-steel and stainless-steel bolting for pressure vessels, valves, flanges, and fittings operating at elevated temperature or pressure. The current edition, A193/A193M-26, sets the chemistry, mechanical property, testing, and marking rules that manufacturers must meet.
Within that specification, B7M is a chromium-molybdenum alloy-steel grade, usually supplied as stud bolts or threaded fasteners for flanged joints, valves, and piping assemblies. Product form, dimensions, thread series, and finish always come from the project drawings and material requisition, not from the grade name alone.
B7M vs. B7 in the Metric Version
Here's where confusion often creeps in. The "M" means two different things depending on where it appears in the designation:
- ASTM A193M Grade B7: Metric-dimensioned version of standard B7
- ASTM A193 Grade B7M: Separate grade with its own lower-hardness chemistry and mechanical requirements
Mixing them up on a purchase order can send the wrong material to a critical joint.
Why Controlled Hardness Matters
B7M's engineering purpose isn't to maximize strength. It's to keep hardness low enough to resist brittle or sulfide stress cracking under specified service conditions. Per ASTM A193, B7M mechanical requirements are:
| Diameter | Min. Tensile | Min. Yield | Elongation | Max. Hardness | Min. Tempering |
|---|---|---|---|---|---|
| 4 in. and under | 100 ksi | 80 ksi | 18% | 235 HBW / 99 HRB | 1,150°F |
| Over 4 to 7 in. | 100 ksi | 75 ksi | 18% | 235 HBW / 99 HRB | 1,150°F |

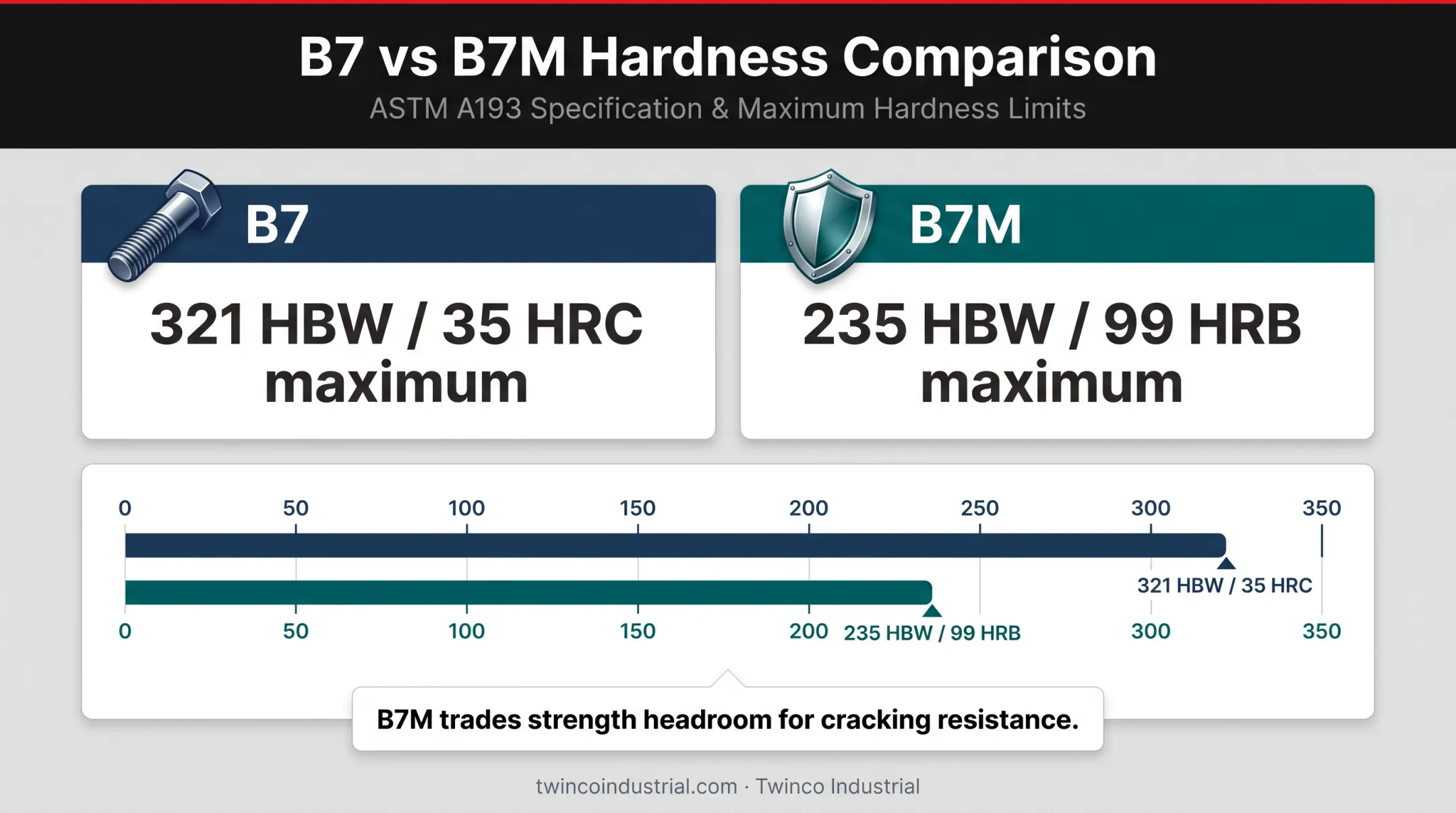

Compare that to B7's maximum hardness of 321 HBW (35 HRC) in the same diameter ranges, and the gap becomes clear. B7M trades strength headroom for cracking resistance.
One caution: B7M alone doesn't establish sour-service suitability for every environment. Confirm applicable NACE MR0175/ISO 15156 requirements, project specs, and process temperature and pressure before finalizing the grade.
How Does B7M Compare With B7?
B7 is specified for higher strength; B7M is specified for controlled hardness. Both are Cr-Mo alloy steels, and both are quenched and tempered—but strength caps, hardness limits, and testing requirements diverge from there.
Side-by-Side Comparison
| Factor | B7 | B7M |
|---|---|---|
| Intended service | Non-sour, high-strength applications | Sour-service or controlled-hardness applications |
| Min. tensile (small diameters) | 125 ksi | 100 ksi |
| Max. hardness | 321 HBW / 35 HRC | 235 HBW / 99 HRB |
| Min. tempering temperature | 1,100°F | 1,150°F |
| Individual hardness testing | Not standard | Typically 100% tested |
| Common marking | B7 | B7M (often with an underline) |
As Portland Bolt's grade comparison notes, B7M is a separate, lower-hardness grade—not a metric restatement of B7.
Why You Can't Swap Them Freely
Substituting a higher-hardness B7 fastener into a sour-service assembly can raise the risk of sulfide stress cracking under load. Using B7M where the design calls for B7's higher allowable strength can leave a joint under-designed for its pressure rating.

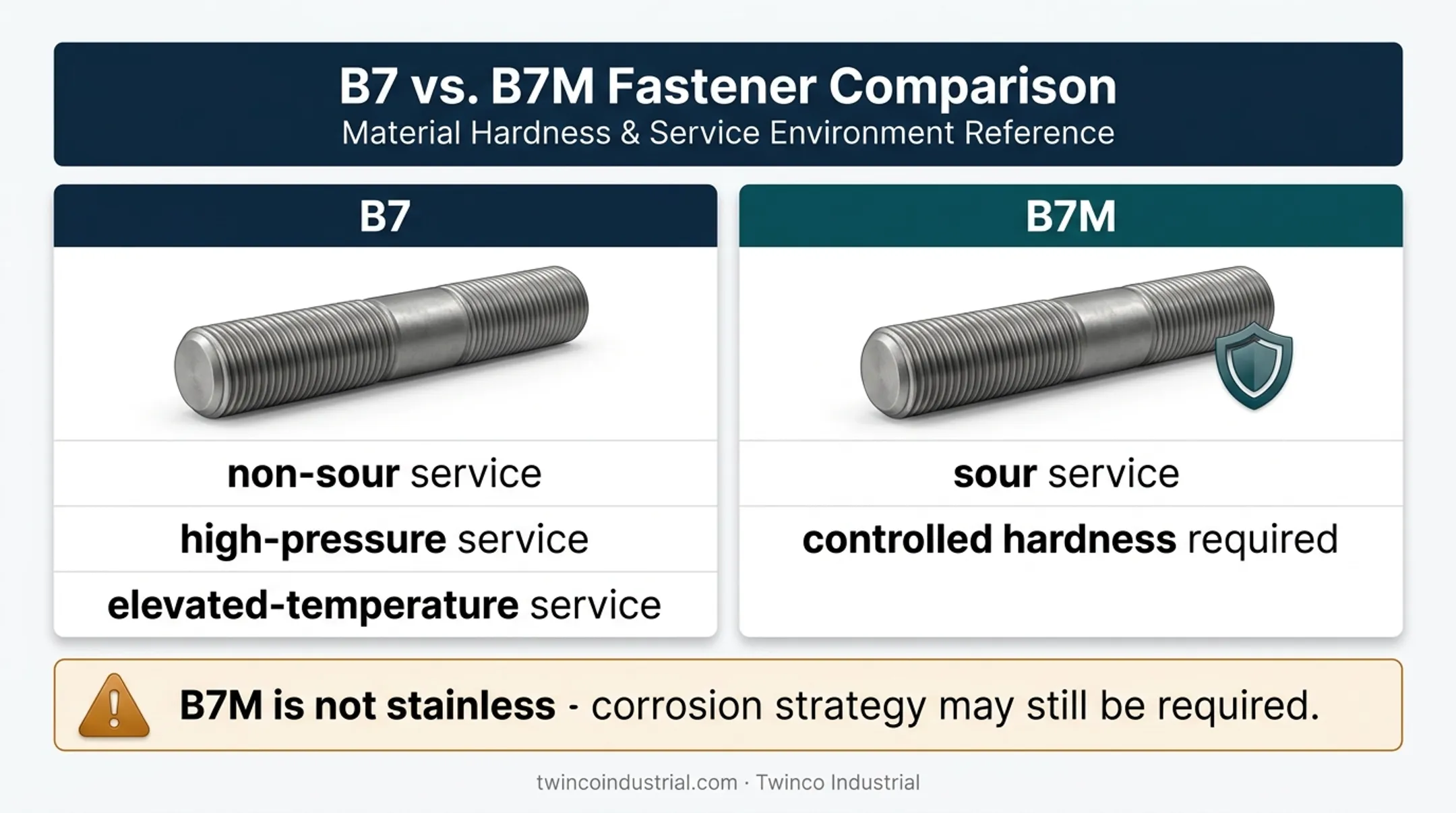

The typical application logic:
- B7 — non-sour, high-pressure, or elevated-temperature service
- B7M — sour service, or any job where the governing standard requires controlled hardness
Corrosion resistance and cracking resistance are not the same property. B7M is not stainless; corrosive service still needs an approved coating or a separate corrosion strategy on top of grade selection. Run any mixed-grade assembly or substitution past the engineer of record before it reaches the field.
B7M Mechanical Properties, Testing, and Markings
Hardness control is the entire point of B7M, but it's a contributing factor to cracking resistance, not a standalone guarantee. Material chemistry, service temperature, actual H2S exposure, and installation stress all play a role too.
Testing Requirements
B7M fasteners typically undergo hardness testing on every unit, not just sample testing, using indentation methods per ASTM E18 or an approved electromagnetic alternative. Whether your specific application requires 100% testing, and which method applies, depends on the purchase order and the exact edition of A193/A193M referenced.
Don't rely on an informal "100% tested" claim — get it in writing, tied to the standard's edition.
Heat Treatment and Post-Processing
Heat treatment develops B7M's required hardness and strength profile. Here's the catch: cutting, machining, or thread rolling after heat treatment can alter those properties. Confirm with the manufacturer whether final heat treatment happened before or after such operations, and whether that sequence matches what the governing standard requires.
Identification and Traceability
A compliant B7M fastener should carry:
- Grade marking (commonly B7M with an underline, indicating individual hardness testing)
- Heat or lot number
- Manufacturer identification
- Size markings
- A clear link to its material test report (MTR)
Buyer Document Checklist
Before accepting delivery, request:
- ASTM A193/A193M compliance statement, including edition
- Chemical and mechanical test results
- Hardness test results (method and coverage)
- Heat-treatment records where applicable
- Any supplementary testing and coating details
- A statement of compliance with the project specification
Have qualified inspection or engineering personnel review these documents. A supplier's product description is not a substitute for verified certs and test results.
Selecting the Correct B7M Assembly for Service

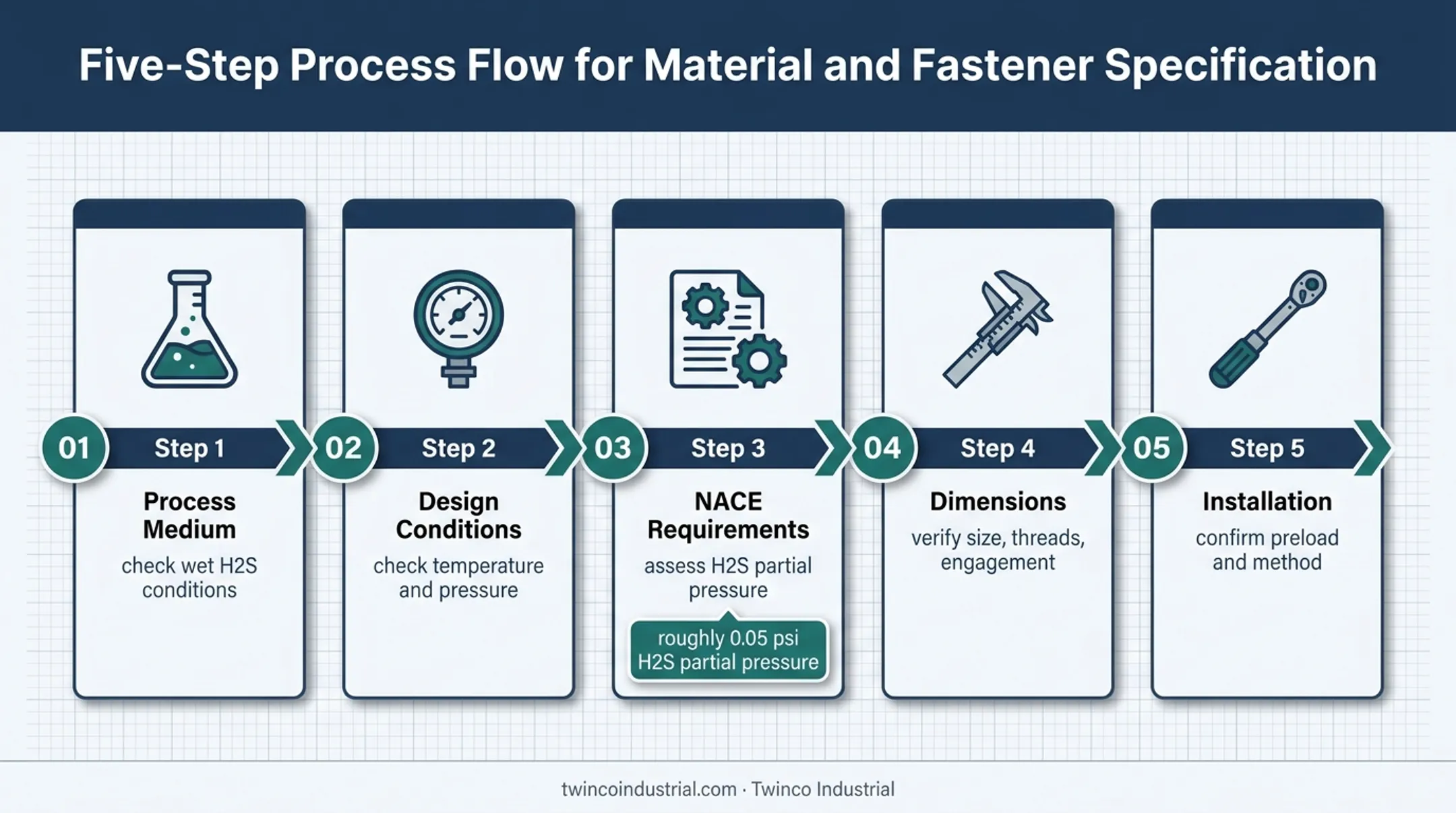

Grade selection is one decision among several. Here's a practical sequence for narrowing it down:
- Identify the process medium and whether wet H2S or another sour-service condition applies.
- Check design temperature and pressure against the flange or equipment specification.
- Confirm NACE or owner-specific requirements. ISO 15156-2:2020 notes that SSC-resistant material selection applies once H2S partial pressure reaches roughly 0.05 psi, so a marginal H2S presence still needs a documented assessment.
- Verify length, diameter, thread form, and engagement against the flange class and gasket requirements.
- Confirm the target preload and installation method with the project's approved bolting procedure.
Nut Compatibility Isn't Optional
B7M studs are typically paired with ASTM A194 Grade 2HM nuts, which share the same controlled-hardness requirements. Do not substitute Grade 2H for 2HM without engineering sign-off. The two grades differ in tempering temperature, hardness limits, and testing, so a matching thread doesn't mean matching sour-service compliance.
Beyond the Grade Name
Even in non-sour service, several factors can shift the right selection:
- Cyclic loading or vibration
- External corrosion exposure
- Galvanic contact between dissimilar metals
- Maintenance access and re-torque intervals
Before Ordering, Confirm
Verify each item against the project spec before the PO goes out:
- Exact grade and product form
- Diameter, length, and thread series
- Required nut and washer grades
- Coating or finish
- Test documentation package
- Quantity and delivery timing
- Required approvals
Sourcing B7M Bolts, Studs, and Related Components
Getting an accurate quote starts with a complete request. Industrial buyers should provide:
- Full material designation (grade, spec edition)
- Dimensions and quantity
- Application or service classification
- Required companion nuts and washers
- Certificate and testing requirements
- Coating specification
- Delivery deadline
A knowledgeable supplier can help spot gaps by reviewing drawings, bills of material, flange details, and material requisitions. That said, supplier input supports engineering approval; it doesn't replace it.
Twinco Industrial has supplied and rented flange stud bolts and heavy hex nuts for industrial, pipeline, and process applications since 1977.
Stud bolts and nuts, including ASTM A193 and A194 material families, are stocked in 1/2-inch through 4-inch-plus diameters, with standard-stock and cut-to-length options. Available finishes include plain, black oxide, zinc, cadmium, Xylan, PTFE, and hot-dip coatings.

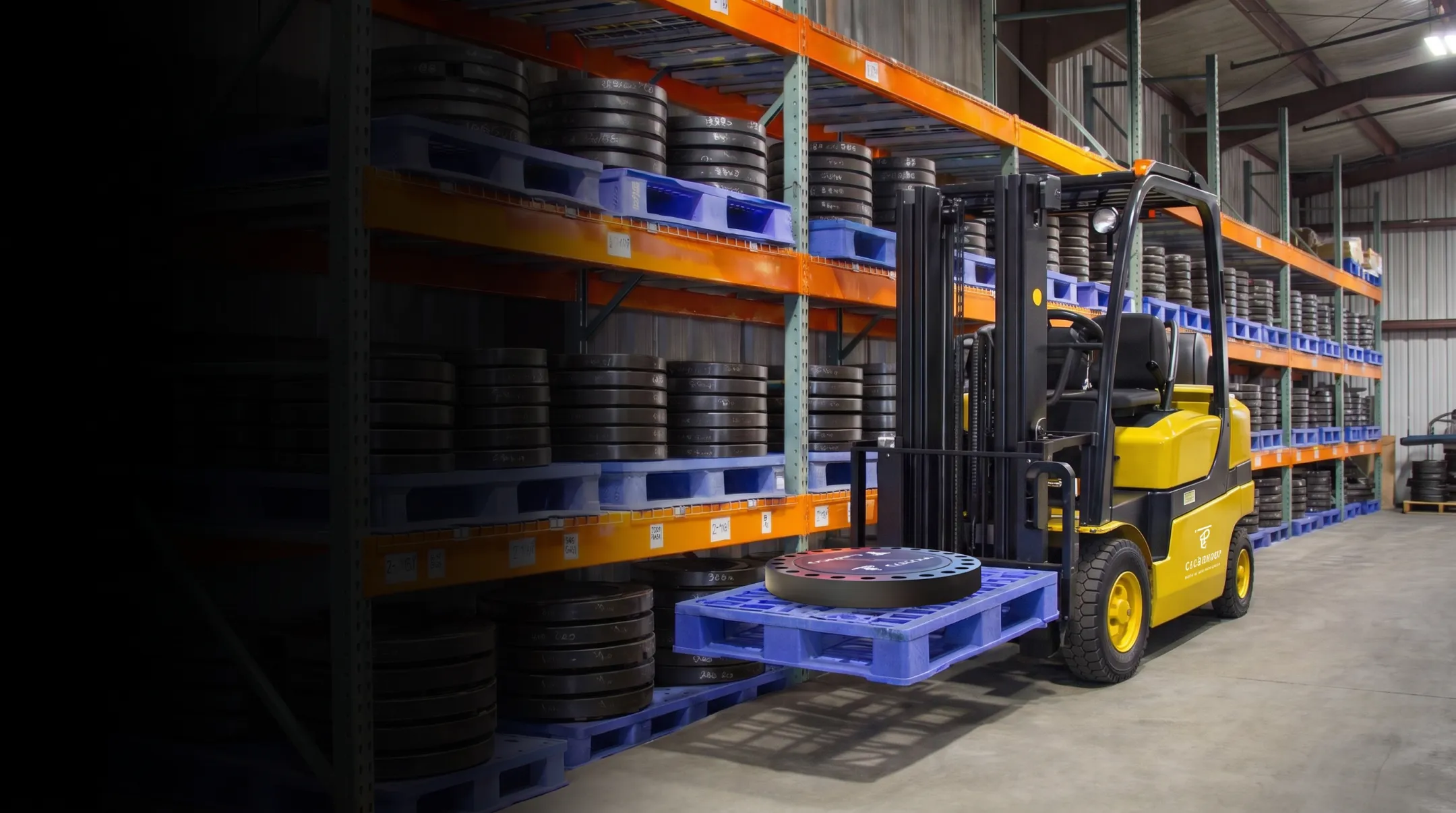

The Houston-based team also supports turnaround schedules and shutdown windows through rental bolting, alongside a broader inventory of flanges, valves, gaskets, and pipe components.
For a project involving ASTM A193 B7M bolting, compatible nuts, or associated flange and valve requirements, contact Twinco for a specification-based quote. Confirm availability and certification details against your specific order before finalizing.
Conclusion
ASTM A193 B7M is specified for controlled hardness and sour-service duty—not as a stronger or newer stand-in for B7. Match the grade to the service, not the catalog label.
Before you lock in a critical bolted joint, confirm the essentials:
- Distinguish B7M from any metric designation
- Weigh the actual service environment against design loads
- Pair the bolt with the correct nut grade
- Verify testing and traceability documentation
Any substitution needs engineering sign-off before installation, not after.
When requirements conflict, ASTM, ASME, NACE, and owner project specs govern—not a supplier description alone.
Frequently Asked Questions
What is the difference between B7 and B7M bolts?
B7M is a separate, controlled-hardness grade with generally lower strength requirements and stricter individual testing than B7. B7 is typically chosen for higher-strength, non-sour service. Don't substitute one for the other without engineering approval.
Is 4140 the same as B7?
No. 4140 describes an alloy-steel material, while B7 is an ASTM A193 bolting specification with required chemistry, heat treatment, mechanical properties, and documentation. A fastener made from 4140 isn't automatically certified ASTM A193 B7.
How does grade B7 compare to SAE Grade 5 and Grade 8 bolts?
These come from different standards with different intended applications. A193 B7 covers high-temperature and high-pressure industrial bolting, while SAE J429 grades are general mechanical fastener classifications. Similar strength numbers don't make them interchangeable.
What is a B7 stud?
A B7 stud is a threaded fastener manufactured and certified to ASTM A193 Grade B7, commonly used with compatible nuts in piping and pressure-equipment flanged joints. It's a different product from a B7M stud, and the governing project specification determines which one applies.
