Many buyers get stuck on the same questions: Should I choose an L-port or T-port design? Will 316 stainless actually hold up against my process fluid? What pressure and temperature limits apply? Will the actuator match my automation setup?
This guide walks through how these valves work, compares L-port, T-port, and 3-piece constructions, and gives you a specification checklist built for US industrial projects, from pipeline construction to plant turnarounds.
Key Takeaways
- Match diverting or mixing service to L-port or T-port geometry before you specify the valve.
- Use L-port for two-path switching; review isolation carefully before choosing T-port routing.
- Verify stainless grade against fluid, temperature, pressure, seat, and seal compatibility—never assume.
- Twinco Industrial stocks ball valves from ½ in. to 54 in. in carbon steel, stainless, and alloy materials.
How 3-Way Stainless Steel Ball Valves Work
A 3-way stainless steel ball valve controls flow by rotating a ball with a machined bore inside a three-port body. As the ball turns, the bore lines up with different port combinations to divert, mix, or block flow.
Core components include:
- Stainless steel body and three ports
- Rotating ball with a machined bore
- Stem, seats, and seals
- Manual handle or actuator
Diverting One Stream to Two Destinations
In diverting service, one inlet, the common port, connects to either of two outlet branches. A process stream might route toward a heat exchanger in one position and bypass it entirely in the other.
Exact positions depend on the port pattern. Use the manufacturer's flow diagram, not just the "3-way" label, to confirm what each position does.
Mixing Two Streams Into One Outlet
Mixing works in reverse: two separate inlet streams combine and exit through a single common port. A common industrial example is blending two process fluids or balancing hot and cold process streams before downstream equipment.
Not every 3-way valve is rated for mixing duty, so confirm the valve suits the blending application before you specify it.
Manual vs. Actuated Operation
Manual handles give local, hands-on positioning for straightforward switching tasks. Pneumatic or electric actuators support remote switching, automation, interlocking, and position feedback for critical process control.

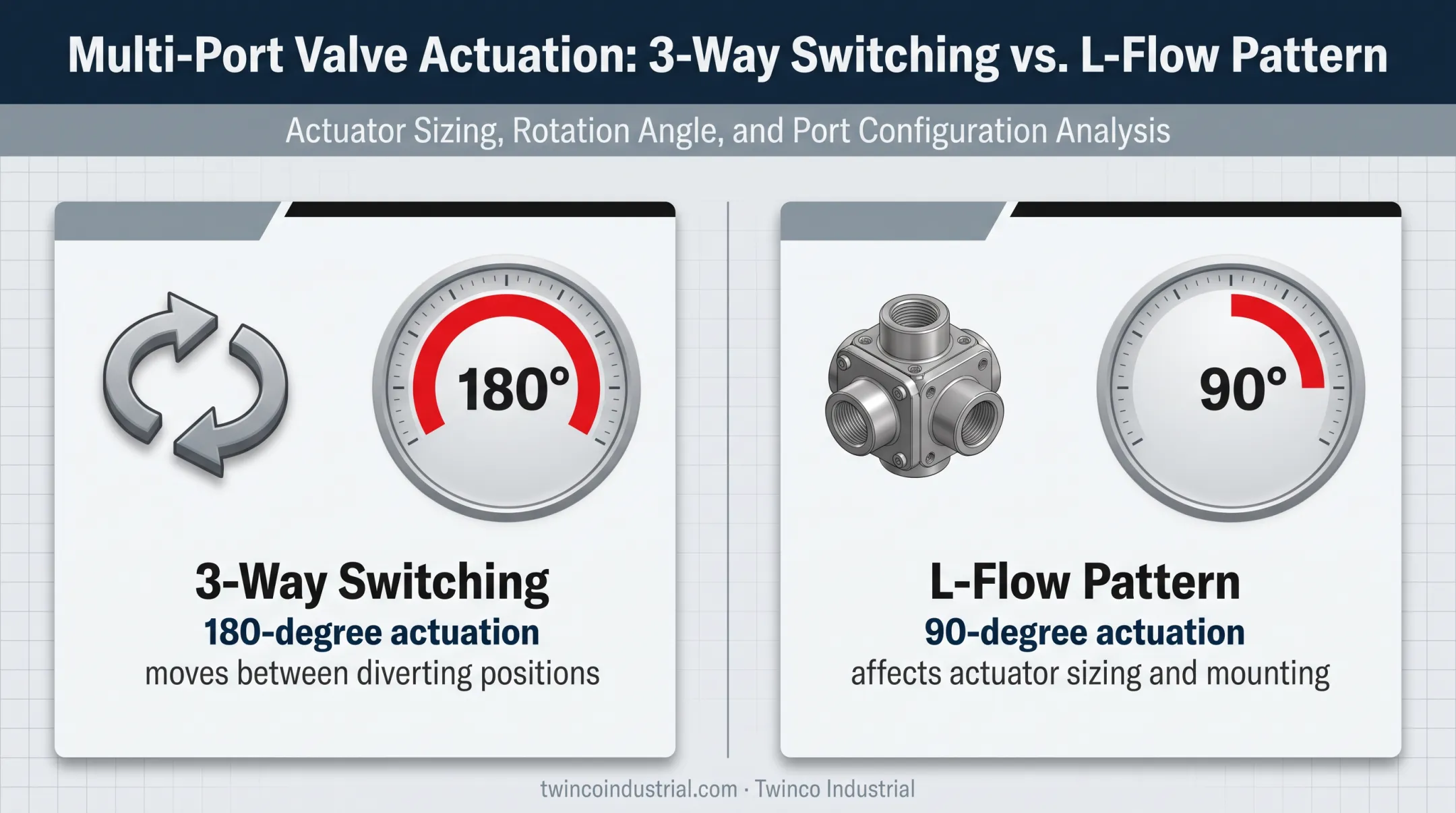

Swagelok's catalog notes that 3-way switching valves typically require 180-degree actuation to move between diverting positions, while an L-flow pattern uses 90-degree actuation — a detail that directly affects actuator sizing and mounting.
Installation warning: A partially rotated ball, or a handle/actuator mounted in the wrong orientation, can create an unintended flow path or fail to deliver the isolation you expect. Always verify position indicators and flow direction before commissioning.
L-Port, T-Port, and 3-Piece Stainless Steel Ball Valve Types
L-port and T-port configurations decide what a 3-way valve can and can't do in service.
L-Port Construction
L-port valves typically connect two ports at a time. This design is a common choice for diverting or switching flow between two destinations. Because the bore limits cross-connection between all three ports simultaneously, L-port valves are often selected when unintended mixing has to be avoided.
T-Port Construction
T-port valves offer more flexibility. According to Dixon's overview of 3-way ball valve design, a T-port bore can mix or divert flow among all three ports and switch between two sources.
The T-port pattern typically cannot shut off flow completely. Confirm that limit if your application needs full isolation at any point in the cycle.
Decision framework:
| Requirement | Better fit |
|---|---|
| Switching between two destinations, no mixing allowed | L-port |
| Blending or multi-directional routing | T-port |
| Full shutoff required in at least one position | Verify against manufacturer diagram; not guaranteed on T-port |
| Simple two-position cycling | L-port |
What "3-Piece Ball Valve" Means
A 3-piece body is assembled from a center section housing the ball and seats, plus two end sections. Where the installation allows, technicians can pull the center section for inspection or seat replacement without breaking the pipe joints. That matters on frequent-service lines where downtime is costly.
Stainless Grade Is Not the Whole Story
Body material and internal materials are separate decisions. ASTM A351 covers austenitic steel castings for valves and pressure-containing parts, and it places grade selection on the purchaser. The standard requires evaluating design conditions, mechanical properties, and corrosion resistance case by case.
Stainless steel alone does not guarantee compatibility with every chemical or temperature condition. Seat, stem, seal, and packing materials need the same scrutiny.
Twinco Industrial supplies ball valves in carbon steel, stainless steel, brass, and alloy options. Project teams can match body and trim to actual service conditions instead of defaulting to one grade.
How to Select a 3-Way Stainless Steel Ball Valve
Specifying the right valve comes down to documenting process conditions, matching flow logic, and confirming mechanical fit.
Start With Process Requirements
Before looking at any valve catalog, document:
- Fluid or gas type, concentration, and cleanliness
- Viscosity and flow rate
- Normal and maximum pressure
- Normal and maximum temperature
- Cycling frequency
- Whether service is corrosive, hygienic, hazardous, or abrasive
Match Flow Logic to Valve Pattern
Start with the flow job the valve must perform:
- Divert one stream to one of two destinations
- Mix two streams into one outlet
- Create a bypass path
- Provide controlled isolation
Request a manufacturer flow-path diagram for the specific model. Do not treat "L-port" or "T-port" labels as a full description of how that valve behaves in service.
Confirm Size, Flow Capacity, and Mechanical Specs
Nominal pipe size alone doesn't establish suitability. You also need:
- Flow capacity data: required flow rate, pressure drop, and Cv for the bore type (full port or reduced port)
- Pressure and temperature ratings: working pressure class and temperature range for the exact body/seat combination
- Dimensional fit: face-to-face length, end connections, and the correct standard (NPT per ASME B1.20.1; flanges typically per ASME B16.5)
- Mounting details: installation orientation, clearance, and actuator mounting pattern
Choose Control Method and Documentation

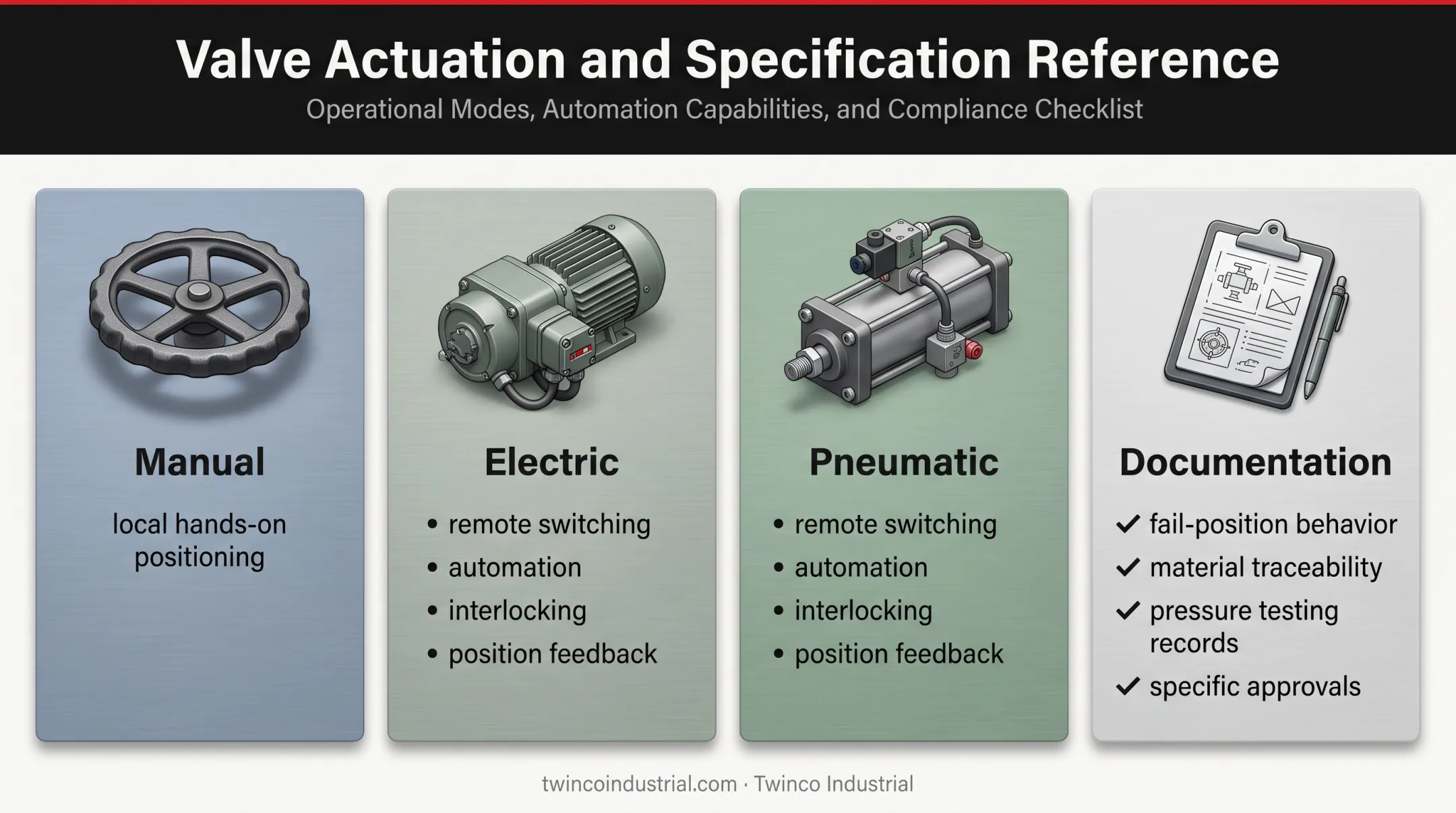

Decide between manual, electric, and pneumatic operation early, since it affects lead time and cost. For automated service, confirm fail-position behavior, limit switches or position feedback, and whether the project requires material traceability, pressure testing records, or specific approvals.
When the spec calls for specialty or hard-to-find 3-way stainless valves, Twinco Industrial can help review requirements and coordinate sourcing for pipeline, petrochemical, construction, testing, and maintenance work. A partial Approved Manufacturer List is available on request.
Confirm availability, lead time, and documentation with the Twinco team before you lock the final spec.
Industrial Applications, Benefits, and Limitations
Where These Valves Show Up
3-way stainless steel ball valves appear across:
- Pipeline commissioning — routing test fluid or bypassing sections during hydrostatic testing
- Petrochemical and refinery processing — diverting or blending process streams between vessels
- Power generation — routing water or process fluid through balancing loops
- Industrial fabrication and testing — quick reconfiguration of test rigs and skids
Benefits
- Compact multiport routing reduces the number of separate 2-way valves needed
- Quarter-turn operation provides fast, reliable shutoff and switching
- Corrosion resistance holds when the stainless grade and seals match the media
- Serviceable 3-piece designs give easier maintenance access
Limitations to Plan For
- A 3-way ball valve doesn't throttle as precisely as a dedicated control valve
- T-port designs may not fully isolate every flow path, so verify isolation before assuming shutoff
- Seats wear faster under pressure, temperature, or cycling conditions outside the valve's rating
- Process isolation must be validated independently before maintenance or pressure testing begins
Pre-Installation Checklist
- Verify the flow diagram matches your process requirement
- Confirm ball orientation against the handle or actuator indicator
- Exercise each operating position before startup
- Inspect for leakage at all ports under test pressure
- Check actuator travel and feedback signals
- Validate the installed valve against the approved piping and instrumentation diagram
Frequently Asked Questions
What is a 3-way valve used for?
A 3-way valve diverts one incoming stream to one of two outlets, mixes two streams into a single outlet, or provides a bypass function, depending on its internal port pattern.
How does a 3-way valve work?
Rotating the internal ball aligns its bore with different combinations of the three ports. The specific flow path available at each position depends on whether the valve uses an L-port or T-port design.
What are the key differences between a 2-way and a 3-way ball valve?
A 2-way valve provides simple on/off control through two ports on a single flow path. A 3-way valve adds a third port, enabling routing, diverting, or mixing functions that a 2-way valve can't perform.
What are the different types of 3-way ball valves?
The main types are L-port and T-port configurations, available in manual or actuated versions, with construction options like 3-piece bodies. The right type depends entirely on your required flow pattern.
How do you know if a 3-way valve is open or closed?
Position depends on the port pattern and the handle or actuator orientation for that specific model. Use the valve's position indicator and manufacturer flow diagram rather than assuming a universal handle position.
Why use a 3-piece ball valve?
A 3-piece body separates into a center section and two end pieces. That layout often lets you inspect, repair, or replace internals without pulling the end connections out of the line.
