Introduction
Socket weld fittings solve a specific problem: how do you create a permanent, leak-tight connection on smaller-diameter pipe without the alignment challenges of a butt weld? The pipe slides into a recessed socket, gets seated against an internal shoulder, and a fillet weld goes around the outside.
Many buyers struggle with a different problem, though. Picking the right fitting means matching pipe size, pressure class, temperature, material, and fluid service, all while satisfying project specifications and applicable codes. Get one variable wrong and you've got a rejected weld or a failed hydro test.
This guide covers fitting and coupling types, how the socket weld connection actually works, where it compares against butt weld and threaded alternatives, and what to check before you place an order for a US industrial project.
Key Takeaways
- Socket weld is the joint method; a fitting is the part; a coupling joins two pipe ends.
- Use socket weld on compact, smaller-bore lines only when design conditions and codes allow.
- Control fit-up, expansion gap, welder qualification, and material match to protect joint life.
- Match dimensions, pressure class, material grade, and docs to project specs before you order.
What Are Socket Weld Fittings and Couplings?
A socket weld fitting is a forged piping component with a recessed socket, sized to receive the pipe's outside diameter. Inside that socket sits a shoulder that stops the pipe at the correct insertion depth. Once the pipe is seated, a fillet weld runs around the outer edge of the joint.
That distinction matters: the fitting is the hardware. Socket welding is the method used to join it. You'll see both terms used loosely in the field, but they're not interchangeable when you're writing a spec.
ASME B16.11, Forged Fittings, Socket-Welding and Threaded, governs the dimensions, tolerances, marking, and material requirements for these components in the US. The standard organizes socket weld fittings into Classes 3000, 6000, and 9000, with each class correlating to a specific pipe schedule for wall-thickness calculations.
Couplings vs. Other Fitting Types
A socket weld coupling is a straight, in-line fitting with a socket at each end, used to join two pipe sections. That's different from:
- Elbows – change direction (45° or 90°)
- Tees and crosses – create branch connections
- Reducers – transition between pipe sizes
- Caps – terminate a line
- Half couplings – add a branch outlet without a full fitting body
Twinco Industrial stocks small-bore socket weld fittings in ½-inch through 2-inch sizes—elbows, tees, couplings, unions, reducers, caps, bushings, and olets—in forged carbon steel, stainless steel, and specialty alloys to ASME B16.11 and MSS-SP-83.
Where These Fittings Show Up
Socket weld components are common in process piping, instrumentation systems, skid assemblies, refinery maintenance, and pressure-testing setups. But don't select by nominal size alone. The fitting also has to match:
- Material grade – carbon, stainless, or alloy matched to the process fluid and corrosion allowance
- Pressure class – Class 3000, 6000, or 9000 aligned to system design pressure
- Temperature range – rating suitable for operating and upset conditions
- Wall thickness or schedule – socket and pipe schedule that meet the design calc
- End dimensions – insertion depth and OD fit per the project spec
Common Types and Applications of Socket Weld Fittings
Most socket weld product lines fall into a handful of categories, each solving a different layout problem.
| Fitting Type | Primary Function |
|---|---|
| Couplings | Join two straight pipe ends in-line |
| Half couplings | Add a branch outlet without full-body fitting |
| Elbows | Redirect flow at 45° or 90° |
| Tees / Crosses | Create one or two branch connections |
| Reducers | Step down or up between pipe sizes |
| Caps | Close off a line end |
Half couplings help when you need a branch on a vessel, valve, or instrument and a full coupling body isn't necessary. They save weight and welding time on smaller connections.
Fitting choice also tracks bore size. Twinco's Small Bore Fittings cover ½ inch through 2 inches, while its Industrial Pipes & Fittings line runs from 2 inches up to 72 inches with wall thicknesses from Schedule 10 through XXH.
That range mirrors a common industry pattern: socket weld fittings dominate compact, smaller-bore systems, while butt weld fittings take over on larger or heavier-wall lines.
There's no universal diameter where one method stops and the other starts. ASME B16.9 covers factory-made buttwelding fittings across NPS ½ through NPS 48 in virtually any wall thickness, so the real cutoff point is whatever your project's design code and engineer specify.

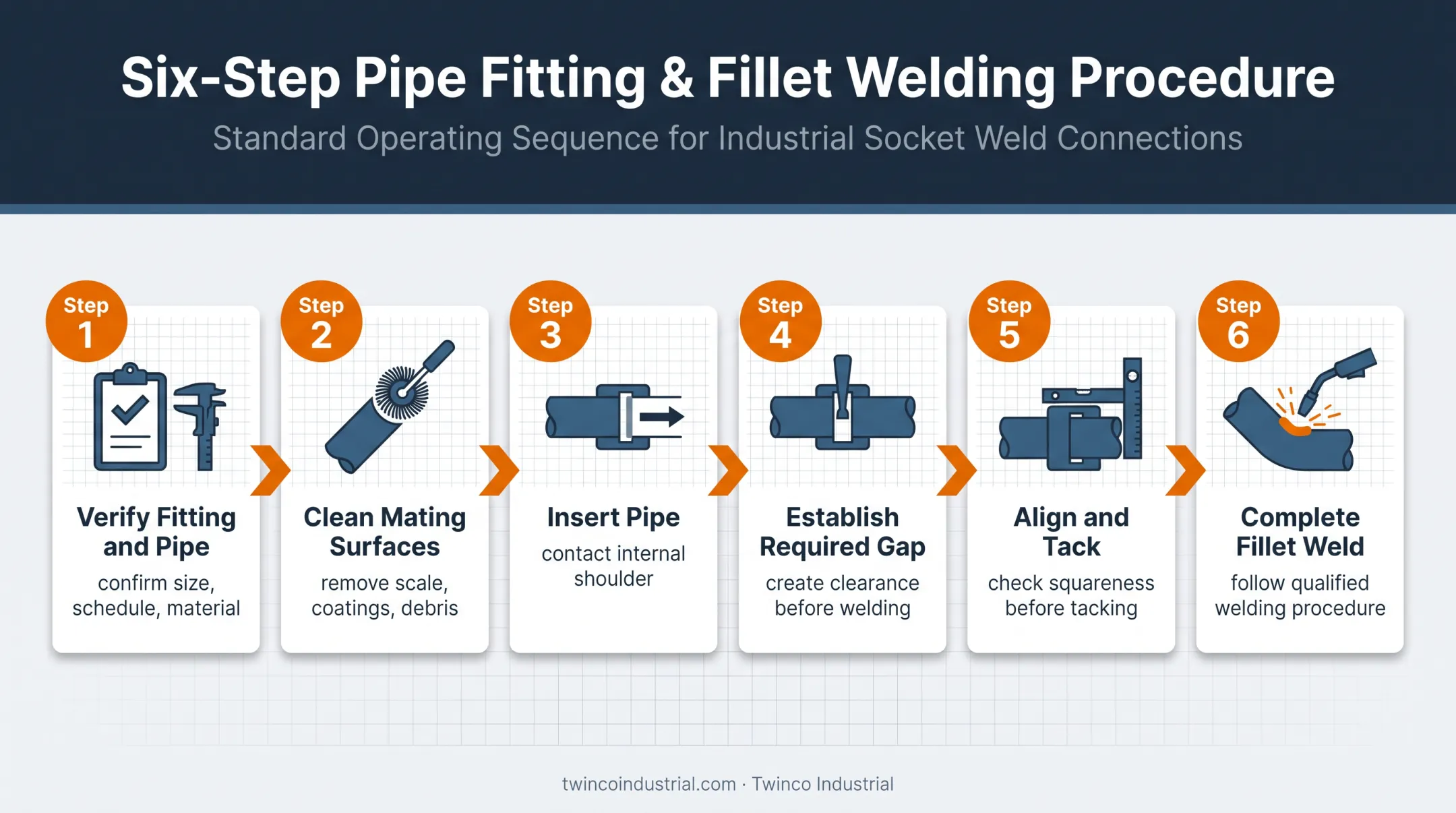

How Socket Weld Fittings Work: Design, Welding, and Installation Considerations
The installation sequence is straightforward on paper, but every step affects joint integrity.
- Verify the fitting and pipe – Confirm size, schedule, and material match the spec.
- Clean the mating surfaces – Remove mill scale, coatings, and debris from both the pipe end and socket bore.
- Insert the pipe into the socket – Push until it contacts the internal shoulder.
- Establish the required gap – Pull the pipe back slightly to create clearance before welding.
- Align and tack – Check squareness before tacking the joint in place.
- Complete the fillet weld – Follow the qualified welding procedure for size, passes, and technique.
Why the Expansion Gap Matters
Step four is where a lot of field mistakes happen. Bottoming the pipe out against the socket shoulder with no clearance leaves nowhere for thermal expansion to go during welding or later service. That builds stress right at the joint.
ASME B31.3 calls for an approximately 1/16-inch (1.5 mm) gap before welding on socket-welded components other than flanges. That figure comes from the code's Figure 328.5.2-3, which also sets the minimum weld dimension at 1.09 times the pipe's nominal wall thickness or the socket wall thickness, whichever is smaller.
Your project spec and qualified welding procedure govern the exact numbers for your job, so treat this as a starting reference, not a substitute for your WPS.
Fillet Welds, Not Butt Welds
Socket welds are joined with fillet welds, applied around the outside circumference rather than through a beveled butt joint. Weld size, profile, preheat, interpass temperature, filler metal, and post-weld heat treatment all depend on the base material and the qualified procedure in use, not on a single fixed recipe.
Quality Controls That Actually Prevent Failures
- Confirm alignment before tacking
- Avoid excessive insertion that eliminates the expansion gap
- Verify surface cleanliness on both pipe and socket
- Use welders and procedures qualified per ASME BPVC Section IX
- Run visual inspection and dimensional checks
- Apply non-destructive examination when the project requires it
Limitations Worth Flagging
Socket weld joints aren't the right call everywhere. The gap left for thermal expansion can trap fluid, creating a small dead space.
Swagelok has noted that this crevice can become a corrosion site in high-purity or contamination-sensitive service, which is part of why the company doesn't favor socket welds for those applications.
Add vibration-prone lines, thermal fatigue, and the difficulty of inspecting the inside of a socket weld joint, and you've got a real case for engineering review on critical or severe-service systems.

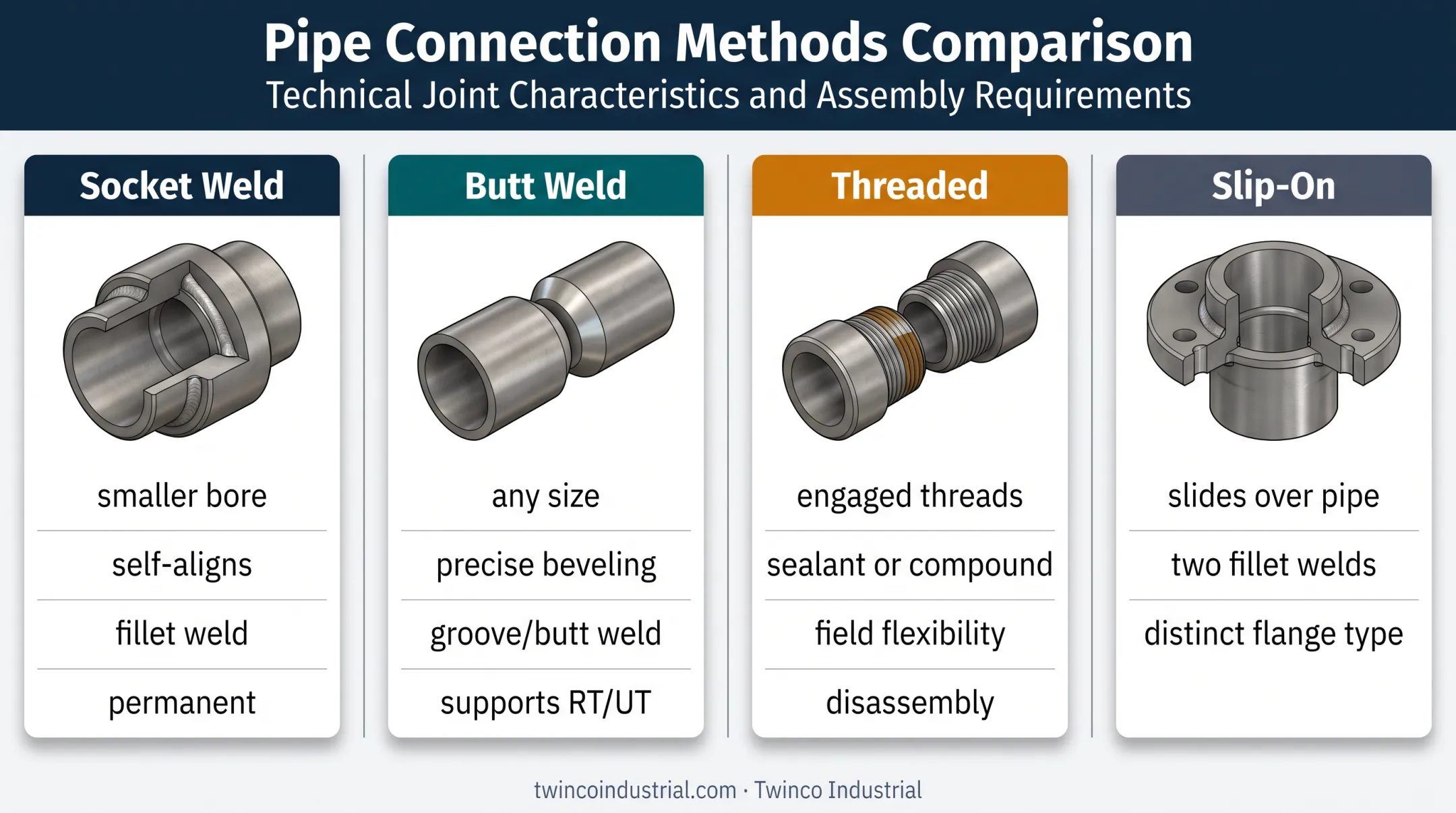

Socket Weld vs. Other Connection Types
Choosing between socket weld, butt weld, threaded, and slip-on connections comes down to matching the joint to the job, not picking a universal "best" option.
Socket Weld vs. Butt Weld
| Factor | Socket Weld | Butt Weld | |--------|-------------|-----------| | Typical size range | Smaller bore | Any size, including large-diameter | | Alignment | Easier (socket self-aligns) | Requires precise beveling and fit-up | | Weld type | Fillet | Groove/butt | | Inspection access | Harder (internal geometry hidden) | Easier; supports full RT/UT | | Governing standard | ASME B16.11 | ASME B16.9 |
Neither is universally stronger or cheaper. Socket welds simplify alignment on smaller pipe; butt welds allow full radiographic or ultrasonic inspection (RT/UT) and scale to larger diameters and heavier walls.
Socket Weld vs. Threaded Connections
A threaded fitting relies on engaged threads and a sealant or thread compound, not a weld. That makes it a practical choice where disassembly or field flexibility matters. A socket weld, by contrast, is permanent once welded.
Twinco Industrial's Small Bore Fittings line includes both threaded and socket weld configurations, so teams can match the joint type to the project rather than force one approach.
Socket Weld vs. Slip-On
These get confused often, but the geometry is different. A socket weld fitting has a recessed bore with an internal shoulder that controls insertion depth.
A slip-on flange slides over the pipe end and is welded to its own joint design, typically with two fillet welds (one inside, one outside). Twinco lists Socket Weld (SW) and Slip-On (SO) as distinct flange types across its ½-inch through 72-inch range.
A Quick Decision Framework
Before specifying, run through:
- Pipe size and wall thickness
- Design pressure and temperature
- Fluid characteristics and corrosion sensitivity
- Vibration or cyclic loading
- Maintenance and disassembly needs
- Governing code requirements
- Welding capability on-site
- Inspection access needed after installation
How to Select Socket Weld Fittings and Couplings for an Industrial Piping System
Ordering the wrong socket weld component is an expensive mistake once it's already in the pipe rack. A specification checklist prevents that.
Spec Sheet and Standards Compliance
Capture the physical and service requirements first:
- Nominal pipe size and outside diameter
- Wall thickness or schedule
- Fitting configuration (coupling, elbow, tee, etc.)
- Material grade
- Pressure class
- Temperature range
- Corrosion resistance requirements
- Compatibility with connected pipe and fluid
Then confirm the fitting meets the dimensional, material, rating, and marking standards your project, purchaser, and jurisdiction require. Don't assume one standard applies everywhere.
Material specs like ASTM A105/A105M for carbon steel forgings or ASTM A182/A182M for alloy and stainless steel components vary by service condition. Research what your job actually calls for.
Documentation and Incoming Inspection
Request these records with the order:
- Manufacturer identification
- Material test reports
- Heat or lot traceability
- Certificate of conformance
- Dimensional records
- Inspection or test reports, when required
Check every shipment before it reaches the jobsite:
- Physical damage or deformation
- Corrosion on stored inventory
- Contamination inside the socket bore
- Incorrect bore or socket dimensions
- Missing or illegible markings
- Mismatched material against the PO
Standard Stock vs. Specialty Sourcing
Standard sizes in common materials usually ship fast. Unusual sizes, exotic alloys, high pressure classes, or large quantities on tight schedules are a different story, and that's where a specialty sourcing partner earns its keep.

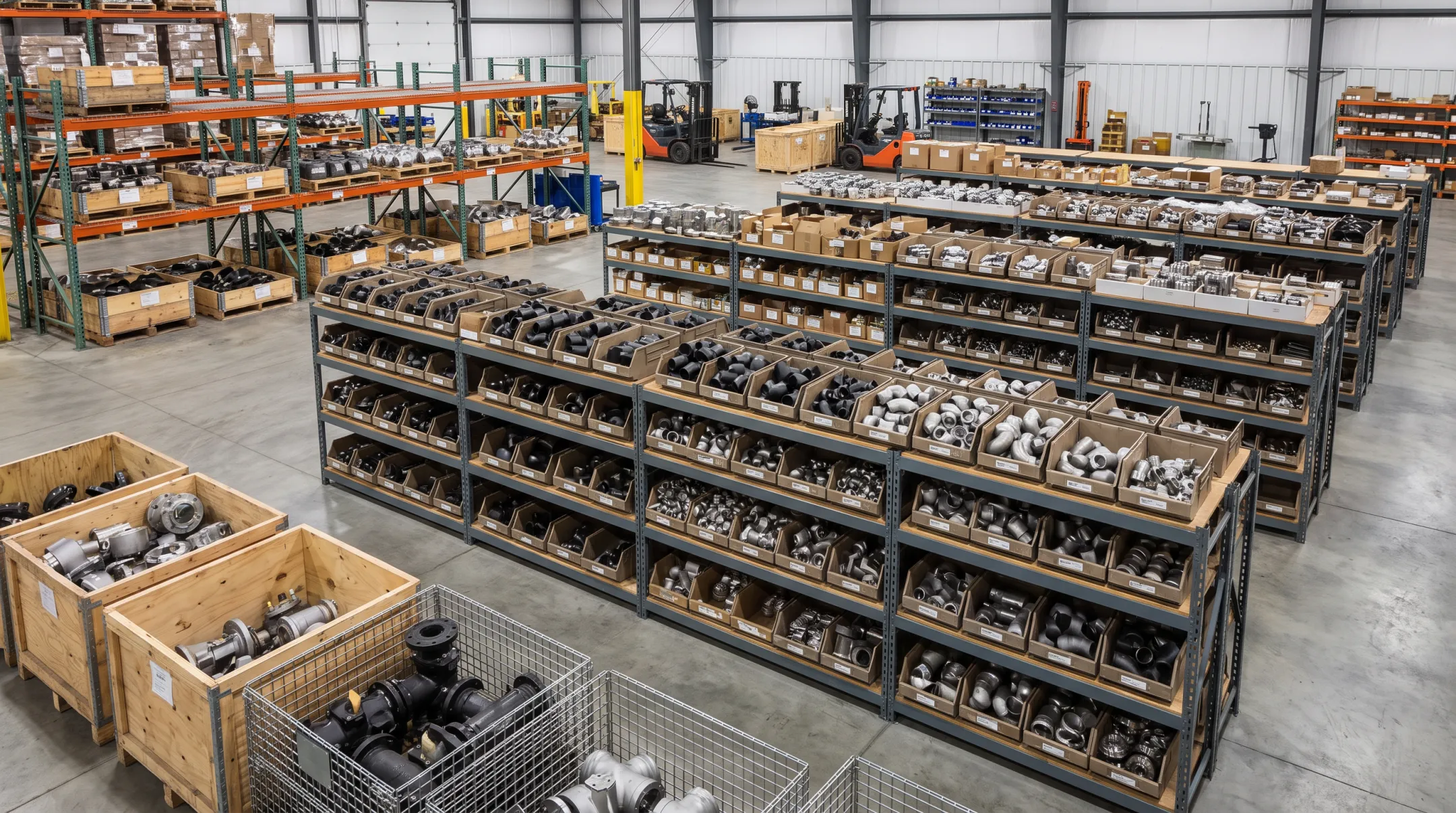

Twinco Industrial has supplied fittings, couplings, valves, pipe, gaskets, and bolting since 1977, supporting pipeline, petrochemical, construction, testing, and maintenance projects across the US.
Small Bore Fittings stock runs ½ inch through 2 inches in Classes 3000# through 6000#, forged in carbon steel, stainless steel, and specialty alloys to ASME B16.11 and MSS-SP-83. Twinco also sources oversized and hard-to-find components when a project falls outside standard stock.
When you request a quote, send the full spec package and any project-specific standards so the response matches the job—not a close substitute.
Frequently Asked Questions
What is a socket weld?
A socket weld joins pipe inserted into a recessed fitting socket, sealed with a fillet weld around the outside. The exact gap, weld size, and procedure depend on the governing code and project spec.
What are socket weld fittings?
Socket weld fittings are made with one or more recessed sockets—couplings, elbows, tees, and reducers—to join, redirect, branch, or change pipe size.
When should you use socket weld fittings?
They're common on compact, smaller-bore industrial piping where welded permanence is needed. Before you specify them, check pressure, temperature, fluid service, vibration, corrosion risk, and the governing codes.
Is a socket weld the same as a fillet weld?
Not quite. "Socket weld" describes the joint configuration, while the fillet weld is the weld type typically applied around that joint. The terms are related but not interchangeable.
What is the recommended gap for a socket weld fitting?
Leave a small expansion gap before welding—ASME B31.3 references about 1/16 inch. Always follow your governing code, project spec, and qualified welding procedure.
What is the difference between a socket and a coupling?
A socket is the recessed receiving feature on a fitting. A coupling is a complete fitting, usually with two socket ends, used to join two separate pipe sections together.
