Introduction
A flange that looks right on paper can still fail on the pipe rack. Bolt holes that don't line up, a raised face that's too narrow for the gasket, a bore that doesn't match the pipe schedule: these problems trace back to one root cause.
Someone treated "Class 300" as a single set of dimensions instead of a category that changes by nominal pipe size and flange type.
ASME B16.5 covers pipe flanges and flanged fittings from NPS 1/2 through NPS 24, spanning pressure ratings, materials, dimensions, tolerances, and marking requirements. Class 300 sits inside that standard as one pressure class among several, not a fixed shape.
This article breaks down what Class 300 dimensions actually cover, where to find them, how tolerances work, and the specification mistakes that cause the most rework on job sites.
Key Takeaways
- Class 300 is a pressure class, not a size; dimensions depend on NPS and flange type.
- Verify OD, thickness, bolt circle, bolt-hole count and diameter, bore, and facing.
- Mating flanges must match in size, class, facing, and bolt pattern before installation.
- Always verify final dimensions against the current ASME B16.5 edition and approved project drawings.
- Twinco Industrial sources flanges, bolting, and gaskets for testing, maintenance, and pipeline projects.
What Class 300 Flange Dimensions Represent
ANSI/ASME B16.5 Class 300 dimensions are the standardized geometry for flanges and flanged fittings under that specification. The current governing document is ASME B16.5, which covers NPS 1/2 through NPS 24. Dimensions for Class 300 flanges are listed in Table 11; flanged fittings have their own table.
Here's where a lot of confusion starts: "Class 300" describes a pressure-temperature rating category, not a working pressure of 300 psi. API International notes that Class 300 carbon steel A105 flanges are rated around 740 psi at 100°F, but that figure drops as temperature rises and changes with material group.
So the actual allowable pressure for any Class 300 flange depends on three things at once:
- Material grade and material group assigned to the flange
- Operating temperature at the connection
- Applicable B16.5 pressure-temperature table for that material group
Dimensions themselves are pulled from tables organized by nominal pipe size, flange type, and facing or construction detail. Nothing about the phrase "Class 300" alone tells you the outside diameter, bolt pattern, or thickness. You need the NPS and the flange type first.
Key Dimensions to Identify
A complete dimensional check for any Class 300 flange touches seven areas. Skipping even one is how mismatches slip through inspection.
Outside diameter, thickness, and bore set the basic footprint and clearance envelope:
- Outside diameter determines whether the flange clears adjacent piping or structural steel
- Thickness affects bolt length calculations
- Bore must match the connecting pipe's inside diameter or schedule
Bolt-circle diameter, bolt-hole count, and bolt-hole diameter are the primary compatibility check between mating flanges:
- Bolt-circle diameter aligns the bolt pattern
- Bolt-hole count must match on both flanges
- Bolt-hole diameter sets the fastener size
If these three numbers don't match, the joint won't bolt together.
Facing dimensions (raised face, flat face, or ring-type joint) determine gasket contact area and seating. A raised-face flange won't seal correctly against a ring-type joint facing, even if every other dimension matches.
Here's how these fields map to the governing standard:
| Dimension | Purpose | Where to Verify |
|---|---|---|
| Outside diameter (O) | Overall flange footprint and clearance | ASME B16.5 Table 11 |
| Thickness (T) | Bolt length, hub geometry | ASME B16.5 Table 11 |
| Bore / bore-related dimensions | Pipe fit-up, flow path | ASME B16.5 Table 11 |
| Bolt-circle diameter | Bolt pattern alignment | ASME B16.5 Table 11 |
| Bolt-hole count and diameter | Bolting compatibility | ASME B16.5 Table 11 |
| Facing dimensions (RF, FF, RTJ) | Gasket seating and seal type | ASME B16.5 Table 4 or Table 5 |
Always pull the actual figures for your specific NPS and flange type from the current B16.5 edition. A chart is only useful if it's the right row.
Flange Types Within the Scope
Class 300 dimensions differ by flange type even when the nominal size stays identical. ASME B16.5 recognizes several distinct constructions, and manufacturer charts typically organize Class 300 data across six categories:
- Weld neck flanges have hub and weld-end dimensions not found on other types
- Slip-on flanges use a simpler bore and counterbore geometry
- Blind flanges have no bore at all; they seal a line end completely
- Socket-weld flanges include a socket bore sized to the pipe OD
- Threaded flanges have internal threads matching the pipe's NPT
- Lap-joint flanges pair with a stub end and rotate freely on the pipe
Twinco Industrial's flange inventory spans this same range: weld neck, slip-on, blind, lap-joint, socket-weld, threaded, and API flanges, across ASME B16.5 and the larger B16.47 series.
Don't substitute a blind-flange dimension for a weld-neck dimension, even at the same NPS and class. The published tolerance tables separate weld-neck flanges from the other five types because bore, hub, and thickness requirements diverge. A blind flange has no through-bore; a weld-neck flange depends on one.
Dimensional Range, Tolerances, and Safe Operating Margin
There's no single outside diameter or bolt pattern that applies to "a Class 300 flange." Every dimension is a function of nominal pipe size, and the applicable table changes with flange type.
How to Read the Chart
Locate your NPS first, then select the correct flange type and facing row. For an NPS 4, Class 300, raised-face weld-neck flange, go to Table 11. Find the NPS 4 row and confirm the weld-neck columns for outside diameter, hub dimensions, and bolt circle.
Watch the boundary at the top of the range too. ASME B16.5 stops at NPS 24. Anything larger falls under ASME B16.47, a separate large-diameter standard covering NPS 26 through NPS 60.
Twinco stocks flange components up to 72 inches, so confirm which standard governs a large-bore order before you request a quote.
Tolerances Aren't Field Measurements
Published chart values are nominal, not exact. The B16.5 tolerance tables set manufacturing limits around each dimension. A few examples from the published tolerance data:
- Outside diameter, 24 inches and smaller: ±1.5 mm
- Thickness, NPS 18 and smaller: +3.0/-0.0 mm
- Bolt-circle diameter: ±1.5 mm
- Bolt-hole spacing: ±0.8 mm
These tolerances are separate from pressure-temperature limits, corrosion allowances, and project-specific design margins. A flange within tolerance on every dimension can still be unsuitable if the material grade doesn't match the service temperature.
Dimensional Fit Isn't the Same as Safety

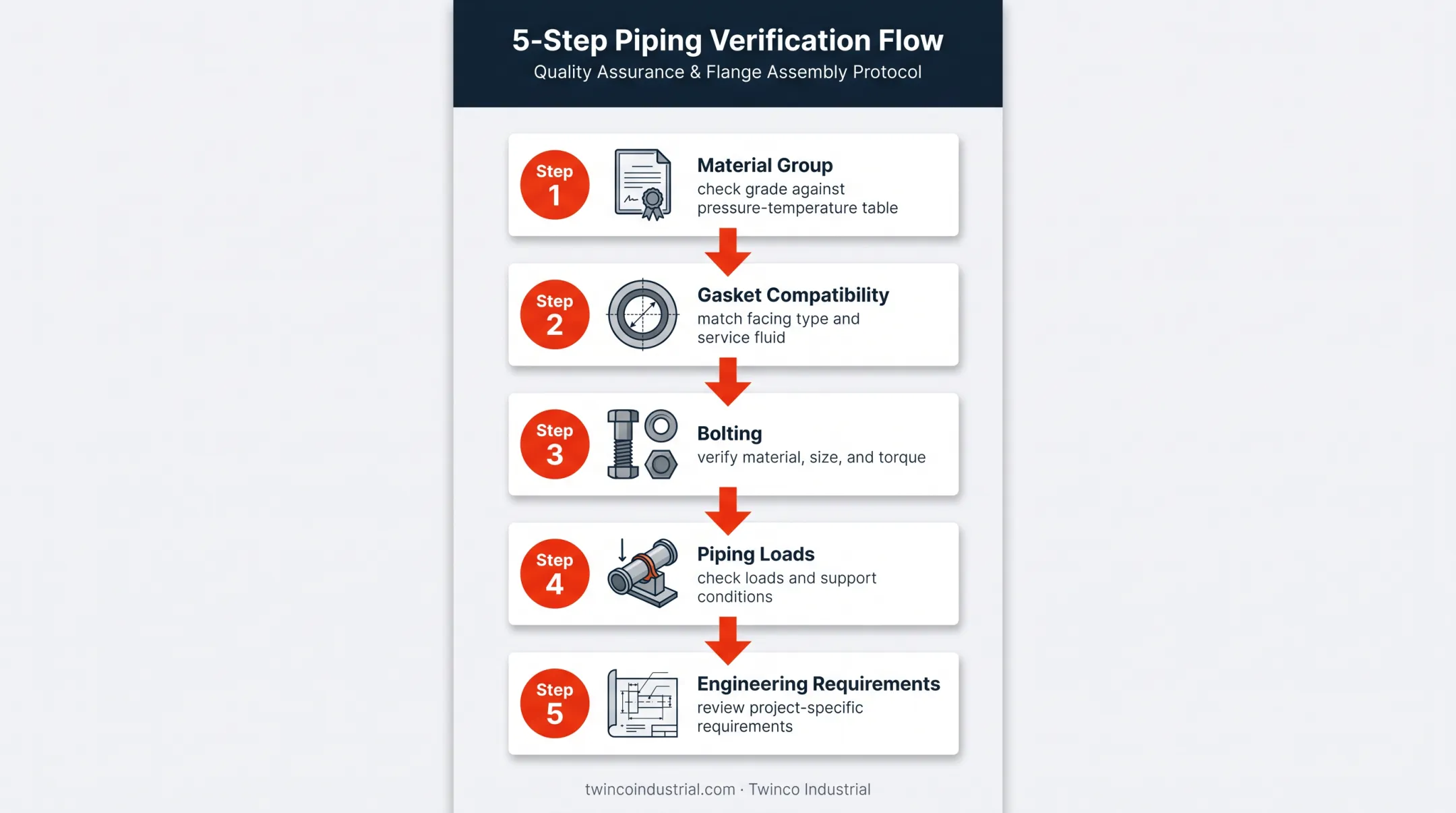

Correct dimensional matching means two flanges can be assembled. It doesn't mean the joint is rated for your pressure, temperature, fluid, or cycling conditions. Before installation, verify:
- Material group and grade against the design pressure-temperature table
- Gasket compatibility with the facing type and service fluid
- Bolting material, size, and torque requirements
- Piping loads and support conditions at the connection
- Any project-specific engineering design requirements
Operating near a design boundary calls for qualified engineering review, not a dimensional chart alone.
Specifying, Validating, and Sourcing Correct Dimensions
Class 300 dimensions belong on the purchase order itself, not just the inspection report.
What Belongs on the Purchase Order
A complete flange description should include:
- Nominal pipe size and Class 300 designation
- Flange type (weld neck, slip-on, blind, and so on)
- Facing type and finish
- Material grade
- Bore or pipe schedule
- Standard edition referenced
- Quantity and any project-specific notes
A vague order like "NPS 4 Class 300 flange" leaves too much open. Without the flange type and facing specified, a supplier could reasonably ship a slip-on flange when the job needs a weld neck.
Checking Dimensions Before Installation
Field verification with calibrated tools should cover:
- Outside diameter and thickness
- Bolt-circle diameter, bolt-hole count, and hole diameter
- Bore, raised-face dimensions, and hub geometry
Account for real-world conditions:
- Burrs or coating buildup that skew measurements
- Corrosion on the sealing face or bolt holes
- Damaged or inaccessible features on used equipment
Verify the mating flange and complete bolt pattern before shipment, especially for emergency replacements, pressure testing, or shutdown work where there's no time for a second delivery.
Sourcing Support for Class 300 Projects
Twinco Industrial sources and supplies flanges, bolting, gaskets, valves, and fittings for pipeline, petrochemical, construction, testing, and maintenance projects across the USA, Canada, and Mexico.
When a job calls for an unusual size or an urgent turnaround, provide NPS, class, flange type, material, facing, quantity, delivery location, and deadline upfront to get an accurate quote faster. Confirm availability directly rather than assuming stock from a catalog listing.
Common Mistakes and a Final Review Checklist
Frequent Specification Errors
Several recurring specification mistakes cause rework on Class 300 flange orders:
- Treating Class 300 as one fixed outside diameter instead of a size-dependent value
- Confusing nominal pipe size with actual pipe OD, flange OD, or bolt-circle diameter
- Using a Class 150 dimension table for a Class 300 connection
- Ignoring flange type, facing, or bore requirements during ordering
- Applying a B16.5 chart value to a flange size that actually falls under B16.47

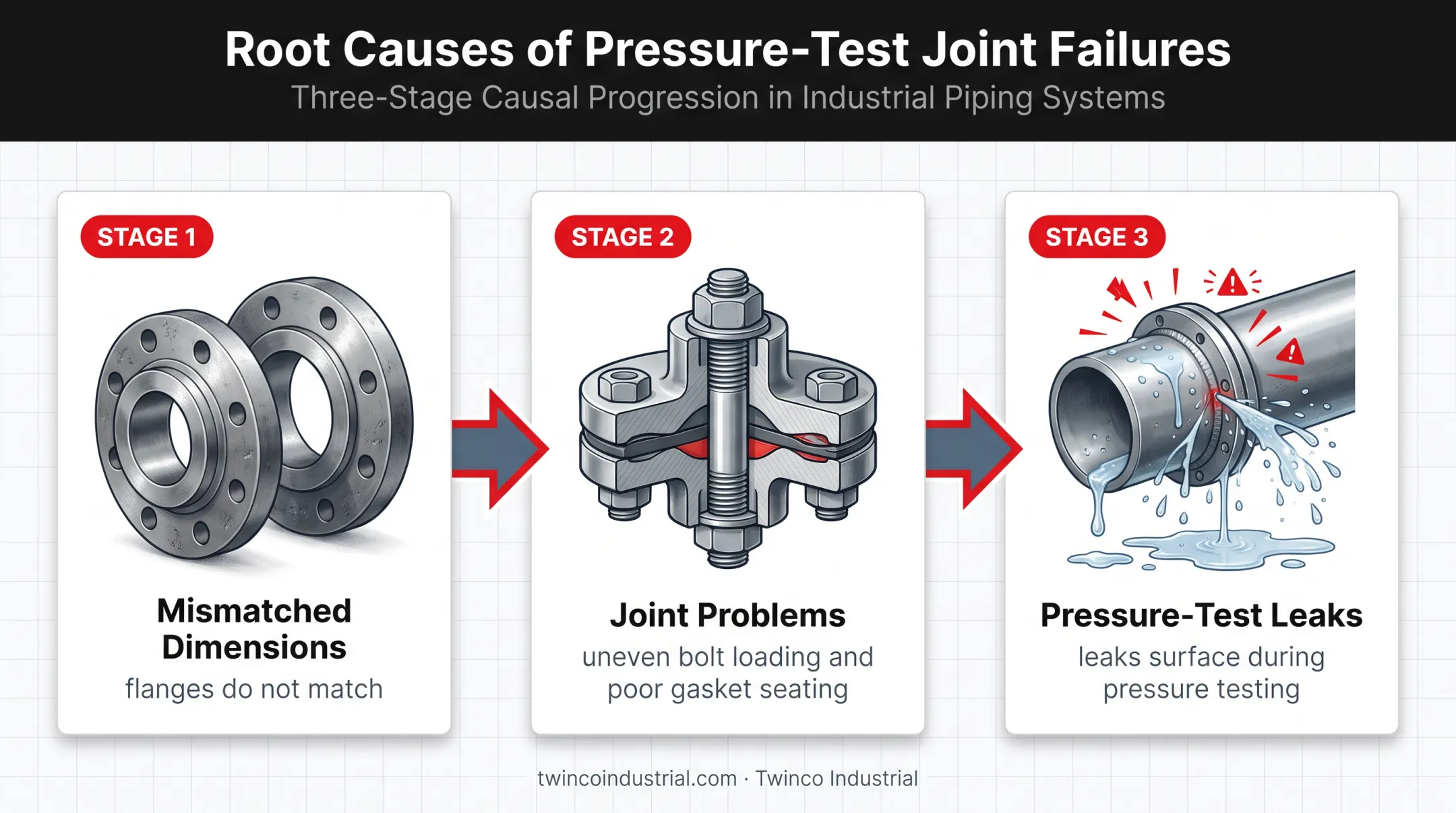

Mismatched dimensions don't just delay a project. They can produce uneven bolt loading, poor gasket seating, and leaks that surface during pressure testing rather than before it.
Final Review Checklist
Before releasing a Class 300 flange for installation, confirm:
- NPS and Class 300 designation match the drawing
- Flange type matches the specification (no substitutions)
- Facing type and finish are correct
- Material grade matches the service requirement
- Bore or pipe schedule aligns with connecting pipe
- Bolt-circle diameter, hole count, and hole diameter match the mating flange
- Gasket and bolting are compatible with the facing and material
- Standard edition referenced on the paperwork matches the project spec
If any of these conflict, or the markings on the physical part don't match the paperwork, pause and get engineering or supplier confirmation before installing.
Conclusion
ANSI B16.5 Class 300 flange dimensions govern whether a connection assembles correctly and holds up under service. Reliable selection means matching nominal size, flange type, facing, and every dimensional detail against the current standard. Then confirm material grade, pressure-temperature rating, and service conditions before you buy.
When the project schedule depends on getting this right the first time, work from verified standards and documented checks. A supplier who can source the right flange type and material on short notice is what separates a smooth turnaround from a stalled pressure test.
Frequently Asked Questions
Are 300 and 600 flanges the same size?
No. Class 300 and Class 600 are different pressure classes. Dimensions may match at smaller NPS sizes but diverge at larger ones, so compare the specific NPS row in ASME B16.5 rather than assuming interchangeability.
What are the dimensions of a B16.5 Class 300 flange?
Dimensions depend on the nominal pipe size and flange type you're ordering. Check outside diameter, thickness, bolt-circle diameter, bolt-hole count and diameter, bore, and facing against ASME B16.5 Table 11 for your size.
What are the dimensions of a Class 300 blind flange?
Blind-flange dimensions must be selected by NPS and Class 300 from the current B16.5 table, since blind flanges have no bore. Review outside diameter, thickness, bolt-circle diameter, and facing against that specific row and your project drawing.
What is the thickness of a Class 300 flange?
Thickness isn't one value across the board. It varies by nominal pipe size and flange type, so check the relevant row in ASME B16.5 Table 11 for your exact NPS and flange type.
What is the diameter of a 3-inch flange?
That usually means an NPS 3 flange, but "diameter" can mean outside diameter, bolt-circle diameter, bore, or pipe outside diameter. Specify which dimension and flange type you need before pulling a figure from the chart.
