Introduction
On June 28, 2021, a leaking mainline valve near Farmersville, Texas, allowed natural gas to seep into a pig launcher during routine loading. The gas mixed with air and ignited, killing two workers and injuring two more.
The NTSB's October 2022 investigation report traced the failure directly back to that single valve.
One faulty isolation point cost two lives. That's the reality behind every shutoff valve on a pipeline system.
When isolation fails, the consequences cascade fast: worker and public exposure, fires or explosions, environmental releases, damaged equipment, halted production, and regulatory scrutiny that can follow a company for years.
Shutoff valves are the last line of defense against these outcomes, but a valve is only as reliable as the selection, installation, access, inspection, and procedures surrounding it. This guide breaks down what that actually requires.
Key Takeaways
- Shutoff valves isolate sections for emergencies, maintenance, and testing—not a full detection and response system
- A closed valve is never proof of zero energy; verify isolation before breaking containment
- Match valves and actuators to the media, pressure, temperature, and required response time
- Inspect and test valves according to current regulations and manufacturer guidance, not guesswork
Safety Guidelines for Pipeline Shutoff Valves
Valve safety touches mechanical, pressure, chemical, fire, electrical, and control-system hazards simultaneously. A valve that's mechanically sound but poorly documented is just as dangerous as one that's corroded but well-labeled.
Reliable isolation isn't a single checkpoint. It runs through selection, installation, commissioning, routine operation, inspection, testing, maintenance, and emergency response. Every stage feeds the next.
Only trained and authorized personnel should operate, inspect, repair, or test pipeline shutoff valves. Nothing here overrides your facility's written procedures or emergency plan; those documents govern, always.
General Safety Precautions
Before anyone touches a valve, a pre-job review needs to confirm:
- The correct pipeline segment and valve tags or location
- Product hazards, pressure, and temperature conditions
- Flow direction and adjacent systems that could reintroduce energy
- Access routes, communication methods, and emergency contacts
PPE requirements depend on the product, task, and hazard assessment:
- Eye and face protection
- Gloves and protective clothing
- Safety footwear
- Hearing or respiratory protection
- Flame-resistant clothing
Keep valve stations, actuators, vents, drains, and escape routes clear. Poor lighting, unstable ground, ice, flooding, vegetation, and traffic all create real hazards that need to be addressed before work starts, not during it.
Lockout/tagout matters here. Under OSHA 29 CFR 1910.147(d)(6), the authorized employee must verify that isolation and deenergization have actually been accomplished before work begins on locked-out equipment. Verification isn't optional paperwork; it's the step that catches the valve that looks closed but isn't fully seated.

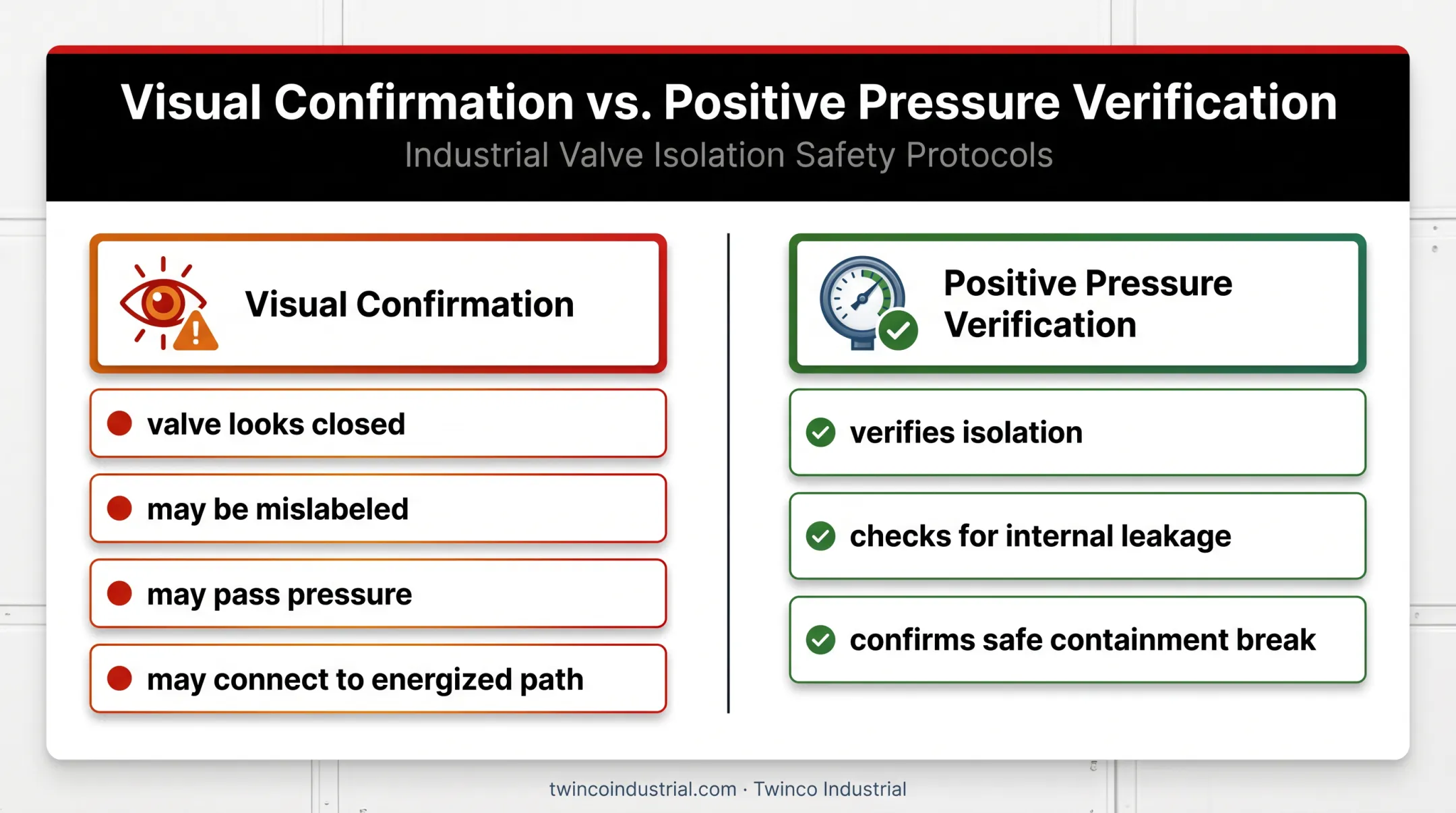

A valve can leak internally, pass pressure, get mislabeled, or stay connected to another energized path. Positive pressure verification, not visual confirmation alone, is what tells you it's safe to break containment.
Safety During Installation
Installation carries its own hazard profile: stored pressure, residual product, line movement, dropped objects, pinch points, and hot work near the valve. None of these disappear just because the system isn't operating yet.
Before installation, confirm the valve's:
- Type, size, and pressure class match the service
- End connection and material compatibility suit the media
- Trim, actuator configuration, and flow direction are correct
- Required certifications are documented
Piping needs proper support and alignment. A valve should never be used to correct pipe misalignment or absorb unintended mechanical loads. That includes careful attention to lifting, positioning, bolting, gasket installation, and controlled torque during bolt-up.
Stop the installation if:
- The line can't be positively isolated
- The product or pressure is unknown
- Components are damaged or misspecified
- Permits are missing
- Qualified supervision isn't available
Pushing through any of those conditions doesn't save time. It just moves the risk downstream.
When a project needs a replacement valve, flange, gasket, or specialty bolting item on short notice, sourcing can become the bottleneck. Twinco Industrial works with pipeline and refinery contractors to identify compatible components for exactly these situations, particularly when a spec turns out wrong on arrival mid-shutdown.
Safety While Using or Operating Shutoff Valves
Isolation and throttling are not the same job. Gate and ball valves are built for on/off service. Other valve types, like globe valves, are designed for regulation. Using a valve outside its intended service is one of the fastest ways to damage a seat or seal.

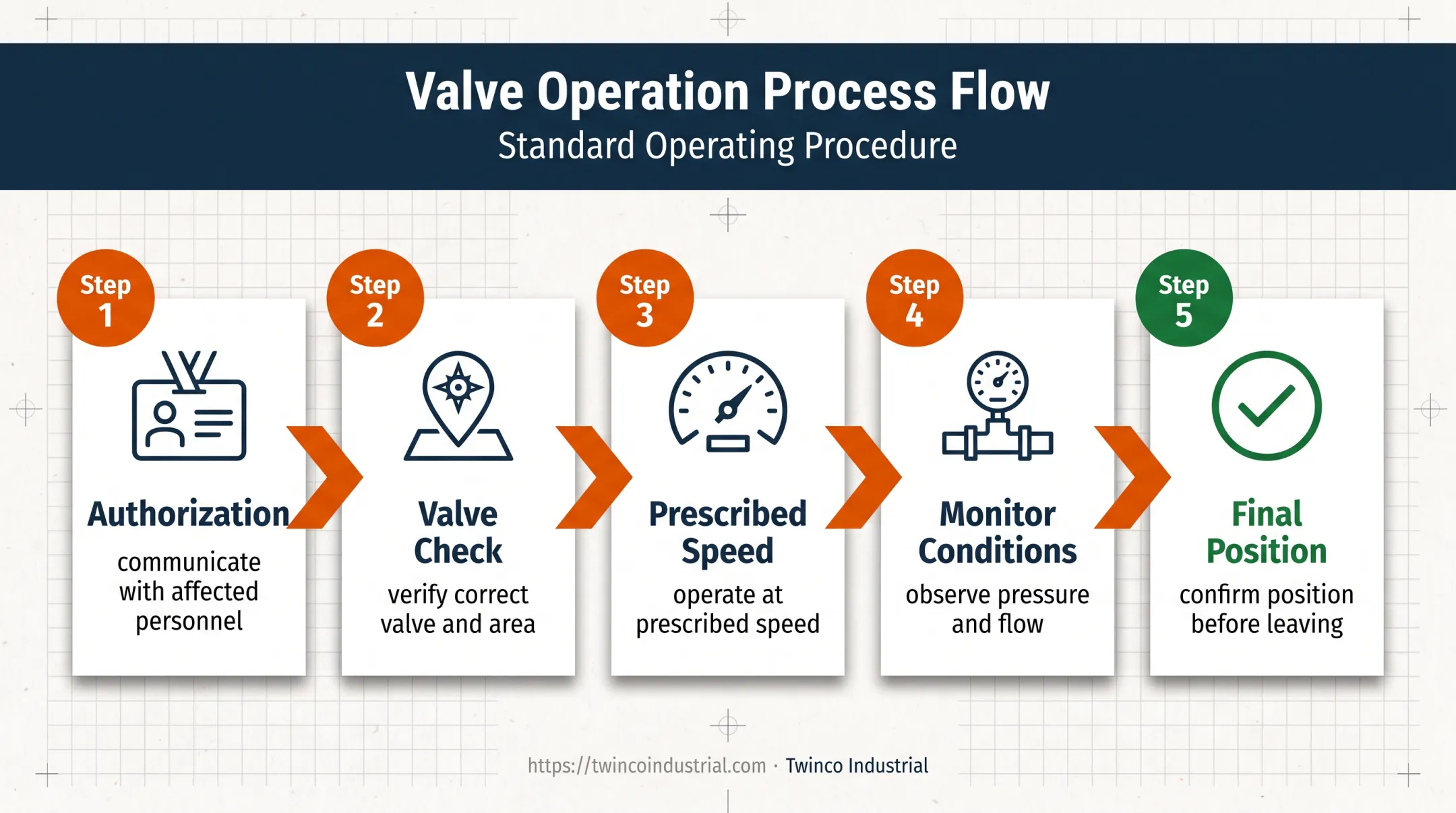

Safe operation follows a sequence:
- Confirm authorization and communicate with affected personnel
- Verify it's the correct valve and check the surrounding area
- Operate at the prescribed speed
- Observe pressure and flow indications throughout
- Confirm the final valve position before walking away
Manual handles, gear operators, pneumatic and electric actuators, and remote-control systems all behave differently. Know what happens to each one after a loss of power, air, hydraulics, or communications, because that's exactly when you'll need the answer.
Stop and escalate if you notice:
- Unexpected resistance or abnormal noise
- Leakage or actuator malfunction
- Incorrect position feedback
- Pressure that doesn't respond as expected
Never bypass interlocks, force a seized valve, or defeat alarms to keep a job moving. Forcing operation can damage the stem, seat, or containment boundary, turning a minor delay into a major failure.
After operation, confirm the result through position indicators, pressure readings, and leak checks. Critical valves may need functional testing and independent verification before anyone relies on them in an emergency.
Environmental and System Safety Considerations

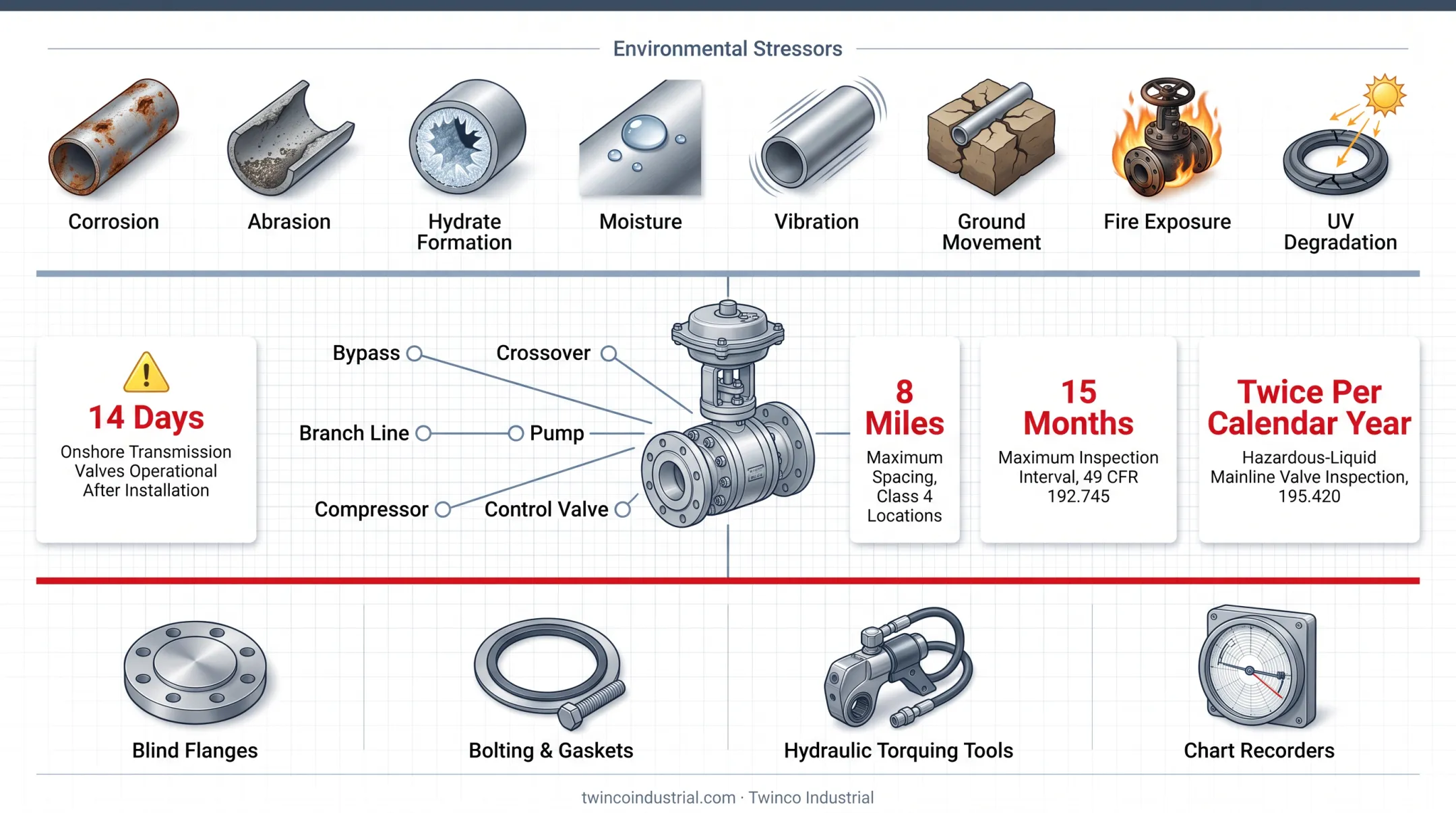

Reliability degrades under real-world conditions. Corrosive or abrasive media, hydrate formation, moisture, vibration, ground movement, fire exposure, and UV degradation all chip away at a valve's ability to seal and actuate on demand.
No valve operates in isolation, literally. Bypasses, crossovers, branch lines, pumps, compressors, and control valves all interact with the primary isolation point. A system-level review catches problems that a single-valve inspection misses. Regulators apply that same system view to valve placement and spacing.
Federal pipeline regulations set specific spacing and accessibility rules. Onshore transmission segments meeting certain rupture-mitigation criteria must have valves operational within 14 days of installation, with maximum spacing as tight as 8 miles in Class 4 locations.
Testing frequency isn't arbitrary. Under 49 CFR 192.745, emergency-use transmission valves must be inspected and partially operated at intervals no longer than 15 months. Hazardous-liquid mainline valves face a tighter schedule under 195.420, requiring inspection twice per calendar year.
Planned isolation and pressure testing often require blinds, gaskets, bolting, or hydraulic torquing equipment on short lead times. Twinco Industrial supplies and rents these components, including chart recorders for documenting pressure and temperature results, for teams running scheduled shutdowns or hydrostatic testing.
Common Safety Mistakes to Avoid
Most valve-related incidents trace back to a handful of recurring mistakes—not rare equipment failures.
- Skipping identification and verification. Outdated drawings and bad tags put crews on the wrong valve. In a 2023 Pennsylvania emergency response, a paved-over valve and mismatched ID nearly isolated the wrong line—always field-verify against current documentation.
- Treating a closed valve as proof of zero energy. Trapped pressure, passing seats, and thermal expansion can leave hazardous energy behind a "closed" isolation point.
- Using the wrong valve for the service. Wrong pressure class, temperature rating, or media compatibility causes leakage, seizure, or failed isolation when it matters.
- Ignoring degraded condition. Corrosion, leaking packing, faulty position indicators, and failed communications are signals to report and correct, not work around.
- Bypassing procedures under schedule pressure. Rushed moves and unapproved overrides in emergencies usually make releases worse, not better.
Conclusion
Reliable pipeline isolation depends on correctly specified equipment, positive verification, trained operation, and inspection routines that hold up under real conditions. No single element carries the whole job.
Treat every valve operation as a controlled safety activity, not a routine step. Verify current regulatory, manufacturer, and site-specific requirements before work begins, every time, regardless of how many times you've done it before.
Frequently Asked Questions
What are the different types of pipe shutoff valves?
Common types include gate, ball, globe, butterfly, and plug valves, each suited to different pressure and flow conditions. Check valves prevent reverse flow but aren't normally a substitute for a positive shutoff valve.
What type of valve is used in a gas pipeline?
Gas pipelines commonly use ball, gate, or plug valves depending on pressure, diameter, and service requirements. Certain locations require automatic or remotely controlled shutoff capability under federal regulations.
Why are shutoff valves important for pipeline safety?
They isolate pipeline segments during failures, maintenance, and emergencies, limiting continued flow. That isolation directly protects workers, the public, and the surrounding environment.
Can a shutoff valve be used to control flow?
On/off valves like gate and ball valves aren't built for prolonged partial opening. Using them that way can cause erosion, vibration, or damage unless the valve is specifically rated for throttling.
What should be checked before closing or opening a pipeline shutoff valve?
Confirm authorization, valve identification, and system pressure conditions first. Then communicate with affected personnel and verify actuator condition against the approved operating procedure.
How often should pipeline shutoff valves be inspected and tested?
Frequency depends on applicable PHMSA requirements, valve criticality, and your integrity-management program. Federal rules set maximums, such as 15 months for certain gas transmission valves, but site conditions may require more frequent checks.
