Introduction
ASTM A106 Grade B is one of the most frequently specified pipe materials in refineries, power plants, and process facilities across the US. But specifying it correctly takes more than matching a grade name on a purchase order.
Many procurement teams and contractors run into trouble when they assume "Grade B" automatically means a pipe is ready for their application. It doesn't.
This article breaks down what ASTM A106 Grade B actually covers and how it compares to similar-sounding standards like ASTM A53 and API 5L. You'll see where it fits in real piping systems and which details to confirm before placing an order.
We separate the material specification from the manufacturing method, service conditions, dimensions, testing requirements, and documentation. Each of those pieces matters independently.
Key Takeaways
- ASTM A106 Grade B is the most commonly specified seamless carbon steel pipe for high-temperature service.
- NPS, schedule, end preparation, and testing—not Grade B chemistry alone—determine actual fit.
- A106 Grade B is not automatically interchangeable with A53 Grade B, API 5L Grade B, or A105 forgings.
- Confirm the current specification edition, MTR, and engineering approval before accepting any substitution.

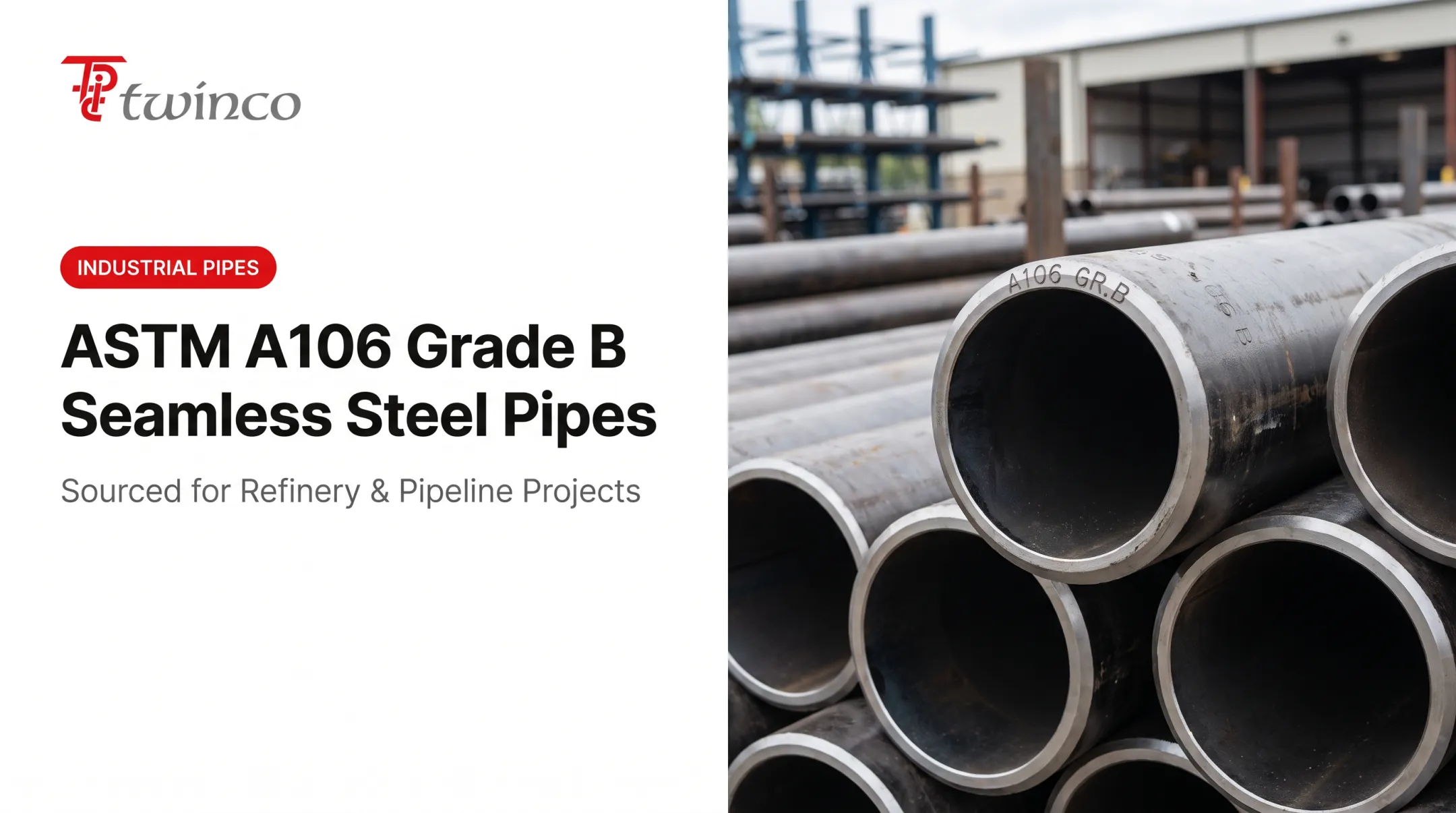

What ASTM A106 Grade B Seamless Pipe Is
ASTM A106/A106M is titled Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service. That title tells you almost everything you need to know about intent: this is a seamless product, made from carbon steel, engineered for service where elevated temperature is a design factor.
According to ASTM's published scope for A106/A106M, the specification covers pipe from NPS 1/8 through NPS 48, with wall thicknesses referenced to ASME B36.10M. The pipe is also suitable for welding, bending, flanging, and similar forming operations.
Seamless vs. Welded: Why the Manufacturing Route Matters
Seamless pipe is formed without a longitudinal weld seam. Welded pipe (like much of ASTM A53) is formed by rolling steel into a cylinder and welding the seam closed.
For high-temperature and high-pressure process piping, many project specifications require seamless construction specifically because it removes the weld seam as a potential failure point under cyclic thermal loading.
If your project spec calls for seamless pipe, a welded substitute doesn't satisfy that requirement, regardless of grade.
Grades A, B, and C
A106 covers three grades:
- Grade A – lower carbon and strength limits
- Grade B – mid-range strength; the grade most often specified for process piping
- Grade C – higher strength, used less frequently
Grade B isn't automatically the "better" choice. It's simply the grade most often matched to typical process temperature and pressure ranges in refining and power generation. A higher grade doesn't help if your application doesn't need the added strength, and it may carry different weldability or cost considerations.
What A106 Does Not Define
A106 sets material and manufacturing requirements. It does not define your design pressure, corrosion allowance, insulation needs, coating requirements, or piping-code compliance. Those come from your project specification and the governing construction code.
Separately, watch the A106 vs. SA106 label on purchase orders. ASTM publishes the material specification; ASME incorporates it into construction codes under the SA designation. Orders often reference either ASTM A106/A106M or ASME SA106/SA106M. Confirm which one your project requires and check the applicable code edition rather than assuming the two names are always interchangeable.
ASTM A106 Grade B Specifications and Quality Requirements
Grade B chemistry and mechanical properties are edition-dependent, so always confirm figures against the current standard. The values below reflect commonly referenced Grade B requirements.
Chemical Composition (Grade B, mass %)
| Element | Limit |
|---|---|
| Carbon | 0.30 max |
| Manganese | 0.29–1.06 |
| Phosphorus | 0.035 max |
| Sulfur | 0.035 max |
| Silicon | 0.10 min |
| Chromium | 0.40 max |
| Copper | 0.40 max |
| Molybdenum | 0.15 max |
| Nickel | 0.40 max |
| Vanadium | 0.08 max |
Mechanical Requirements
- Minimum tensile strength: 60,000 psi (415 MPa)
- Minimum yield strength: 35,000 psi (240 MPa)
- Elongation (full-section): 30% longitudinal / 16.5% transverse
- Elongation (2-in round specimen): 22% longitudinal / 12% transverse
Don't collapse these into one generic elongation figure on a spec sheet. The test specimen matters.
Dimensions and Manufacturing
NPS and schedule work together to define outside diameter and wall thickness, per ASME B36.10M. Schedule is not a material grade; it's a dimensional callout, and it needs to be checked against the current B36.10M edition for your size.
Manufacturing route depends on NPS:
- NPS 1-1/2 and smaller may be hot-finished or cold-drawn.
- NPS 2 and larger is typically hot-finished unless cold-drawn is agreed upon.
- Cold-drawn pipe must be heat-treated after the final draw at 1,200°F (650°C) or higher.
- Hot-finished pipe generally does not require this heat treatment.
Testing and Documentation
Each pipe length typically undergoes hydrostatic testing without leakage. Nondestructive electric testing (E213, E309, or E570) may be used as an alternative in some cases and is marked "NDE" on qualifying pipe.
Supplementary requirements are optional and apply only when ordered:
- Product analysis
- Transverse tension testing
- Enhanced flattening tests
- Metallographic examination
- Impact testing
- Internal cleanliness requirements
Before accepting delivery, request and review:
- Material test report (MTR)
- Heat and cast identification
- Chemical analysis
- Mechanical test results
- Dimensional records
- Any dual-certification language
Where ASTM A106 Grade B Is Used—and Where It May Not Be Suitable
A106 Grade B shows up most often in:
- Refineries and petrochemical plants
- Power generation facilities (boiler and turbine piping)
- Process piping systems handling elevated-temperature fluids or gases
- Industrial facilities requiring seamless construction for pressure integrity
Those process and pipeline jobs are exactly where Twinco's carbon steel pipe inventory focuses ASTM A106, alongside ASTM A53 and API 5L. Sizes run 1/2" through 60"+ in STD, XS, XXS, and specialty schedules.

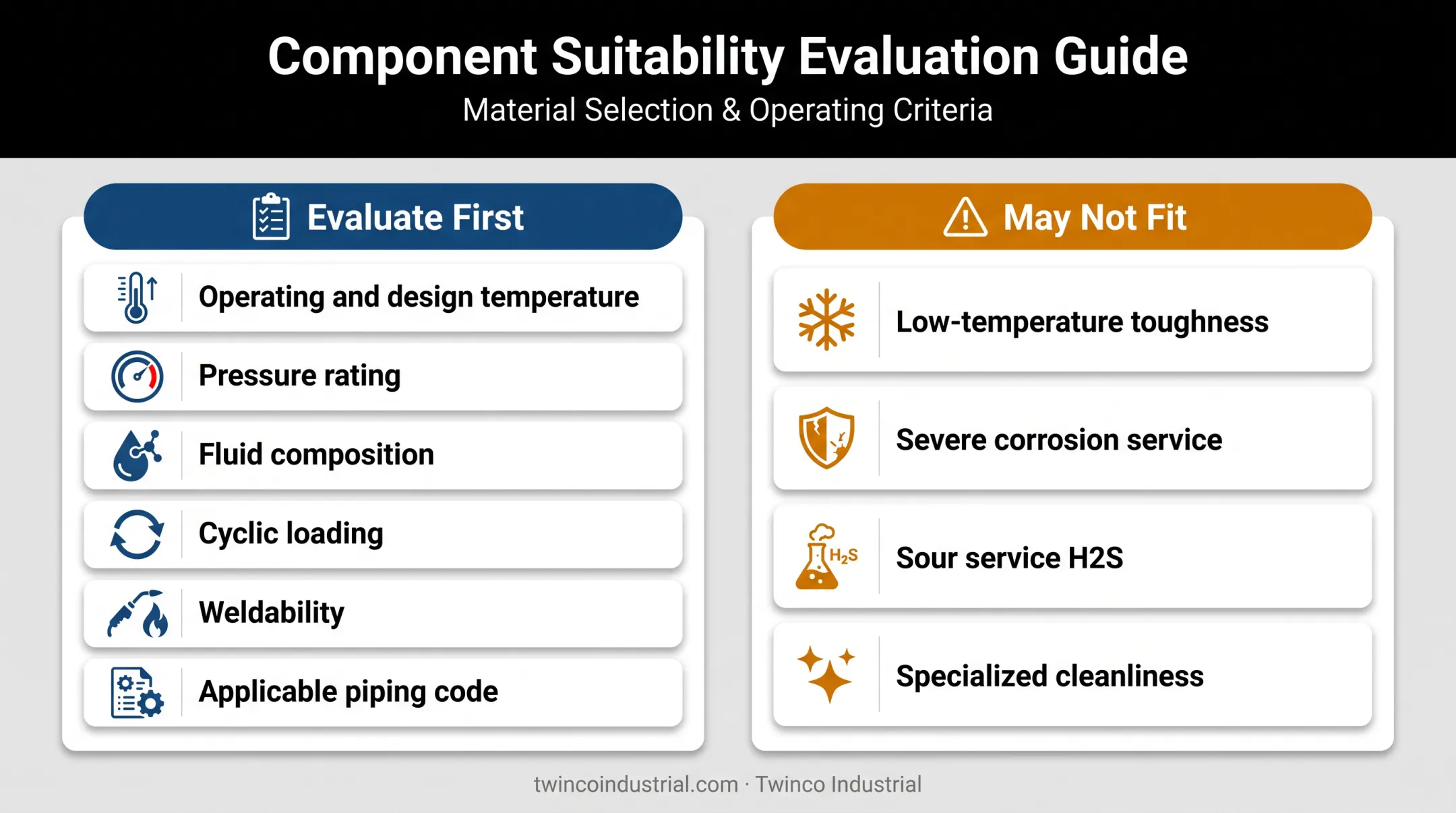

Service Conditions to Evaluate
Before specifying A106 Grade B, engineers need to check:
- Operating and design temperature: not just the material's general "high-temperature" classification
- Pressure rating: combined with wall thickness and allowable stress
- Fluid composition: corrosion and erosion potential
- Cyclic loading: thermal or mechanical fatigue exposure
- Weldability: filler metal and procedure compatibility
- Applicable piping code: ASME B31.1 or B31.3, typically
Where It May Not Fit
A106 Grade B is not automatically qualified for every scenario. Consider a supplementary spec or alternate material when your application involves:
- Low-temperature toughness needs (impact-tested grades such as ASTM A333 are typical)
- Severe corrosion service where carbon steel lacks adequate resistance
- Sour service (H2S), which may require NACE-compliant material controls
- Specialized cleanliness or hydrofluoric-acid alkylation service
The pipe barrel is only one part of the system. Ends, joining method, fittings, flanges, gaskets, and valves must match the full piping design—not the pipe grade alone.

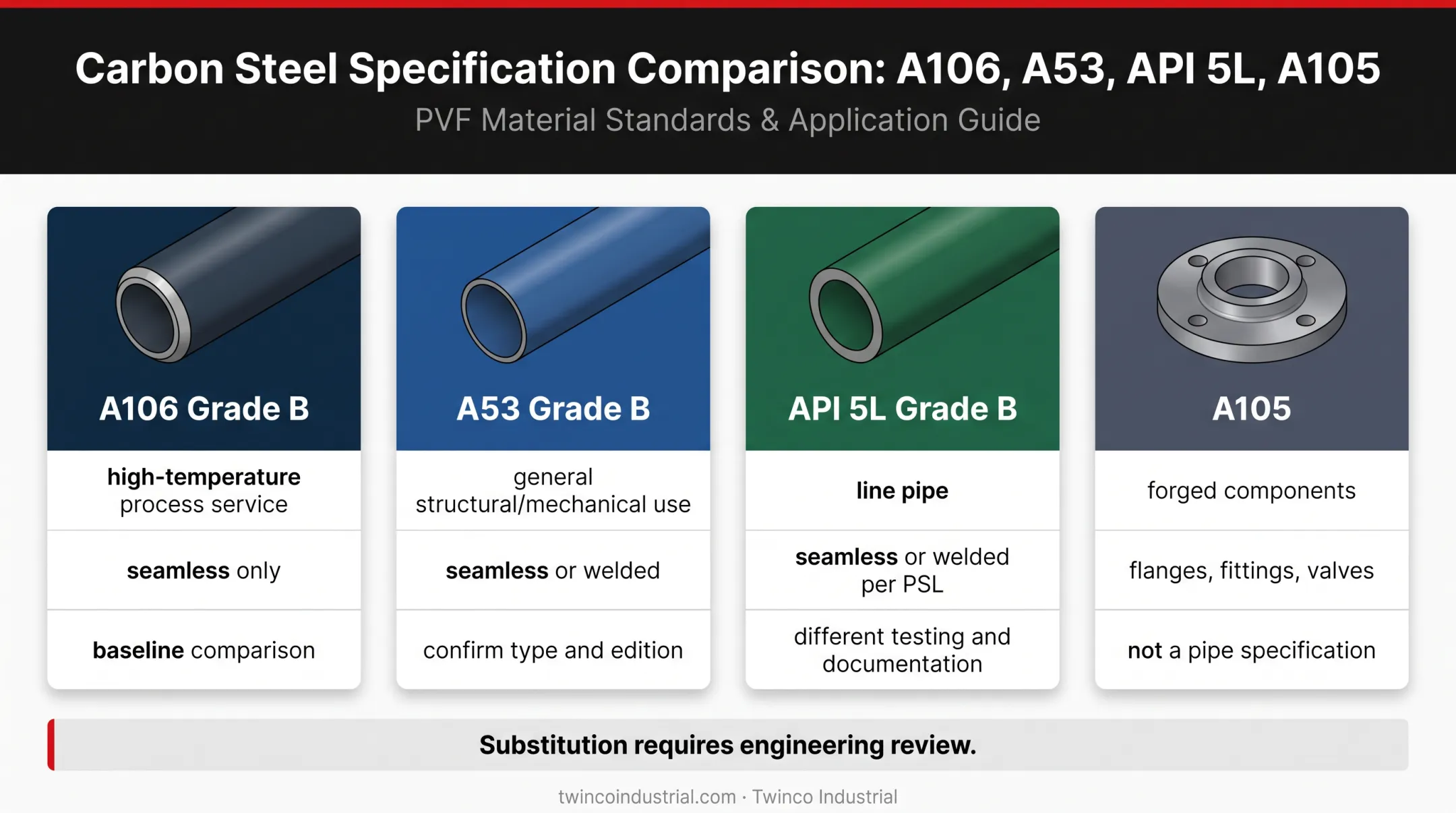

A106 Grade B Compared With Other Pipe Standards
Buyers frequently confuse A106 Grade B with other "Grade B" or similarly numbered standards. Here's how they actually differ.
| Standard | Product Form | Primary Intent | Manufacturing | Substitution Caution |
|---|---|---|---|---|
| A106 Grade B | Seamless pipe | High-temperature process service | Seamless only | Baseline for this comparison |
| A53 Grade B | Seamless or welded pipe | General structural/mechanical use | Seamless (Type S), ERW (Type E), furnace-butt-welded (Type F) | Not interchangeable without confirming type and edition |
| API 5L Grade B | Line pipe | Pipeline transmission | Seamless or welded, per PSL | Different testing, marking, and documentation regime |
| A105 | Forged components | Flanges, fittings, valves | Forging | Not a pipe specification at all |
A106 vs. A53
ASTM A53/A53M covers black and galvanized pipe in both seamless and welded forms, NPS 1/8 through NPS 26. A53 Type S (seamless) Grade B looks similar to A106 Grade B on paper.
A53 does not carry A106's minimum 0.10% silicon requirement, and it is not written specifically for high-temperature service. Seeing "Grade B" on both certificates does not make the grades equivalent.
A106 vs. API 5L
API 5L Grade B is a line pipe specification, built around transmission and gathering applications rather than plant process piping. It has its own PSL 1/PSL 2 product-level requirements, testing regime, and marking rules. Don't substitute one for the other based on grade name alone.
A106 vs. A105
This comparison comes up often because the numbers look related. ASTM A105/A105M covers forged carbon steel components, meaning flanges, fittings, and valve bodies, not pipe. A105 is relevant to the components connected to your A106 pipe run, not a substitute for the pipe itself.
On commercial "equivalents": dual certification exists, and some grades are technically comparable. A true substitution still needs engineering review against the governing piping code—not a grade-name match on a data sheet.
How to Select and Specify ASTM A106 Grade B Pipe
Before requesting a quote, put together a complete specification. A partial spec is where substitution problems start.

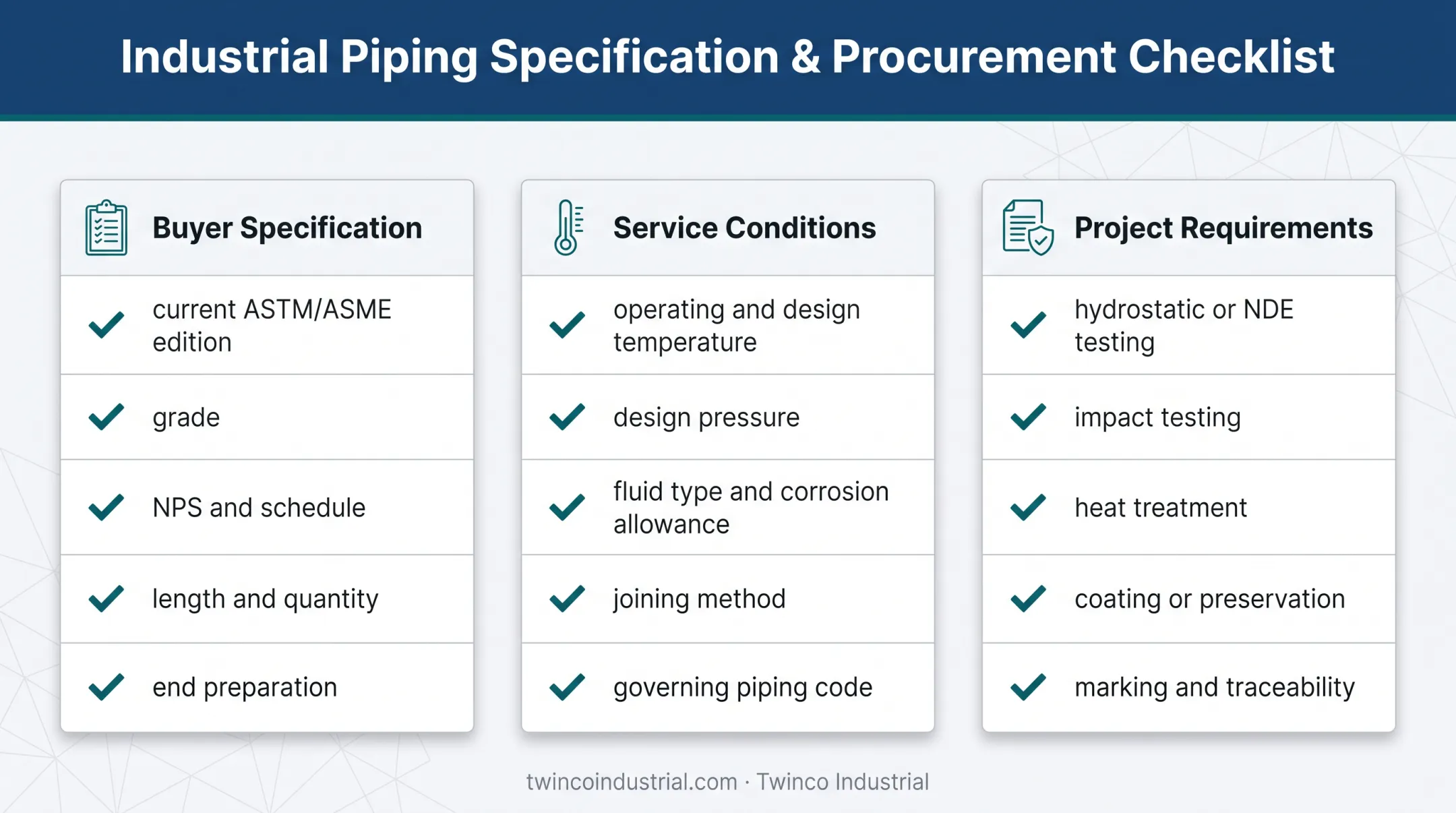

Buyer's Specification Checklist
- ASTM/ASME designation and current edition
- Grade (A, B, or C)
- NPS, outside diameter, and schedule or wall thickness
- Length and quantity
- End preparation (plain-end, beveled-end, or other)
Define Service Conditions
Before you call a supplier, nail down:
- Operating and design temperature
- Design pressure
- Fluid type and corrosion allowance
- Joining method
- Governing piping or construction code (ASME B31.1, B31.3, etc.)
Project-Specific Requirements to Confirm
- Hydrostatic or nondestructive testing requirements
- Impact or other supplementary testing
- Heat treatment needs
- Coating or preservation for storage/transport
- Marking, packing, and traceability requirements
Also confirm that connected fittings, flanges, gaskets, bolting, and valves match your system design. Ordering pipe in isolation from the rest of the joint assembly is a common source of field problems.
Reviewing Supplier Documentation
Don't rely on a product label alone. Check the MTR for:
- Heat number matching the physical pipe marking
- Grade confirmation
- Dimensional records
- Test results (tensile, hydrostatic, NDE where applicable)
- Any dual-certification language, and what it actually certifies
If you're sourcing ASTM A106 Grade B pipe for a refinery turnaround, pipeline tie-in, or process piping project, Twinco Industrial's team can help check availability and specialty sourcing against your exact size, schedule, and certification needs.
Twinco's broader piping component inventory also covers valves, fittings, flanges, gaskets, and bolting for the rest of your system, plus rental blind flanges and hydrostatic testing support for maintenance and shutdown work.
Reach the team at 713-733-8946 (weekend line: 832-754-6831) or info@twincoindustrial.com to discuss your project requirements before you finalize a purchase order.
Frequently Asked Questions
What does ASTM A106 stand for and what does it cover?
ASTM A106 is the specification for seamless carbon steel pipe for high-temperature service. The exact chemical, mechanical, and dimensional requirements depend on the current specification edition, so always check the applicable revision before ordering.
Is ASTM A106 a seamless pipe?
Yes, A106 is a seamless pipe specification by definition. Seamless construction alone doesn't determine grade, schedule, pressure rating, or overall suitability for your application.
What materials are equivalent to ASTM A106 Grade B?
ASTM A53 Grade B and API 5L Grade B are commonly compared to A106 Grade B, but none are automatically interchangeable substitutes. Dual certification exists in the market, but engineering approval against the governing code is still required.
What are the differences between ASTM A53 B and ASTM A106 B steel pipes?
A53 covers seamless and welded pipe for general use, while A106 is seamless-only and written for high-temperature service. Chemistry differs too, including A106's minimum silicon requirement. Always check the current edition before substituting .
What is the difference between ASTM A105 and A106?
A105 covers forged carbon steel components like flanges, fittings, and valve bodies. A106 covers seamless pipe. They're different product forms used for different parts of a piping system, not alternatives to each other.
What is the temperature range for ASTM A106 Grade B pipes?
There's no single universal temperature rating for A106 Grade B. Allowable stress depends on design temperature, pressure, wall thickness, and the governing ASME construction code. Verify these figures for your application before finalizing a design.
